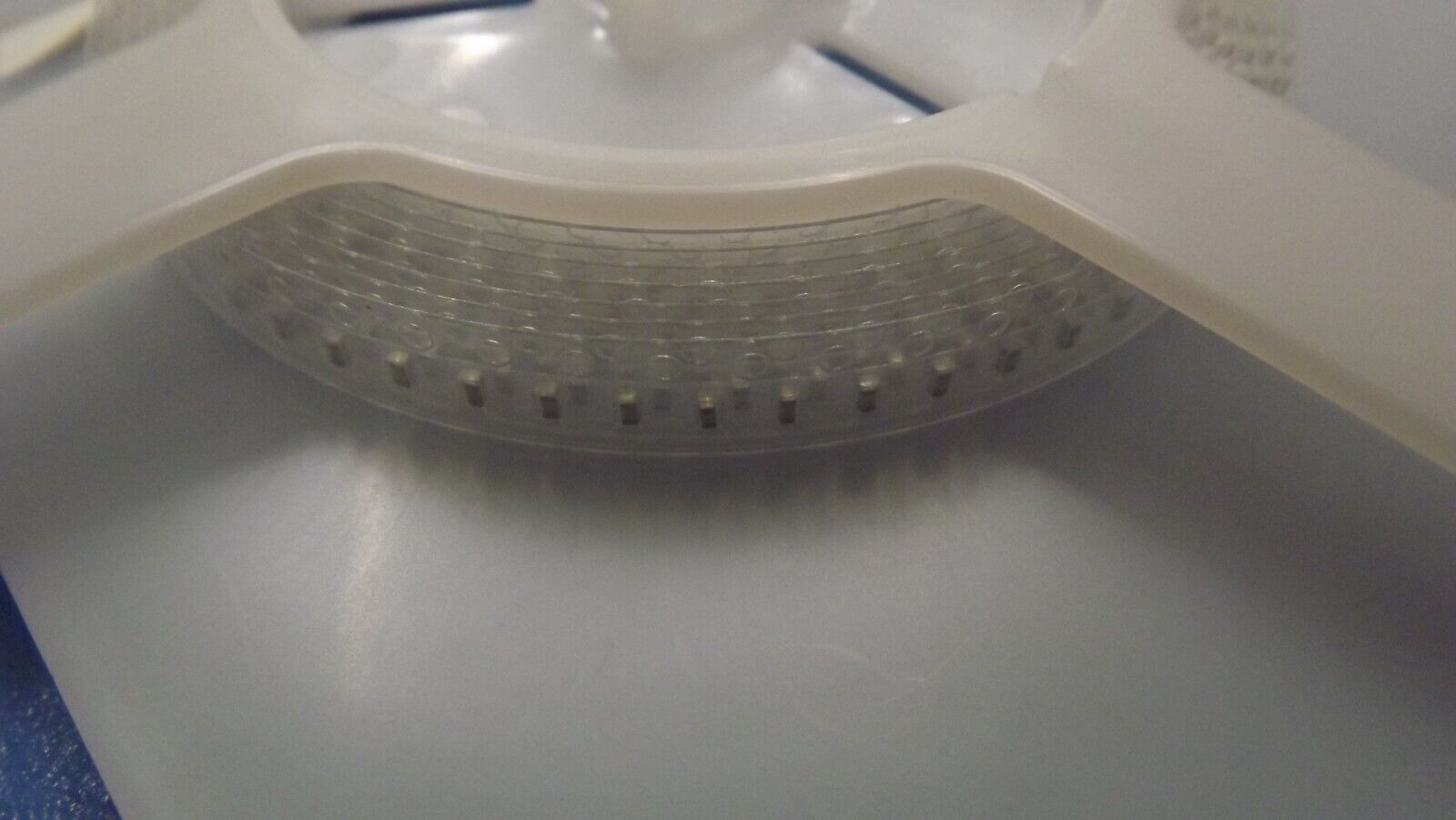

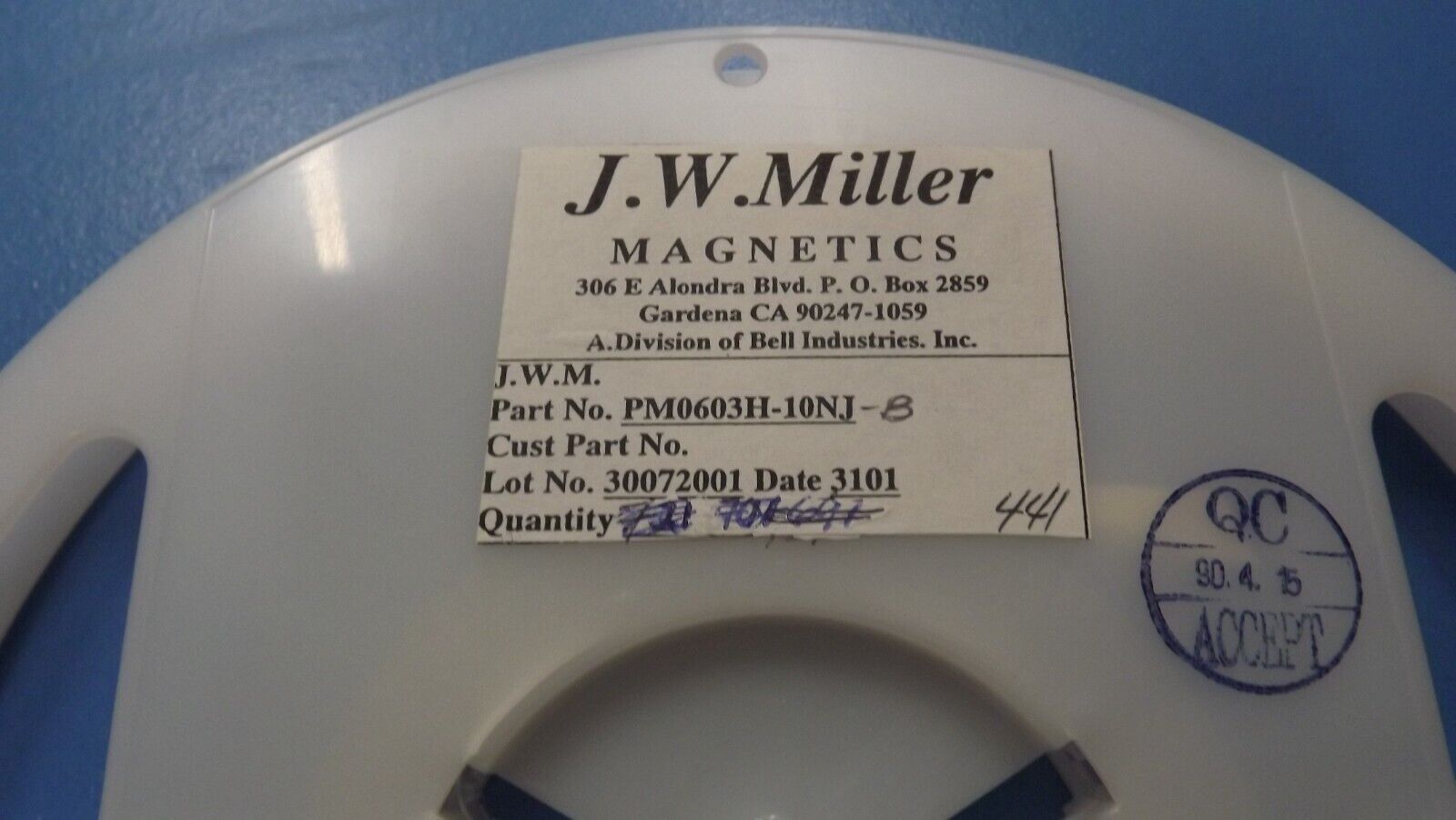

(20 PC) PM0603H-10NJ 10 nH Unshielded Multilayer Inductor 300 mA 260mOhm Max
Tax included.
(20 PC) PM0603H-10NJ 10 nH Unshielded Multilayer Inductor 300 mA 260mOhm Max
| Mfr Package Description | CHIP, 0603 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Case/Size Code | 0603 |
| Construction | Monolithic |
| Core Material | FERRITE |
| DC Resistance | 0.26 ohm |
| Inductance-Nom (L) | 0.01 µH |
| Inductor Application | RF INDUCTOR |
| Manufacturer Series | PM0603H |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -25.0 Cel |
| Operating Temperature-Max | 105.0 Cel |
| Package Height | 0.8 mm |
| Package Length | 1.6 mm |
| Package Width | 0.8 mm |
| Packing Method | TR |
| Quality Factor-Min (at L-nom) | 14.0 |
| Rated Current-Max | 0.3 A |
| Self Resonance Frequency | 2850.0 MHz |
| Series | PM0603H |
| Shape/Size Description | RECTANGULAR PACKAGE |
| Shielded | NO |
| Surface Mount | YES |
| Terminal Placement | DUAL ENDED |
| Terminal Shape | WRAPAROUND |
| Test Frequency | 100.0 MHz |
| Tolerance | 5.0 % |
