(2 PSC) C93412 AXICOM RELAY, SIGNAL, DPDT, 250VAC, 220VDC, 2A
Tax included.

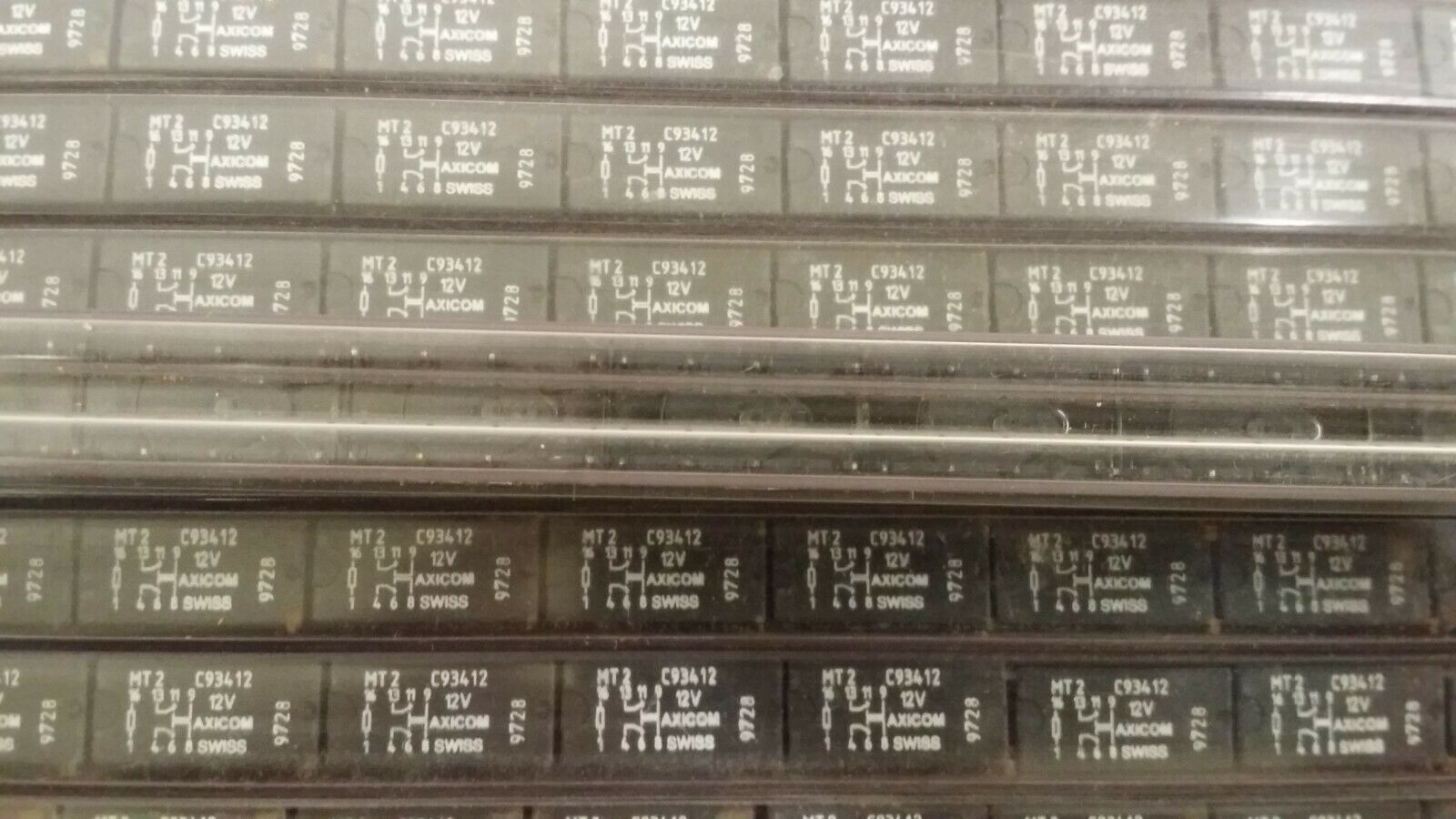

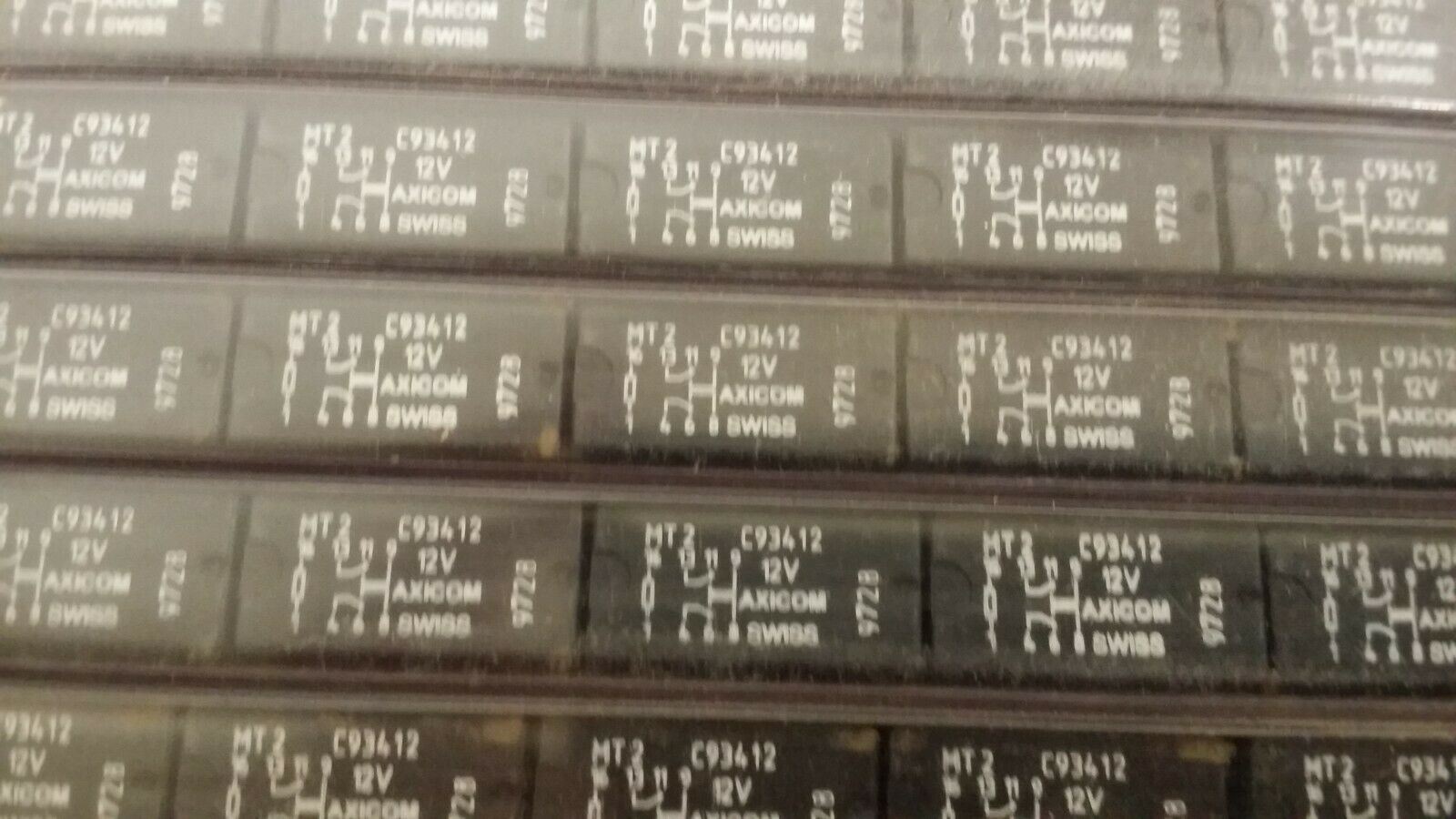

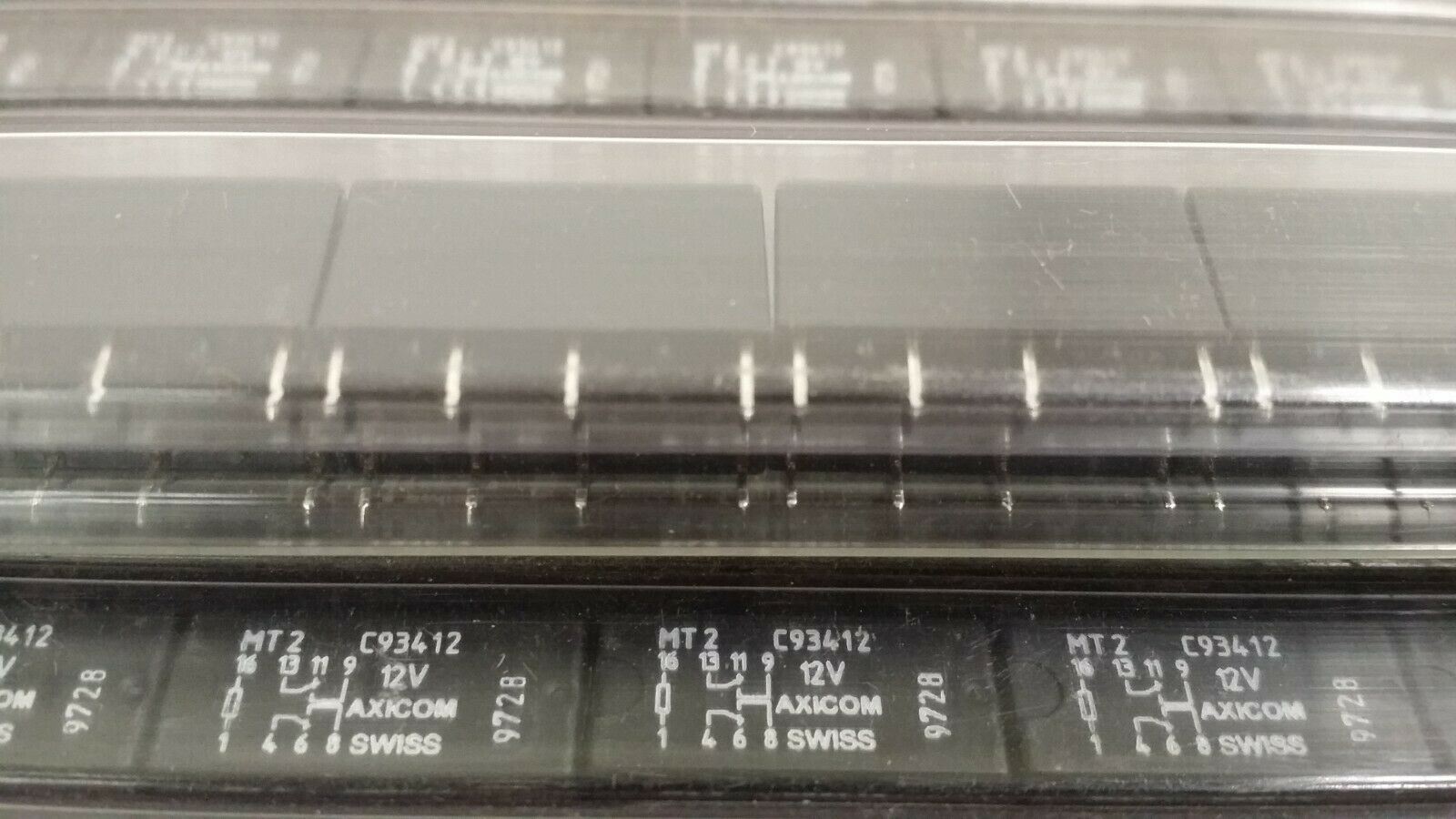

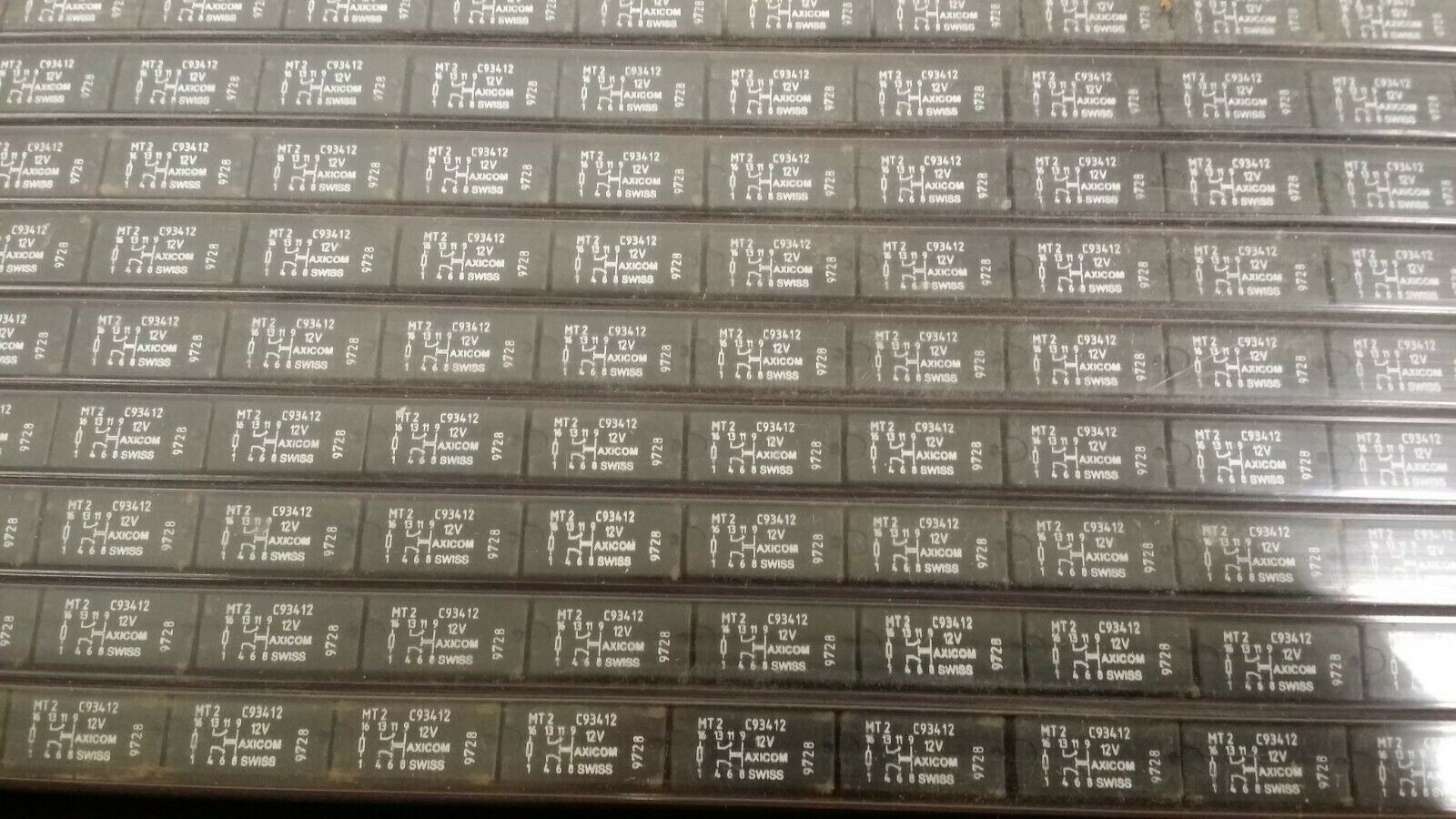

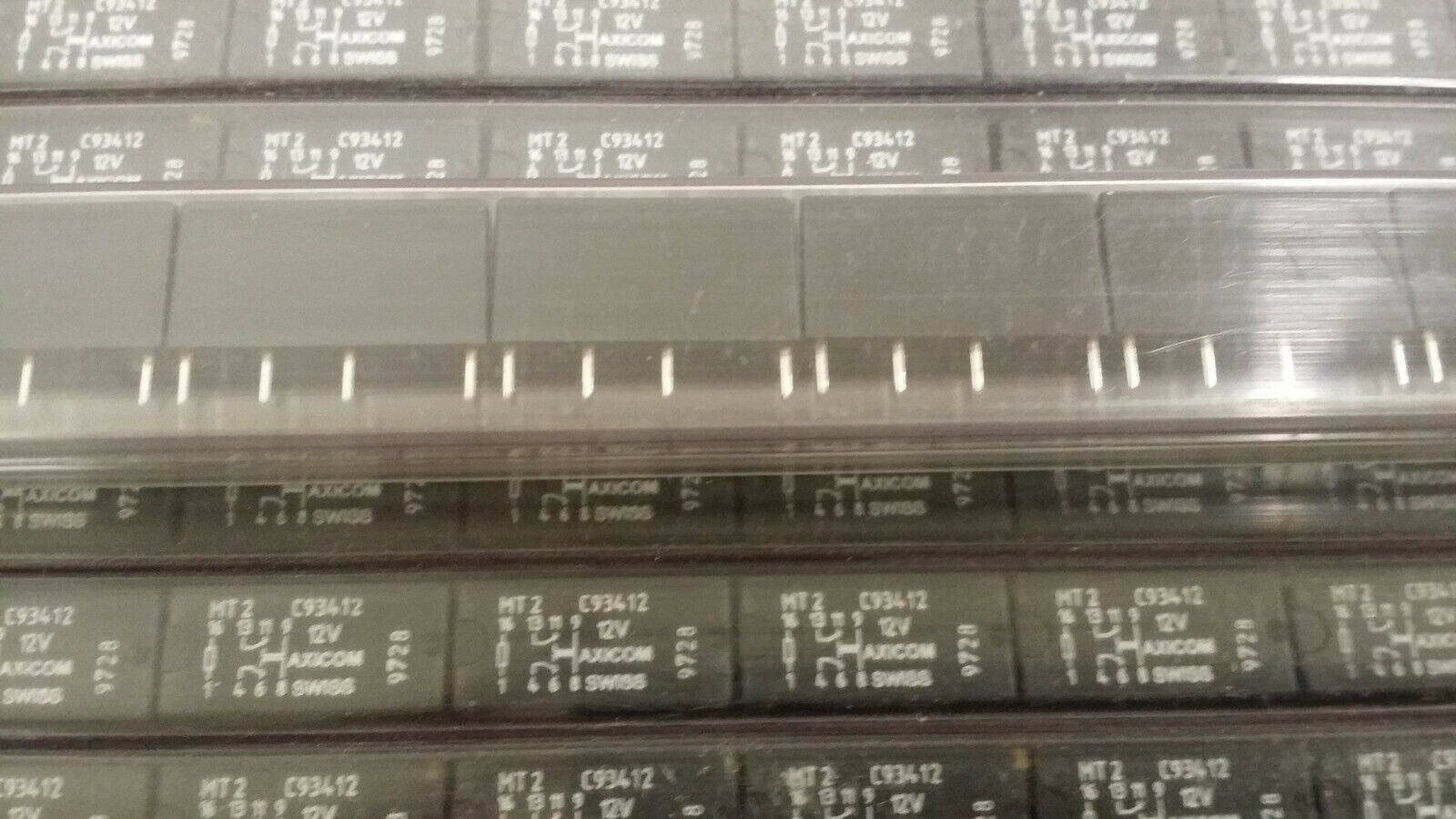

THIS LISTING IS FOR (2 PSC) OF C93412 BY AXICOM
RELAY, SIGNAL, DPDT, 250VAC, 220VDC, 2A
Series MT2, AXICOM
Packaging Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 25mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation -
Must Operate Voltage 8.25 VDC
Must Release Voltage 1.2 VDC
Operate Time 5ms
Release Time 3ms
Operating Temperature -55°C ~ 85°C
Relay Type Telecom
Coil Resistance 515 Ohms
