(2 PCS) W39L020P-70B WINBOND Flash, 256KX8, 70ns, PLCC32
Tax included.

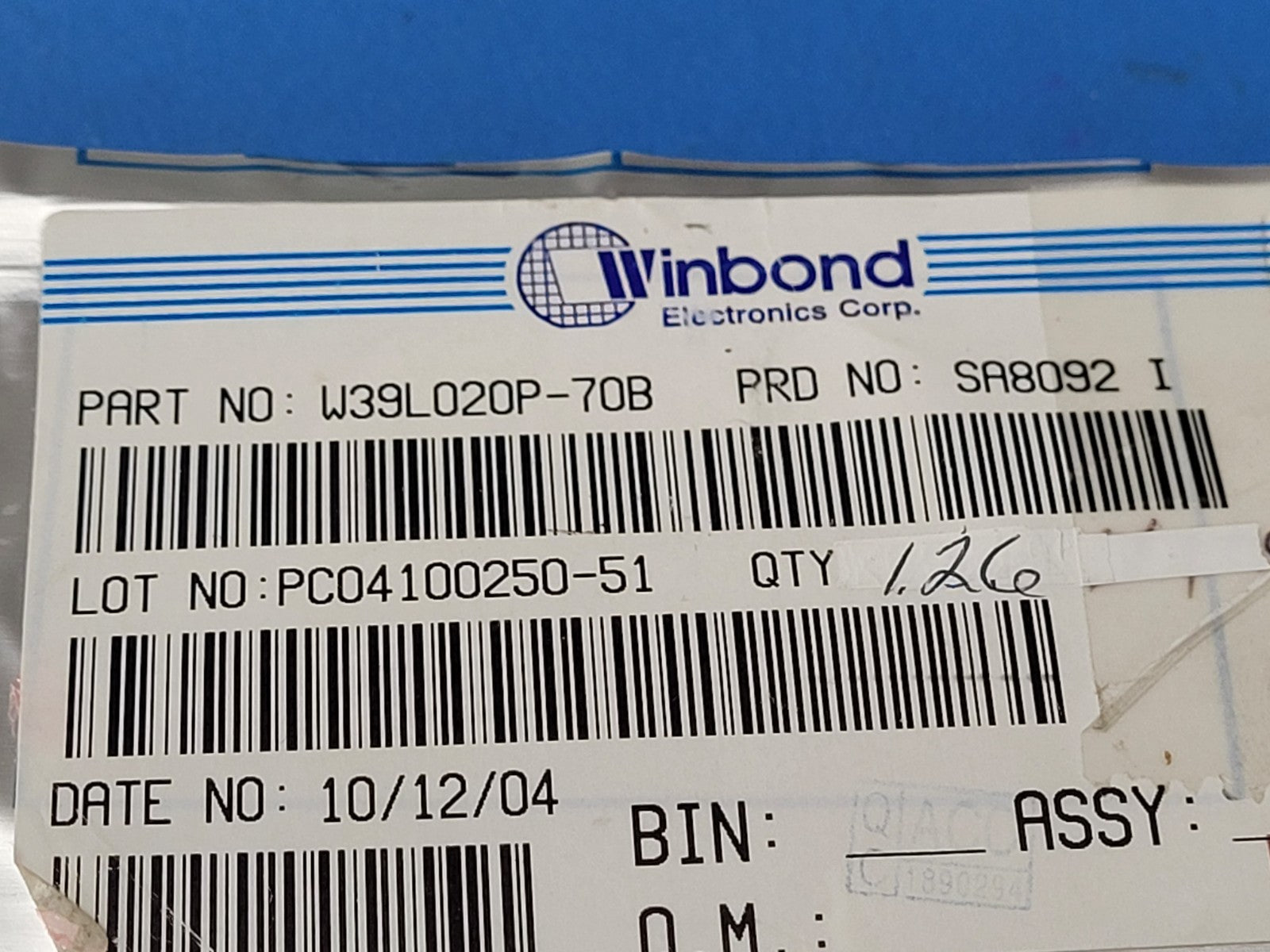

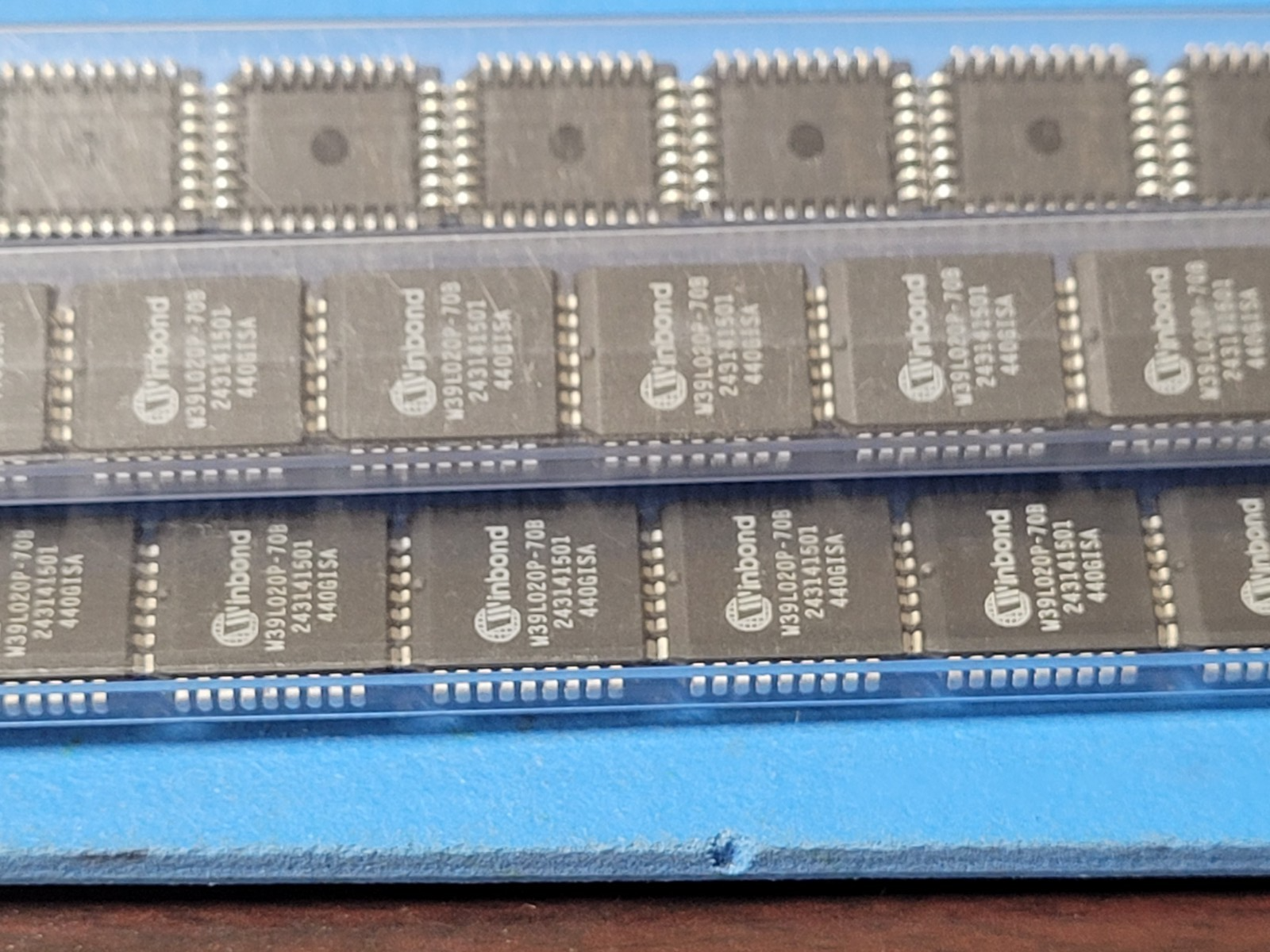

THIS IS FOR (2 PCS) OF W39L020P-70B BY WINBOND
Flash, 256KX8, 70ns, PLCC32
Part #: W39L020P-70B
Obsolete
Part Category: Flash Memories
Manufacturer: WINBOND ELECTRONICS CORP
Description: Flash, 256KX8, 70ns, PQCC32
Status Discontinued
Access Time-Max (ns) 70.0000000000000000
Boot Block BOTTOM/TOP
Command User Interface YES
Data Polling YES
Endurance (Write/Erase Cycles) 10000.000000000000000
JESD-30 Code R-PQCC-J32
J-STD-609 Code e0
Length (mm) 13.9700
Memory Density (bits) 2097152.0000000000000000
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Sectors/Size 4
Number of Terminals 32
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256KX8
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Page Size (words) 4K
Parallel/Serial PARALLEL
Programming Voltage (V) 3.3
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.5600
Sector Size (words) 64K
Standby Current-Max (A) 0.000050000000000
Supply Current-Max (mA) 20.000000000000000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Toggle Bit YES
Type NOR TYPE
Width (mm) 11.4300
