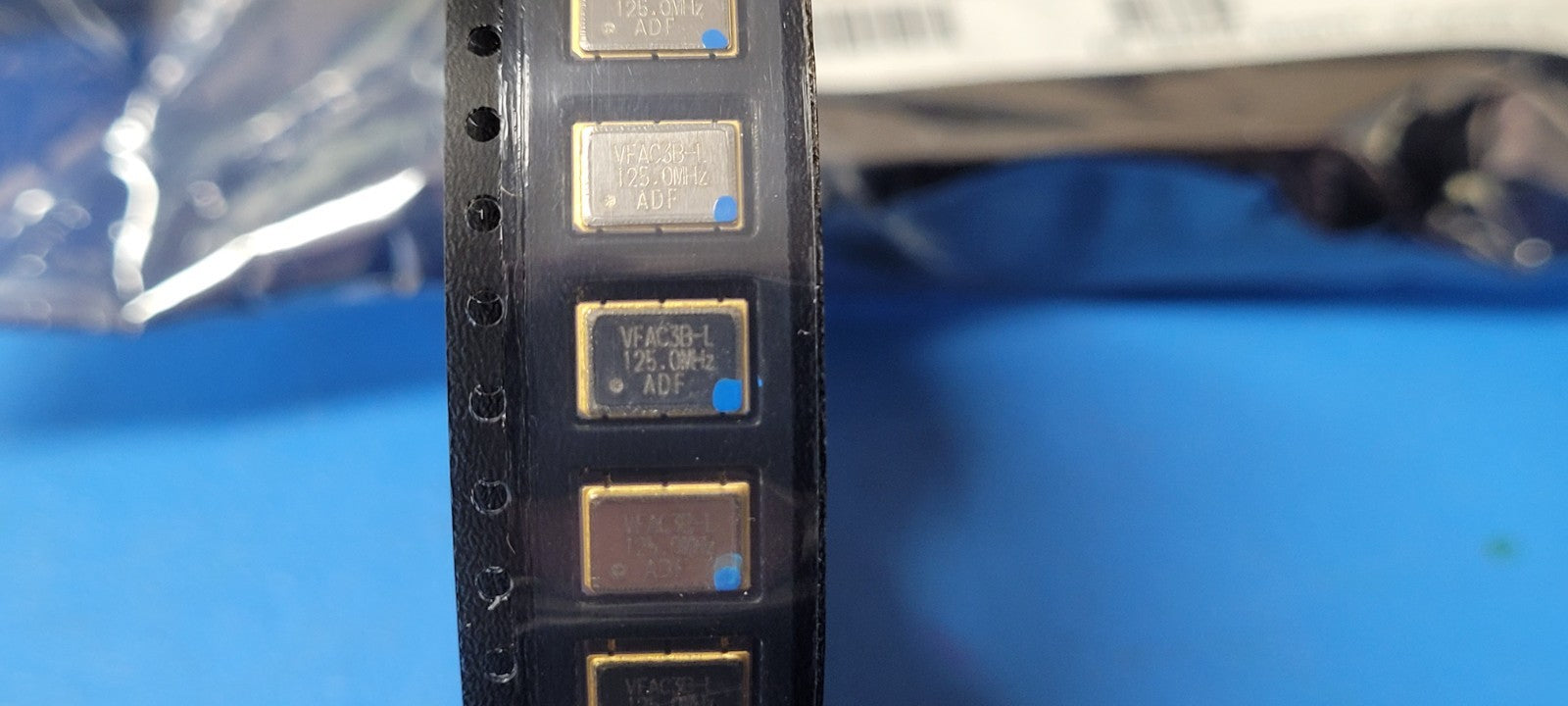

(2 PCS) VFAC3BL-125.0000MHZ CTS Crystal Clock Oscillator 125.0000MHZ
Tax included.
THIS IS FOR (2 PCS) OF VFAC3BL-125.0000MHZ BY CTS
Clock Oscillator 125.0000MHZ
Status Unknown
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION
Fall Time-Max (ns) 1.5000
Frequency Adjustment-Mechanical NO
Frequency Stability (ppm) 50.0000
Mounting Feature SURFACE MOUNT
Number of Terminals 4
Operating Frequency-Nom (MHz) 125.00000000
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Oscillator Type ACMOS/LSTTL
Output Load 5 LS TTL, 15 pF
Package Body Material CERAMIC
Package Equivalence Code DILCC4,.2,200
Physical Dimension 7.5mm x 5.2mm x 1.8mm
Rise Time-Max (ns) 1.5000
Screening Level / Reference Standard MIL-STD-883; MIL-STD-202
Supply Current-Max (mA) 70.00000000
Supply Voltage-Max (V) 3.4500
Supply Voltage-Min (V) 3.1500
Supply Voltage-Nom (V) 3.3000
Symmetry-Max (%) 60/40
Device Type: Surface Mount Crystal Clock Oscillator Frequency: 125.0000 MHz Output Compatibility: ACMOS / LSTTL / HCMOS Operating Voltage (\(V_{CC}\)): 3.3V nominal (typically 3.15V to 3.45V) Frequency Stability: Code B denotes ±50 ppm Package Profile: 4-pad miniature ceramic SMD, sizing roughly 7.5mm x 5.2mmFeatures: Pin 1 incorporates Tristate Control for logic testing and power management
