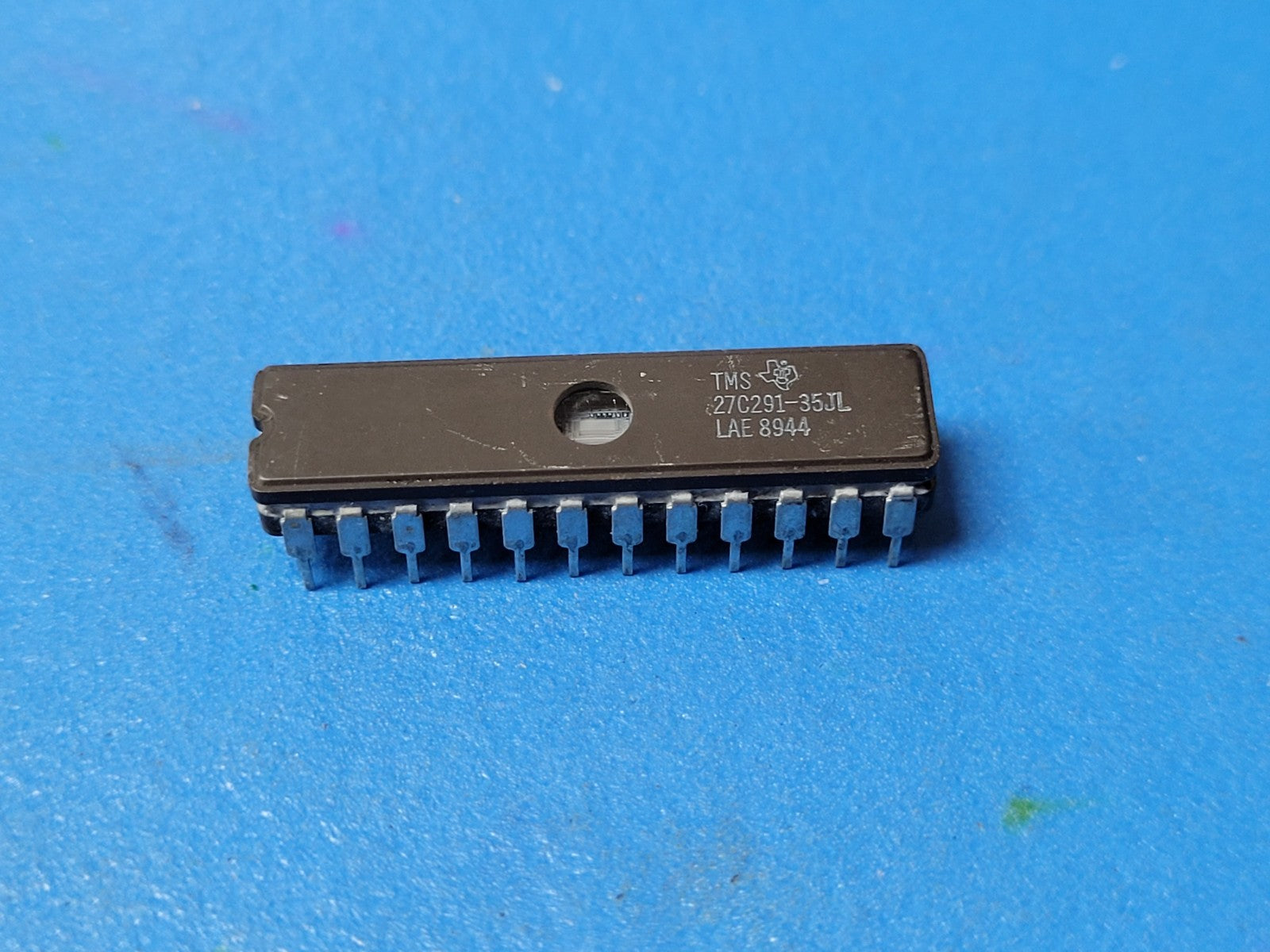

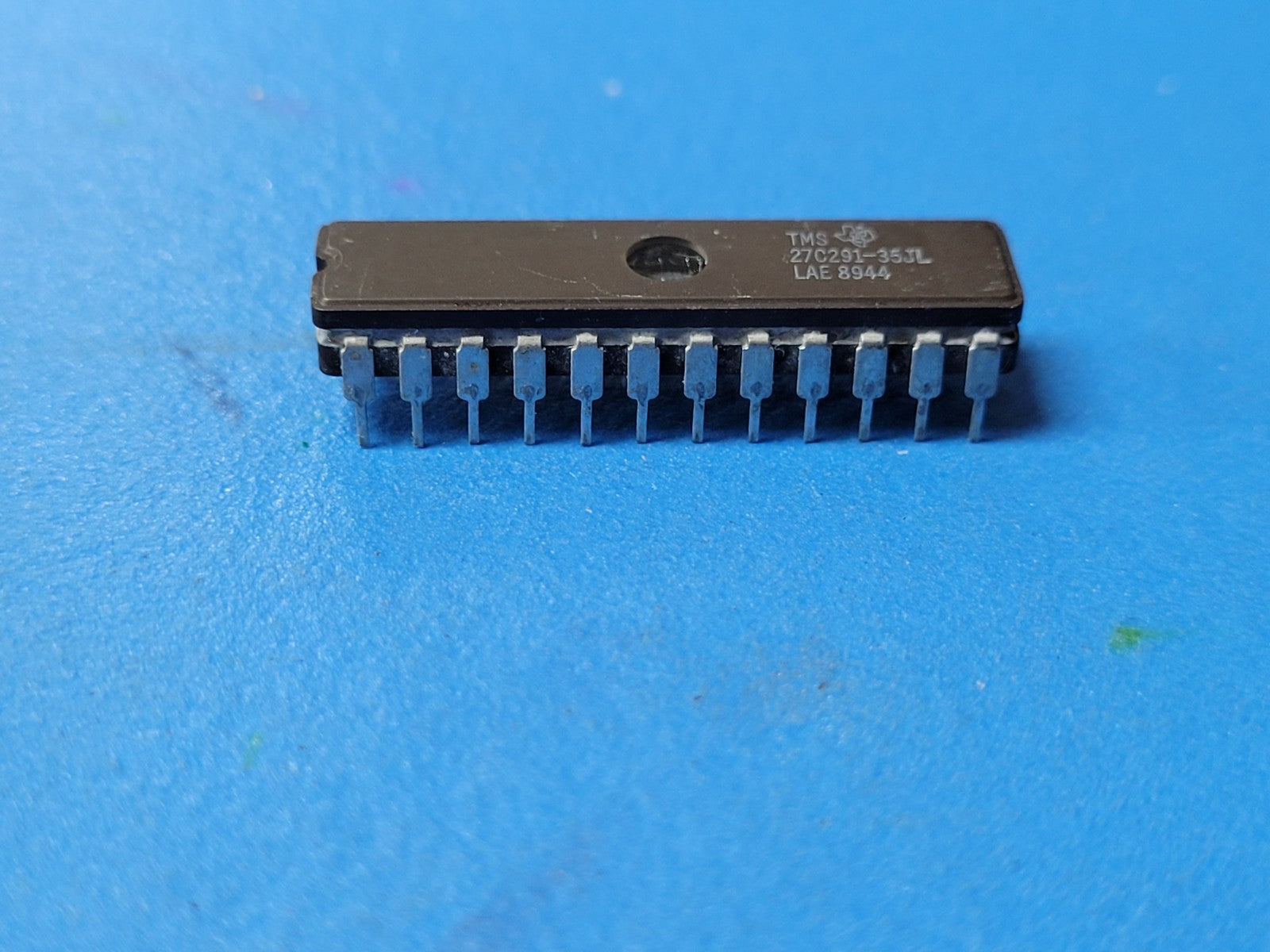

(2 PCS) TMS27C291-35JL TI UVPROM, 2KX8, 35ns, CMOS, CDIP24 SHORT LEADS
(2 PCS) TMS27C291-35JL TI UVPROM, 2KX8, 35ns, CMOS, CDIP24 SHORT LEADS

(2 PCS) TMS27C291-35JL TI UVPROM, 2KX8, 35ns, CMOS, CDIP24 SHORT LEADS

Tax included.
Only 97 left!
THIS LISTING IS FOR (2 PCS) OF TMS27C291-35JL BY TI
UVPROM, 2KX8, 35ns, CMOS, CDIP24 SHORT LEADS

Part #: TMS27C291-35JL
Part Category: Memory ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: UVPROM, 2KX8, 35ns, CMOS, CDIP24

Mfr Package Description 0.600 INCH, WINDOWED, CERDIP-24
Status Discontinued
Sub Category EPROMs
Access Time-Max 35.0  ns
I/O Type COMMON
JESD-30 Code R-CDIP-T24
Memory Density 16384.0  bit
Memory IC Type UVPROM
Memory Width 8
Number of Functions 1
Number of Terminals 24
Number of Words 2048.0  words
Number of Words Code 2K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 2KX8
Output Characteristics 3-STATE
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code WDIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 4.907  mm
Standby Current-Max 0.035  Amp
Supply Current-Max 0.035  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 31.75  mm
Width 7.62  mm
