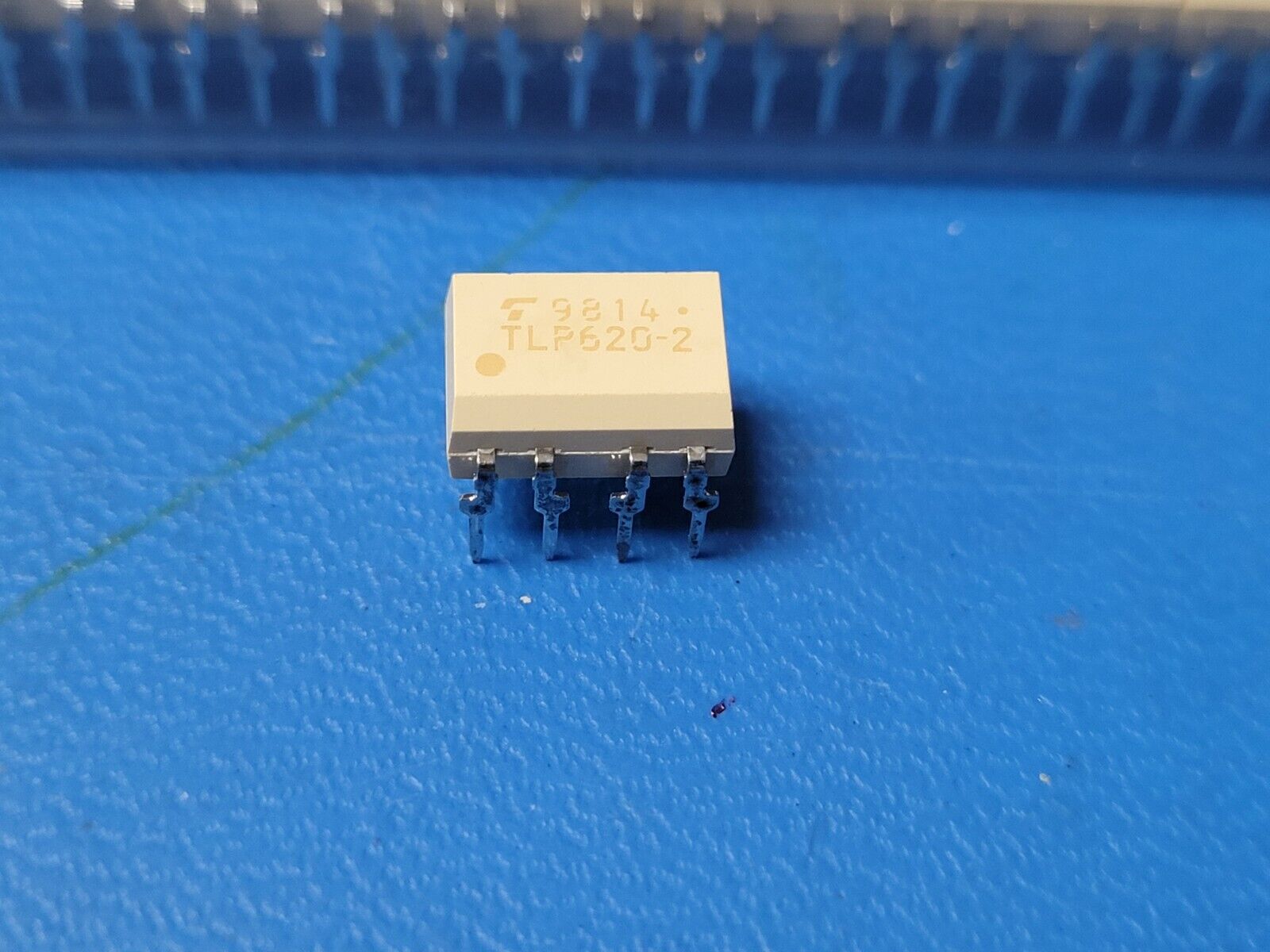

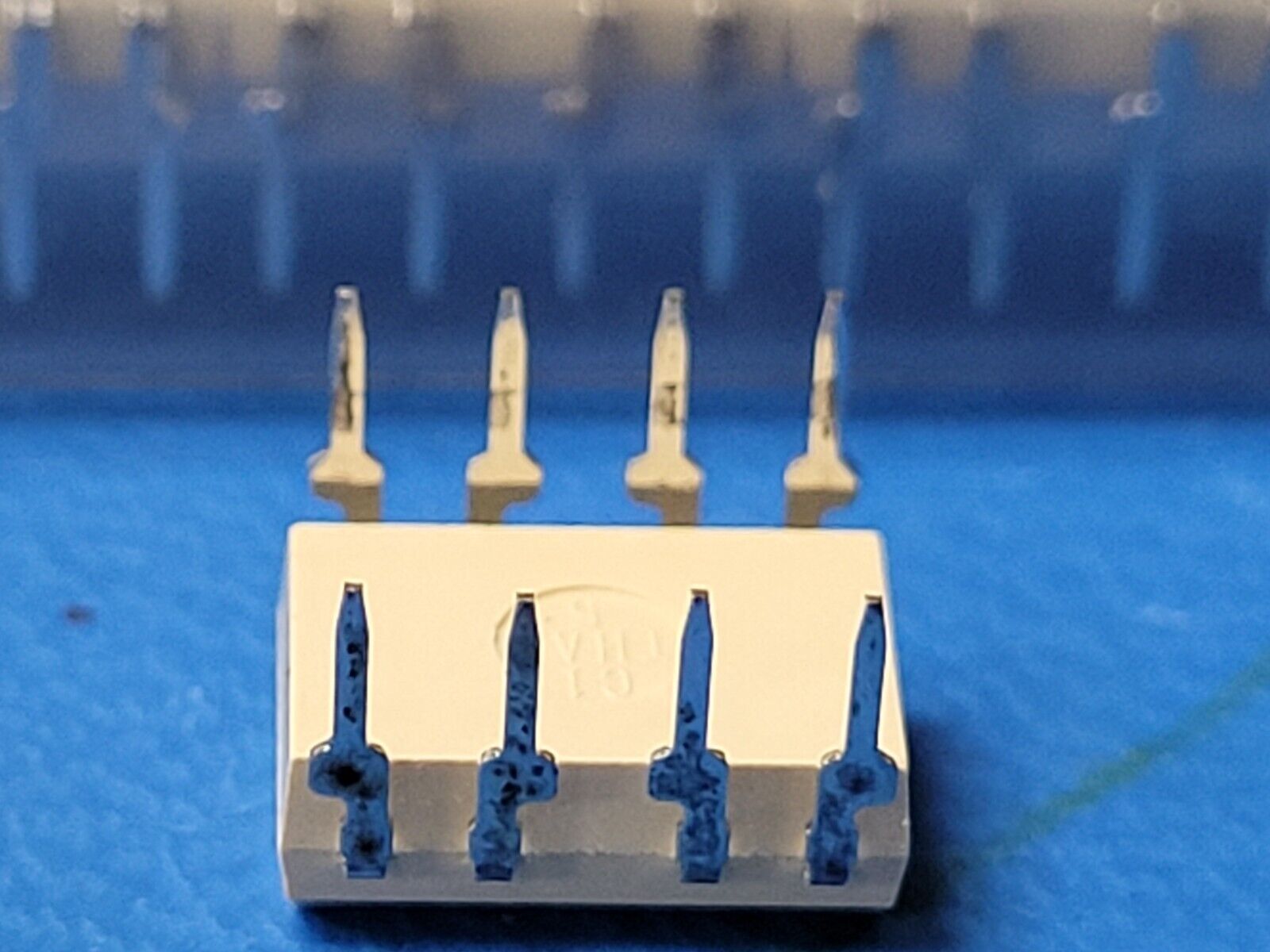

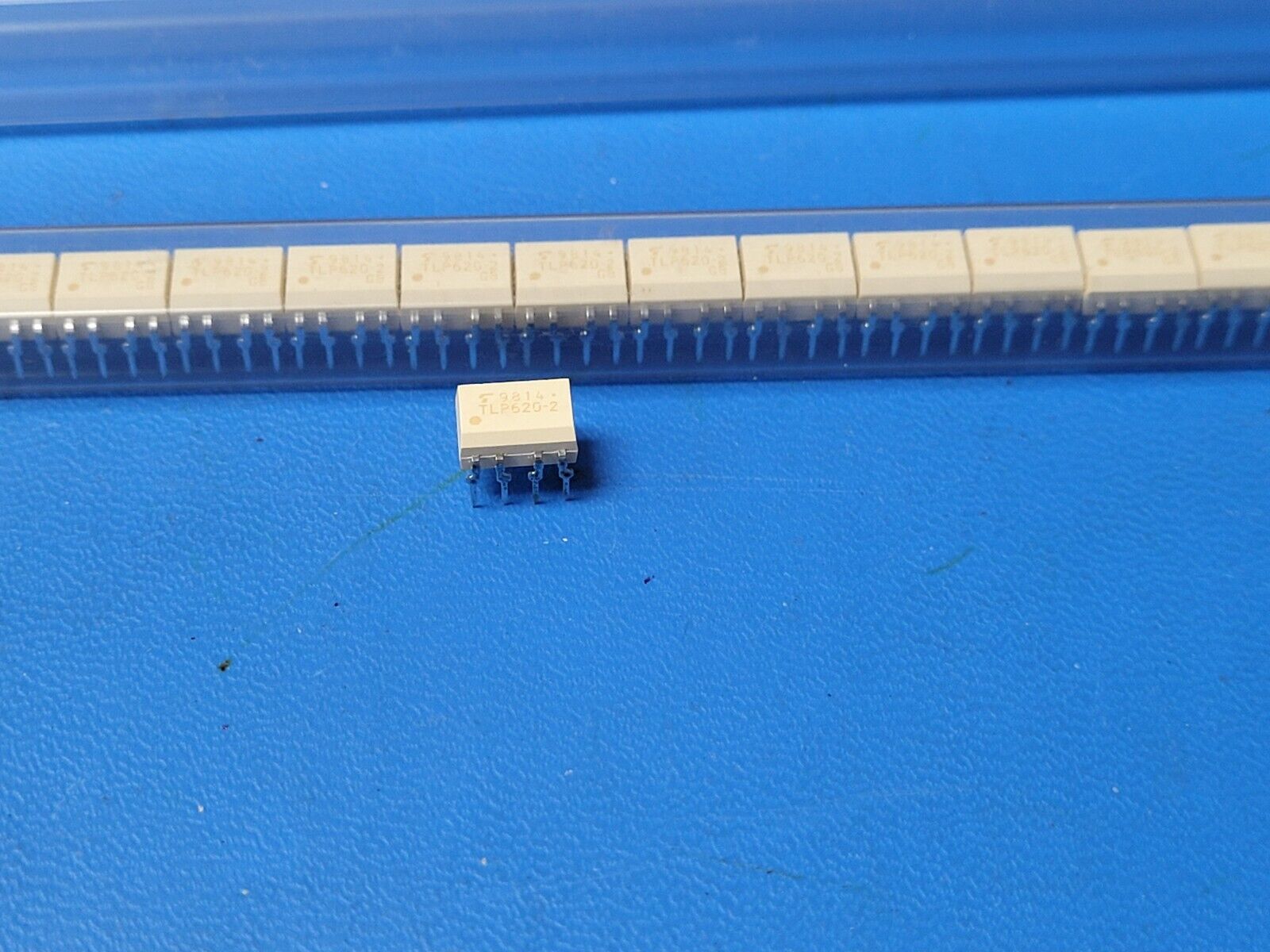

(1 PCS) TLP620-2 TOSHIBA Optoisolator Transistor Output 5000V 2 Channel 8-DIP
Tax included.
THIS IS FOR (1 PC) OF TLP620-2 BY TOSHIBA
Optoisolator Transistor Output 5000V 2 Channel 8-DIP
Part #: TLP620-2
Part Category: Optocoupler - Transistor Outputs
Manufacturer: TOSHIBA CORP
Description: AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation
Status Unknown
Additional Feature UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min (V) 55.0000000000000000
Configuration SEPARATE, 2 CHANNELS
Current Transfer Ratio-Min (%) 50.000000000000000000
Dark Current-Max (nA) 100.0000000000000000
Forward Current-Max (A) 0.050000000000000
Forward Voltage-Max (V) 1.300000000000000
Isolation Voltage-Max (V) 5000
Mounting Feature THROUGH HOLE MOUNT
Number of Elements 2
On-state Current-Max (A) 0.050000000000000
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -25
Optoelectronic Device Type AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max (W) 0.100000000000000
Response Time-Max (s) 0.000002000000000
