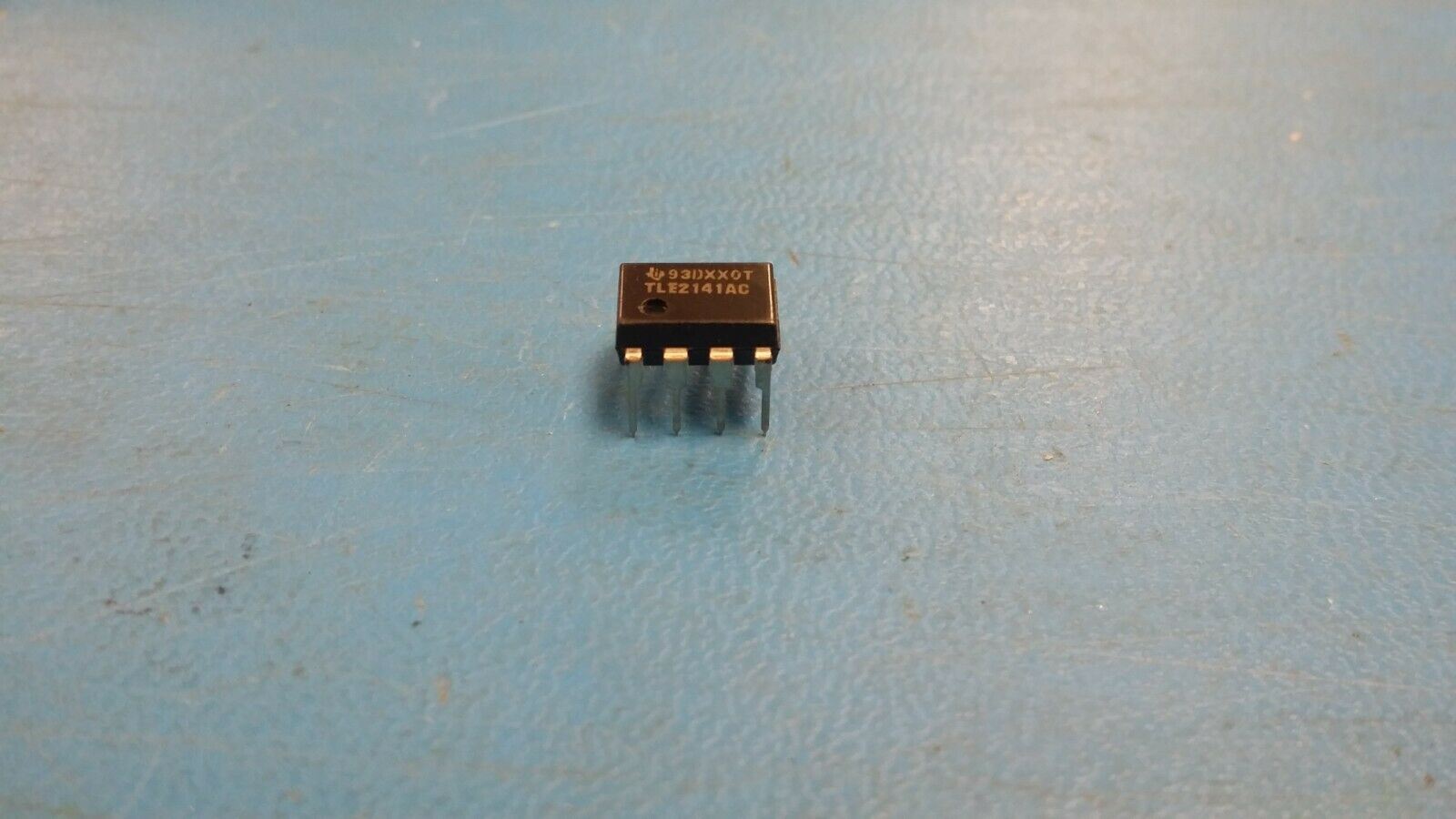

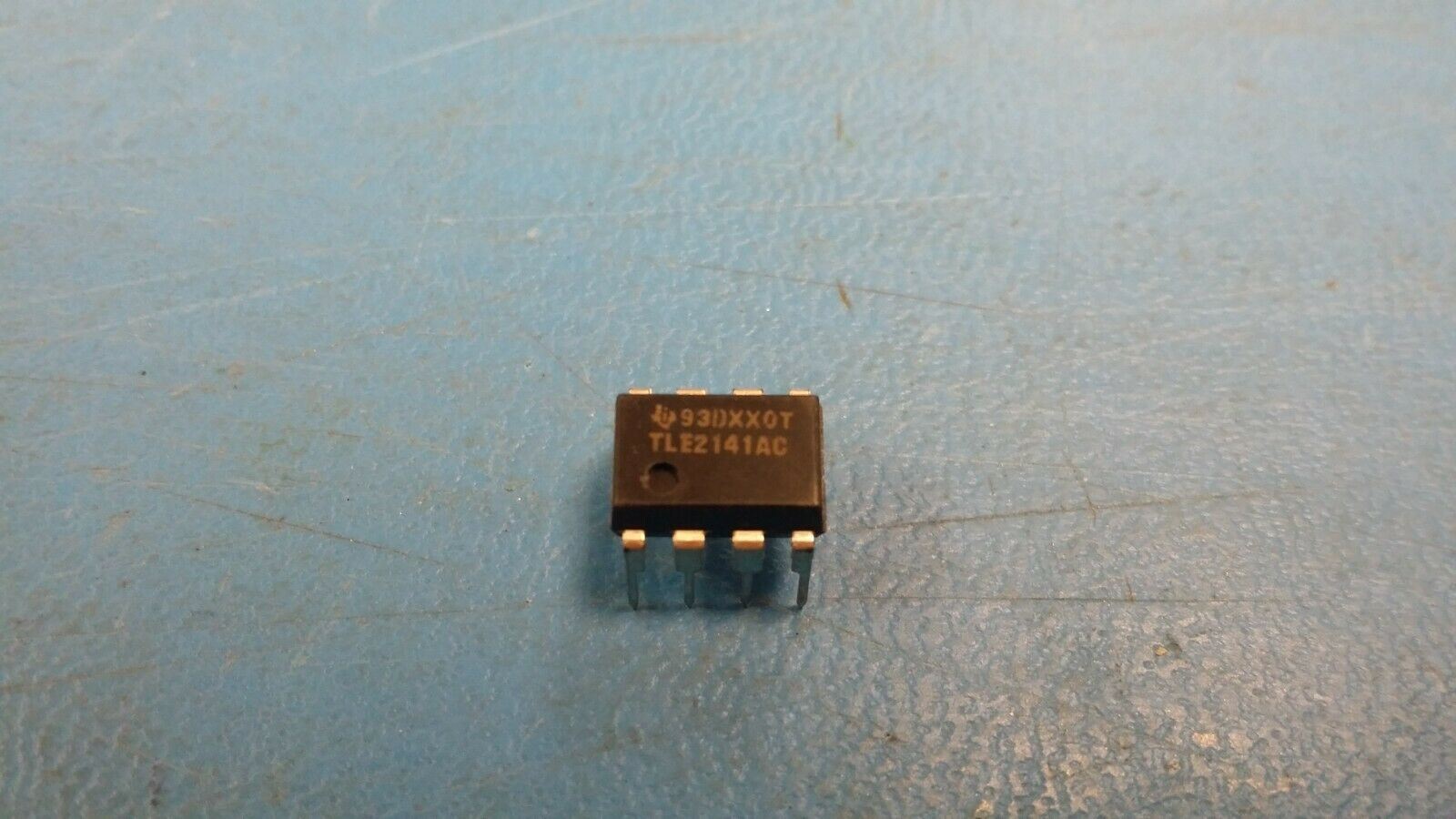

(2 PCS) TLE2141ACP TI General Purpose Amplifier 1 Circuit 8-PDIP
Tax included.
THIS LISTING IS FOR (2 PCS) OF TLE2141ACP BY TI
General Purpose Amplifier 1 Circuit 8-PDIP
Manufacturer: Texas Instruments
Product Category: Precision Amplifiers
RoHS: NO
Series: TLE2141A
Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 5.8 MHz
SR - Slew Rate: 45 V/us
CMRR - Common Mode Rejection Ratio: 85 dB to 108 dB
Output Current per Channel: 50 mA
Ib - Input Bias Current: 1.5 uA
Vos - Input Offset Voltage: 0.5 mV
en - Input Voltage Noise Density: 15 nV/sqrt Hz
Supply Voltage - Max: 44 V, +/- 22 V
Supply Voltage - Min: 4 V, +/- 2 V
Operating Supply Current: 3.5 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Mounting Style: Through Hole
Package / Case: PDIP-8
Packaging: Tube
Amplifier Type: Wideband Amplifier
Features: High Cload Drive
Height: 4.57 mm
Input Type: Rail-to-Rail
Length: 9.81 mm
Product: Precision Amplifiers
Supply Type: Single, Dual
Technology: BiCOM
Width: 6.35 mm
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
In - Input Noise Current Density: 1.92 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 22 V
Minimum Dual Supply Voltage: +/- 2 V
Operating Supply Voltage: 4 V to 44 V, +/- 2 V to +/- 22 V
Product Type: Precision Amplifiers
Factory Pack Quantity: 50
Subcategory: Amplifier ICs
Voltage Gain dB: 106.85 dB
Unit Weight: 0.015535 oz
