(2 PCS) TEA1623PH NXP IC OFFLINE SWITCH FLYBACK 16DIP ROHS
Tax included.

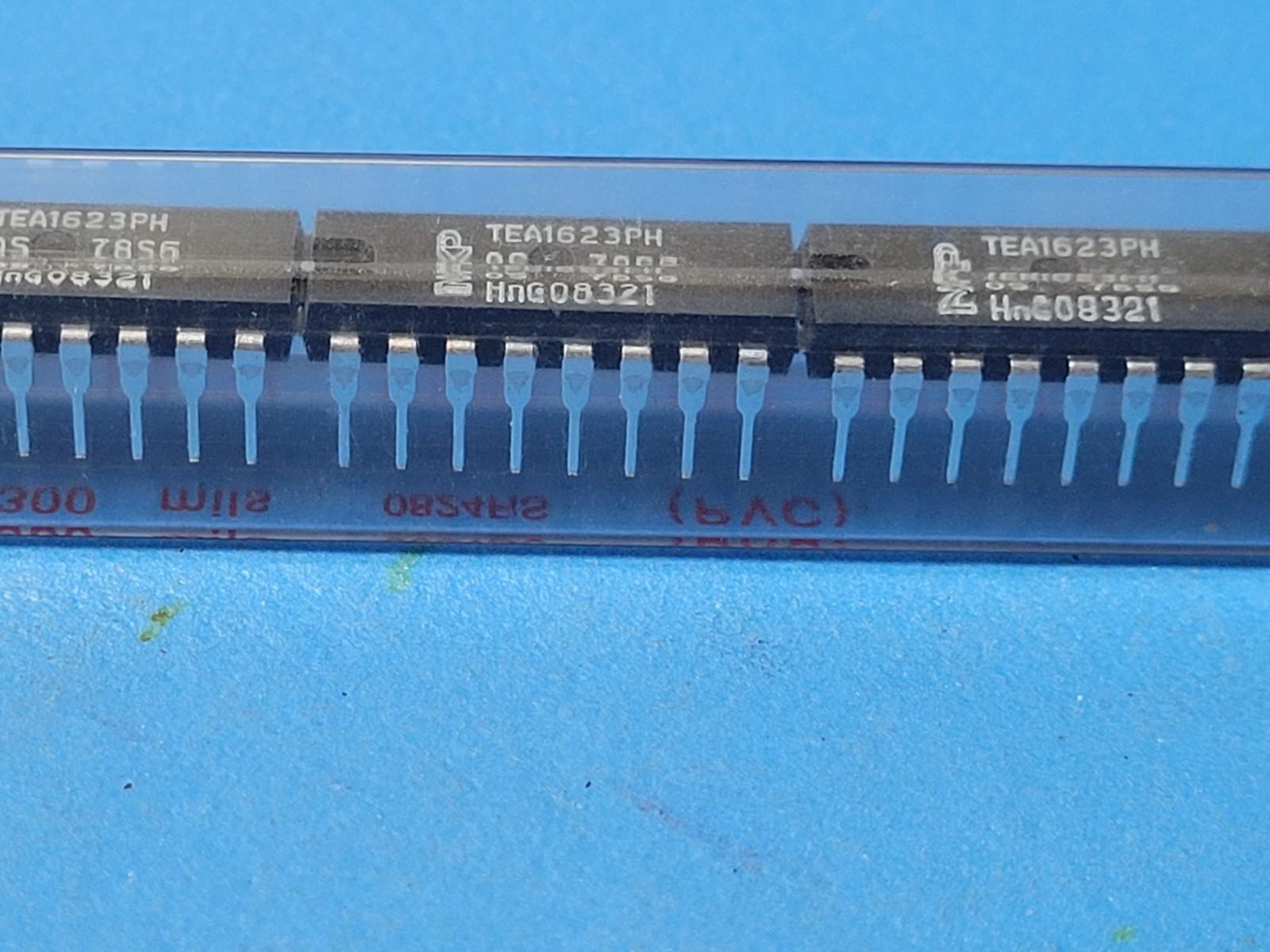

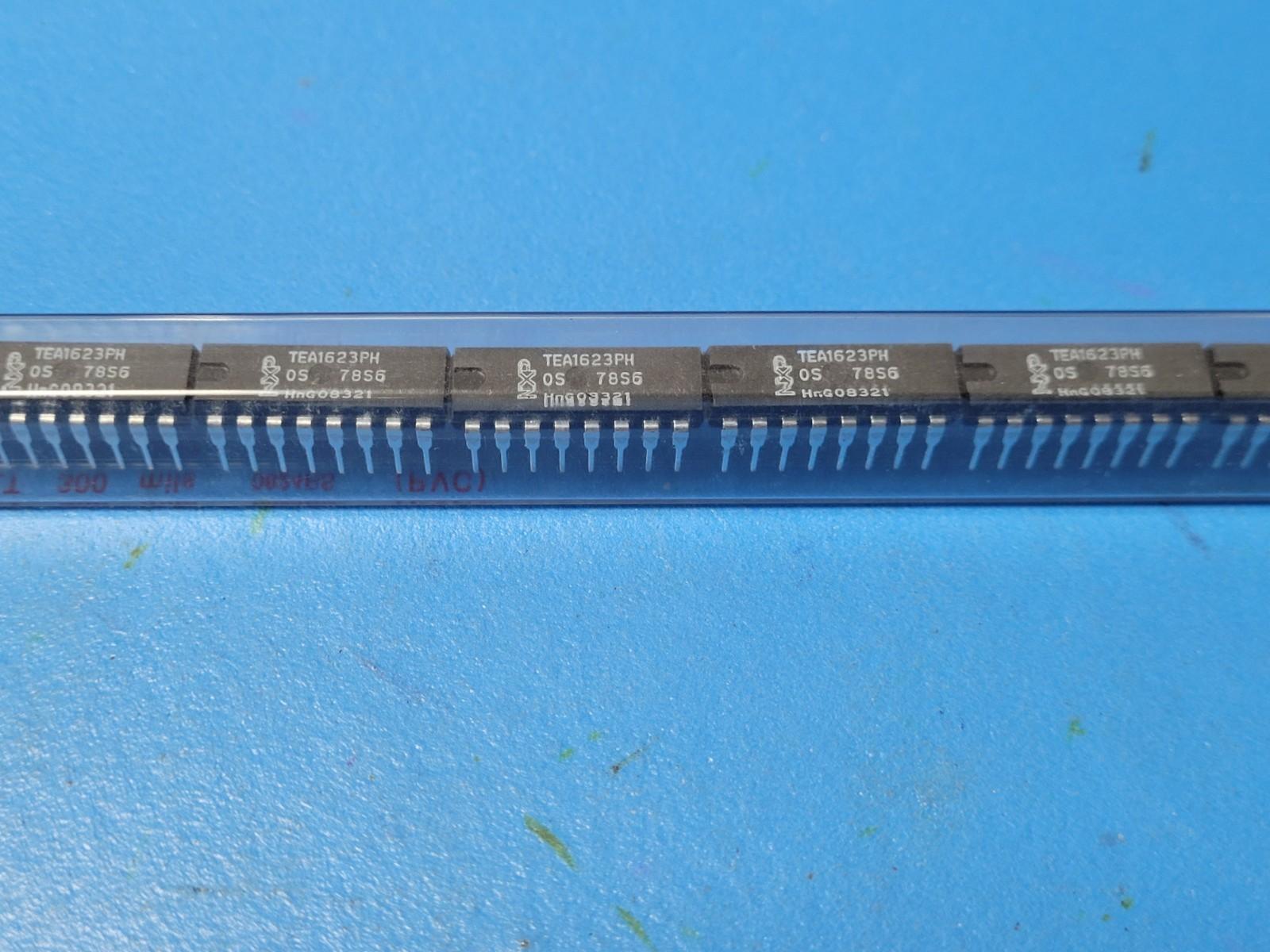

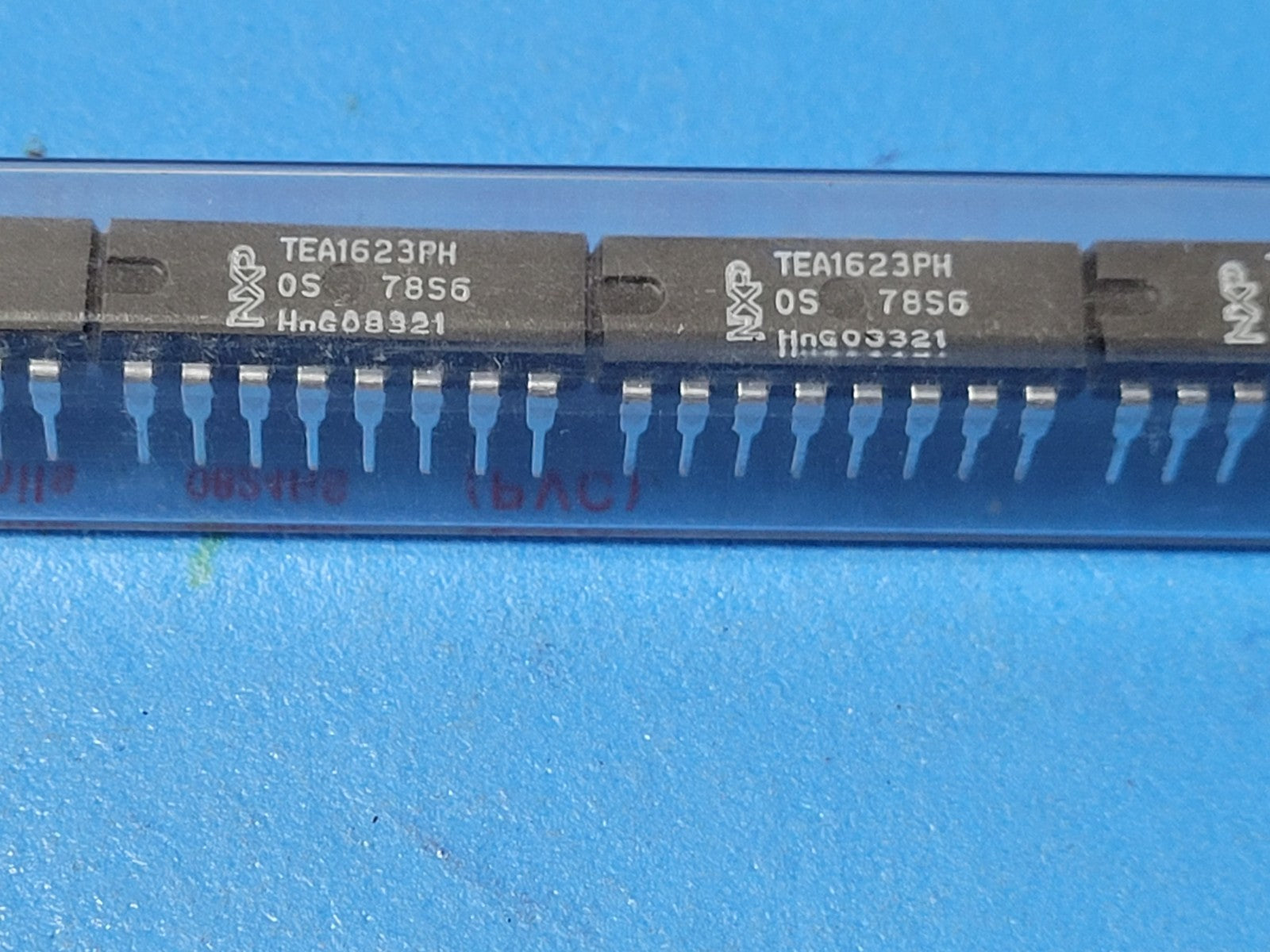

THIS IS FOR (2 PCS) OF TEA1623PH BY NXP
IC OFFLINE SWITCH FLYBACK 16DIP ROHS
Manufacturer NXP Semiconductors
Series STARplug™
Packaging Tube
Part Status Obsolete
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 9.5 V
Voltage - Supply (Vcc/Vdd) 7.5V ~ 40V
Duty Cycle 75%
Frequency - Switching 10kHz ~ 200kHz
Fault Protection Current Limiting, Over Temperature, Short Circuit
Control Features Frequency Control
Operating Temperature -20°C ~ 85°C (TA)
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-DIP
Mounting Type Through Hole
