(2 PCS) SUP57N20-33-E3 VISHAY MOSFET 200V 57A 300W TO-220AB ROHS
(2 PCS) SUP57N20-33-E3 VISHAY MOSFET 200V 57A 300W TO-220AB ROHS
(2 PCS) SUP57N20-33-E3 VISHAY MOSFET 200V 57A 300W TO-220AB ROHS

(2 PCS) SUP57N20-33-E3 VISHAY MOSFET 200V 57A 300W TO-220AB ROHS

Tax included.
Only 50 left!

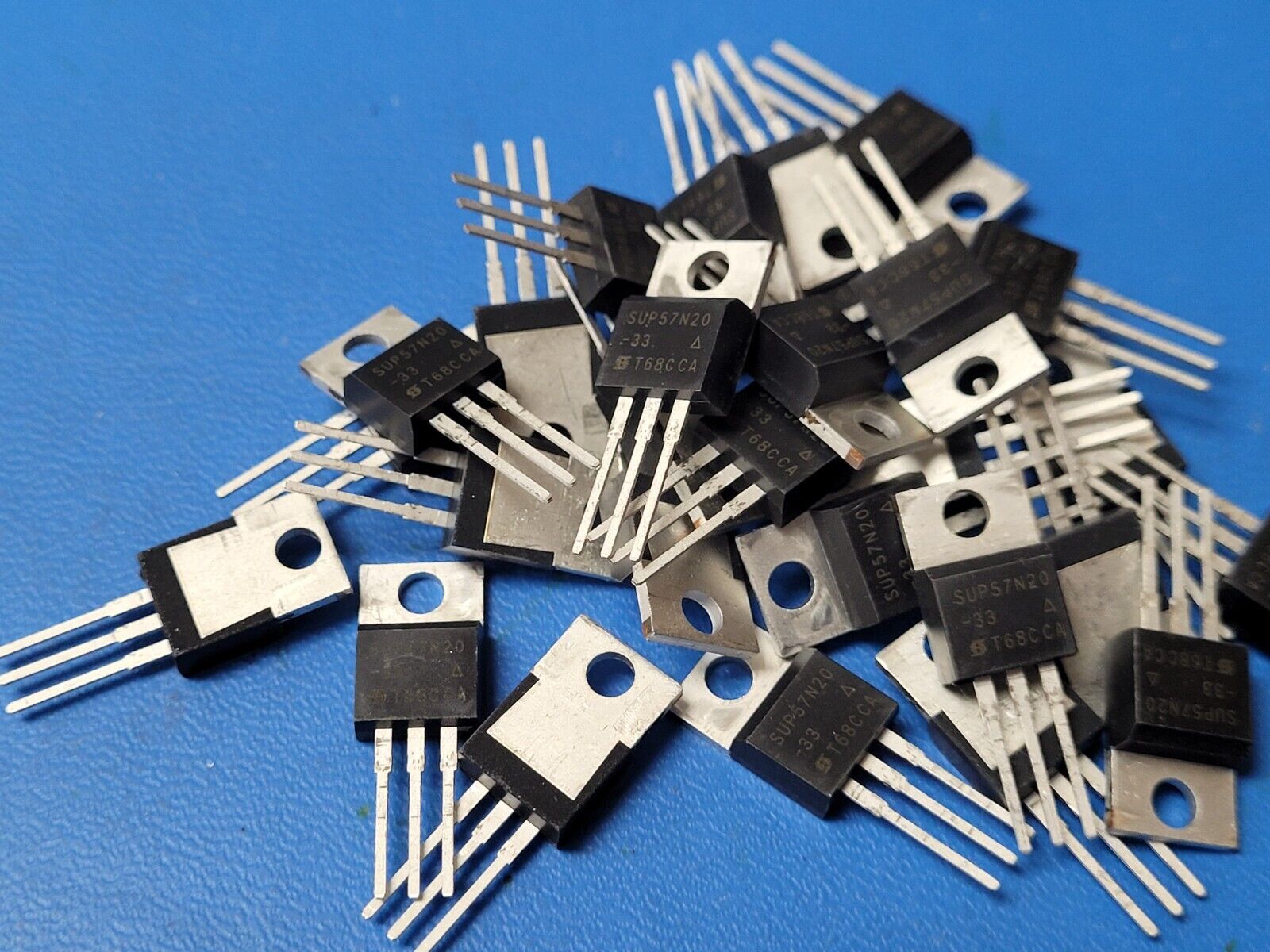

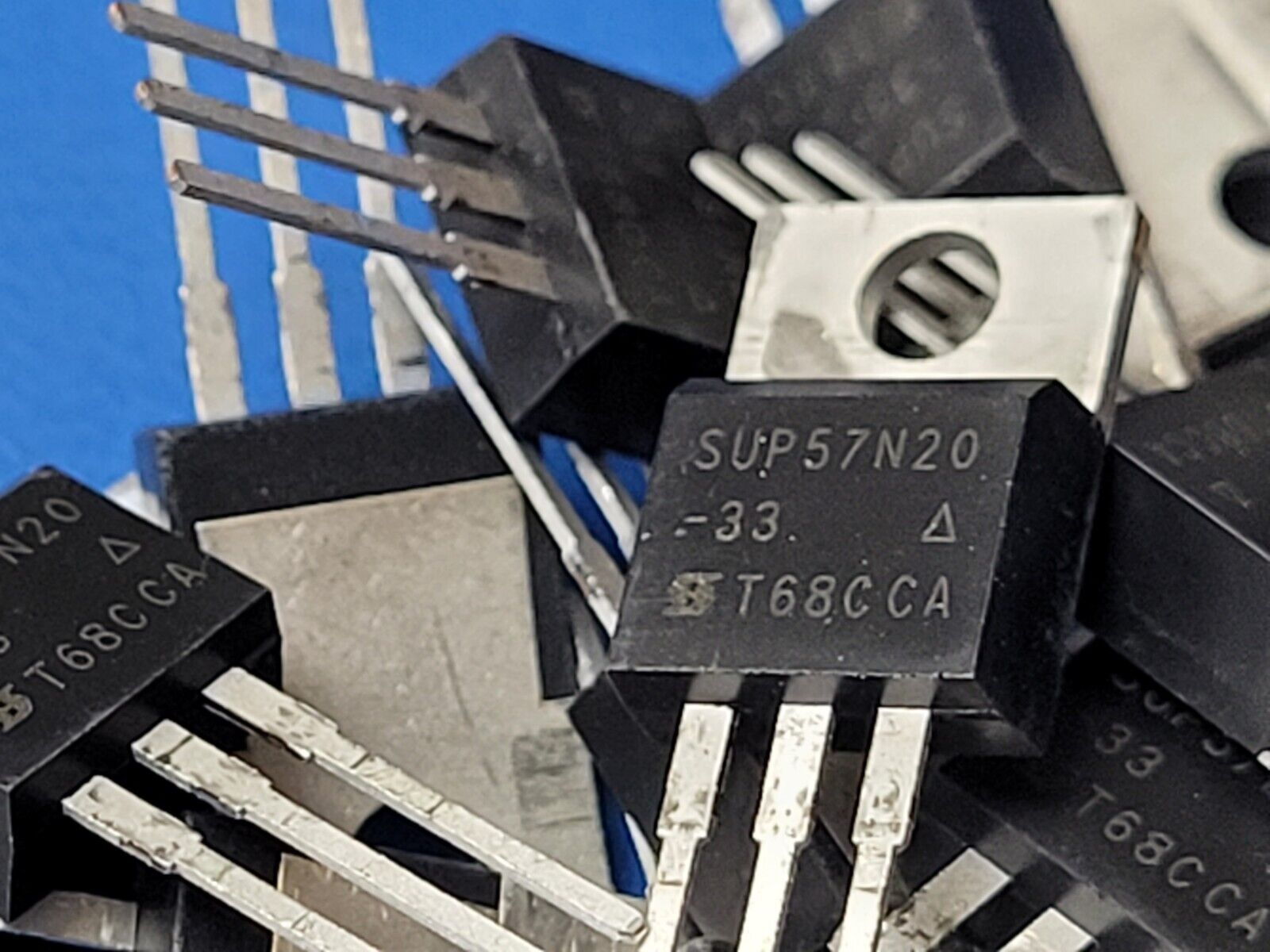

THIS IS FOR (2 PCS) OF SUP57N20-33-E3 BY VISHAY
MOSFET 200V 57A 300W TO-220AB ROHS

Manufacturer: Vishay
Product Category: MOSFET
RoHS:  YES
REACH - SVHC:
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 200 V
Id - Continuous Drain Current: 57 A
Rds On - Drain-Source Resistance: 27 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 2 V
Qg - Gate Charge: 130 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 300 W
Channel Mode: Enhancement
Tradename: TrenchFET
Series: SUP
Packaging: Tube
Brand: Vishay Semiconductors
Configuration: Single
Fall Time: 200 ns
Forward Transconductance - Min: 25 S
Product Type: MOSFET
Rise Time: 220 ns
