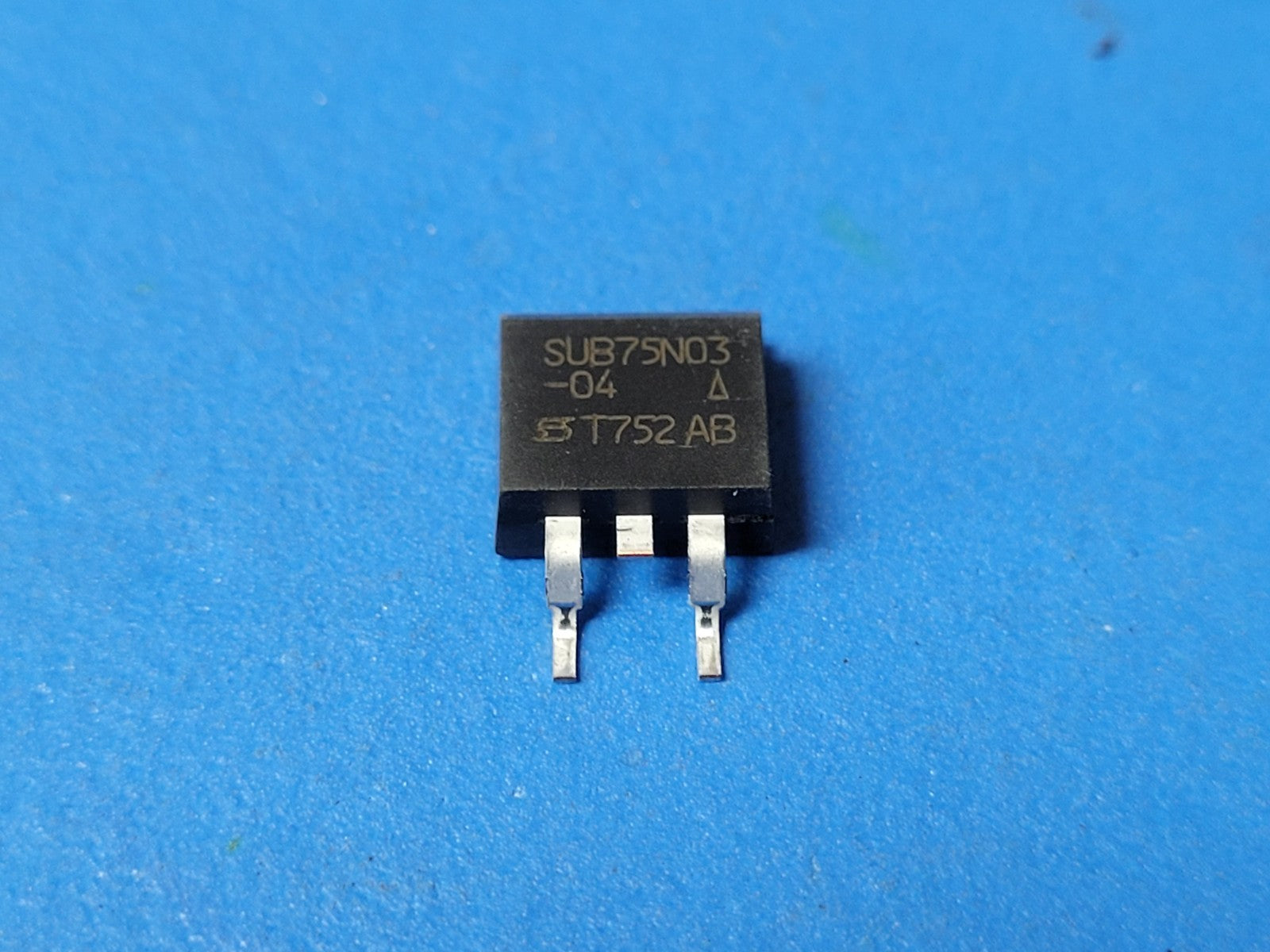

(2 PCS) SUB75N03-04 SILICONIX Trans MOSFET N-CH 30V 75A D2PAK-3 (TO-263-3)
(2 PCS) SUB75N03-04 SILICONIX Trans MOSFET N-CH 30V 75A D2PAK-3 (TO-263-3)
(2 PCS) SUB75N03-04 SILICONIX Trans MOSFET N-CH 30V 75A D2PAK-3 (TO-263-3)

(2 PCS) SUB75N03-04 SILICONIX Trans MOSFET N-CH 30V 75A D2PAK-3 (TO-263-3)

Tax included.
Only 30 left!
THIS IS FOR (2 PCS) OF SUB75N03-04 BY SILICONIX
Trans MOSFET N-CH 30V 75A D2PAK-3 (TO-263-3)

Part #: SUB75N03-04
Obsolete
Part Category: Power Field-Effect Transistors
Manufacturer: VISHAY SILICONIX
Description:
Power Field-Effect Transistor, 75A I(D), 30V, 0.006ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB

Status Discontinued
Avalanche Energy Rating (Eas) (mJ) 280.0000000000000000
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min (V) 30.0000000000000000
Drain Current-Max (ID) (A) 75.0000000000000000
Drain-source On Resistance-Max (ohm) 0.0060000000000000
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-263AB
JESD-30 Code R-PSSO-G2
J-STD-609 Code e0
Number of Elements 1
Number of Terminals 2
Operating Mode ENHANCEMENT MODE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type N-CHANNEL
Pulsed Drain Current-Max (IDM) (A) 250.0000000000000000
DLA Qualification Not Qualified
Surface Mount YES
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Position SINGLE
Transistor Element Material SILICON
