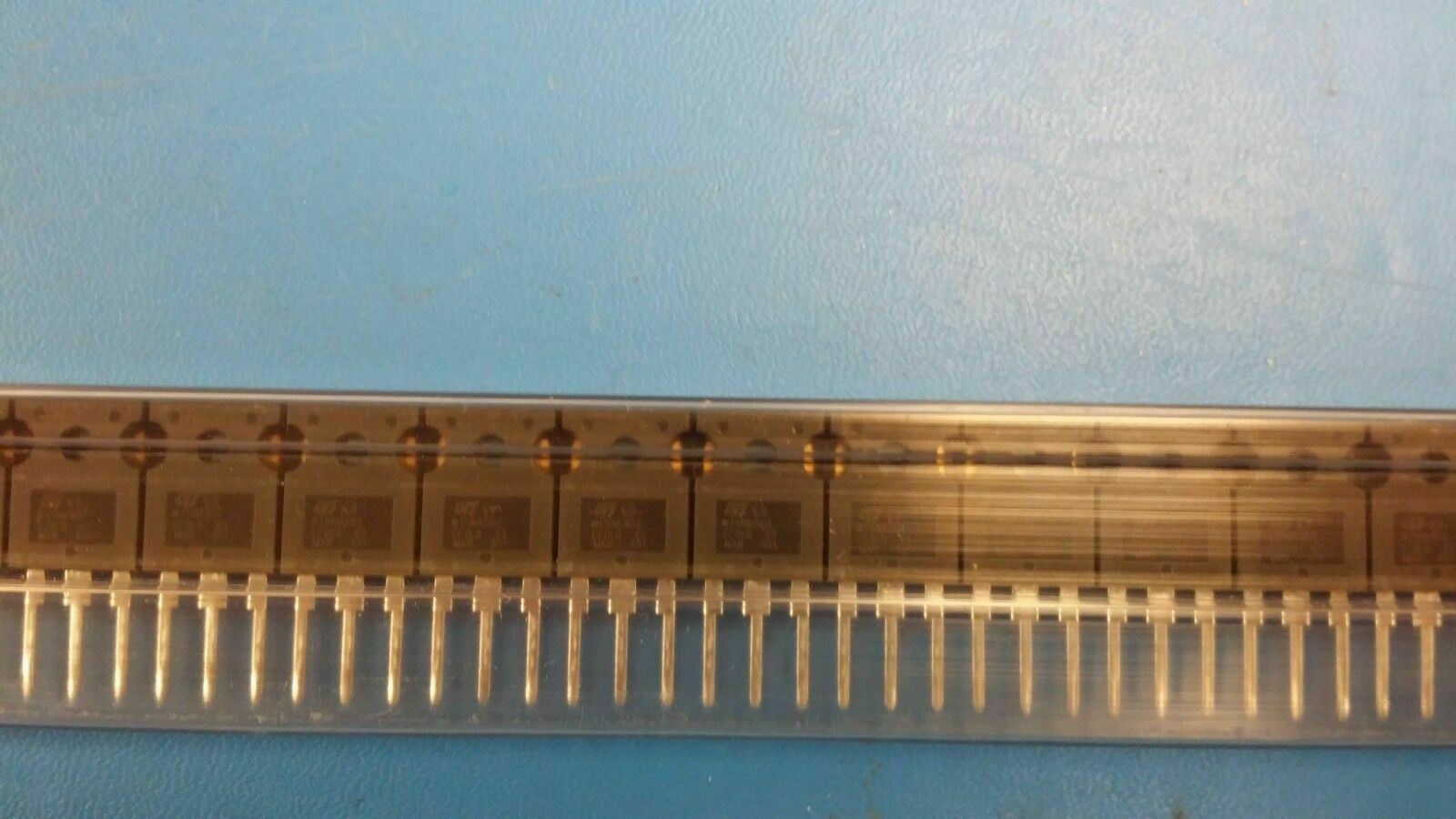

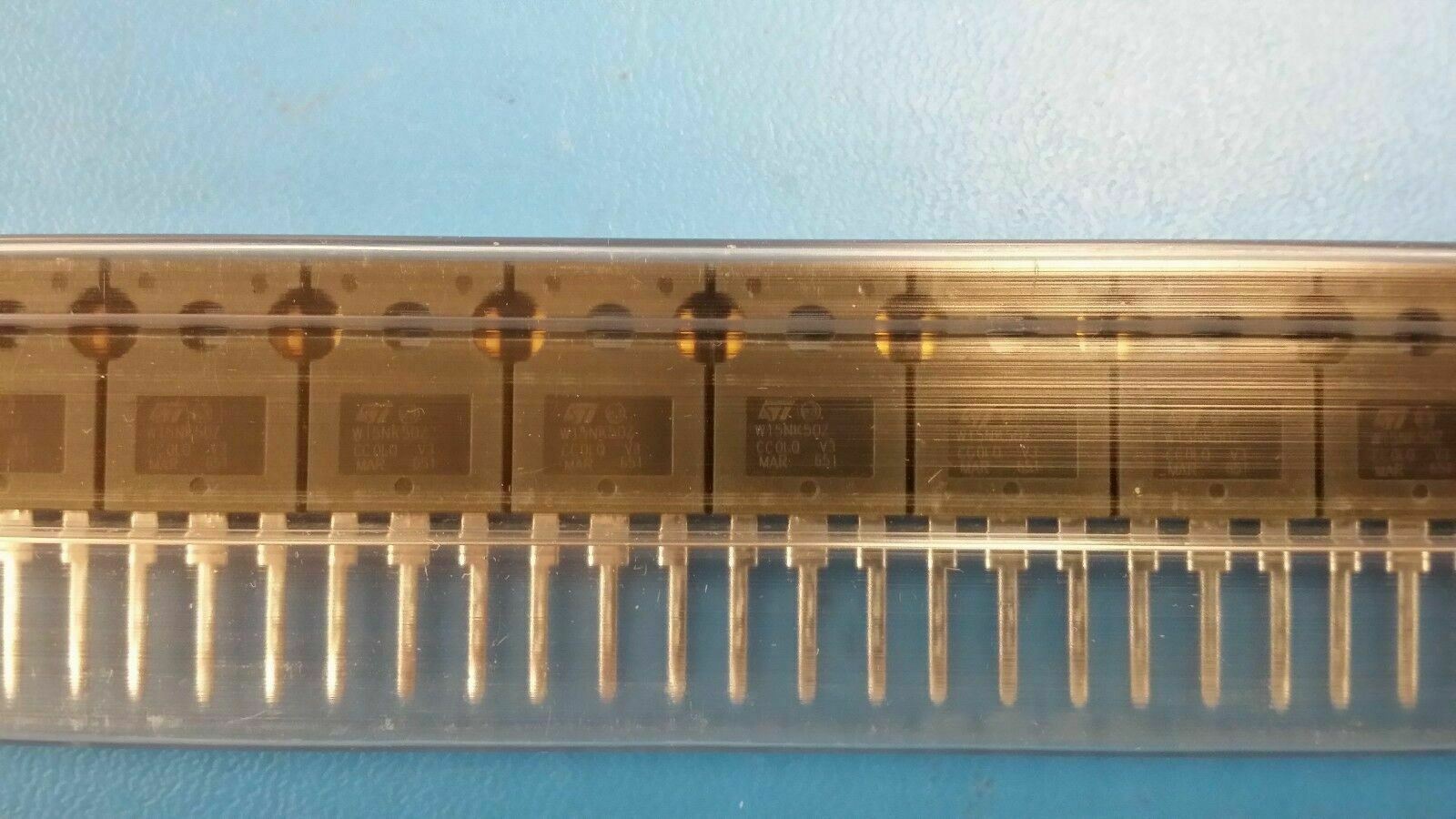

(2 PCS) STW15NK50Z ST MICRO MOSFET Transistor N Channel 14A 500 V TO-247

  • $8.95
    Unit price per
Tax included.

Only 2999 left!

THIS LISTING IS FOR (2 PCS) OF STW15NK50Z BY ST MICRO
MOSFET Transistor N Channel 14A 500 V TO-247


Product Category: MOSFET
Manufacturer: STMicroelectronics
RoHS: YES
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 500 V
Id - Continuous Drain Current: 14 A
Rds On - Drain-Source Resistance: 340 mOhms
Vgs - Gate-Source Voltage: 30 V
Maximum Operating Temperature: + 150 C
Packaging: Tube
Channel Mode: Enhancement
Brand: STMicroelectronics
Configuration: Single
Fall Time: 15 ns
Forward Transconductance - Min: 12 S
Height: 20.15 mm
Length: 15.75 mm
Minimum Operating Temperature: - 55 C
Pd - Power Dissipation: 160 W
Rise Time: 23 ns
Series: N-channel MDmesh


Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 62 ns
Typical Turn-On Delay Time: 20 ns
