(2 PCS) STB60NE03L-10 STMICRO Trans MOSFET N-CH 30V 60A D2PAK

$4.95
Unit price per

Tax included.

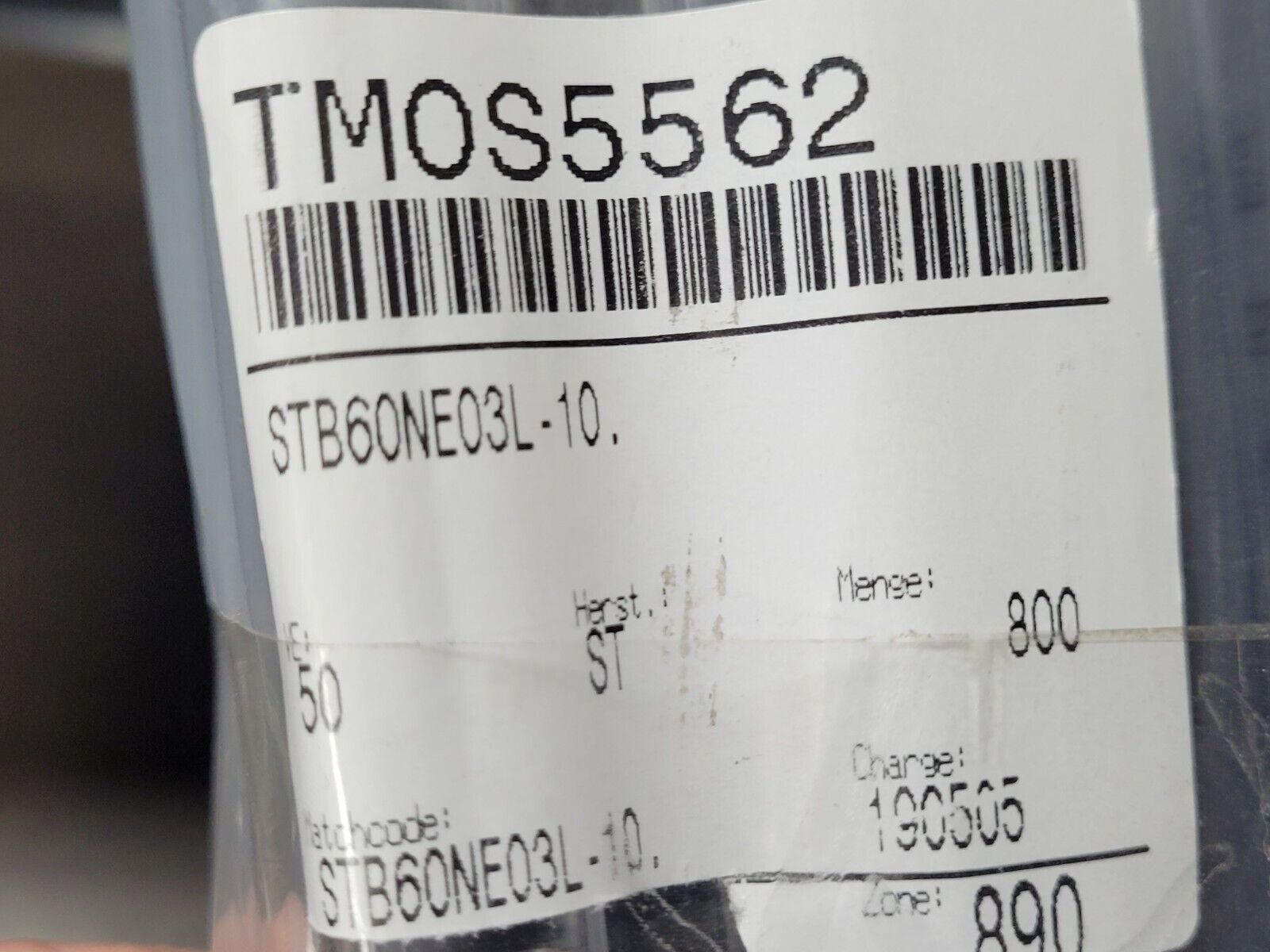

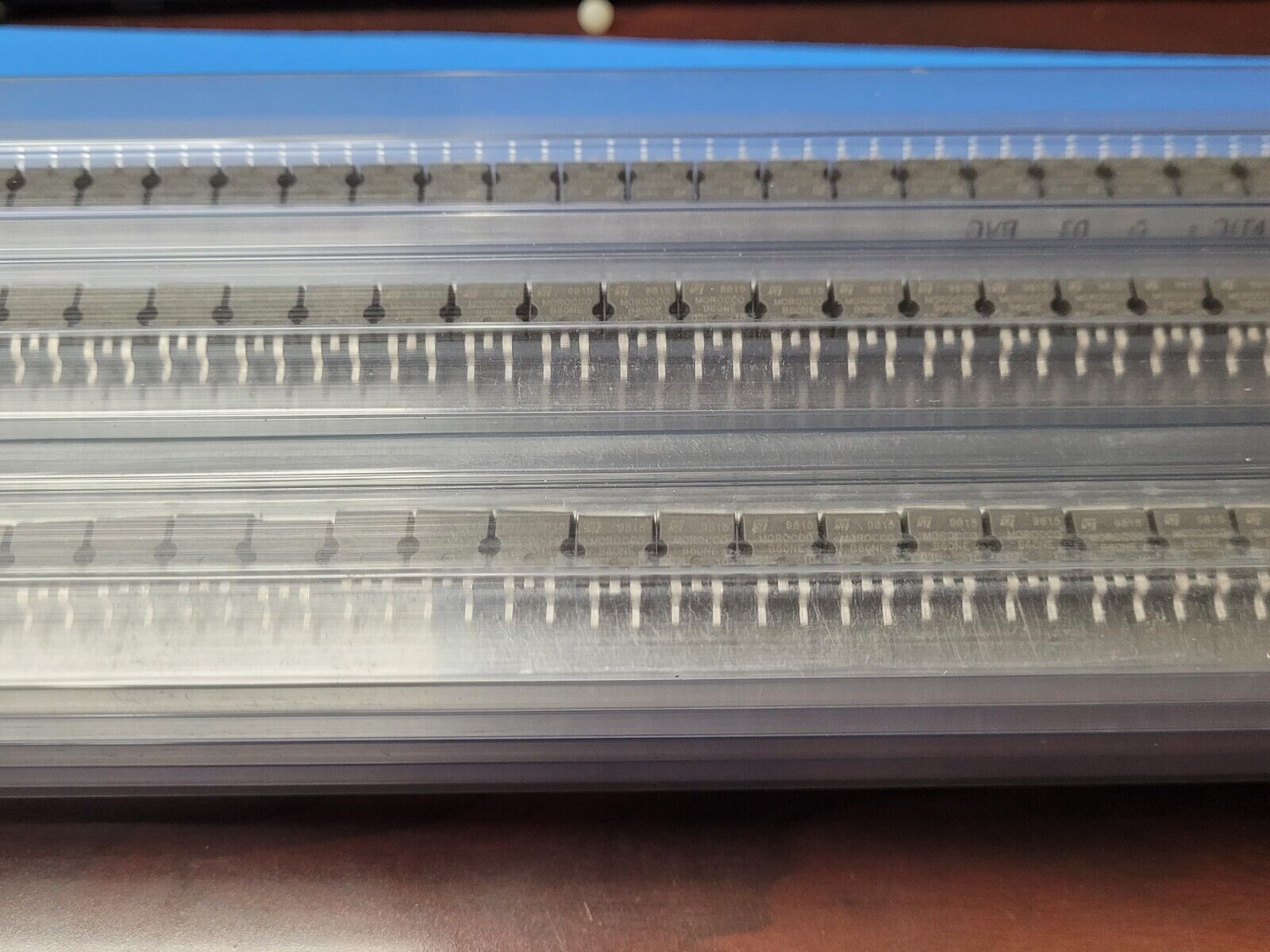

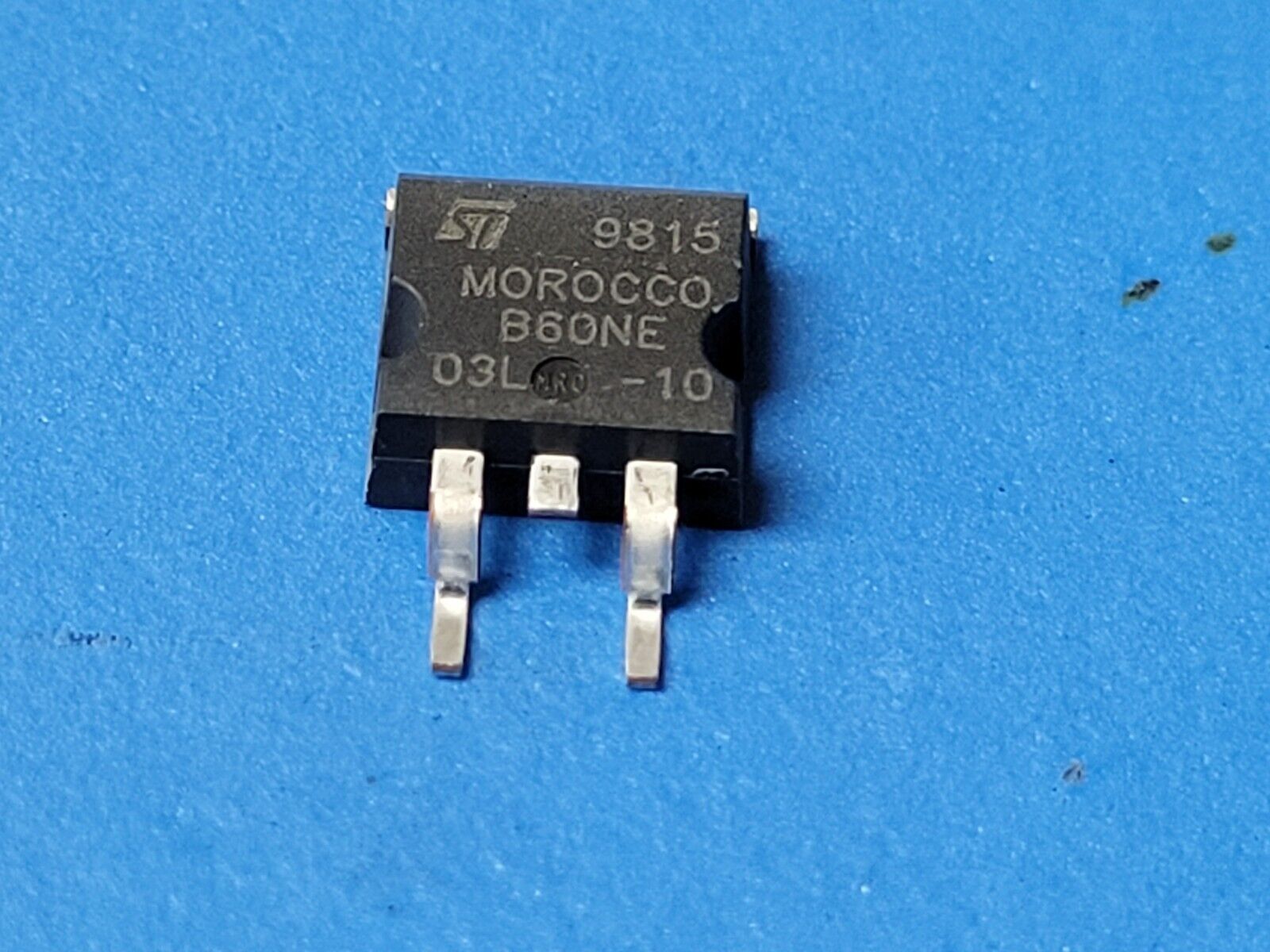

THIS IS FOR (2 PCS) OF STB60NE03L-10 BY STMICRO

Trans MOSFET N-CH 30V 60A D2PAK

Part #: STB60NE03L-10

Part Category: Transistors

Manufacturer: STMicroelectronics, Inc.

Description: Power Field-Effect Transistor, 60A I(D), 30V, 0.015ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB

Mfr Package Description D2PAK-3

Status Discontinued

Avalanche Energy Rating (Eas) 600.0 mJ

Case Connection DRAIN

Configuration SINGLE WITH BUILT-IN DIODE

Drain Current-Max (Abs) (ID) 60.0 A

Drain Current-Max (ID) 60.0 A

Drain-source On Resistance-Max 0.015 ohm

DS Breakdown Voltage-Min 30.0 V

FET Technology METAL-OXIDE SEMICONDUCTOR

JEDEC-95 Code TO-263AB

JESD-30 Code R-PSSO-G2

JESD-609 Code e0

Number of Elements 1.0

Number of Terminals 2

Operating Mode ENHANCEMENT MODE

Operating Temperature-Max 175.0 Cel

Package Body Material PLASTIC/EPOXY

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Polarity/Channel Type N-CHANNEL

Power Dissipation-Max (Abs) 120.0 W

Pulsed Drain Current-Max (IDM) 240.0 A

Qualification Status Not Qualified

Sub Category FET General Purpose Power

Surface Mount YES

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Position SINGLE

Transistor Application SWITCHING

Transistor Element Material SILICON
