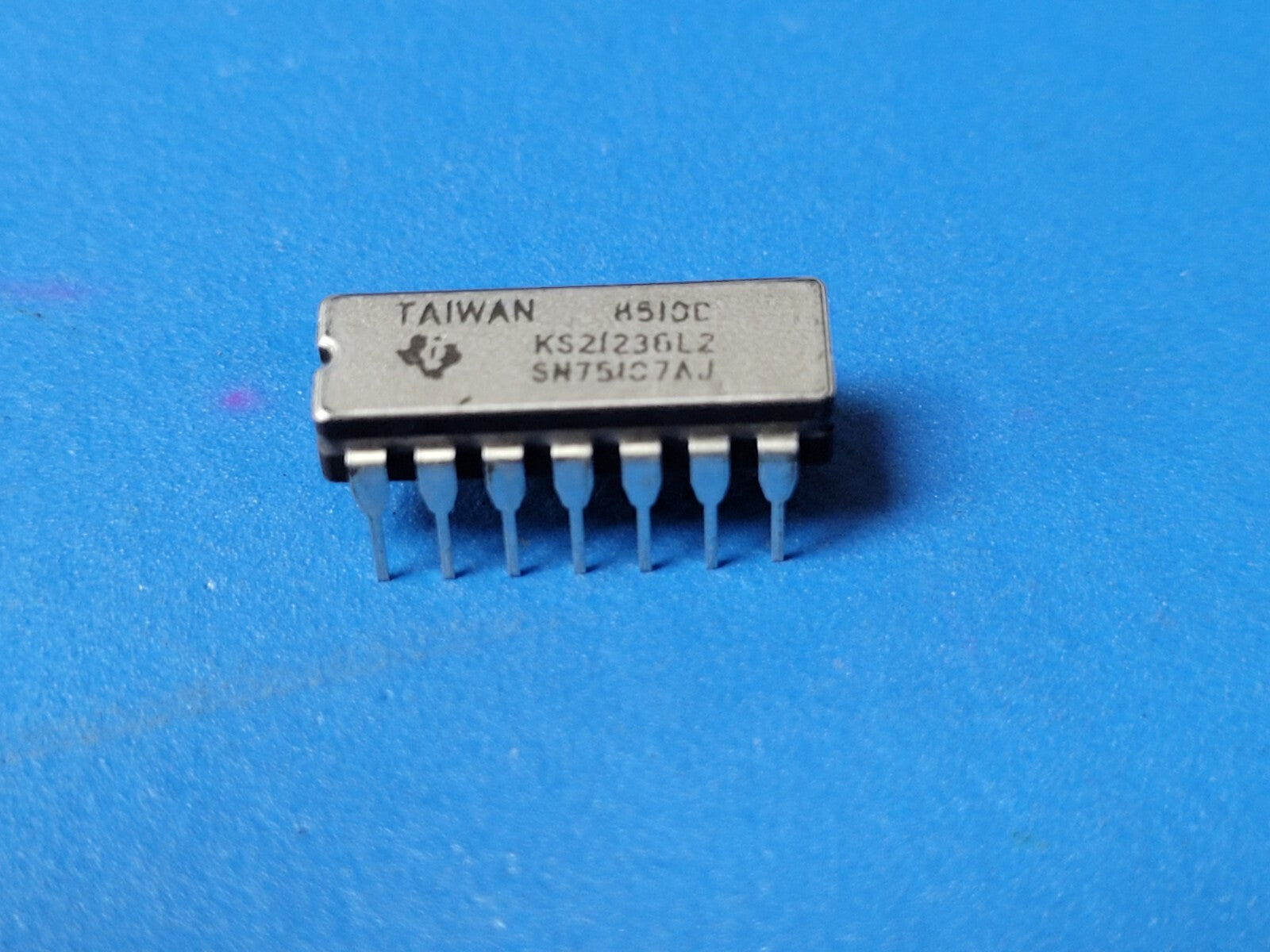

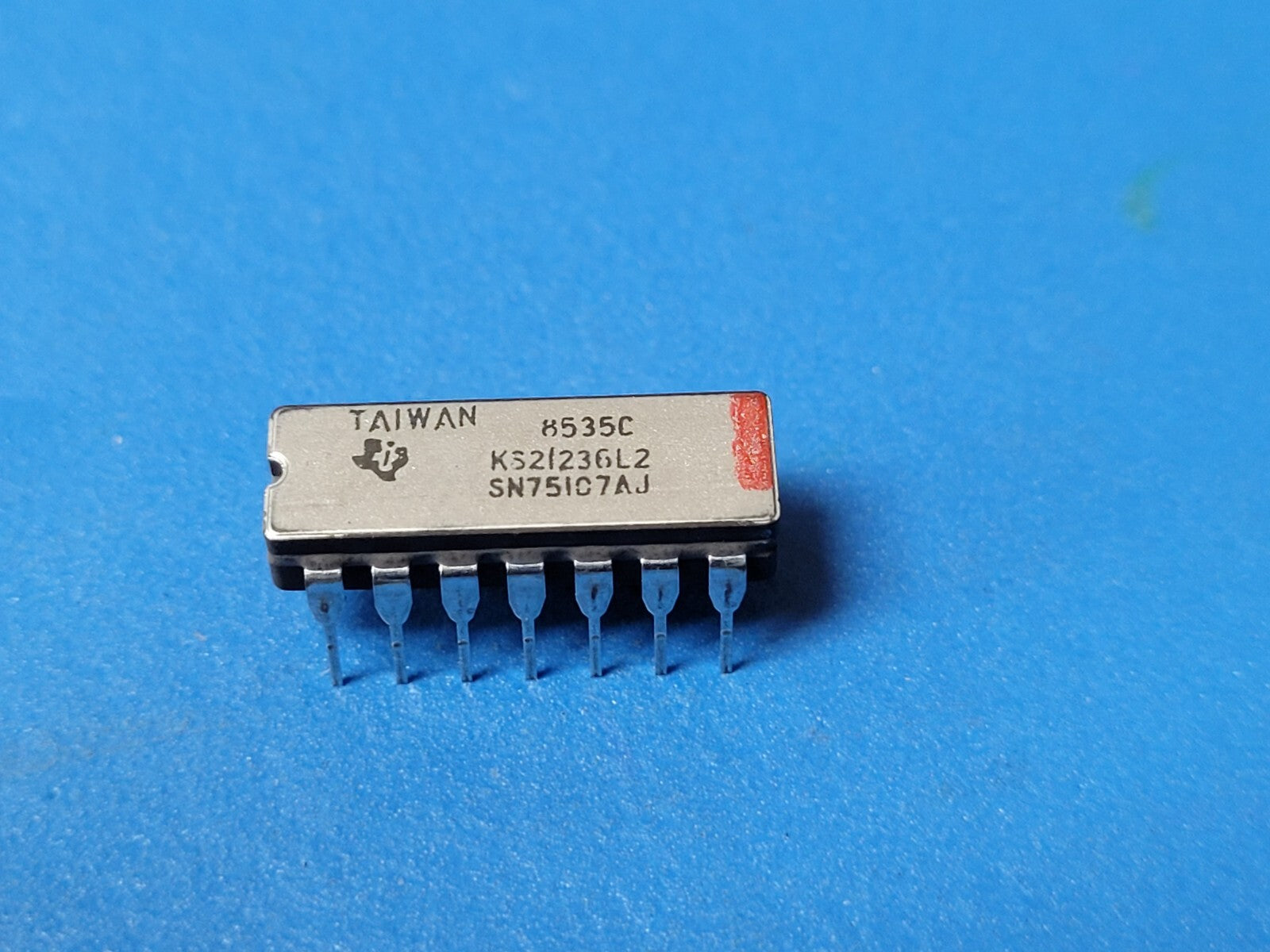

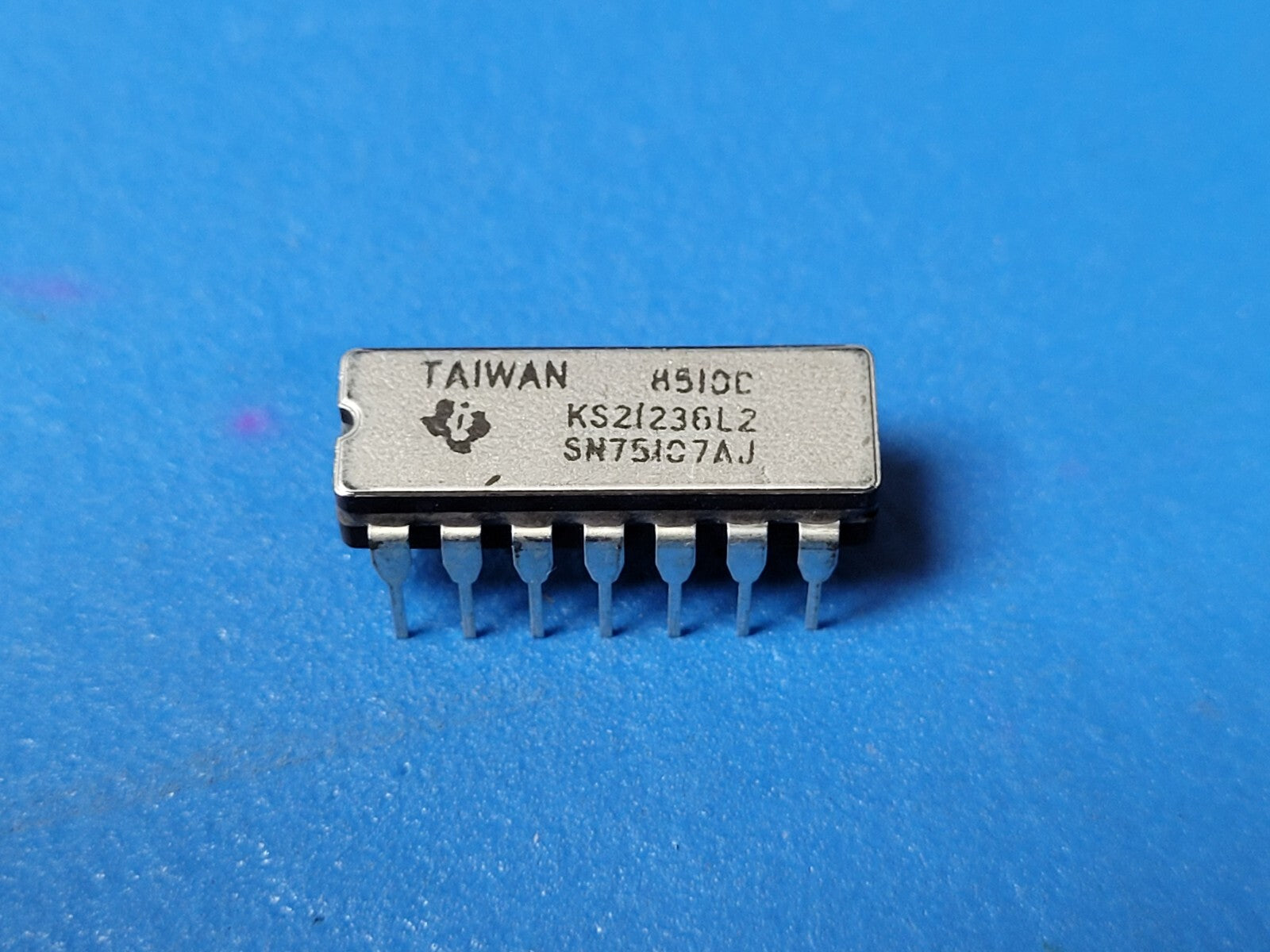

(2 PCS) SN75107AJ TI Line Receiver, 2 Func, 2 Rcvr, BIPolar, CDIP14
Tax included.
THIS LISTING IS FOR (2 PCS) OF SN75107AJ BY TI
Line Receiver, 2 Func, 2 Rcvr, BIPolar, CDIP14
Part #: SN75107AJ
Part Category: Interface ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Line Receiver, 2 Func, 2 Rcvr, BIPolar, CDIP14
Status Discontinued
Interface IC Type LINE RECEIVER
Differential Output NO
Input Characteristics DIFFERENTIAL
Interface Standard GENERAL PURPOSE
JESD-30 Code R-GDIP-T14
Negative Supply Voltage-Nom -5.0 V
Number of Functions 2
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics TOTEM-POLE
Output Low Current-Max 0.016 Amp
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Receive Delay-Max 25.0 ns
Receiver Number of Bits 2.0
Seated Height-Max 5.08 mm
Sub Category Line Driver or Receivers
Supply Current-Max 30.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.56 mm
Width 7.62 mm
Additional Feature ADDITIONAL COMMON STROBE INPUT
