(2 PCS) SN74LS466N TI 8-BIT DRIVER INVERTED OUTPUT PDIP 20PIN
Tax included.

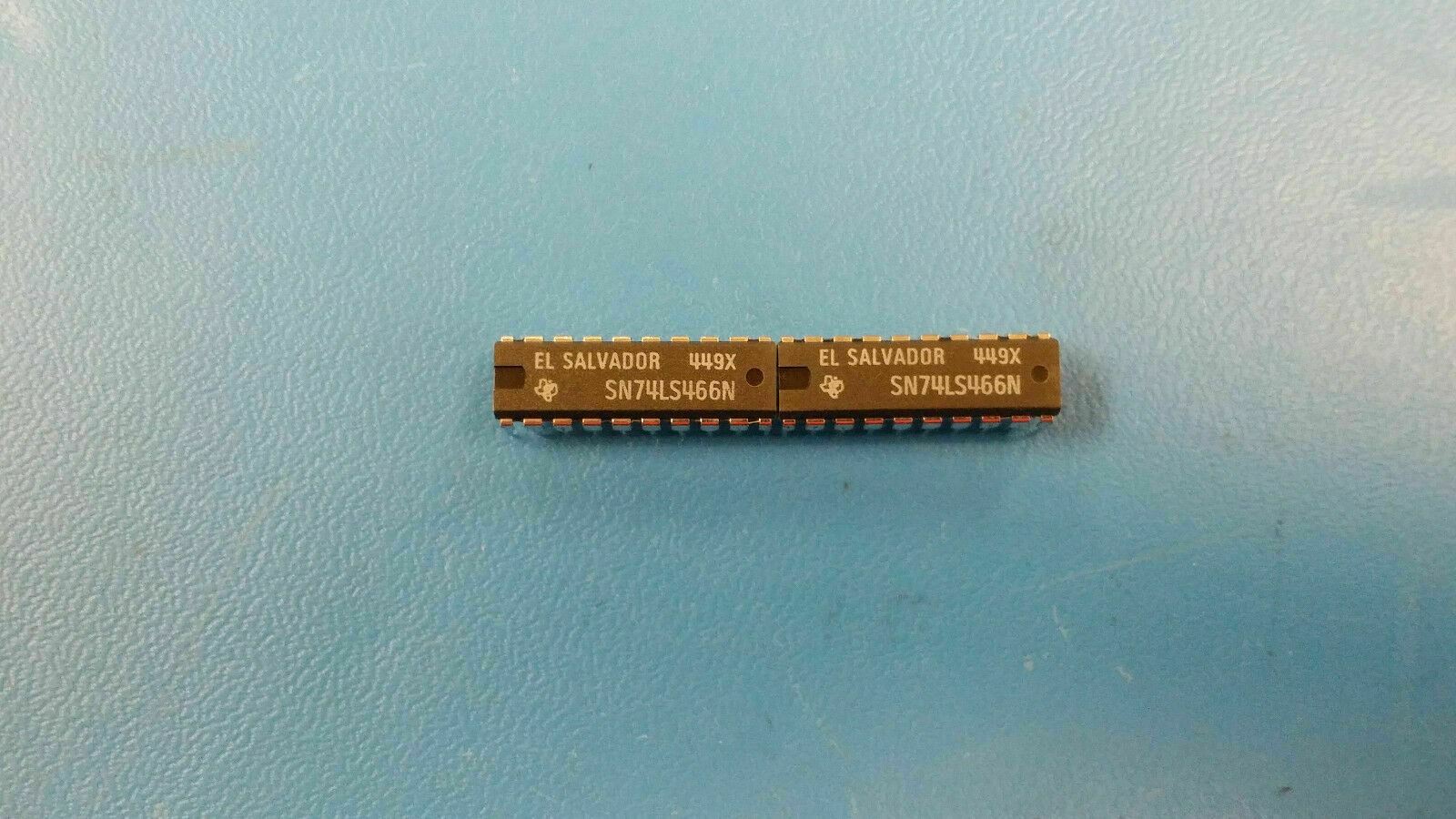

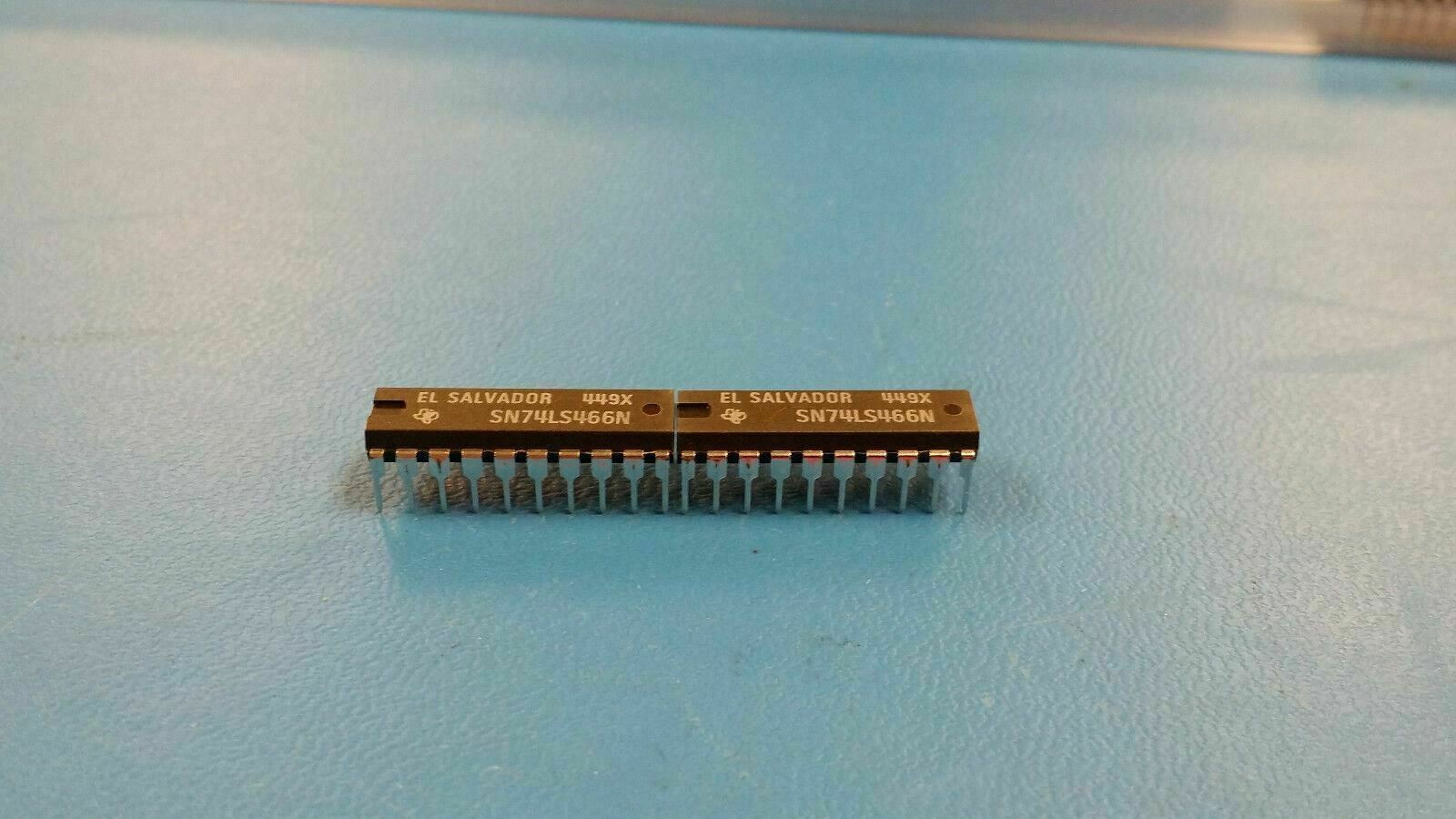

THIS LISTING IS FOR (2 PCS) OF SN74LS466N BY TI
8-BIT DRIVER INVERTED OUTPUT PDIP 20PIN
8-BIT DRIVER INVERTED OUTPUT PDIP 20PIN
| PLASTIC, DIP-20 | |
| Status | Discontinued |
| Logic IC Type | BUS DRIVER |
| Sub Category | Bus Driver/Transceivers |
| Control Type | ENABLE LOW |
| Family | LS |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 45.0 pF |
| Max I(ol) | 0.024 Amp |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | INVERTED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Power Supply Current-Max (ICC) | 23.0 mA |
| Propagation Delay (tpd) | 15.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 24.325 mm |
| Width | 7.62 mm |
| Additional Feature | WITH DUAL OUTPUT ENABLE |
