(2 PCS) SN74AS843NT TI 9-BIT DRIVER TRUE OUTPUT PDIP24
Tax included.

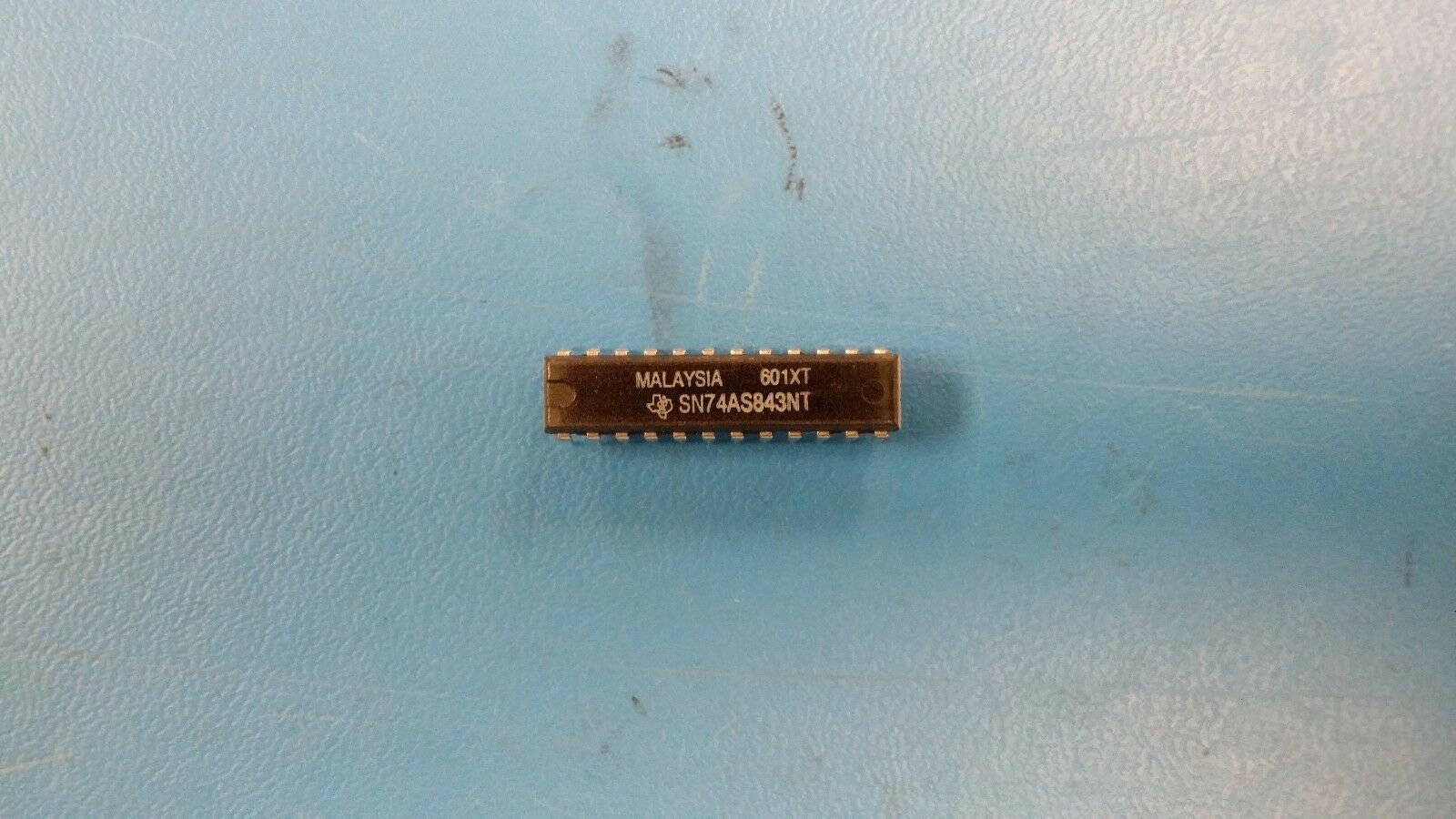

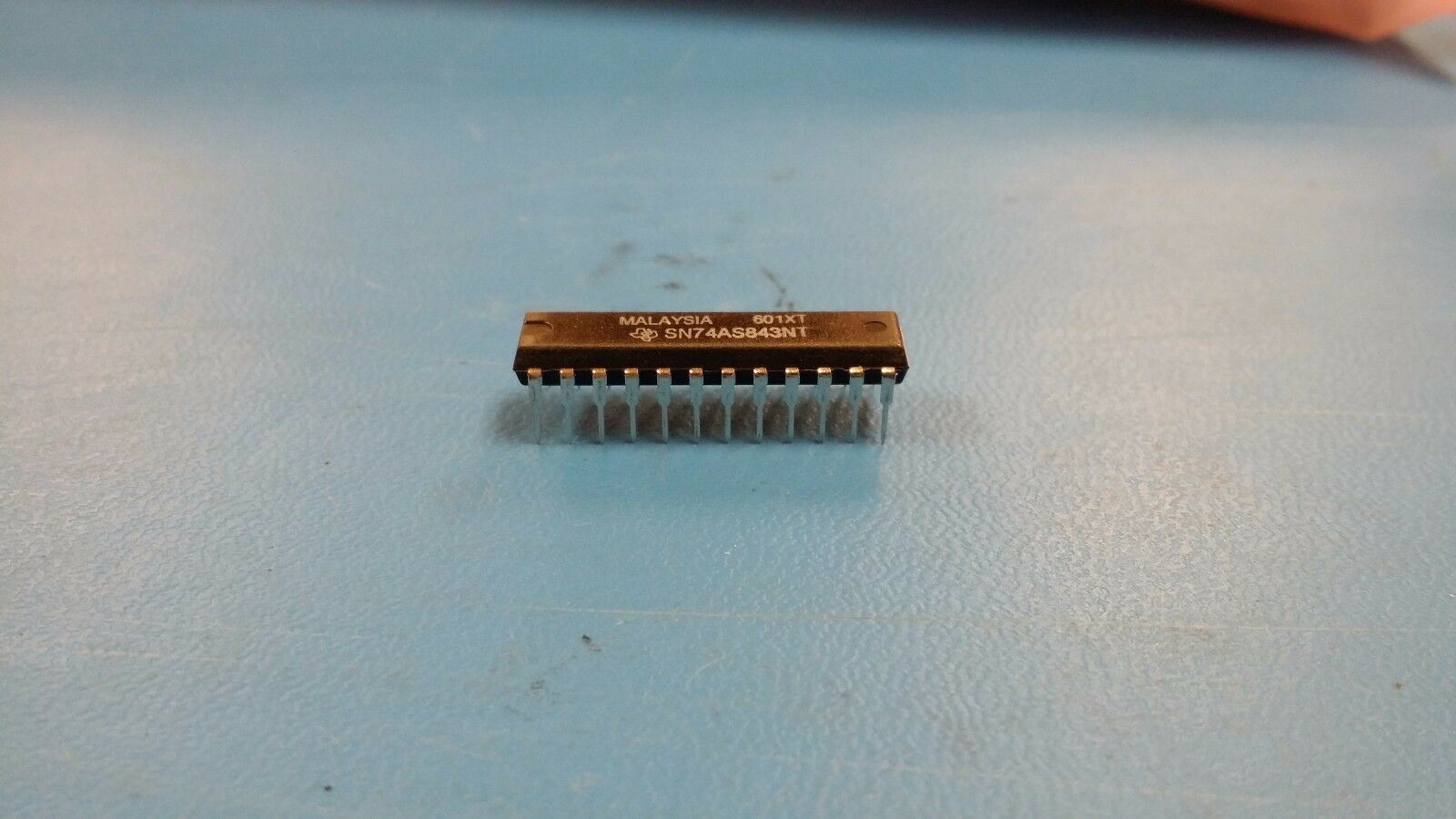

THIS LISTING IS FOR (2 PCS) OF SN74AS843NT BY TI
9-BIT DRIVER TRUE OUTPUT PDIP24
Part #: SN74AS843NT
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: AS SERIES, 9-BIT DRIVER, TRUE OUTPUT, PDIP24
Manufacturer: Texas Instruments High-Performance Analog
Description: AS SERIES, 9-BIT DRIVER, TRUE OUTPUT, PDIP24
| tatus | Discontinued |
| Logic IC Type | BUS DRIVER |
| Sub Category | FF/Latches |
| Family | AS |
| JESD-30 Code | R-PDIP-T24 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Bits | 9 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 92.0 mA |
| Propagation Delay (tpd) | 12.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 31.64 mm |
