(2 PCS) SN54LS51J MOT AND-OR-Invert Gate LS Series 2-Func 6-Input TTL CDIP14
(2 PCS) SN54LS51J MOT AND-OR-Invert Gate LS Series 2-Func 6-Input TTL CDIP14
(2 PCS) SN54LS51J MOT AND-OR-Invert Gate LS Series 2-Func 6-Input TTL CDIP14

(2 PCS) SN54LS51J MOT AND-OR-Invert Gate LS Series 2-Func 6-Input TTL CDIP14

Tax included.
Only 350 left!

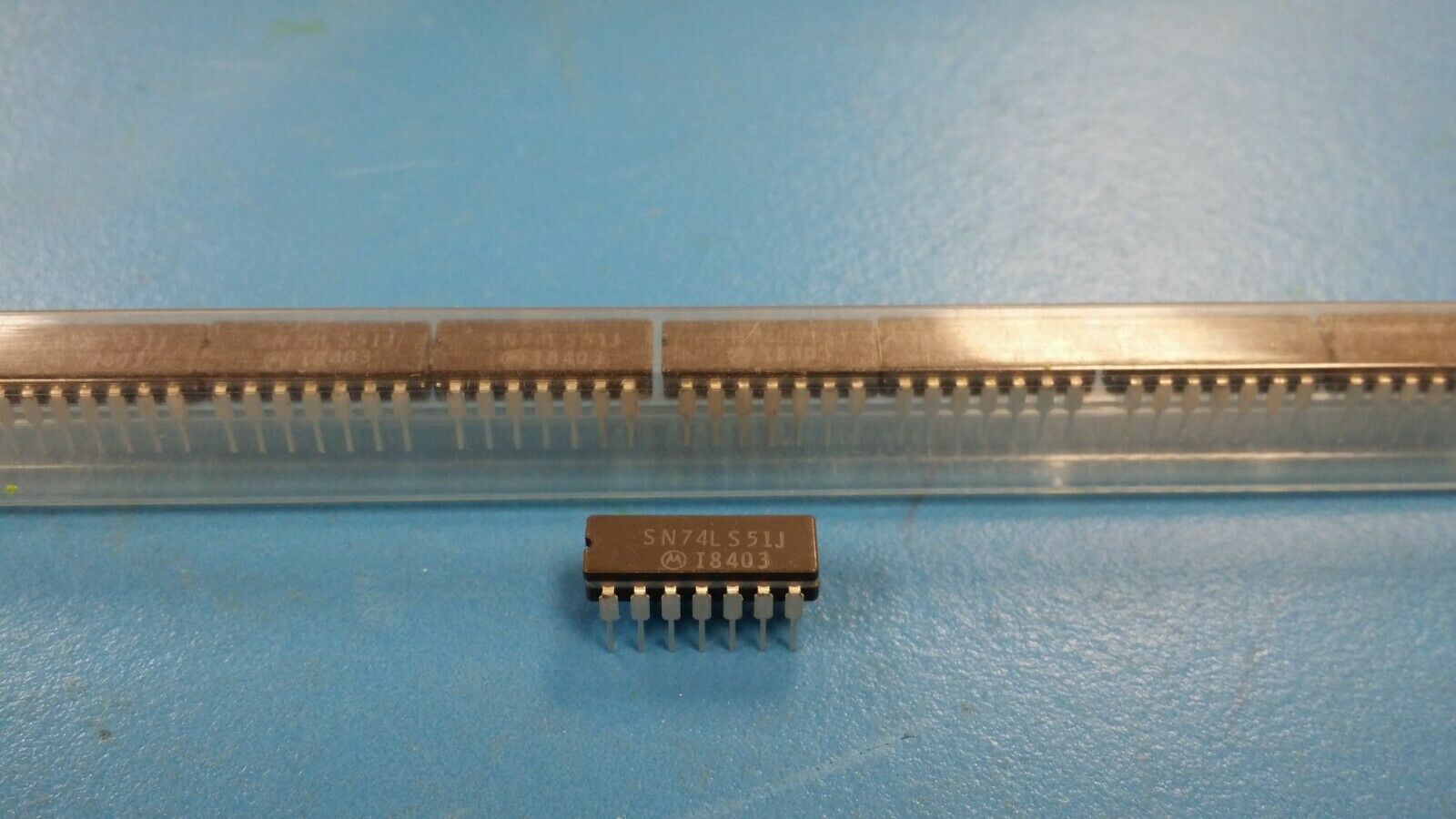

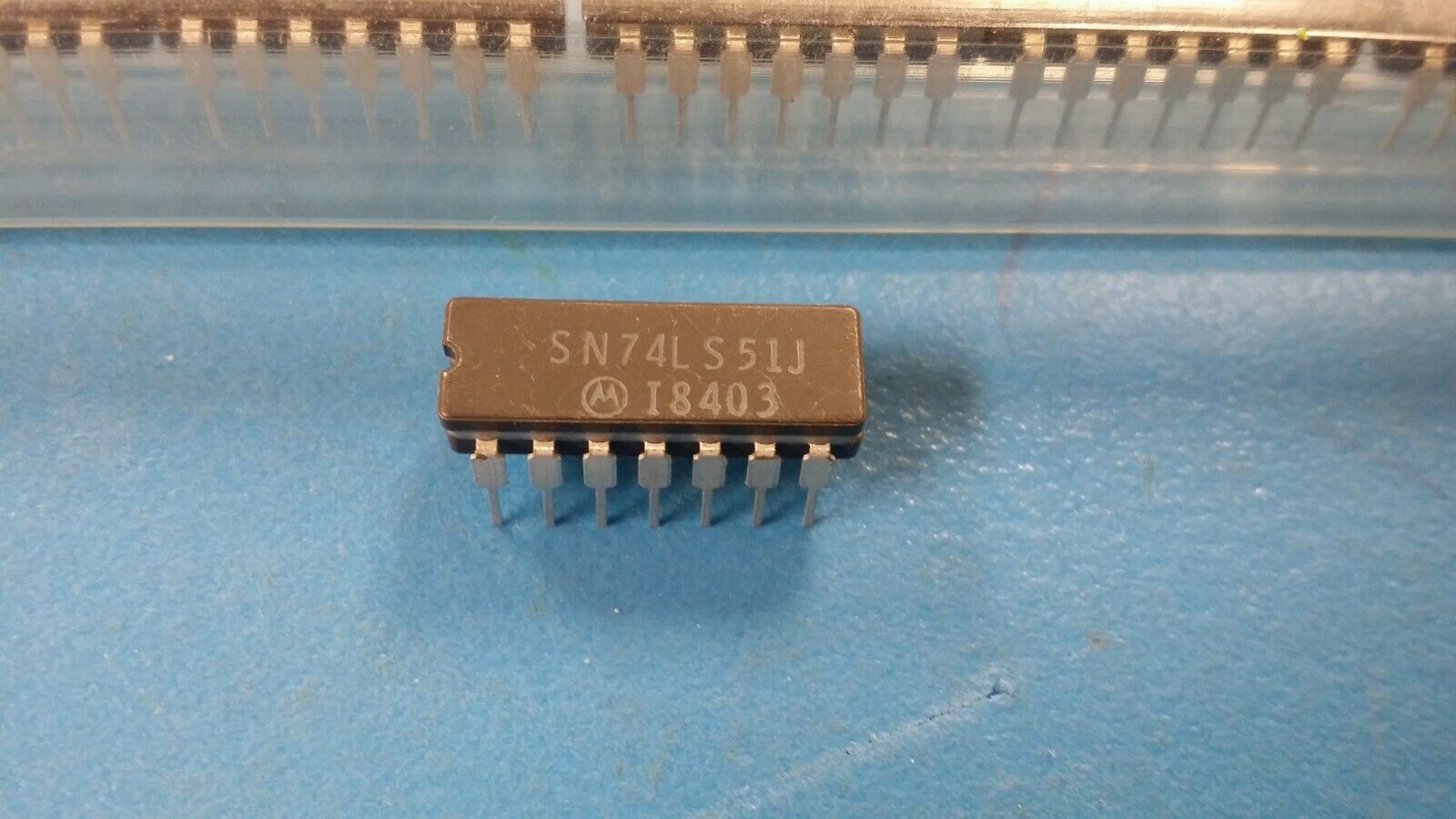

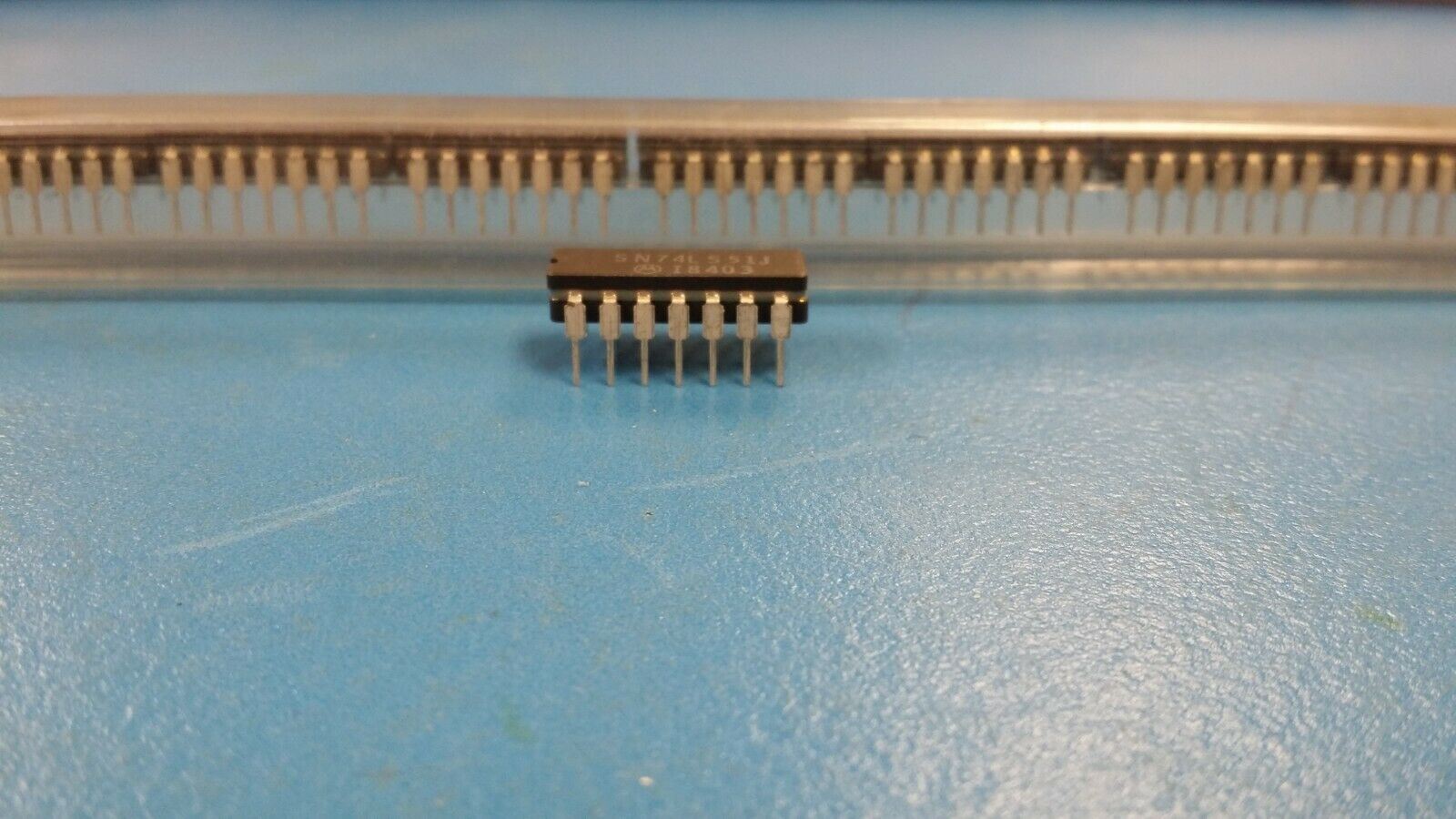

THIS LISTING IS FOR (2 PCS) OF SN54LS51J BY MOT
AND-OR-Invert Gate LS Series 2-Func 6-Input TTL CDIP14

Part #: SN74LS51J
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: AND-OR-Invert Gate, LS Series, 2-Func, 6-Input, TTL, CDIP14

Mfr Package Description CERAMIC, DIP-14
Status Discontinued
Logic IC Type AND-OR-INVERT GATE
Sub Category Gates
Family LS
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Load Capacitance (CL) 15.0  pF
Max I(ol) 0.008  Amp
Number of Functions 2
Number of Inputs 6.0
Number of Terminals 14
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 2.8  mA
Prop. Delay@Nom-Sup 20.0  ns
Propagation Delay (tpd) 20.0  ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.08  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.495  mm
Width 7.62  mm
Additional Feature ASYMMETRICAL I/P'S
