(2 PCS) SN29309N TI IC LOGIC MUX DUAL 4-INPUT STD-TTL DIP 16PIN
(2 PCS) SN29309N TI IC LOGIC MUX DUAL 4-INPUT STD-TTL DIP 16PIN

(2 PCS) SN29309N TI IC LOGIC MUX DUAL 4-INPUT STD-TTL DIP 16PIN

Tax included.
Only 151 left!

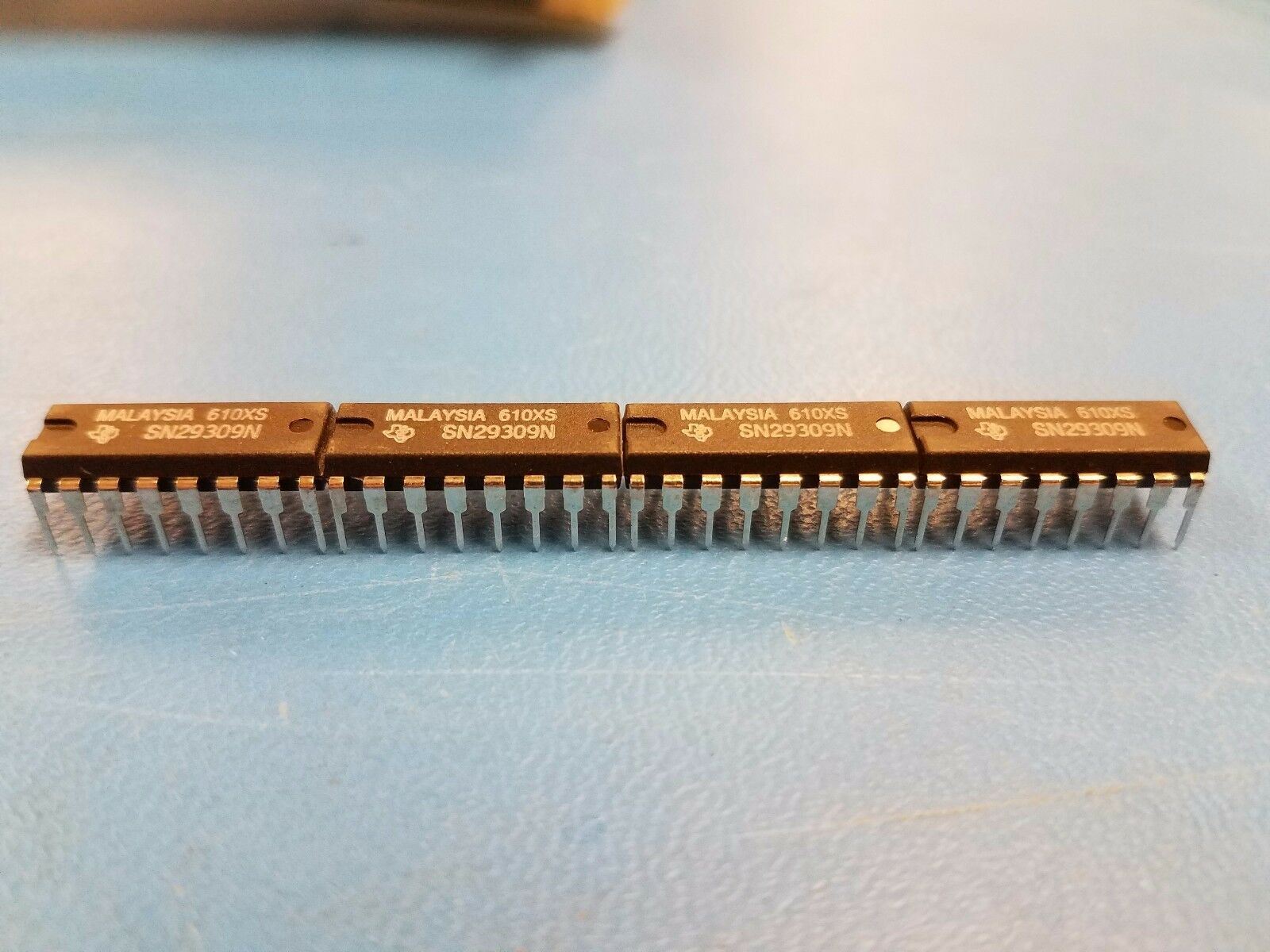

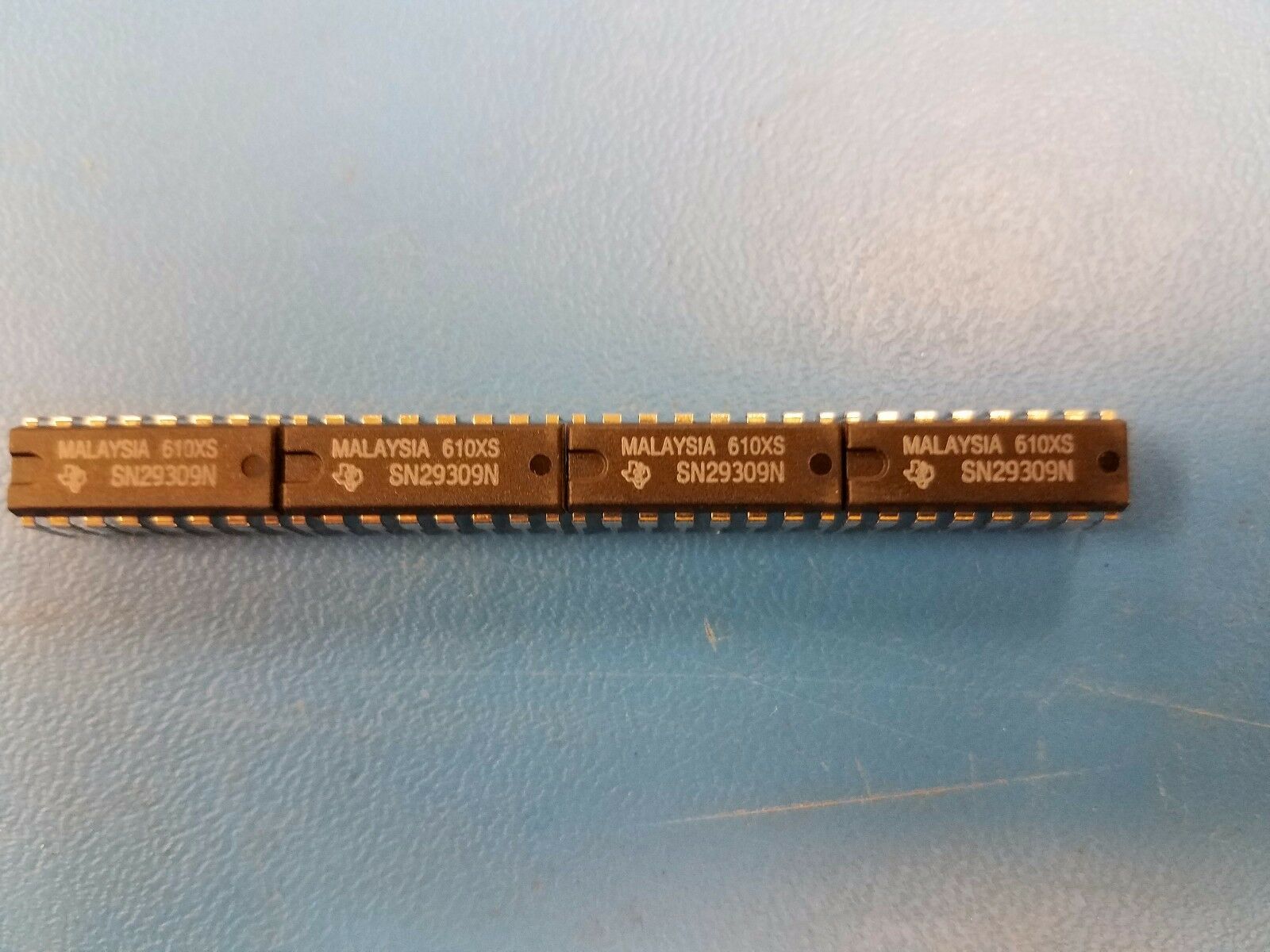

THIS LISTING IS FOR (2 PCS) OF SN29309N BY TI
IC LOGIC MUX DUAL 4-INPUT STD-TTL DIP 16PIN

Part #: SN29309N


Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: IC,LOGIC MUX,DUAL,4-INPUT,STD-TTL,DIP,16PIN,PLASTIC



Status Discontinued
Logic IC Type MULTIPLEXER
Sub Category Multiplexer/Demultiplexers
JESD-30 Code R-PDIP-T16
Number of Functions 2
Number of Inputs 4.0
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies (V) 5
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
