(2 PCS) RL-1284-22 RENCO Inductor Power Line Choke 22uH 15% Axial ROHS

$4.95
Unit price per

Tax included.

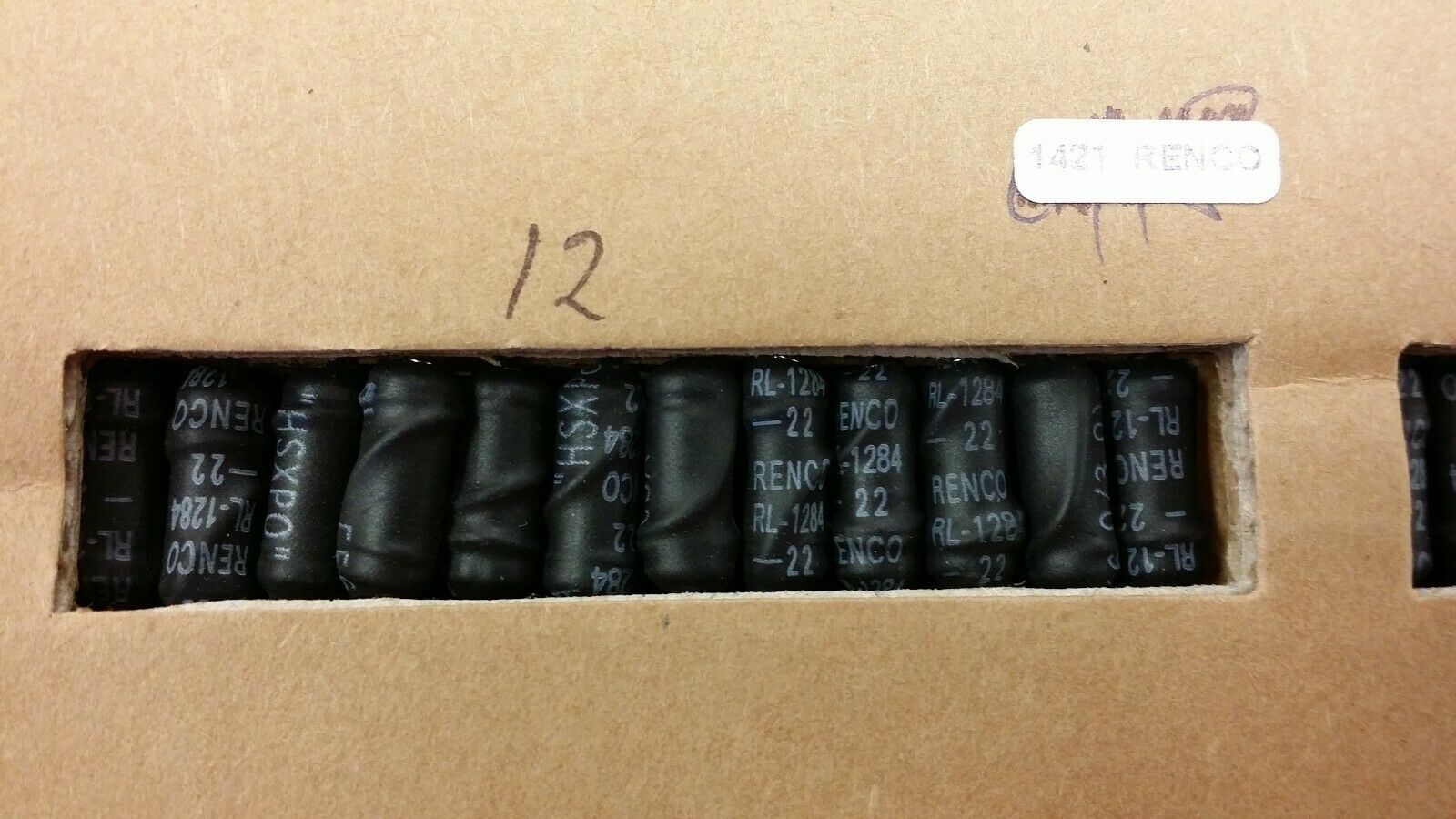

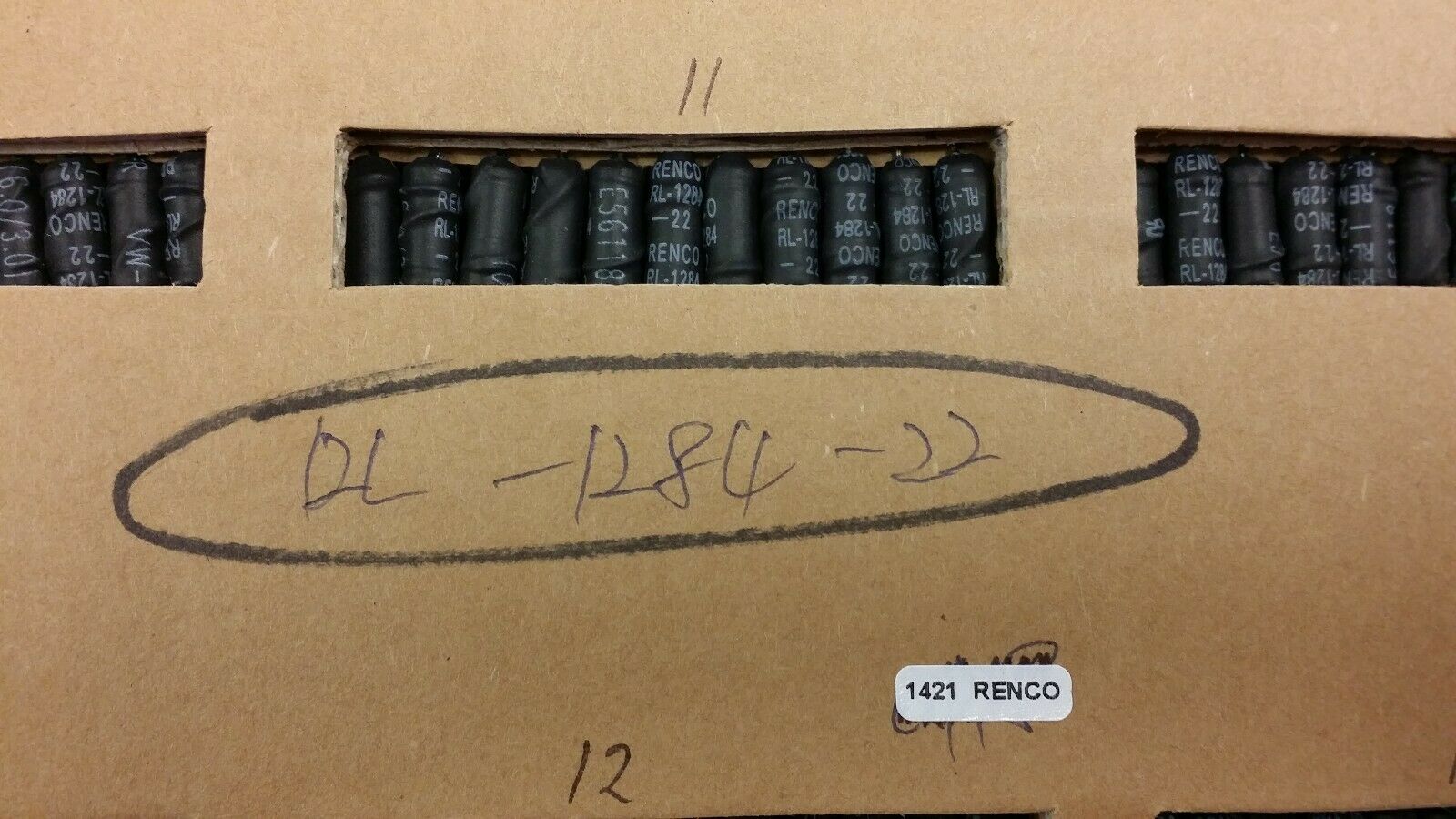

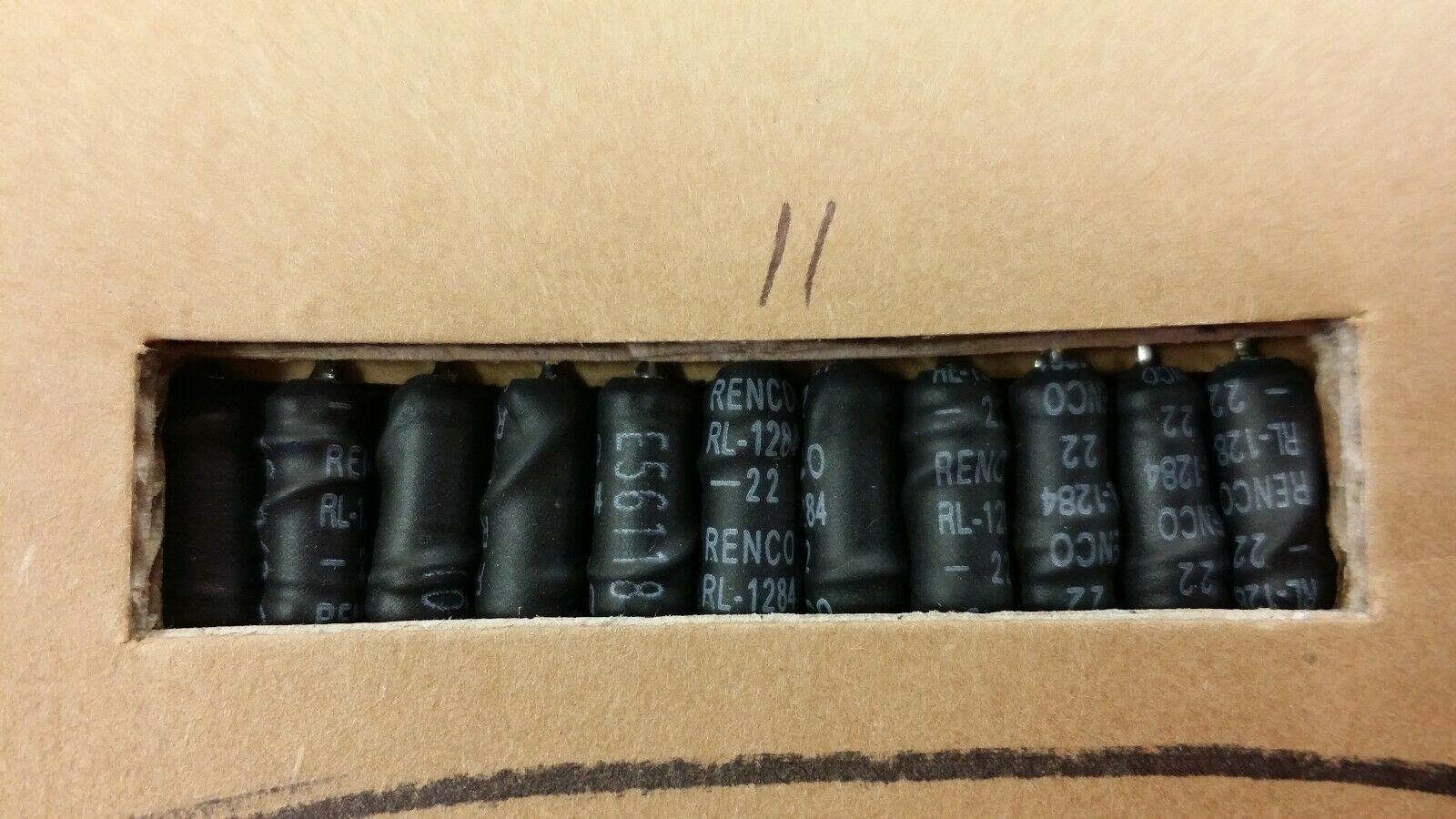

THIS LISTING IS FOR (2 PCS) OF RL-1284-22 BY RENCO

Inductor Power Line Choke 22uH 15% Axial ROHS

Part #: RL-1284-22

Part Category: Inductors

Manufacturer: Renco Electronics, Inc.

Description: General Purpose Inductor, 22uH, 15%, 1 Element, Non-specified-Core

Mfr Package Description ROHS COMPLIANT

REACH Compliant Yes

EU RoHS Compliant Yes

Status Contact Mfr

Inductor Type GENERAL PURPOSE INDUCTOR

Construction Tubular

Core Material Non-Specified

DC Resistance 0.05 ohm

Inductance-Nom (L) 22.0 µH

Inductor Application POWER INDUCTOR

Lead Diameter 0.81 mm

Manufacturer Series RL-1284

Number of Functions 1

Number of Terminals 2

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 130.0 Cel

Package Diameter 6.6 mm

Package Length 17.78 mm

Packing Method Tray

Rated Current-Max 1.28 A

Series RL-1284

Shape/Size Description TUBULAR PACKAGE

Shielded NO

Surface Mount NO

Terminal Placement AXIAL

Terminal Shape WIRE

Test Frequency 0.001 MHz

Tolerance 15.0 %

FEATURES & APPLICATIONS

• 45 standard values to choose from

• Inductances range from 3.9µH to 18,000µH

• Use of high saturation material makes these coils ideal for use

in switching regulated power supply type applications

• Size of the coils make them easy to incorporate in equipment

• Switching regulators

• Typical applications include: power amplifiers, power supplies,

SCR and TRIAC controls, speaker crossover networks, and filters
