(2 PCS) PI5C3384SX PERICOM Bus Switch 2-Element CMOS 10 Bit SOIC24

$4.95
Unit price per

Tax included.

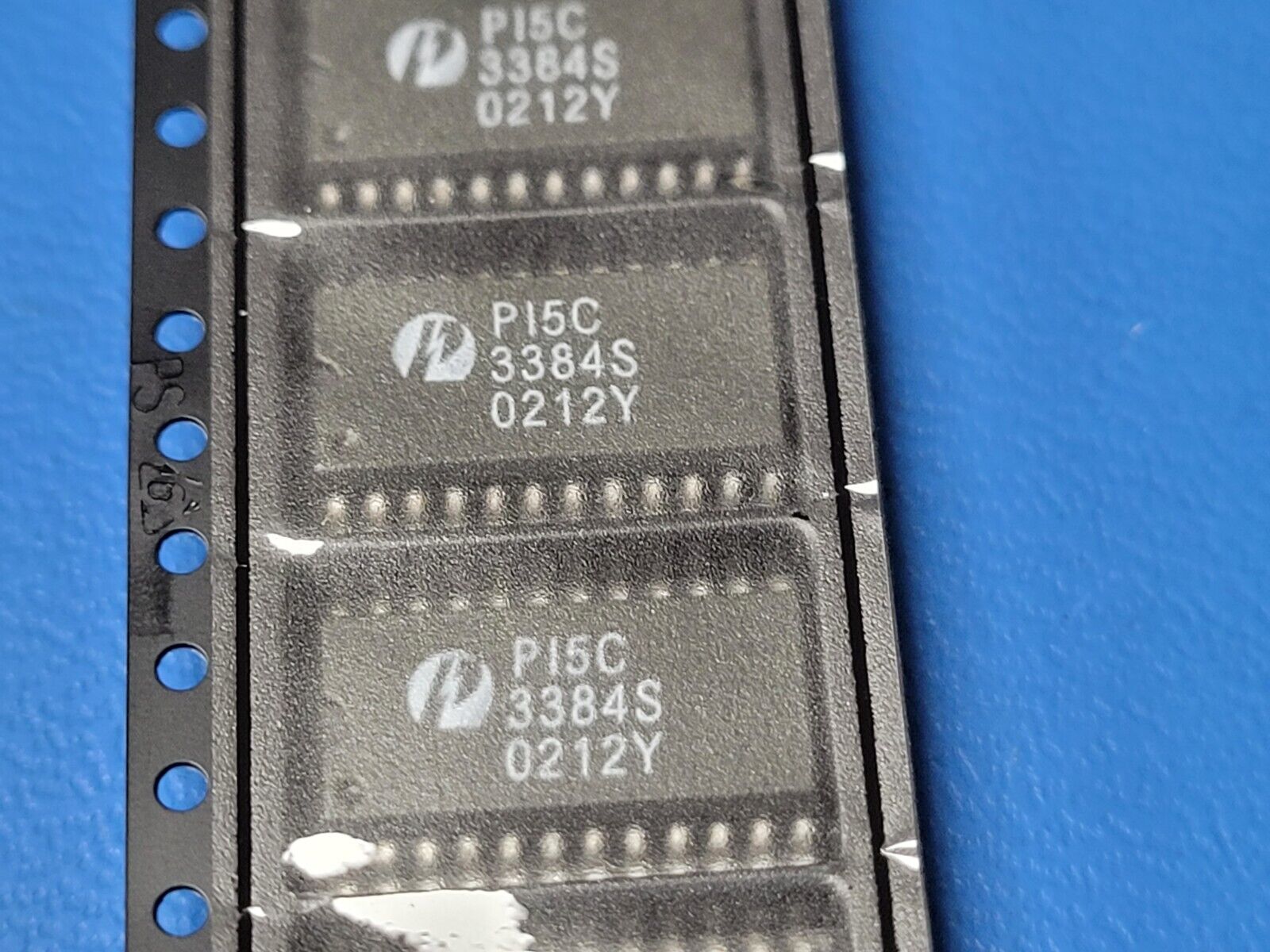

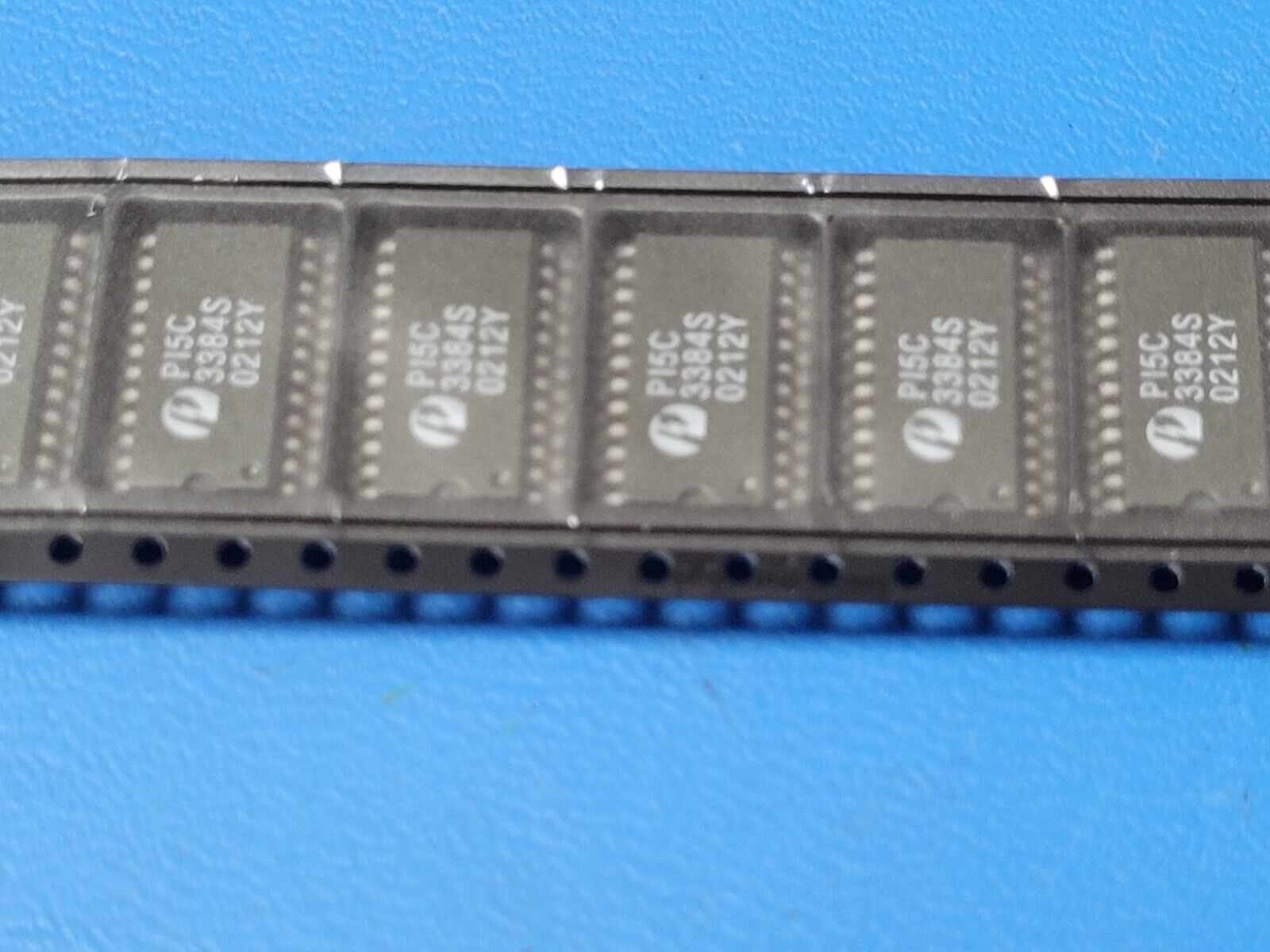

THIS IS FOR (2 PCS) OF PI5C3384SX BY PERICOM

Bus Switch 2-Element CMOS 10 Bit SOIC24

Part #: PI5C3384SX

Part Category: Logic ICs

Manufacturer: Pericom Semiconductor Corp.

Description: Bus Driver, CBT/FST/QS/5C/B Series, 1-Func, 10-Bit, True Output, CMOS, PDSO24

Mfr Package Description 0.300 INCH, PLASTIC, SOIC-24

REACH Compliant Yes

Status Discontinued

Logic IC Type BUS DRIVER

Family CBT/FST/QS/5C/B

JESD-30 Code R-PDSO-G24

Load Capacitance (CL) 50.0 pF

Number of Bits 10

Number of Functions 1

Number of Ports 2

Number of Terminals 24

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Propagation Delay (tpd) 0.25 ns

Qualification Status Not Qualified

Seated Height-Max 2.65 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 15.4 mm

Width 7.5 mm

Additional Feature TTL COMPATIBLE BUS SWITCH
