(2 PCS) PI49FCT811TQ Low Skew Clock Driver 10 True Outputs CMOS SOIC24
(2 PCS) PI49FCT811TQ Low Skew Clock Driver 10 True Outputs CMOS SOIC24
(2 PCS) PI49FCT811TQ Low Skew Clock Driver 10 True Outputs CMOS SOIC24

(2 PCS) PI49FCT811TQ Low Skew Clock Driver 10 True Outputs CMOS SOIC24

Tax included.
Only 110 left!

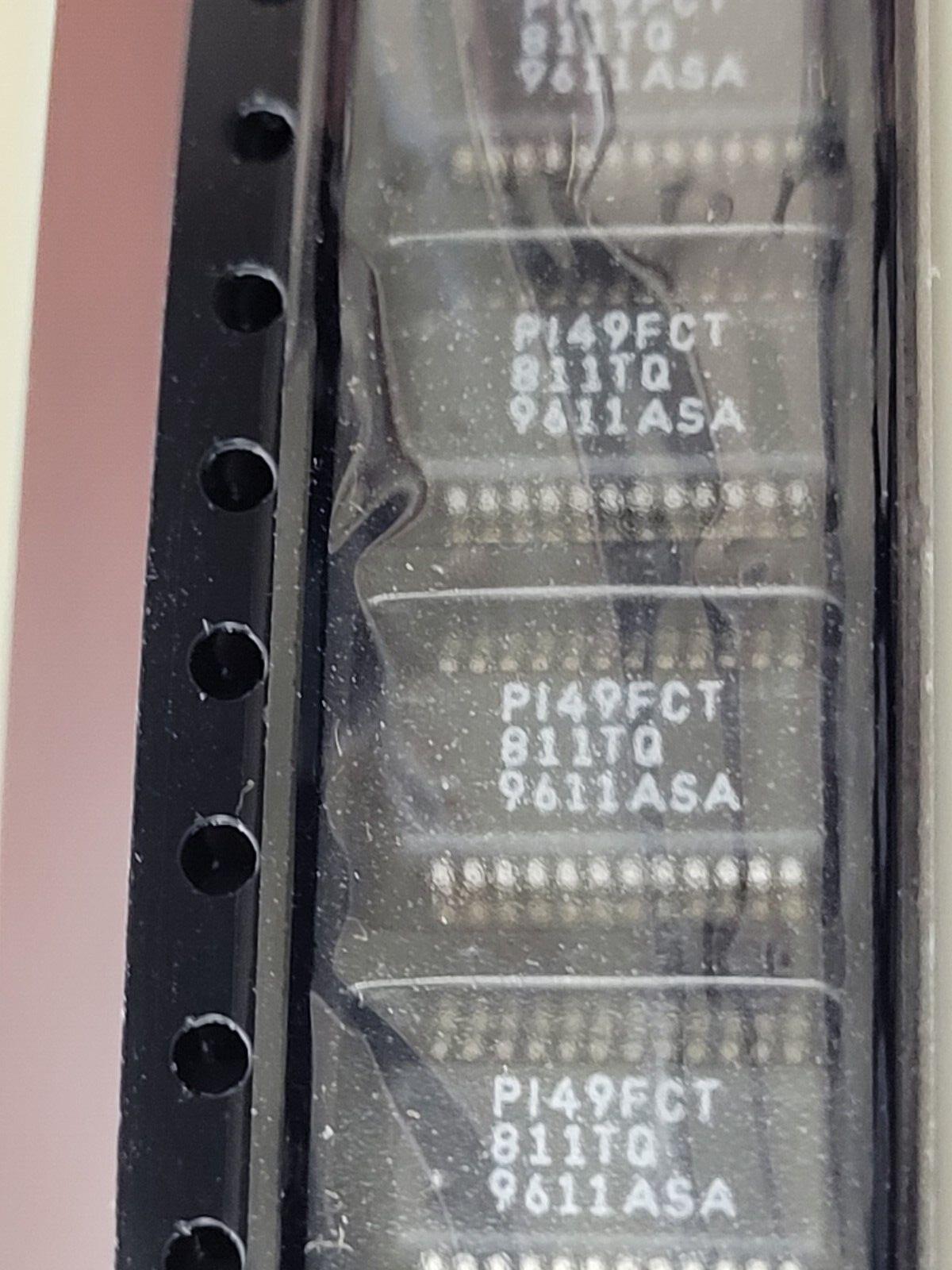

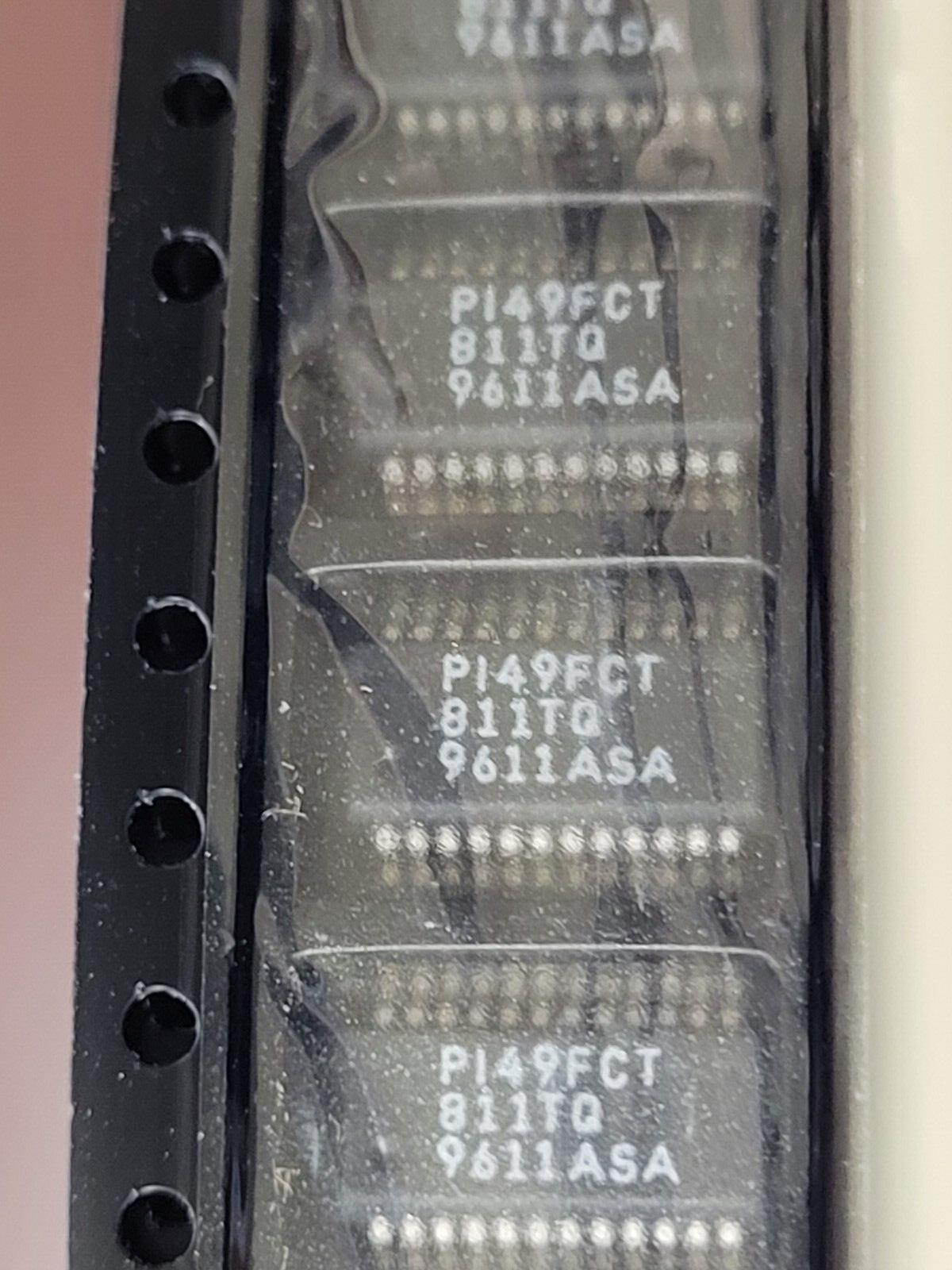

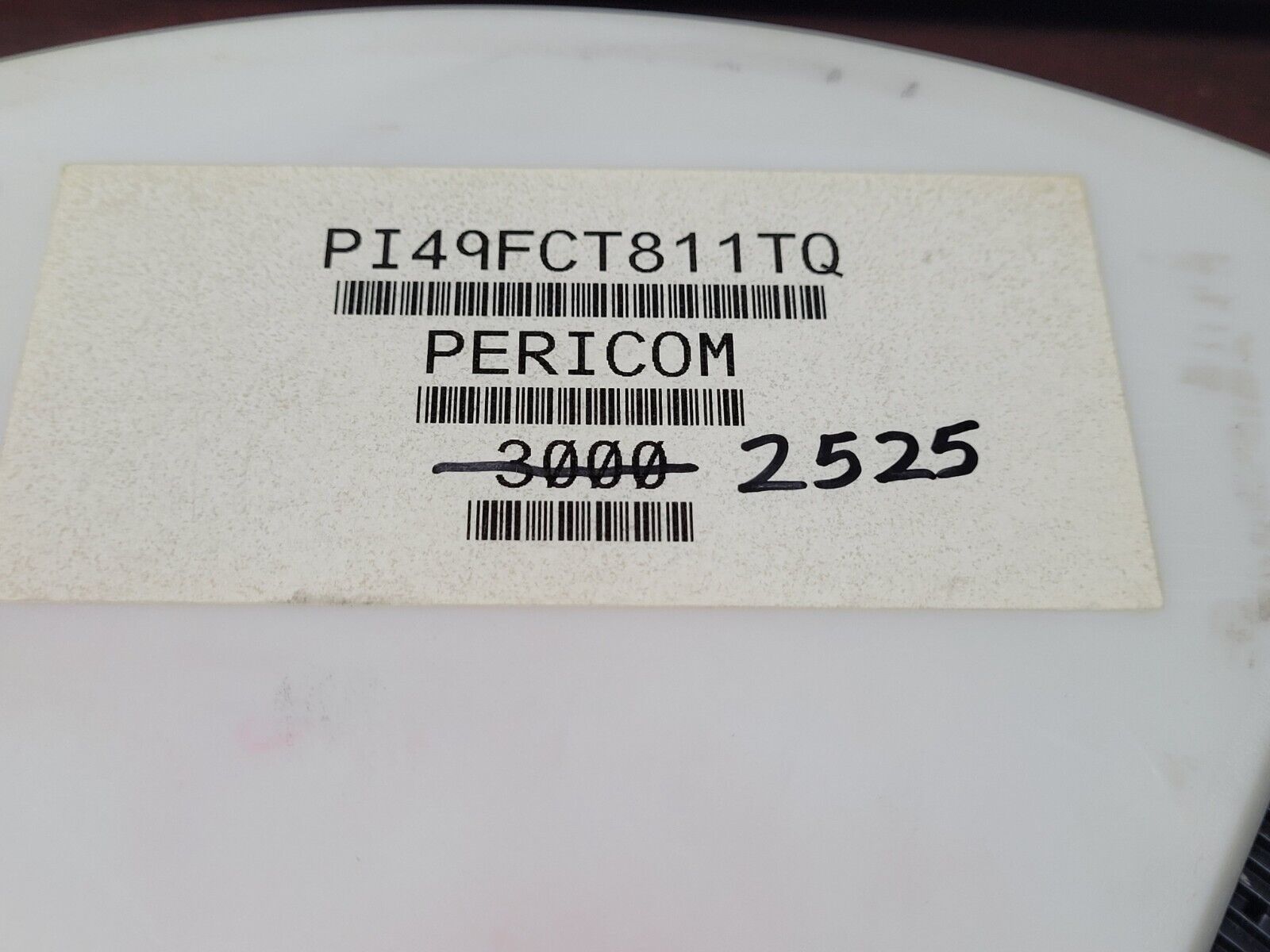

THIS IS FOR (2 PCS) OF PI49FCT811TQ BY PERICOM
Low Skew Clock Driver 10 True Outputs CMOS SOIC24

Part #: PI49FCT811TQ
Part Category: Logic ICs
Manufacturer: Pericom Semiconductor Corp.
Description: Low Skew Clock Driver, FCT Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO24

Mfr Package Description 0.150 INCH, QSOP-24
Status Discontinued
Logic IC Type LOW SKEW CLOCK DRIVER
Sub Category Clock Drivers
Family FCT
Input Conditioning SCHMITT TRIGGER
JESD-30 Code R-PDSO-G24
JESD-609 Code e0
Load Capacitance (CL) 50.0  pF
Max I(ol) 0.064  Amp
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 24
Number of True Outputs 10.0
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Prop. Delay@Nom-Sup 7.0  ns
Propagation Delay (tpd) 7.0  ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.5  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.635  mm
Terminal Position DUAL
Length 8.65  mm
Width 3.9116  mm
Additional Feature MULTIPLE SELECTABLE PHASE/FREQUENCY RELATIONS FOR THE CLOCK O/P
