(2 PCS) PI49FCT805TQX Clock Fanout Buffer 10-OUT QSOP-20
(2 PCS) PI49FCT805TQX Clock Fanout Buffer 10-OUT QSOP-20

(2 PCS) PI49FCT805TQX Clock Fanout Buffer 10-OUT QSOP-20

Tax included.
Only 50 left!

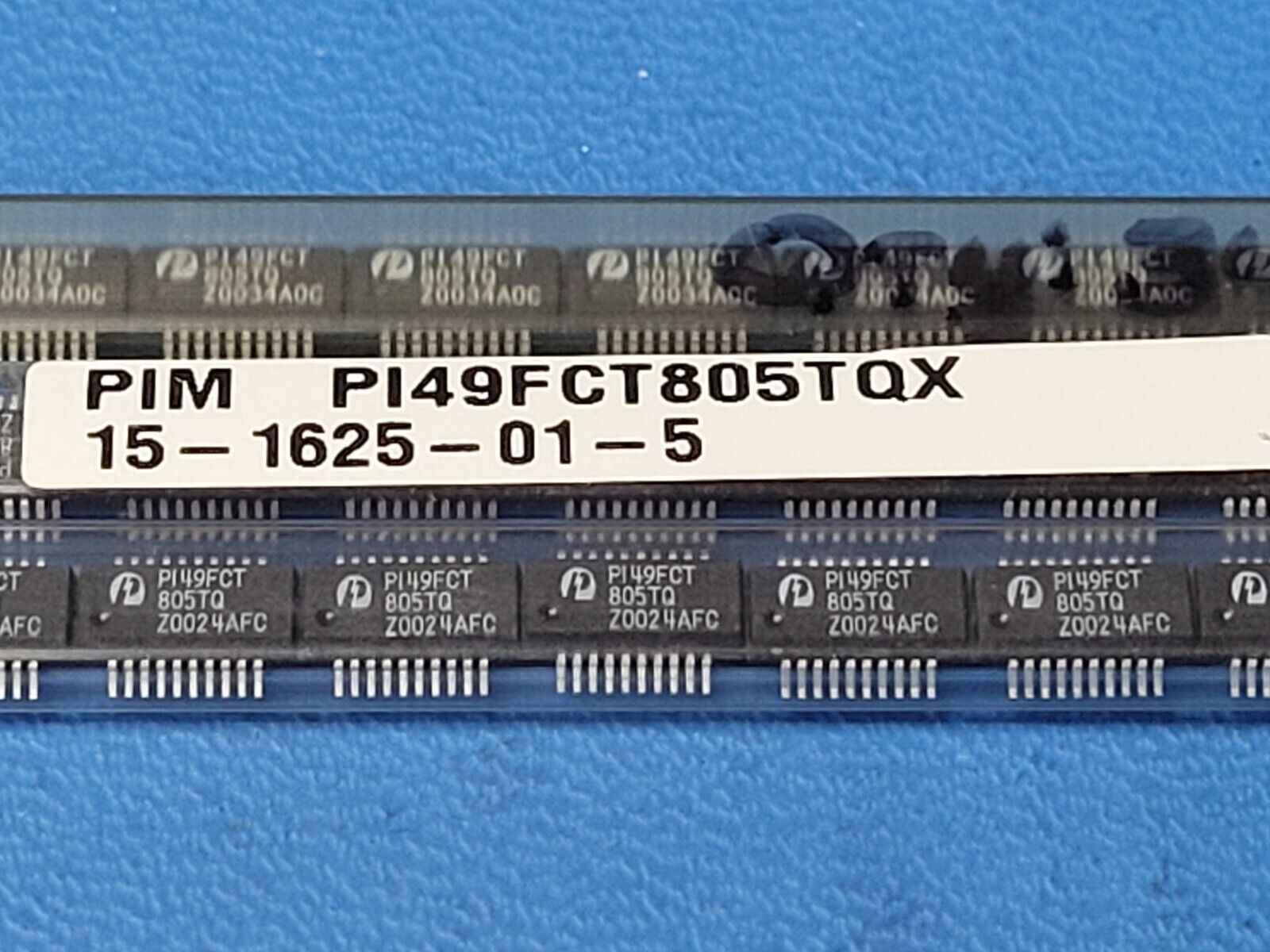

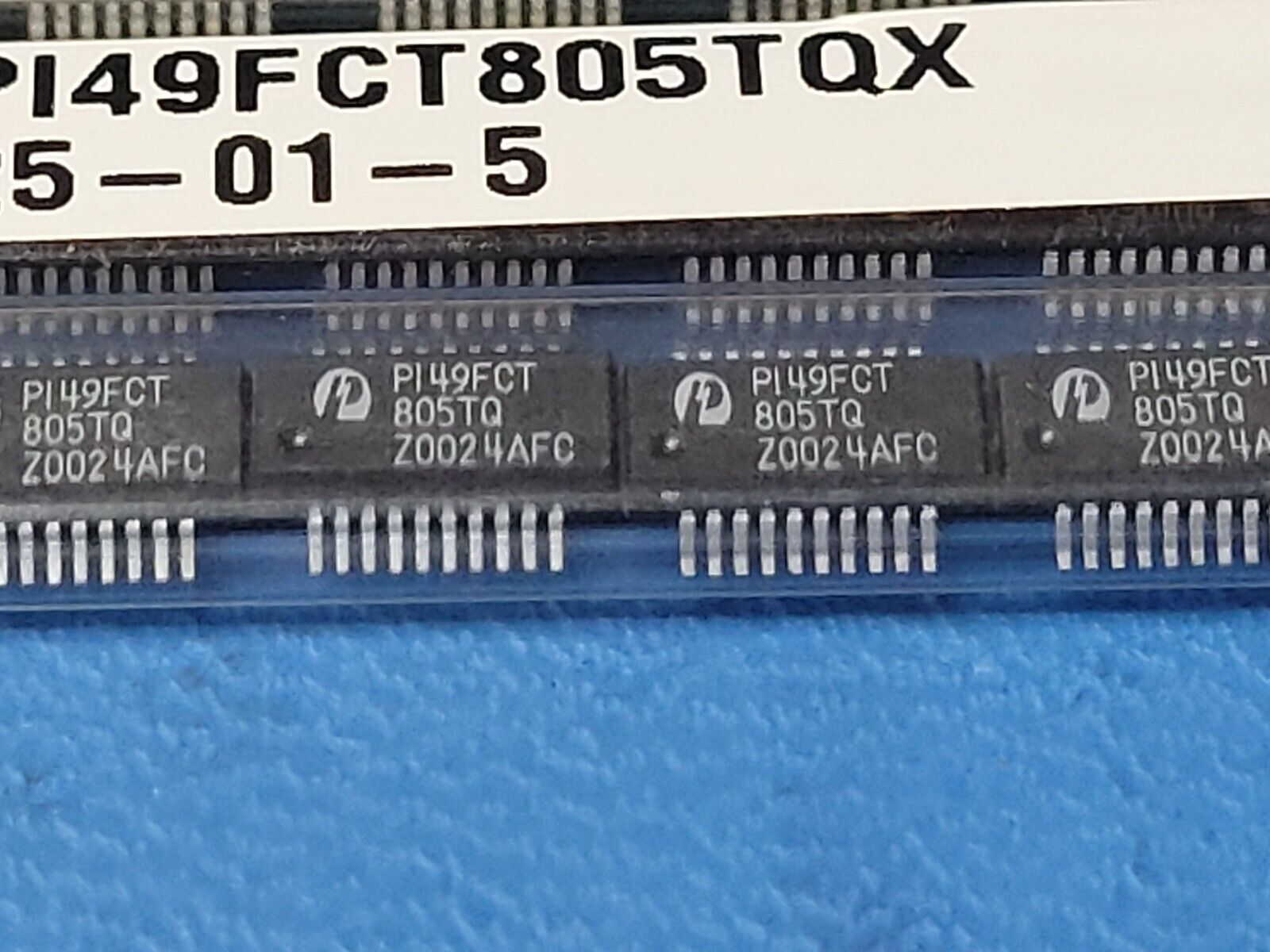

THIS IS FOR (2 PCS) OF PI49FCT805TQX BY PERICOM
Clock Fanout Buffer 10-OUT QSOP-20

Mfr Package Description 0.150 INCH, QSOP-20
REACH Compliant Yes
Status Discontinued
Logic IC Type LOW SKEW CLOCK DRIVER
Family FCT
Input Conditioning SCHMITT TRIGGER
JESD-30 Code R-PDSO-G20
Load Capacitance (CL) 50.0  pF
Number of Functions 2
Number of Inverted Outputs 0.0
Number of Terminals 20
Number of True Outputs 5.0
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Propagation Delay (tpd) 6.5  ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 1.0  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.635  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 8.65  mm
Width 3.9  mm
Additional Feature MONITOR OUTPUT FOR ONE BANK; MAX PART TO PART SKEW = 1.5NS
