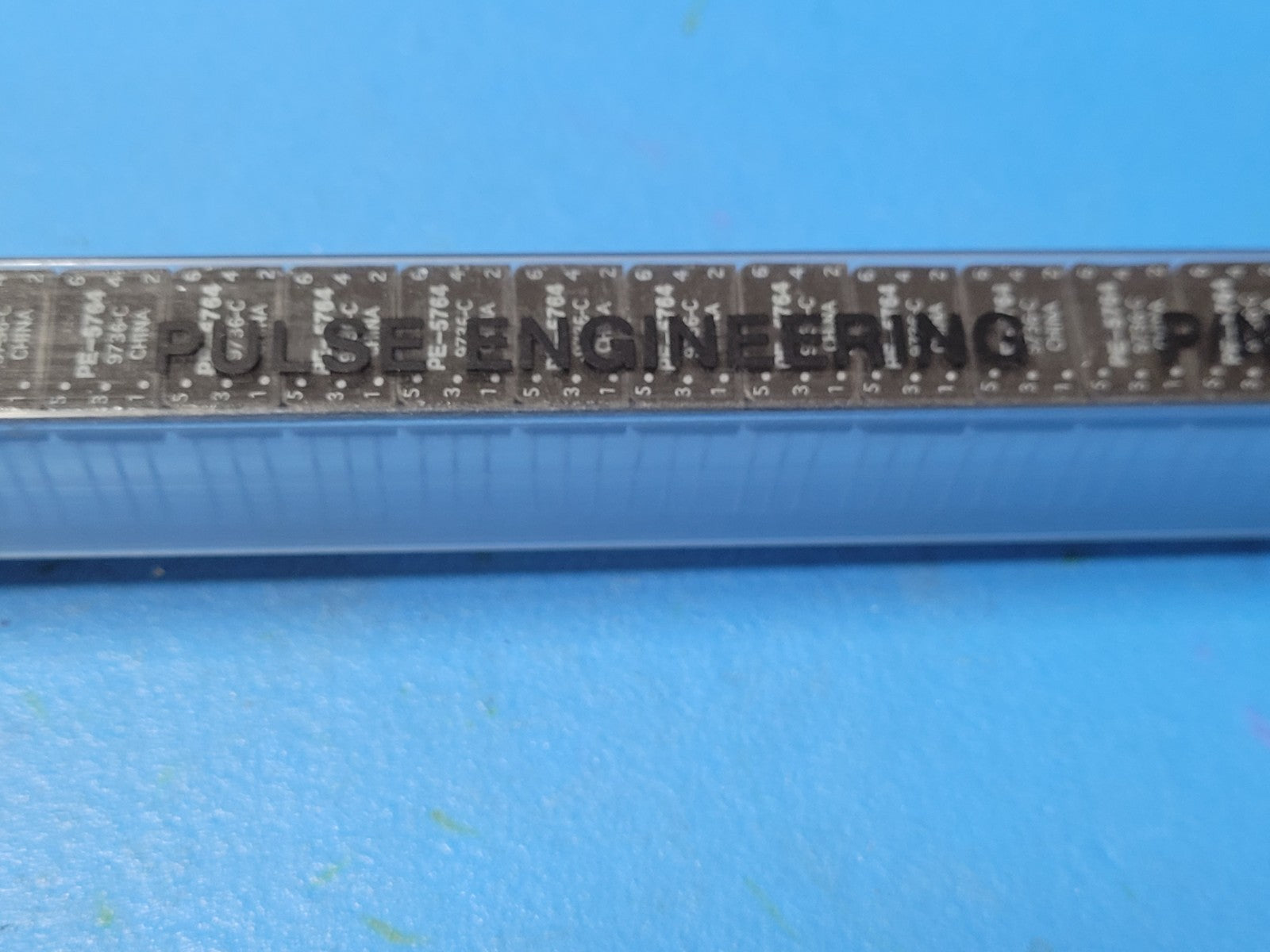

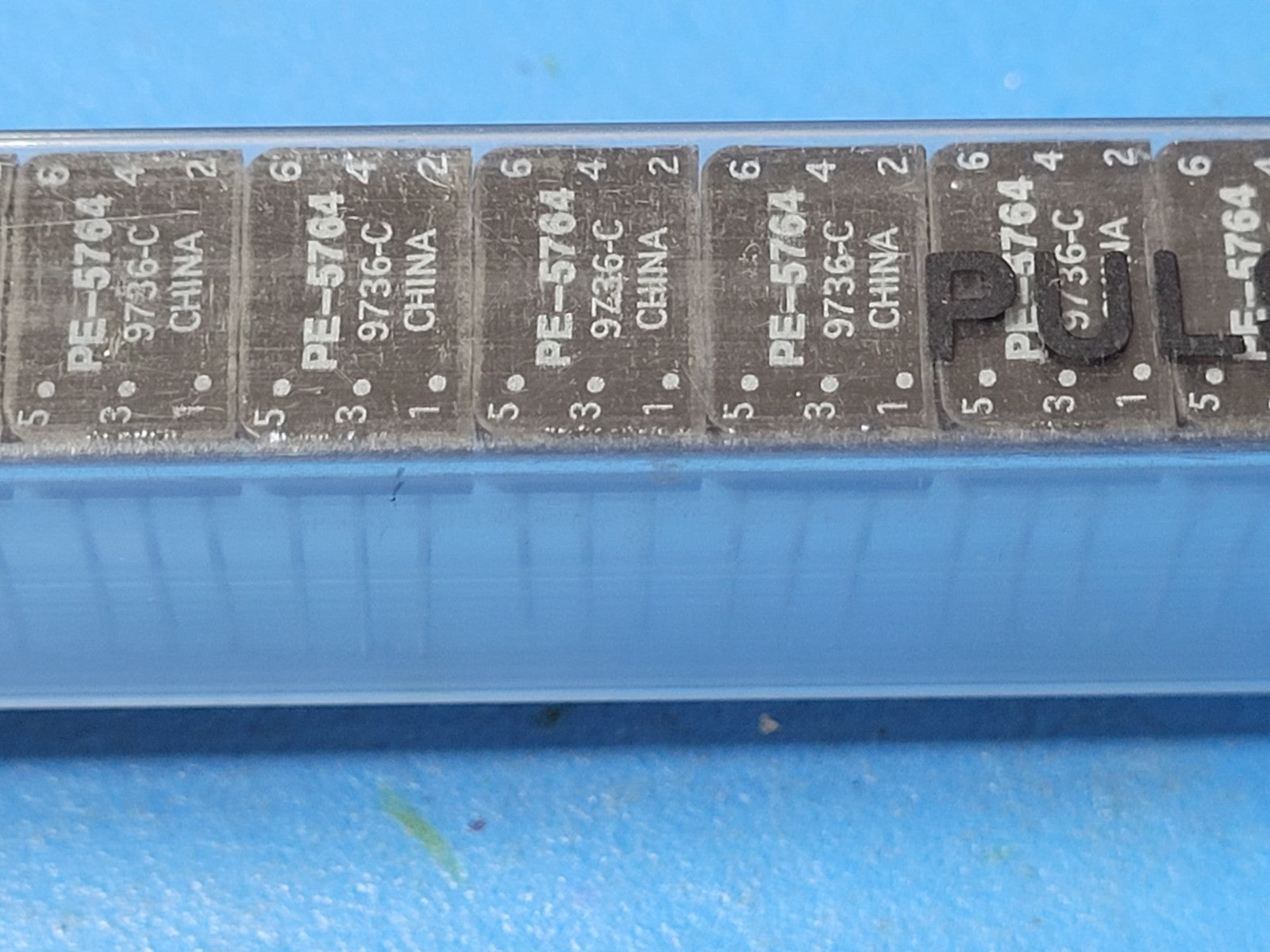

(2 PCS) PE-5764 PULSE TRANSFORMER 500VRMS 1.3 OHM
Tax included.
THIS IS FOR (2 PCS) OF PE-5764 BY PULSE ELECTRONICS
PULSE TRANSFORMER 500VRMS 1.3 OHM
Part #: PE-5764
Part Category: Pulse/Datacom Transformers
Manufacturer: PULSE ELECTRONICS CORP
Description: Pulse Transformer, GENERAL PURPOSE Application(s), 1:1:1
Status Transferred
Application GENERAL PURPOSE
ET Product-Min (V-us) 5.2000000000000000
Height (mm) 6.3500000000000000
Isolation Voltage (V) 500.0000000000000000
Length (mm) 12.7000000000000000
Mounting Feature THROUGH HOLE MOUNTED
Number of Functions 1
Number of Primary Winding 1
Number of Secondary Winding 2
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Packing Method TUBE
Primary Inductance (uH) 50.0000000000000000
Pulse Rise Time-Max (ns) 5.6000000000000000
Transformer Type PULSE TRANSFORMER
Turns Ratio (Np:Ns) 1:1:1
Width (mm) 8.8900000000000000
