(2 PCS) P0846NL PULSE ELECTRONICS FIXED IND 14.8UH 5A 23 MOHM TH ROHS
Tax included.

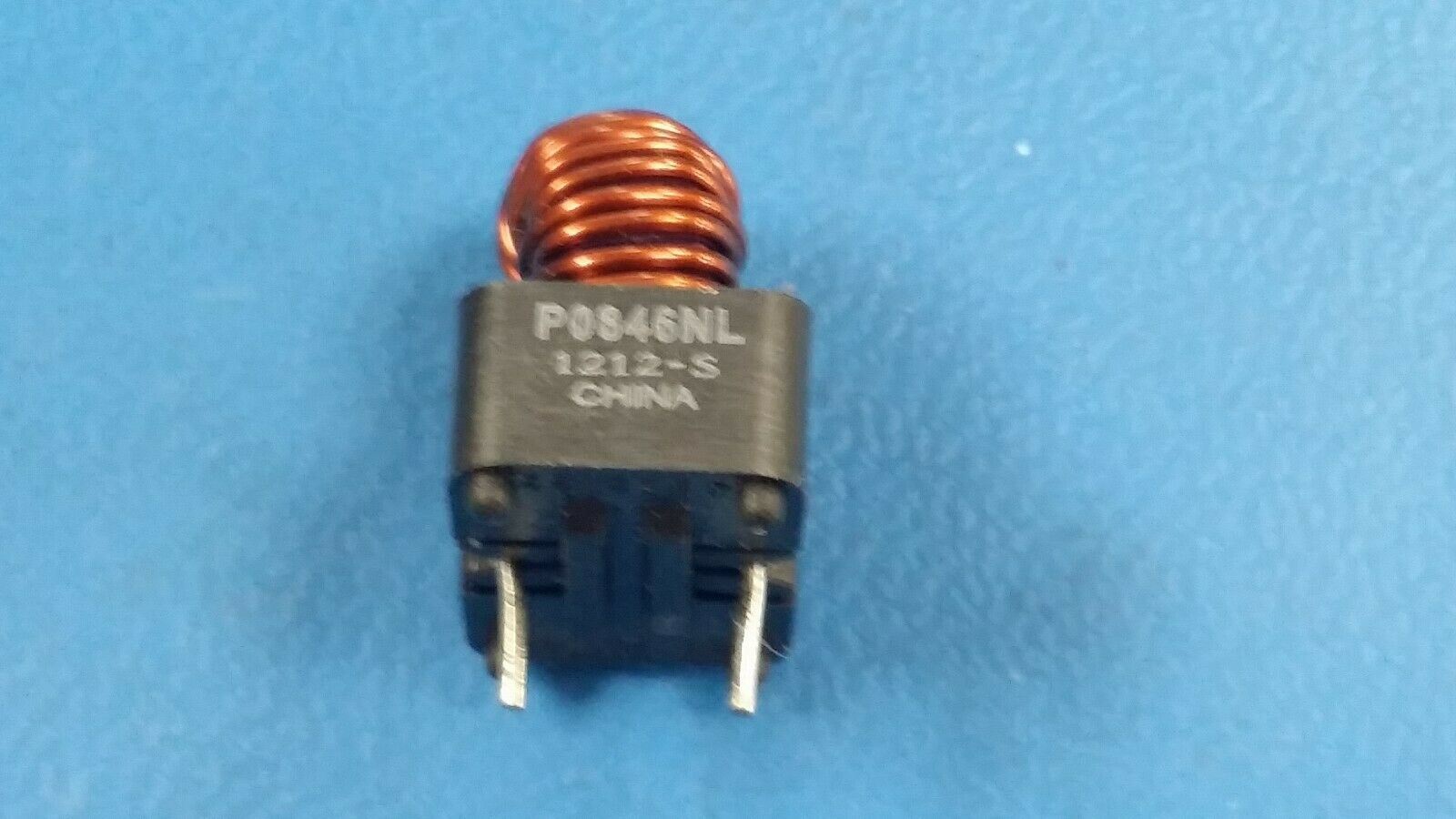

THIS IS FOR (2 PCS) OF P0846NL BY PULSE ELECTRONICS
FIXED IND 14.8UH 5A 23 MOHM TH ROHS
Manufacturer: Pulse
Product Category: Fixed Inductors
RoHS: YES
Product: Power Inductors
Type: Toroidal
Termination Style: Radial
Package / Case: 17.02 mm x 11.69 mm x 19.05 mm
Shielding: Unshielded
Inductance: 14.8 uH
Tolerance: 20 %
Maximum DC Current: 5 A
Maximum DC Resistance: 23 mOhms
Saturation Current: -
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 130 C
Q Minimum: -
Self Resonant Frequency: -
Termination: Standard
Mounting Style: PCB Mount
Length: 11.69 mm
Width: 11.69 mm
Height: 17.02 mm
Diameter: -
Application: Power
Brand: Pulse Electronics
Core Type: Drum
Lead Diameter: 7.62 mm
Product Type: Fixed Inductors
80
Subcategory: Inductors, Chokes & Coils
Test Frequency: 260 kHz
Unit Weight: 0.016191 oz
