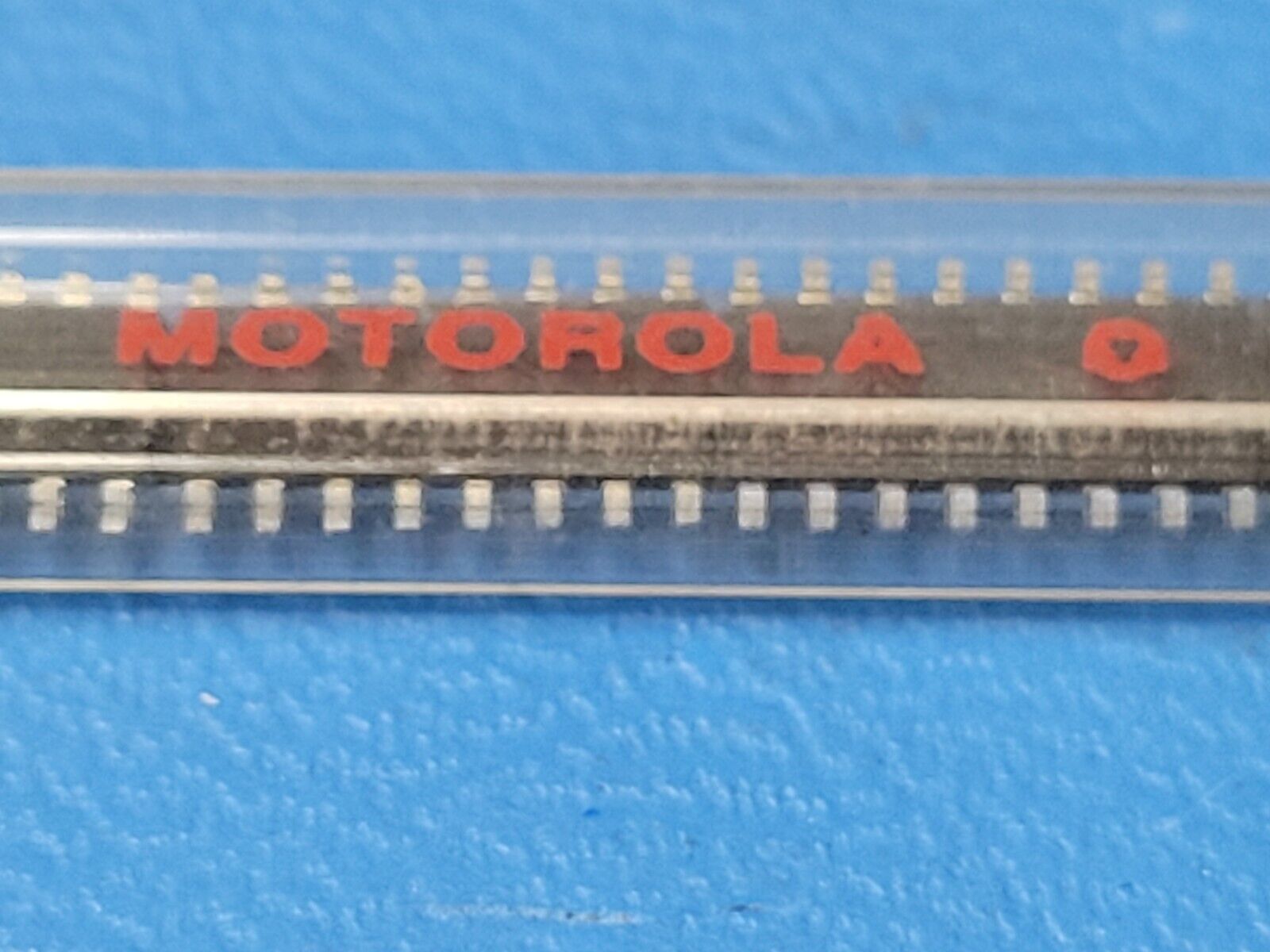

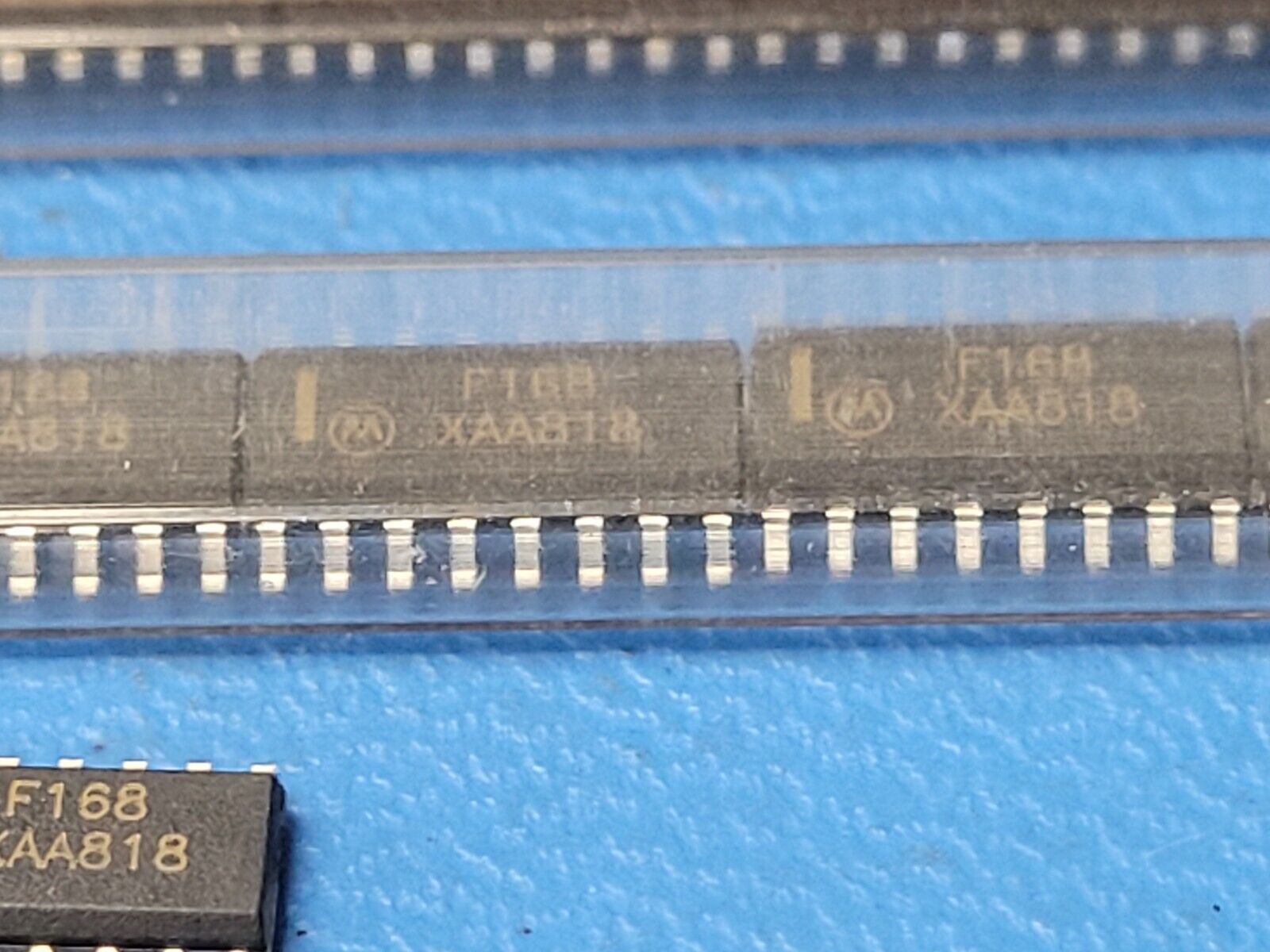

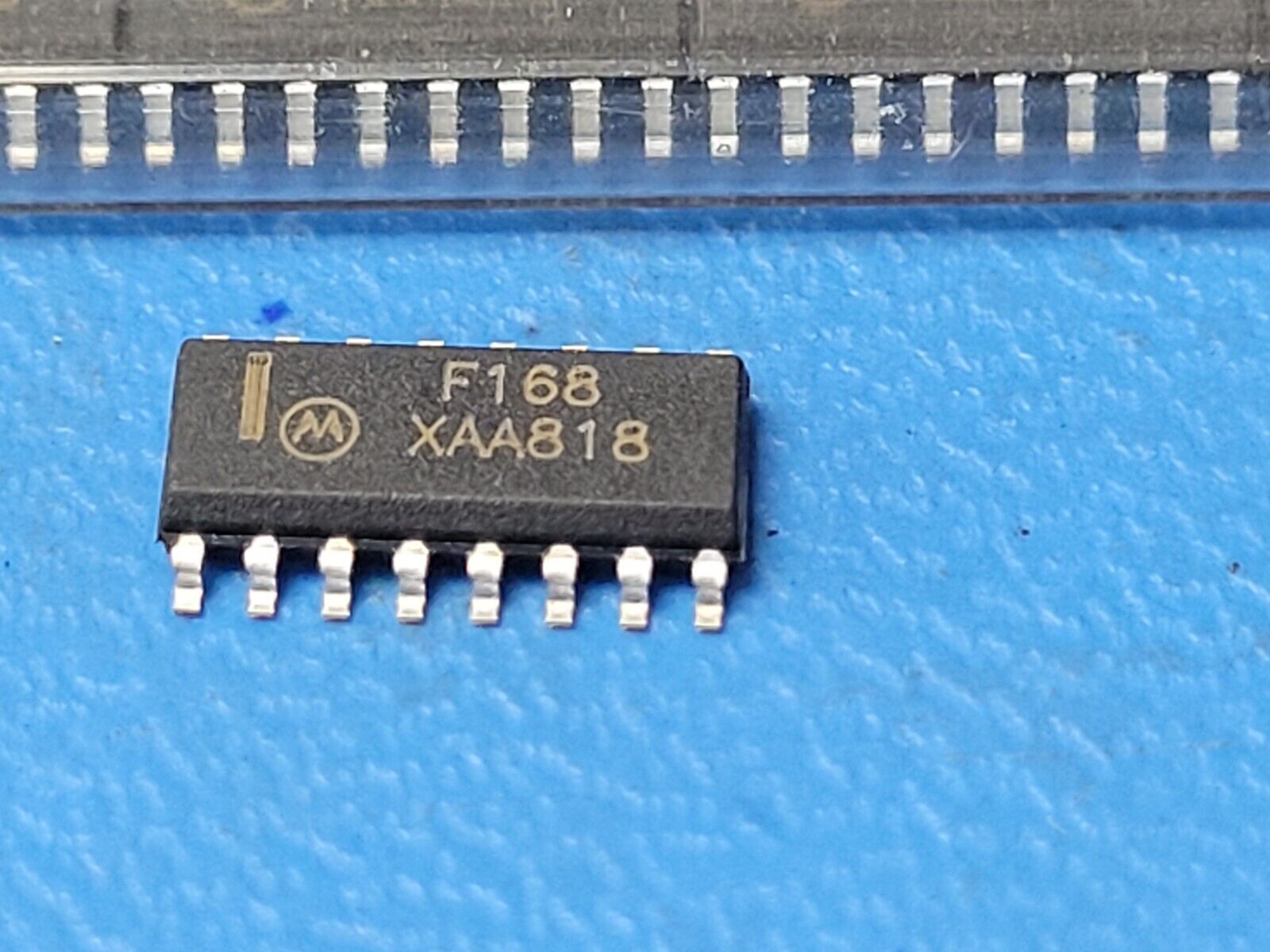

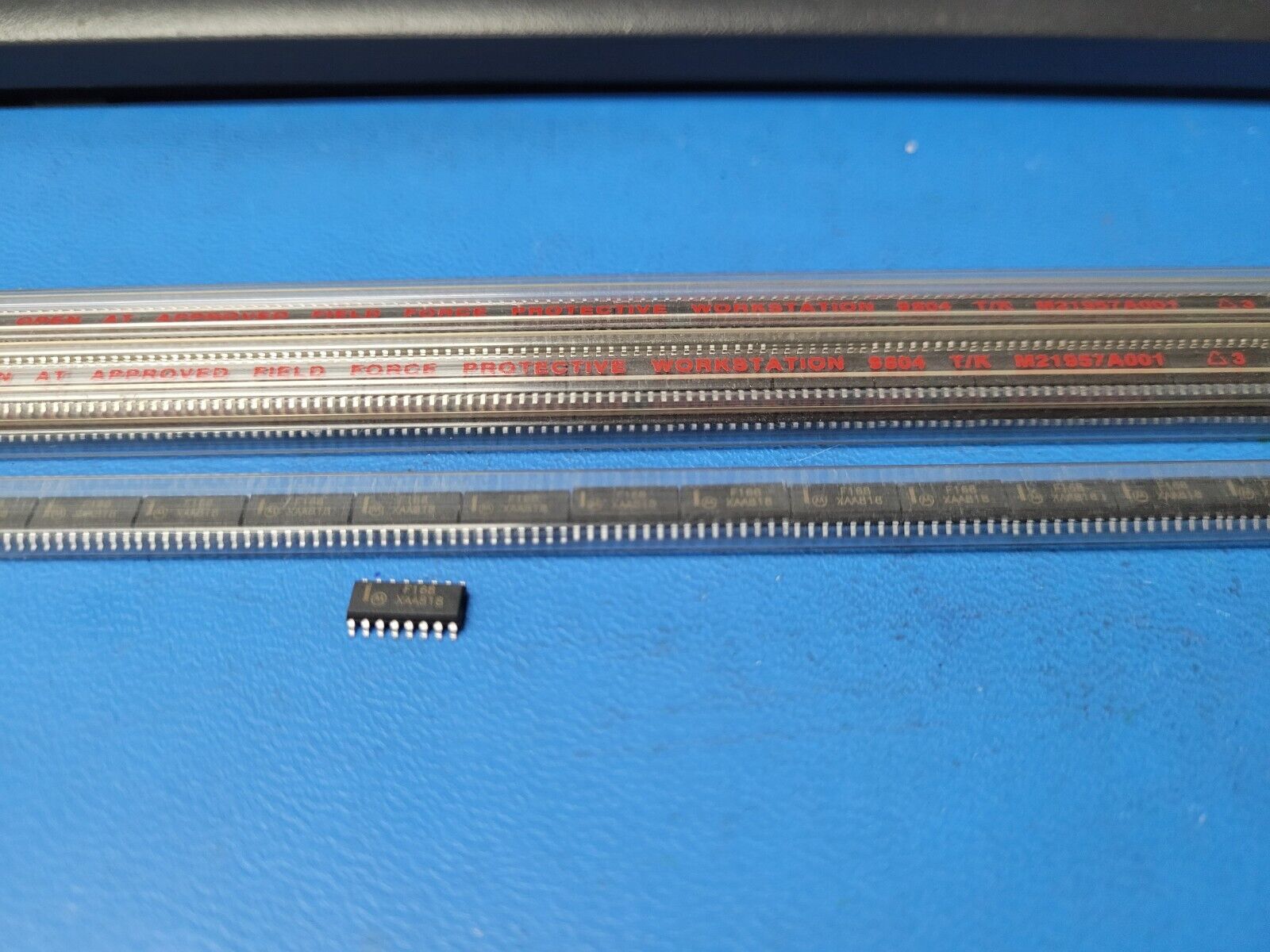

(2 PCS) MC74F168D MOT Counter Single 4-Bit Async Decade UP/Down 16-Pin SOIC
(2 PCS) MC74F168D MOT Counter Single 4-Bit Async Decade UP/Down 16-Pin SOIC
(2 PCS) MC74F168D MOT Counter Single 4-Bit Async Decade UP/Down 16-Pin SOIC
(2 PCS) MC74F168D MOT Counter Single 4-Bit Async Decade UP/Down 16-Pin SOIC

(2 PCS) MC74F168D MOT Counter Single 4-Bit Async Decade UP/Down 16-Pin SOIC

Tax included.
Only 168 left!
THIS IS FOR (2 PCS) OF MC74F168D BY MOT
Counter Single 4-Bit Async Decade UP/Down 16-Pin SOIC

Part #: MC74F168D
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16

Mfr Package Description PLASTIC, SOIC-16
Status Discontinued
Logic IC Type DECADE COUNTER
Sub Category Counters
Count Direction BIDIRECTIONAL
Family F/FAST
fmax-Min 85.0  MHz
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Load Capacitance (CL) 50.0  pF
Load/Preset Input YES
Max Frequency@Nom-Sup 8.5E7  Hz
Max I(ol) 0.02  Amp
Mode of Operation SYNCHRONOUS
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 52.0  mA
Propagation Delay (tpd) 13.0  ns
Qualification Status Not Qualified
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 9.9  mm
Width 3.9  mm
Additional Feature TCO OUTPUT
