(2 PCS) MC10H141L 4-BIT BIDIRECTIONAL PARALLEL IN/OUT SHIFT REGISTER TRUE OUTPUT
Tax included.

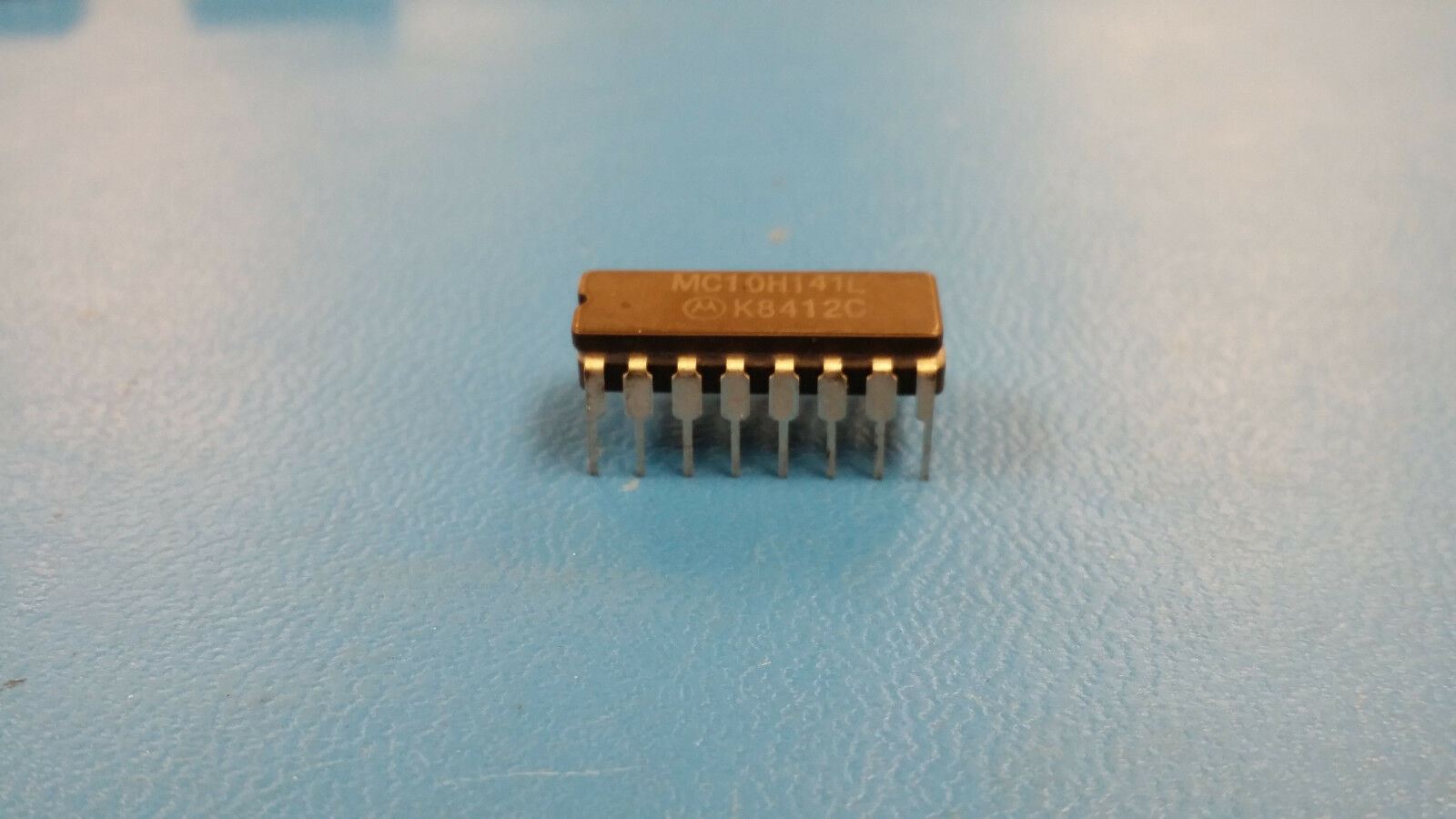

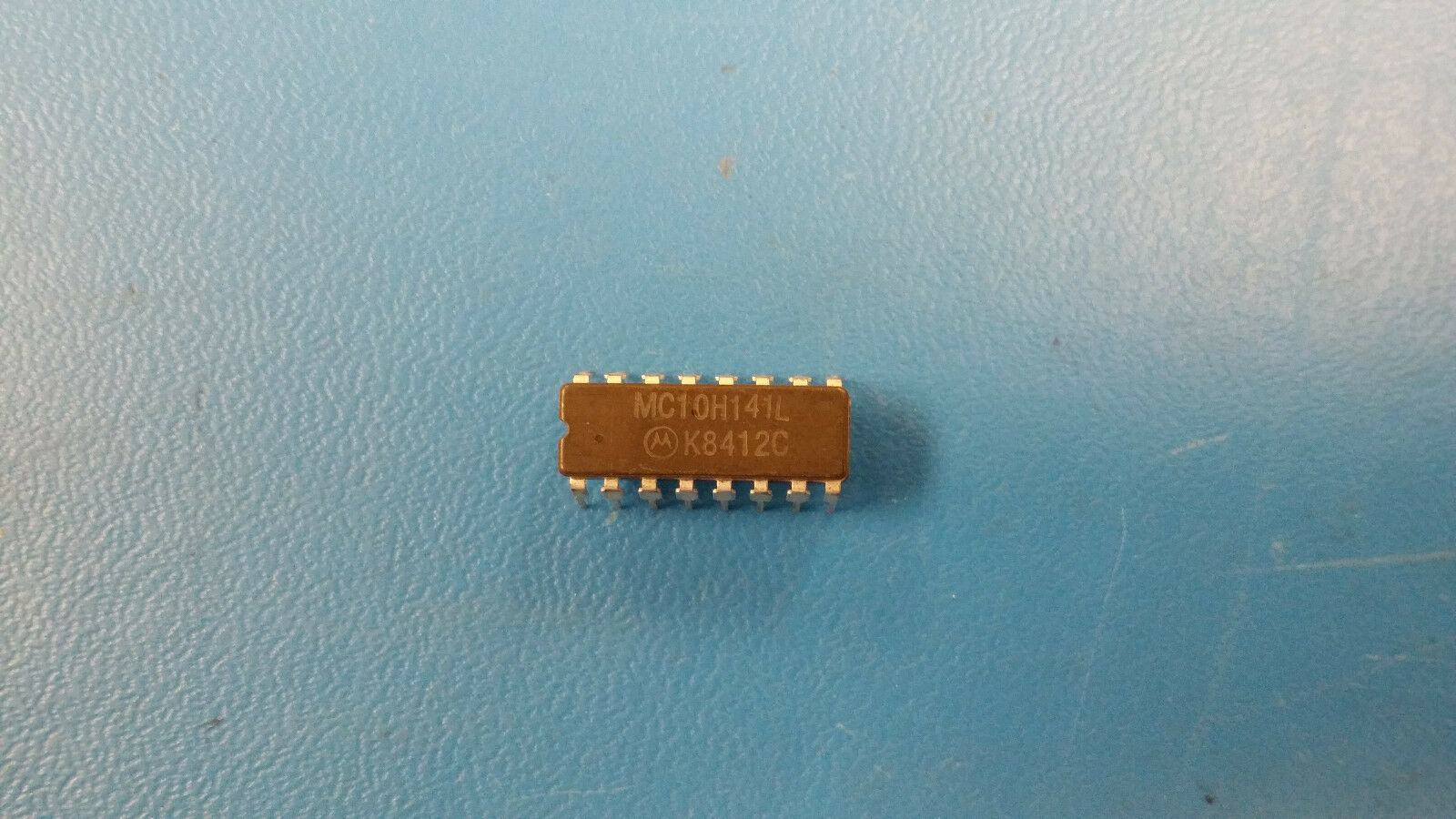

THIS LISTING IS FOR (2 PCS) MC10H141L BY MOTOROLA
4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER TRUE OUTPUT CDIP16
Manufacturer: Motorola Solutions, Inc.
Description: 10H SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP16
Mfr Package Description
4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER TRUE OUTPUT CDIP16
Part #: MC10H141L
Part Category: Logic ICsManufacturer: Motorola Solutions, Inc.
Description: 10H SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP16
Mfr Package Description
| CERAMIC, DIP-16 | |
| Status | Transferred |
| Logic IC Type | PARALLEL IN PARALLEL OUT |
| Count Direction | BIDIRECTIONAL |
| Family | 10H |
| fmax-Min | 250.0 MHz |
| JESD-30 Code | R-GDIP-T16 |
| JESD-609 Code | e0 |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Output Characteristics | OPEN-EMITTER |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 112.0 mA |
| Propagation Delay (tpd) | 2.1 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Surface Mount | NO |
| Technology | ECL |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Length | 19.495 mm |
| Width | 7.62 mm |
| Additional Feature | HOLD MODE |
