(2 PCS) MBM10470A-20 FIJITSU Standard SRAM, 4KX1, 20ns, CDIP18
(2 PCS) MBM10470A-20 FIJITSU Standard SRAM, 4KX1, 20ns, CDIP18

(2 PCS) MBM10470A-20 FIJITSU Standard SRAM, 4KX1, 20ns, CDIP18

Tax included.
Only 50 left!

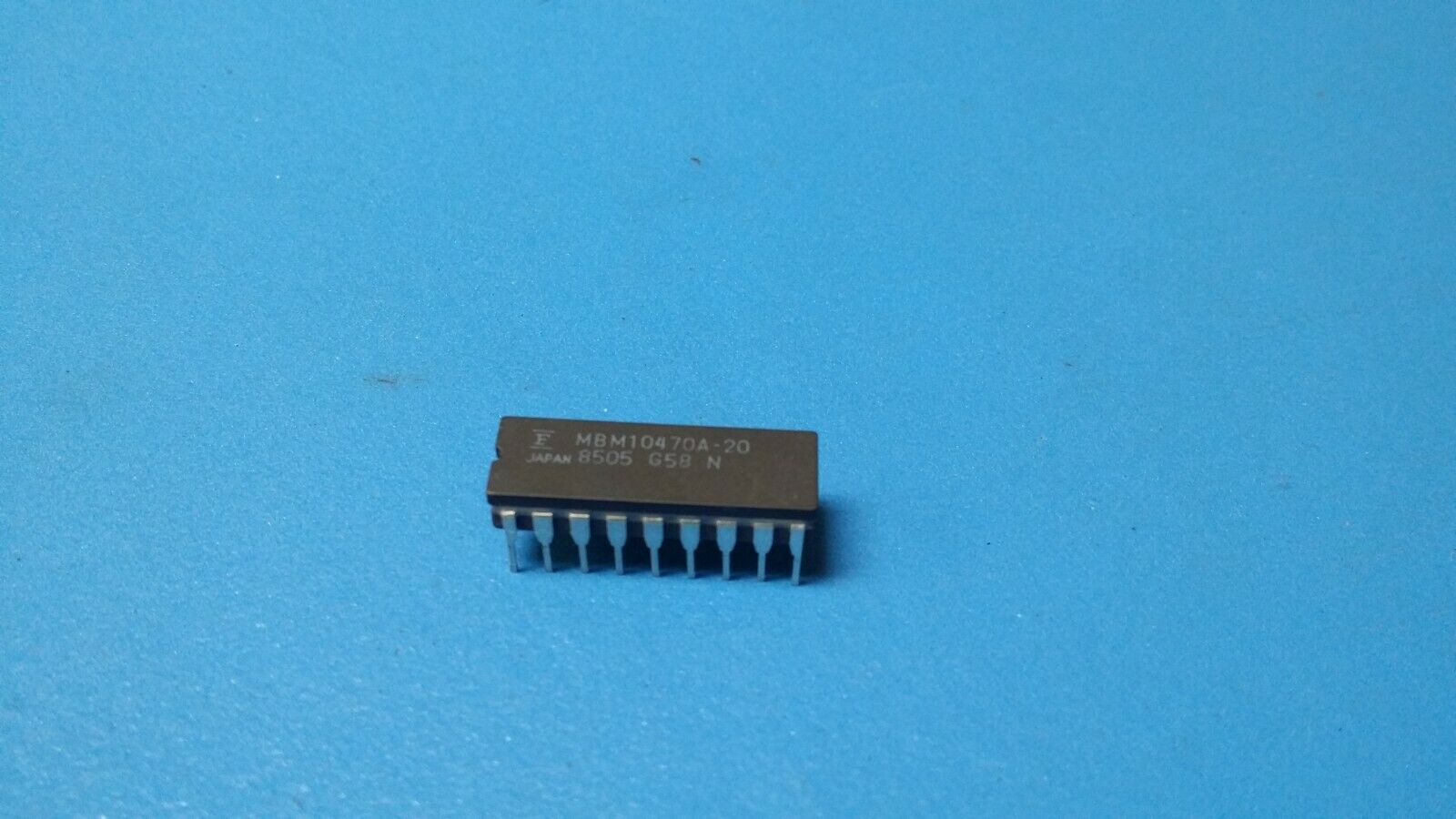

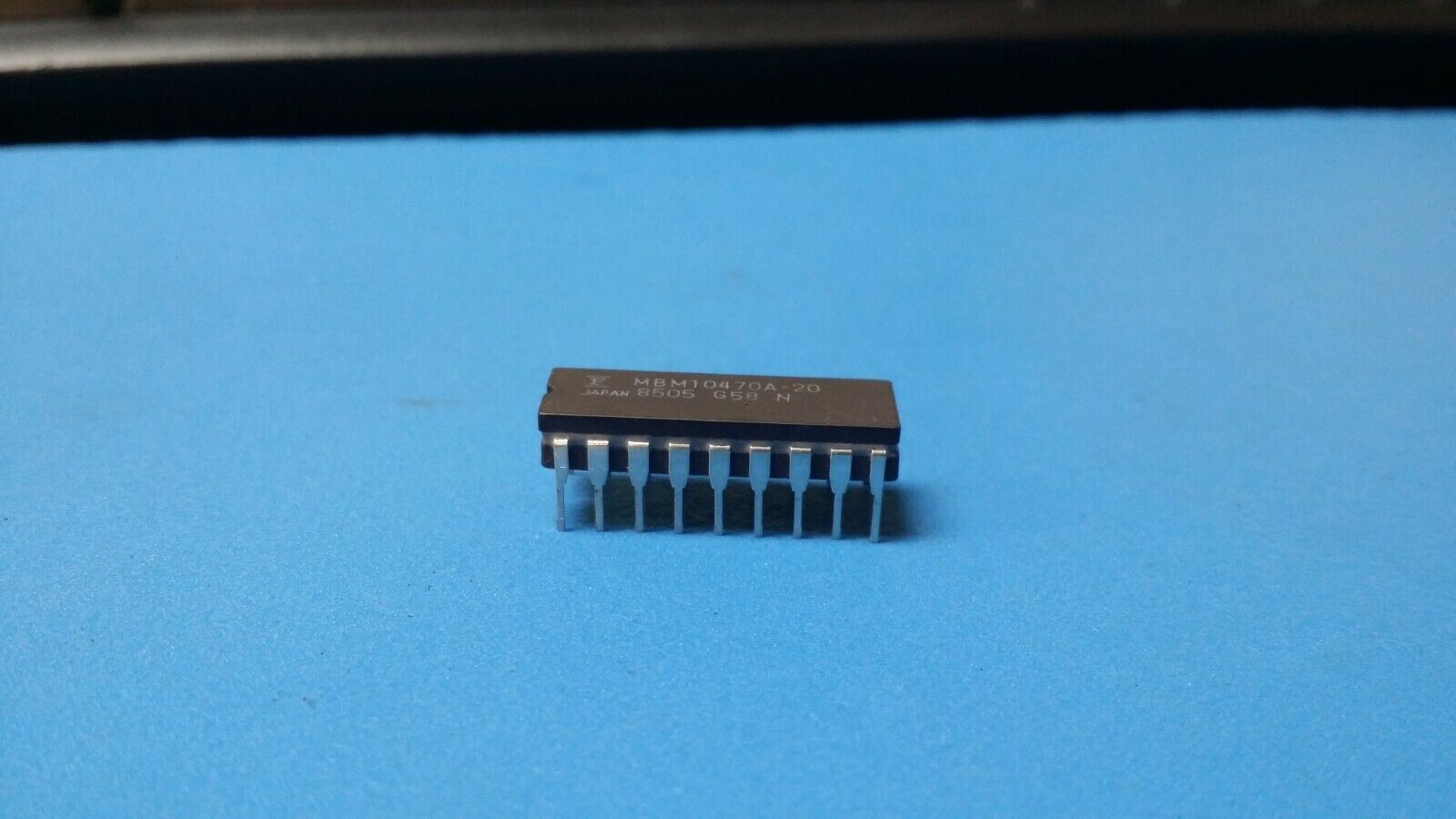

THIS LISTING IS FOR (2 PCS) OF MBM10470A-20 BY FIJITSU
Standard SRAM, 4KX1, 20ns, CDIP18

Status Discontinued
Sub Category SRAMs
Access Time-Max 20.0  ns
I/O Type SEPARATE
JESD-30 Code R-XDIP-T18
JESD-609 Code e0
Memory Density 4096.0  bit
Memory IC Type STANDARD SRAM
Memory Width 1
Neg Supply Voltage-Nom -5.2  V
Number of Terminals 18
Number of Words 4096.0  words
Number of Words Code 4K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 4KX1
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Supply Current-Max 0.2  Amp
Surface Mount NO
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
