(2 PCS) MB47358-P FUJITSU DUAL OP-AMP, 7000uV OFFSET-MAX, PDIP8
Tax included.

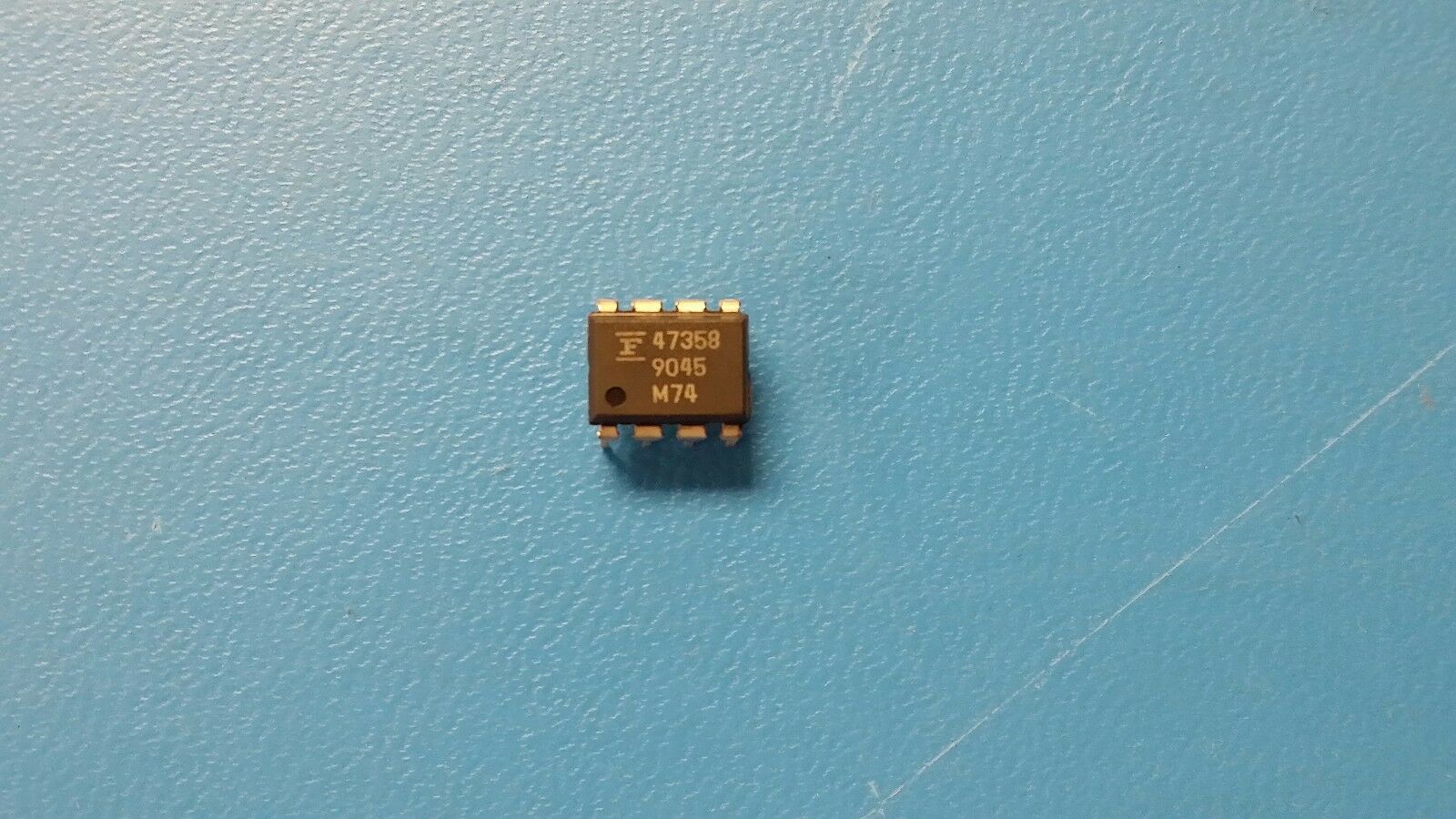

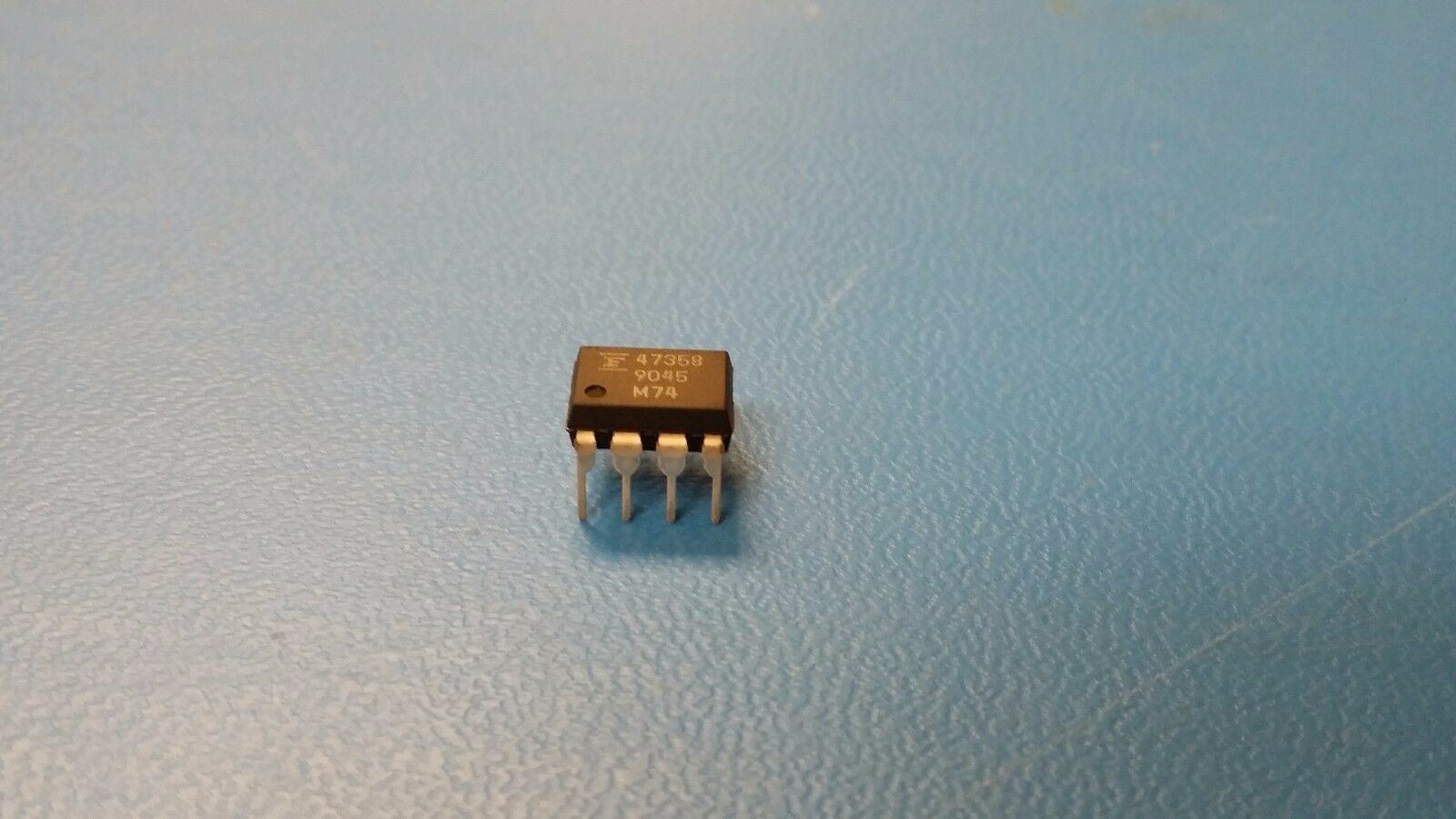

THIS LISTING IS FOR (2 PCS) OF MB47358-P BY FUJITSU
DUAL OP-AMP, 7000uV OFFSET-MAX, PDIP8
Part #: MB47358-P
Part Category: Amplifiers
Manufacturer: Fujitsu Limited
Description: DUAL OP-AMP, 7000uV OFFSET-MAX, PDIP8
Manufacturer: Fujitsu Limited
Description: DUAL OP-AMP, 7000uV OFFSET-MAX, PDIP8
| Mfr Package Description | PLASTIC, DIP-8 |
| Status | Discontinued |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.25 µA |
| Bias Current-Max (IIB) @25C | 0.25 µA |
| Common-mode Reject Ratio-Nom | 85.0 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 7000.0 µV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Low-Offset | NO |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -20.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | +-1.5/+-15/3/30 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.36 mm |
| Slew Rate-Nom | 2.0 V/us |
| Sub Category | Operational Amplifiers |
| Supply Current-Max | 3.0 mA |
| Supply Voltage Limit-Max | 36.0 V |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Voltage Gain-Min | 25000.0 |
| Length | 9.4 mm |
| Width | 7.62 mm |
