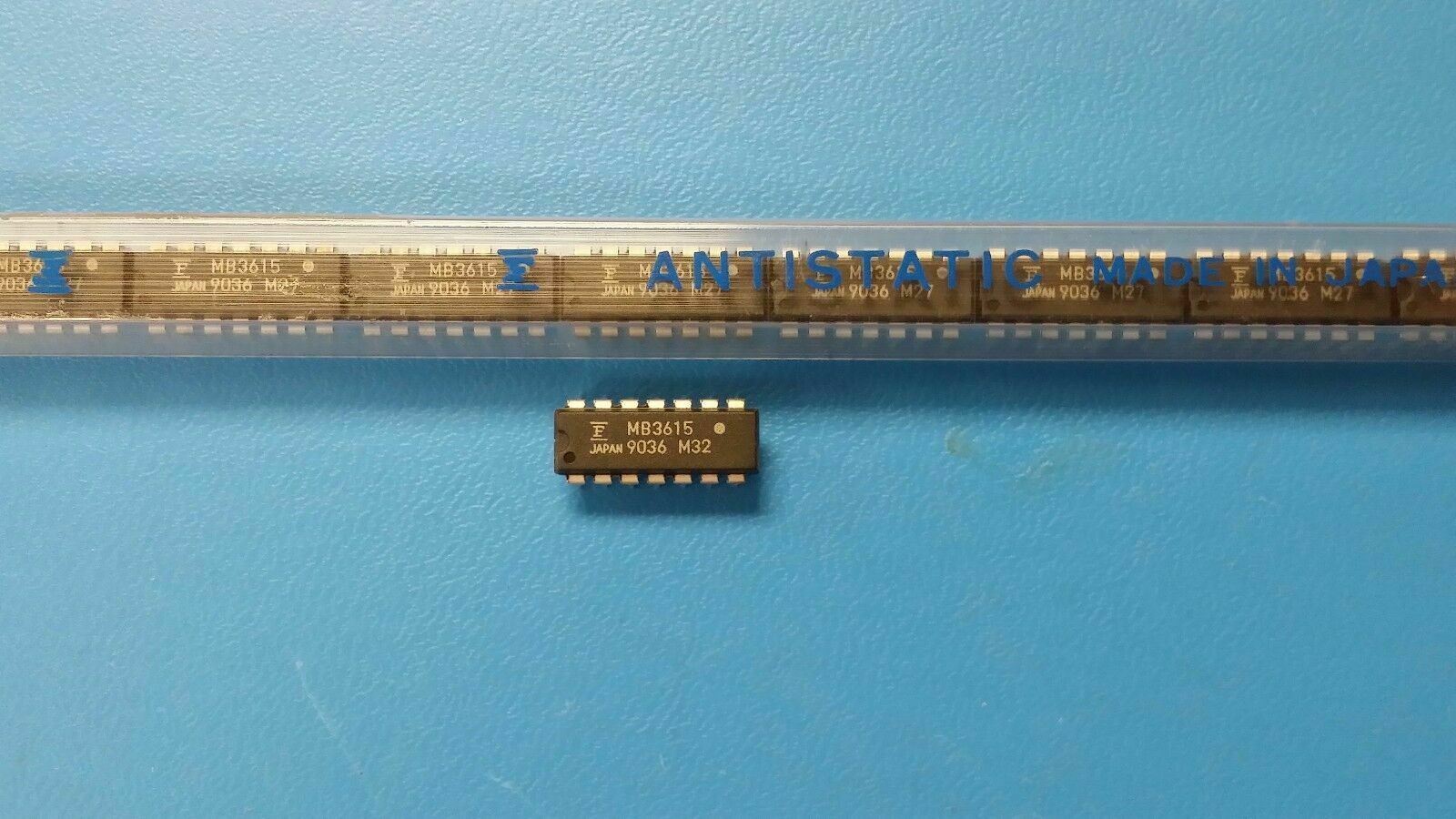

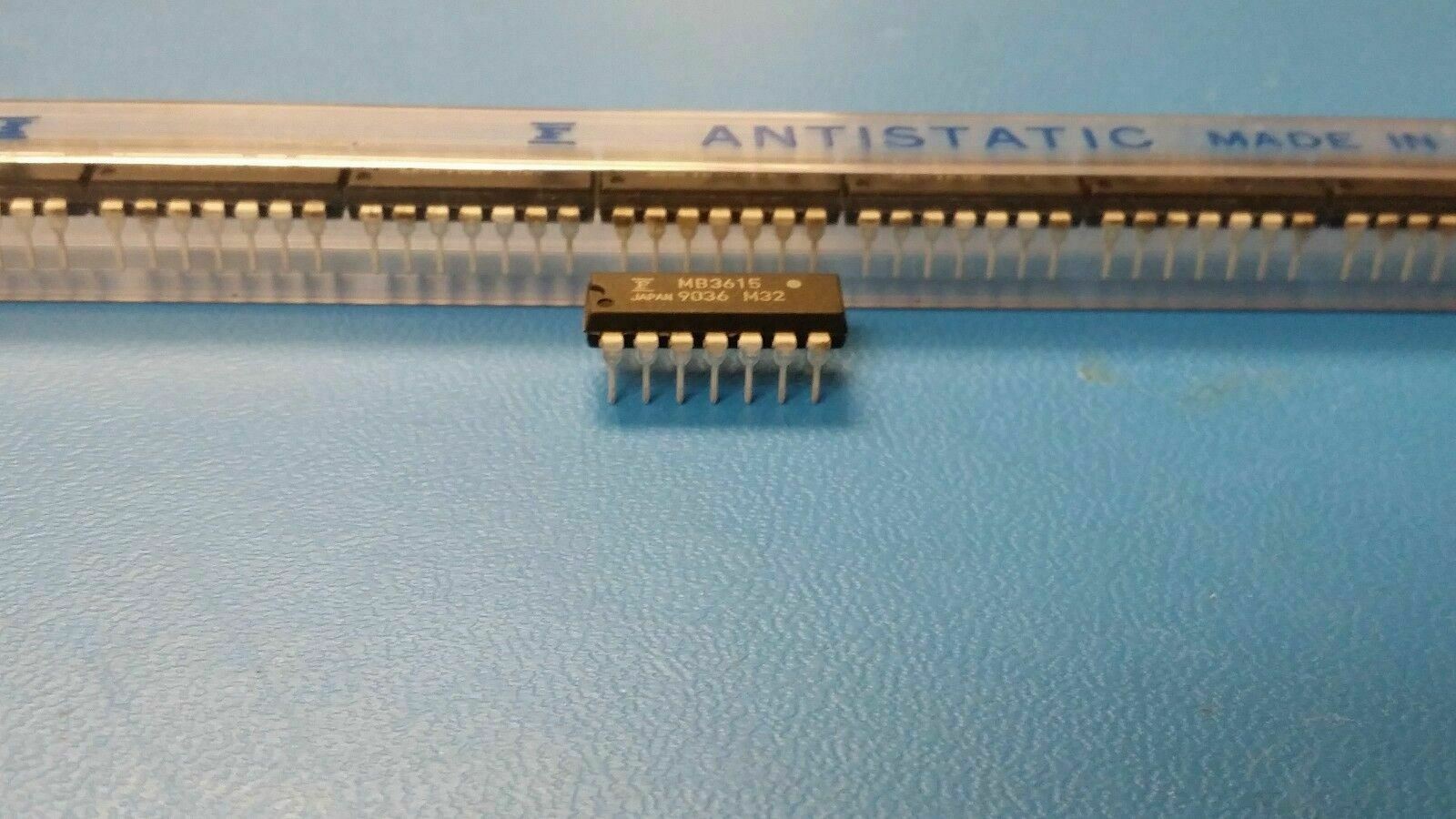

(2 PCS) MB3615-P FUJITSU QUAD OP-AMP, 7000uV OFFSET-MAX, PDIP14

  • $6.95
    Unit price per
Tax included.

Only 69 left!

THIS LISTING IS FOR (2 PCS) OF MB3615-P BY FUJITSU
QUAD OP-AMP, 7000uV OFFSET-MAX, PDIP14

Part #: MB3615-P

Part Category: Amplifiers
Manufacturer: Fujitsu Limited
Description: QUAD OP-AMP, 7000uV OFFSET-MAX, PDIP14




Mfr Package Description PLASTIC, DIP-14
REACH Compliant Yes
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.25 µA
Bias Current-Max (IIB) @25C 0.25 µA
Common-mode Reject Ratio-Nom 85.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000.0 µV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Low-Offset NO
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 75.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies (V) +-15
Qualification Status Not Qualified
Seated Height-Max 4.36 mm
Sub Category Operational Amplifier
Supply Current-Max 4.0 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Gain-Min 20000.0
Length 19.55 mm
Width 7.62 mm
