(2 PCS) LTC1731EMS8-4.2 LT IC CTRLR BATT CHRGR LI-ION 8MSOP
Tax included.

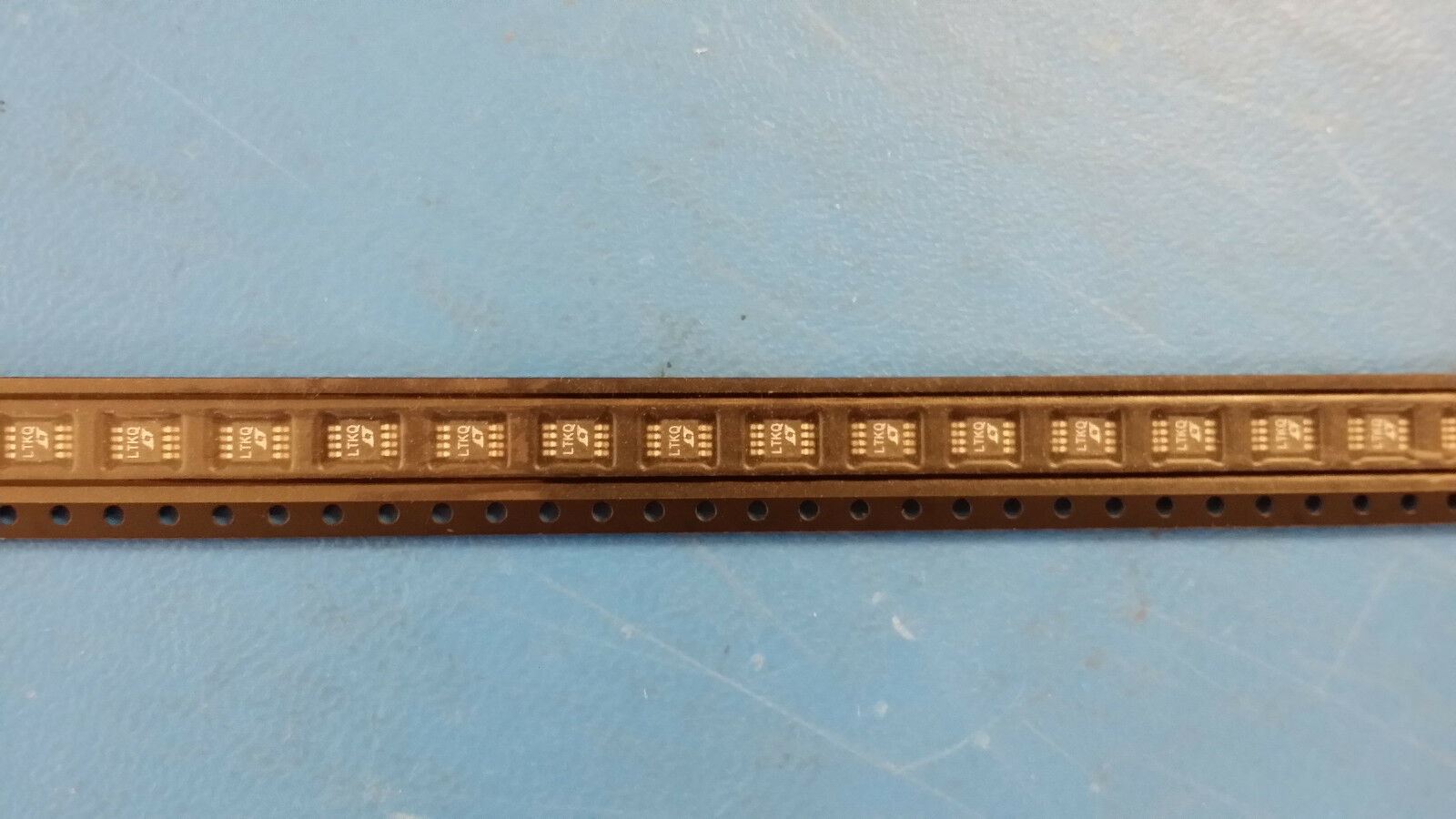

THIS LISTING IS FOR (2 PCS) OF LTC1731EMS8-4.2 BY LINEAR TECHNOLOGY
Battery Charger Controller Li-Ion/NiCD/NiMH 500mA 4.2V 8-Pin MSOP
Manufacturer: Linear Technology Corporation
Description: 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8
Mfr Package Description
Battery Charger Controller Li-Ion/NiCD/NiMH 500mA 4.2V 8-Pin MSOP
Part #: LTC1731EMS8-4.2
Part Category: Other SemiconductorsManufacturer: Linear Technology Corporation
Description: 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8
Mfr Package Description
| PLASTIC, MSOP-8 | |
| REACH Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT |
| Adjustable Threshold | NO |
| JESD-30 Code | S-PDSO-G8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP8,.19 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 235 |
| Power Supplies (V) | 4.5/12 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.1 mm |
| Sub Category | Power Management Circuits |
| Supply Voltage-Nom (Vsup) | 6.0 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 12.0 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Length | 3.0 mm |
| Width | 3.0 mm |
