(2 PCS) IRF530FI MOSFET N-CH 100V 10A TO-220 ISOLATED
Tax included.

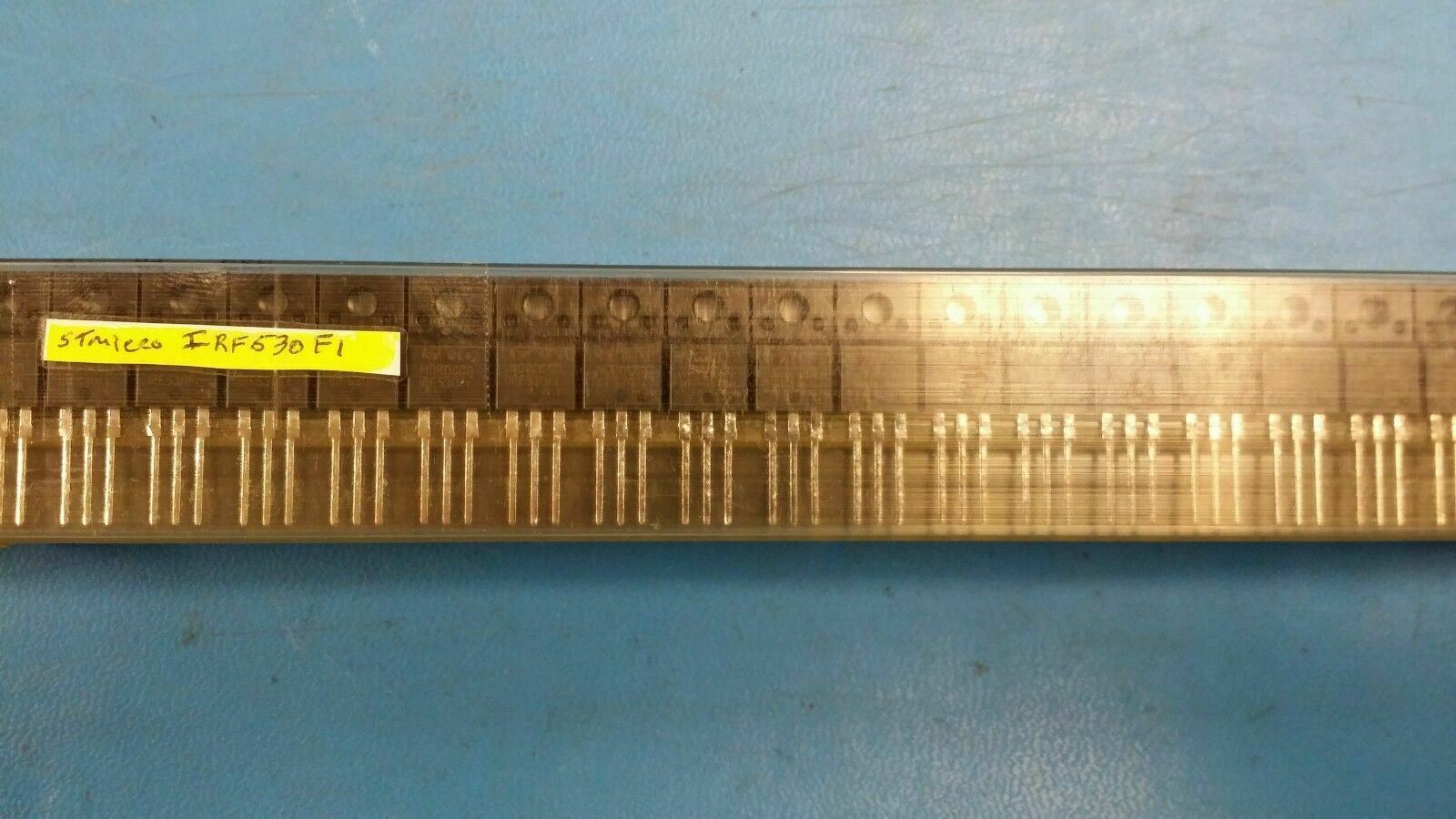

THIS LISTING IS FOR (2 PCS) OF IRF530FI BY STMICRO
MOSFET N-CH 100V 10A TO-220 ISOLATED
Part #: IRF530FI
Part Category: Transistors
Manufacturer: STMicroelectronics, Inc.
Description: Power Field-Effect Transistor, 10A I(D), 100V, 0.16ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
Manufacturer: STMicroelectronics, Inc.
Description: Power Field-Effect Transistor, 10A I(D), 100V, 0.16ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
| Mfr Package Description | TO-220, 3 PIN |
| Status | Discontinued |
| Avalanche Energy Rating (Eas) | 80.0 mJ |
| Case Connection | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Drain Current-Max (Abs) (ID) | 10.0 A |
| Drain Current-Max (ID) | 10.0 A |
| Drain-source On Resistance-Max | 0.16 ohm |
| DS Breakdown Voltage-Min | 100.0 V |
| Feedback Cap-Max (Crss) | 100.0 pF |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 35.0 W |
| Power Dissipation-Max (Abs) | 40.0 W |
| Pulsed Drain Current-Max (IDM) | 64.0 A |
| Qualification Status | Not Qualified |
| Sub Category | FET General Purpose Power |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Turn-off Time-Max (toff) | 100.0 ns |
| Turn-on Time-Max (ton) | 115.0 ns |
