(2 PCS) HUF76139P3 Harris Power MOSFET Transistor 75A 30V TO-220AB
(2 PCS) HUF76139P3 Harris Power MOSFET Transistor 75A 30V TO-220AB

(2 PCS) HUF76139P3 Harris Power MOSFET Transistor 75A 30V TO-220AB

Tax included.
Only 5 left!

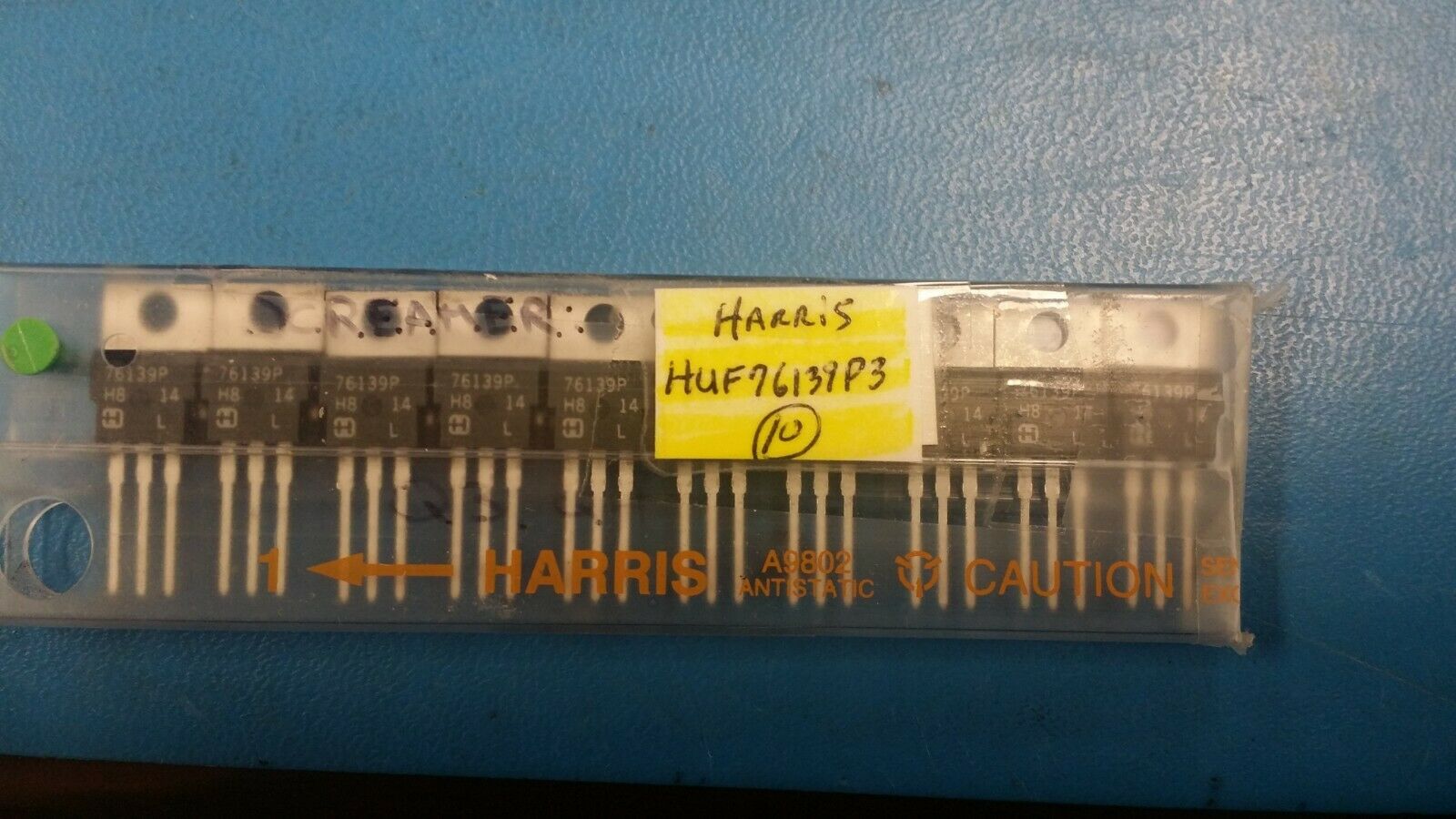

THIS LISTING IS FOR (2 PCS) OF HUF76139P3 BY Harris
Power MOSFET Transistor 75A 30V TO-220AB

Manufacturer: Harris Semiconductor
Product Category: MOSFET
RoHS: N
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220AB
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage:30 V
Id - Continuous Drain Current:75 A
Rds On - Drain-Source Resistance:7.5 mOhms
Vgs - Gate-Source Voltage:20 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation:165 W
Configuration: Single
Channel Mode: Enhancement
Packaging: Tube
Height: 16.3 mm
Length: 10.67 mm
Transistor Type: 1 N-Channel
Width: 4.7 mm
Brand:Harris Semiconductor
Fall Time: 40 ns, 55 ns
Product Type: MOSFET
Rise Time: 150 ns, 65 ns
Subcategory: MOSFETs
Typical Turn-Off Delay Time:30 ns, 90 ns
Typical Turn-On Delay Time:20 ns, 16 ns
Unit Weight:0.090478 oz
