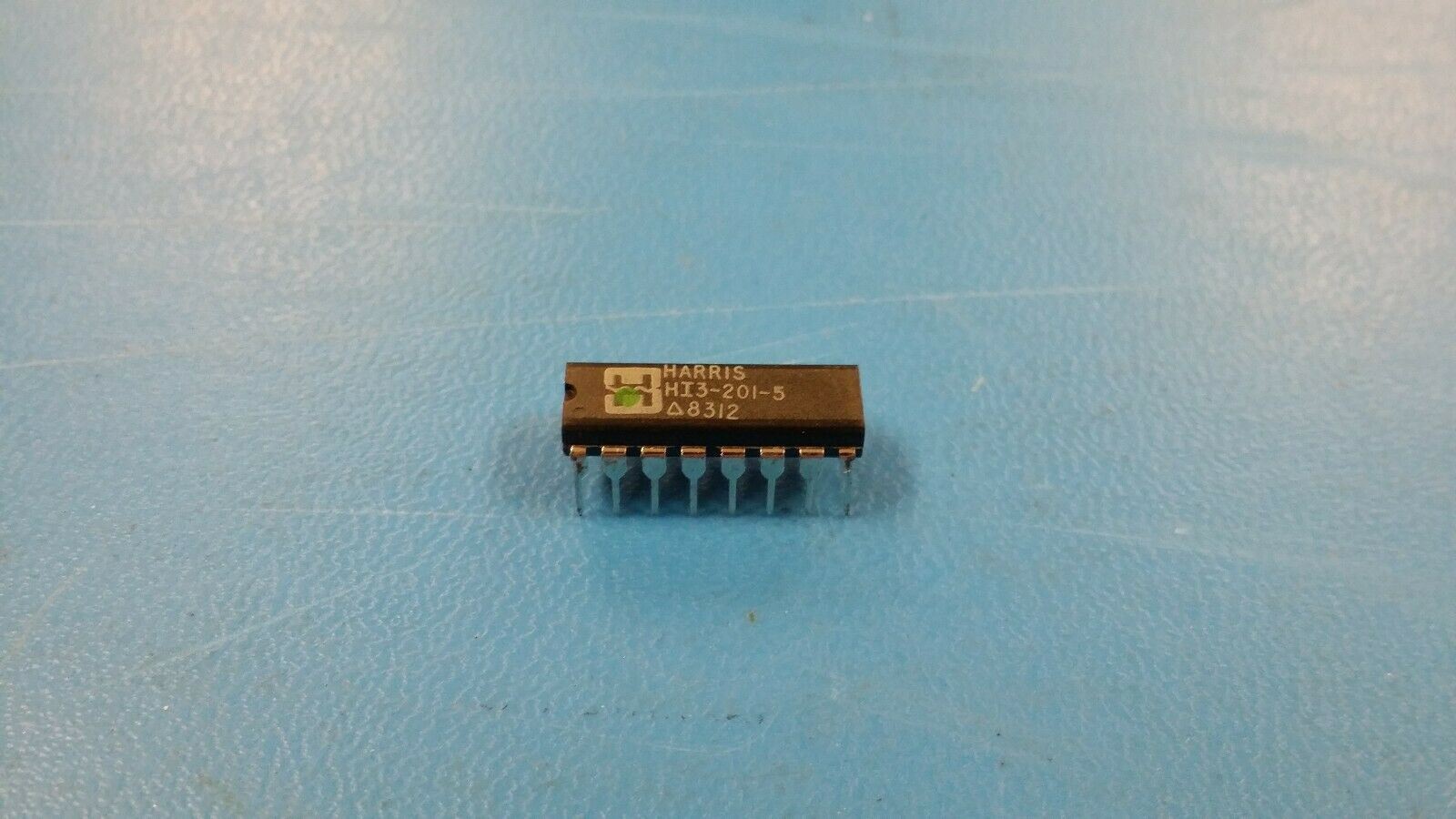

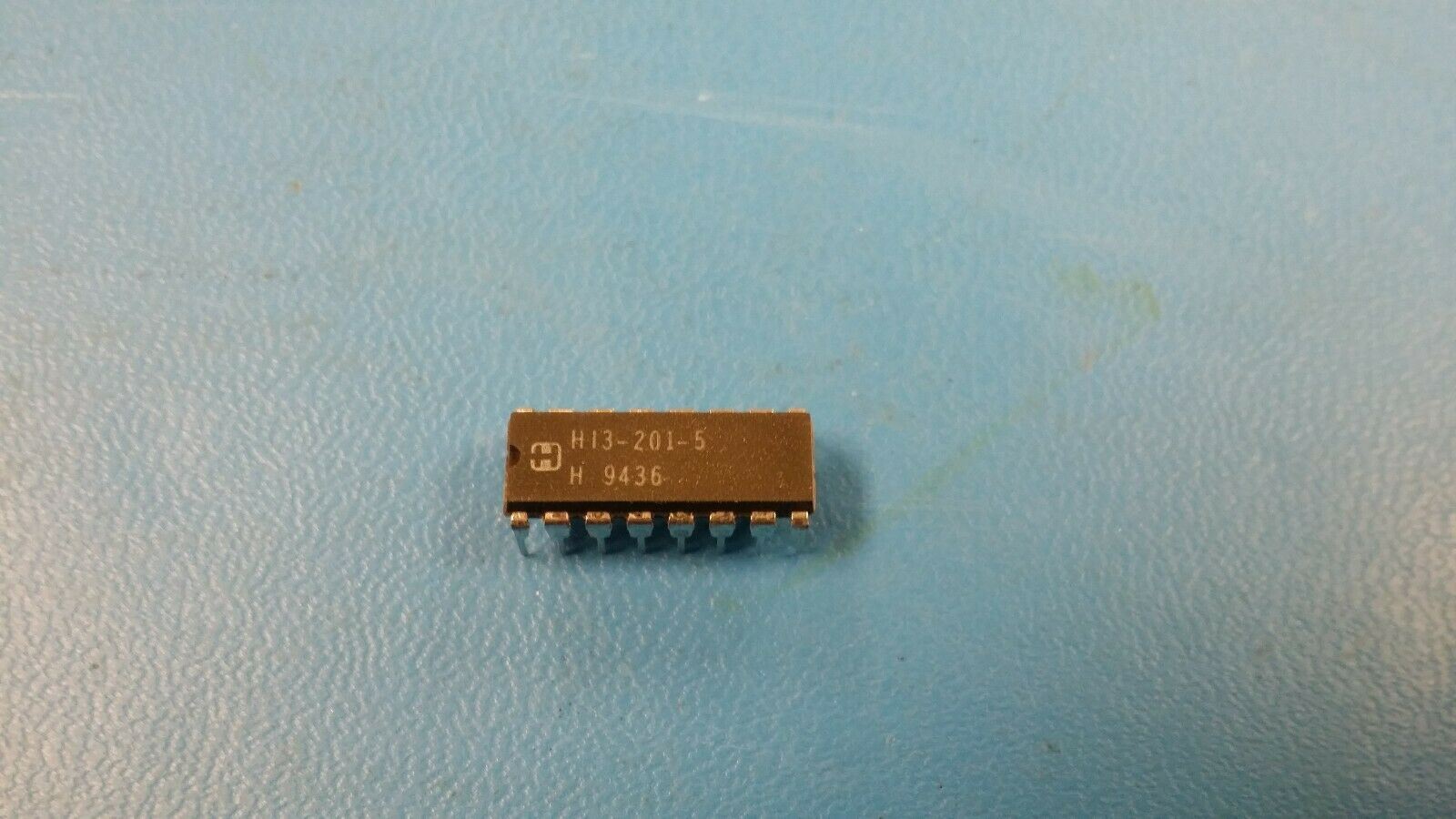

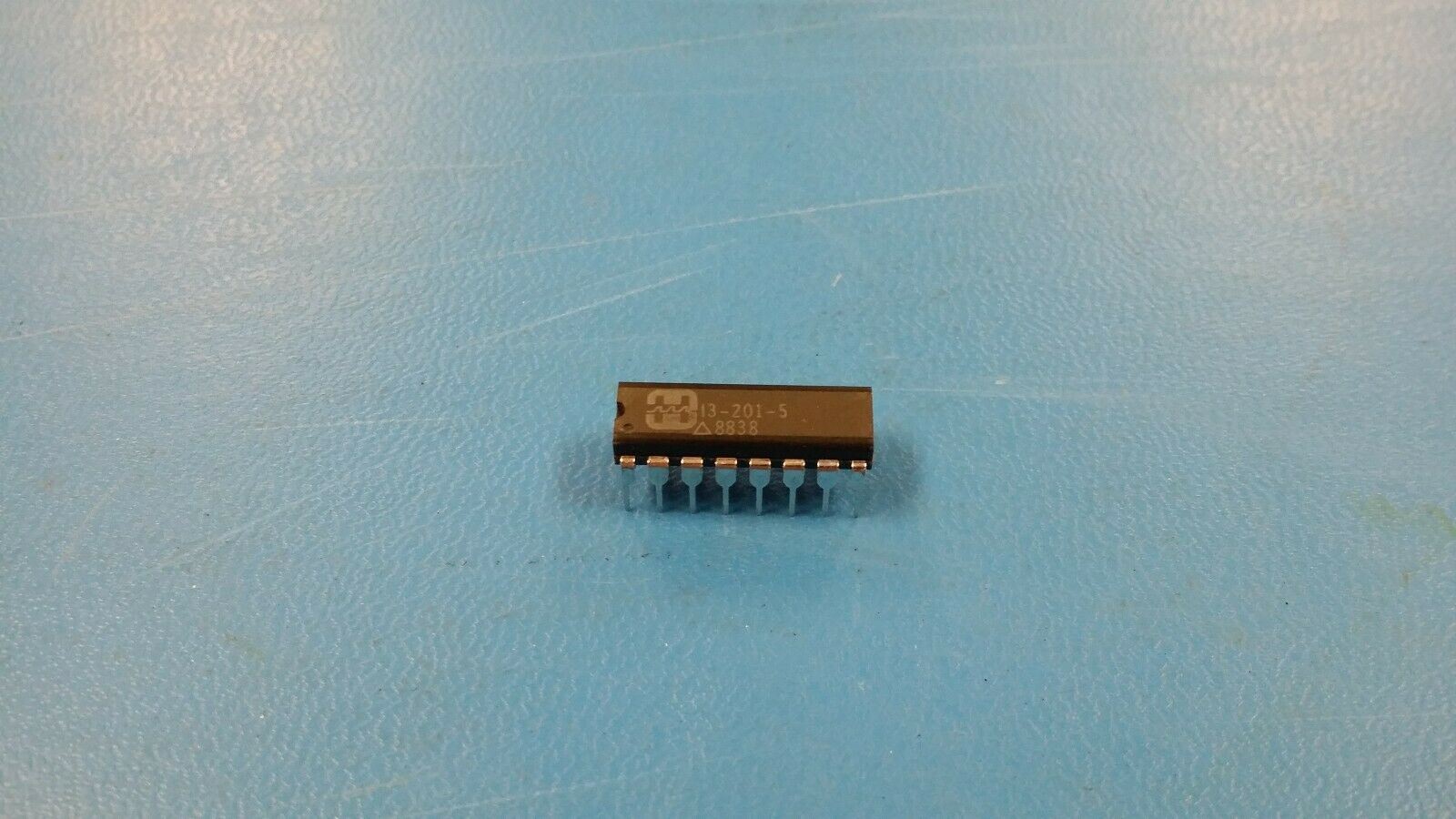

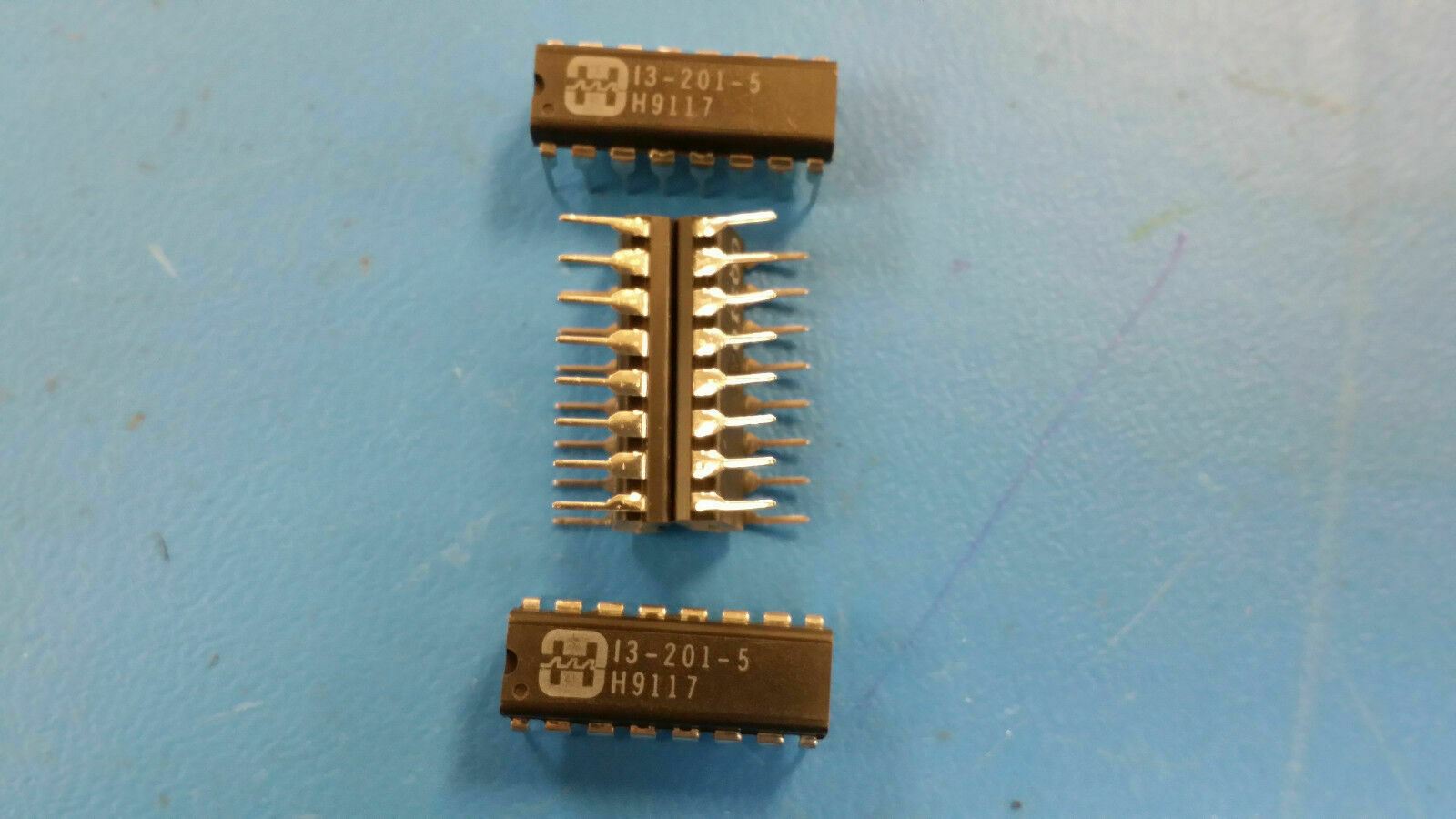

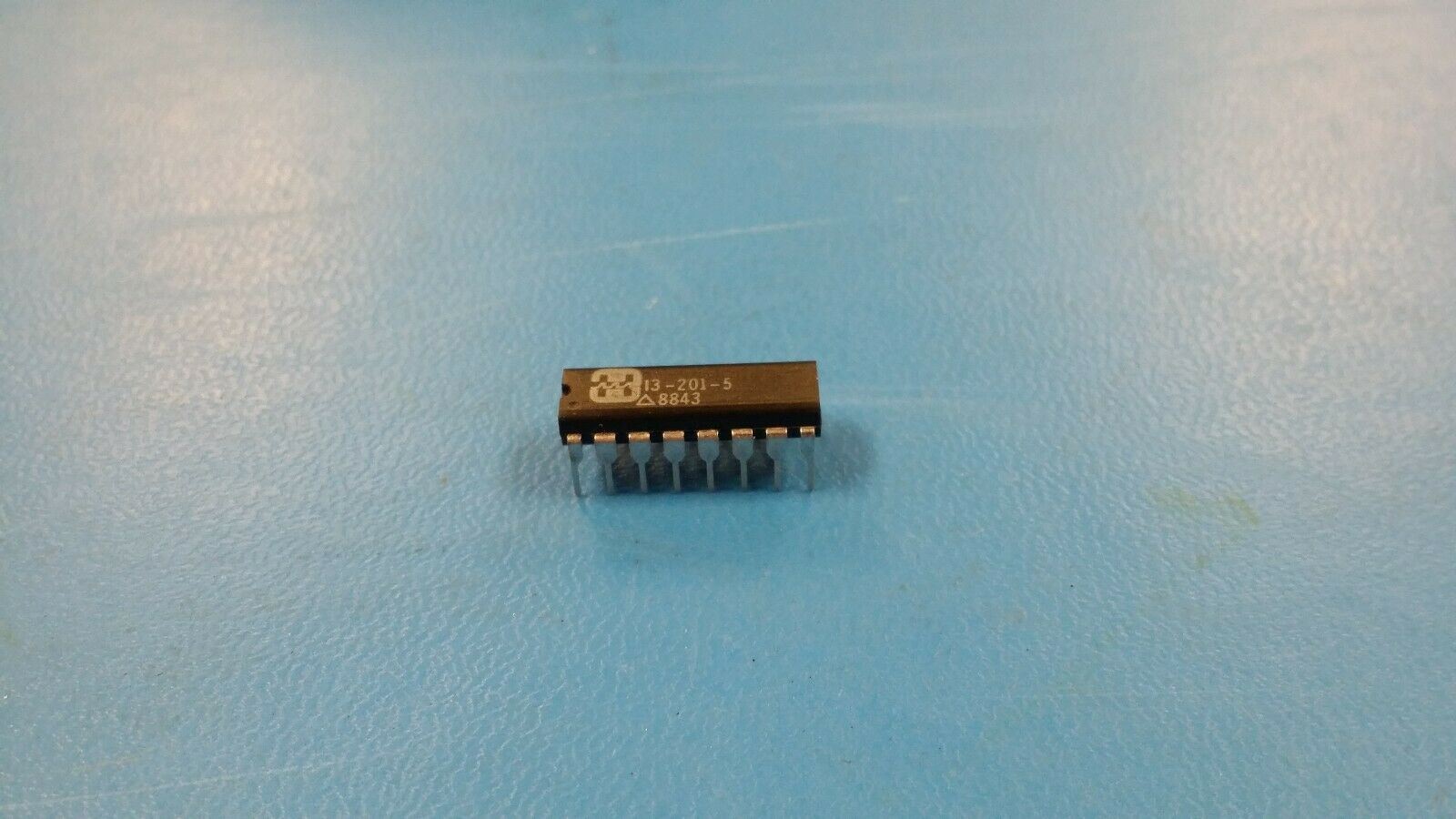

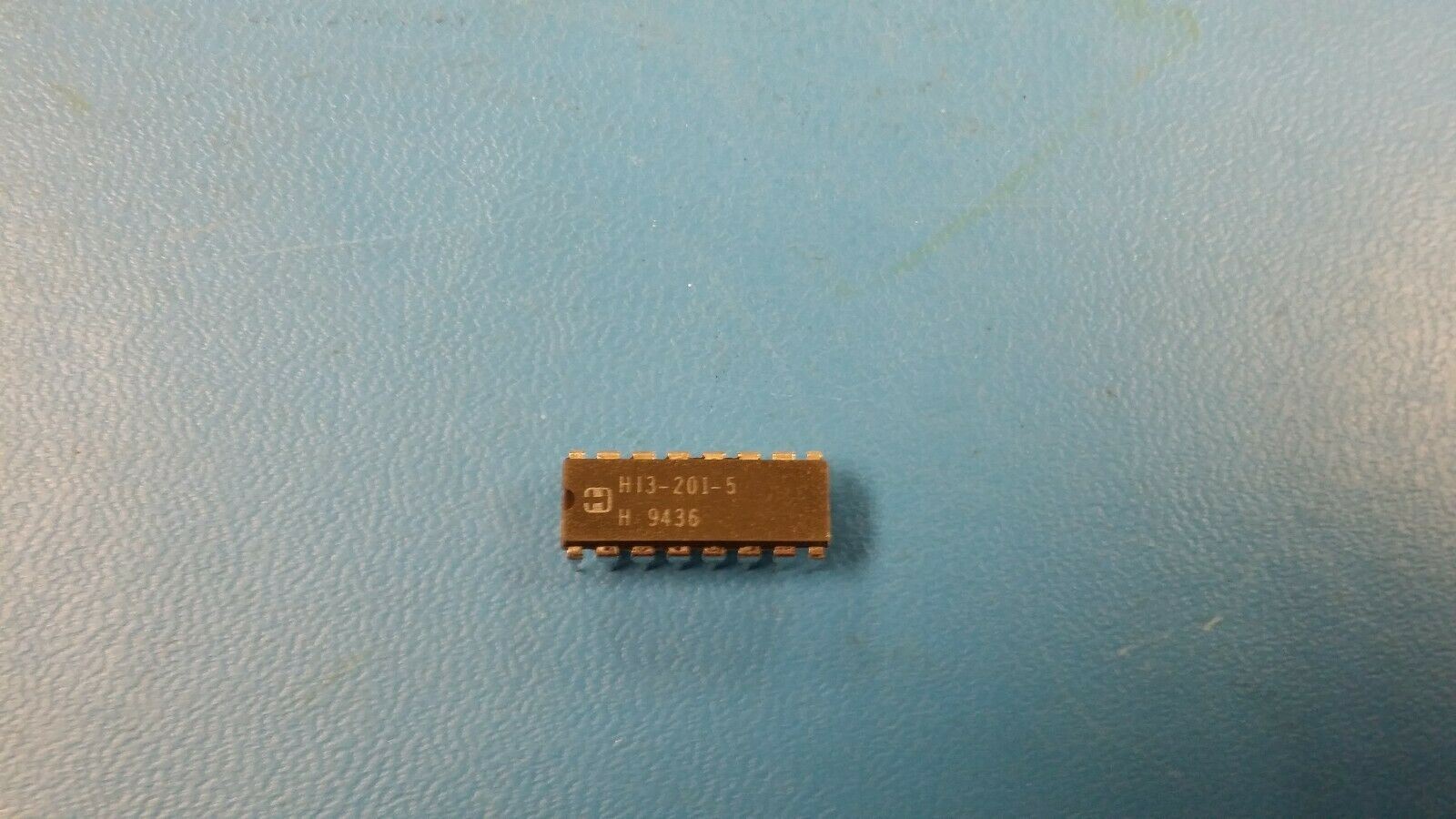

(2 PCS) HI3-201-5 New Plastic Dual/Quad SPST CMOS Analog Switches 16-Pins

(MORE THAN ONE DATE CODE IN STOCK)

 Dual/Quad SPST, CMOS Analog Switches
HI-200/HI-201 (dual/quad) are monolithic devices comprising
independently selectable SPST switches which feature fast
switching speeds (HI-200 240ns, and HI-201 185ns)
combined with low power dissipation (15mW at 25oC). Each
switch provides low “ON” resistance operation for input signal
voltage up to the supply rails and for signal current up to
80mA. Rugged DI construction eliminates latch-up and
substrate SCR failure modes.
All devices provide break-before-make switching and are
TTL and CMOS compatible for maximum application
versatility. HI-200/HI-201 are ideal components for use in
high frequency analog switching. Typical applications
include signal path switching, sample and hold circuit, digital
filters, and operational amplifier gain switching networks.
Features

• Analog Voltage Range . . . . . . . . . . . . . . . . . . . . . . . ±15V
• Analog Current Range . . . . . . . . . . . . . . . . . . . . . . . 80mA
• Turn-On Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240ns
• Low rON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Ω
• Low Power Dissipation. . . . . . . . . . . . . . . . . . . . . . .15mW
• TTL/CMOS Compatible
Applications
• High Frequency Analog Switching
• Sample and Hold Circuits
• Digital Filters
• Operational Amplifier Gain Switching Networks
Functional Diagram
Ordering Information
PART NUMBER
TEMP.
RANGE (°C) PACKAGE
PKG.
DWG. #
HI3-0200-5Z
(Note)
0 to 75 14 Ld PDIP*
(Pb-free)
E14.3
HI1-0201-2 -55 to 125 16 Ld CERDIP F16.3
HI1-0201-4 -25 to 85 16 Ld CERDIP F16.3
HI1-0201-5 0 to 75 16 Ld CERDIP F16.3
HI3-0201-5 0 to 75 16 Ld PDIP E16.3
HI3-0201-5Z
(Note)
0 to 75 16 Ld PDIP*
