(2 PCS) HD29468P HITACHI Line Transceiver, 3 Func, 3 Driver, 3 Rcvr, PDIP16
(2 PCS) HD29468P HITACHI Line Transceiver, 3 Func, 3 Driver, 3 Rcvr, PDIP16

(2 PCS) HD29468P HITACHI Line Transceiver, 3 Func, 3 Driver, 3 Rcvr, PDIP16

Tax included.
Only 9 left!

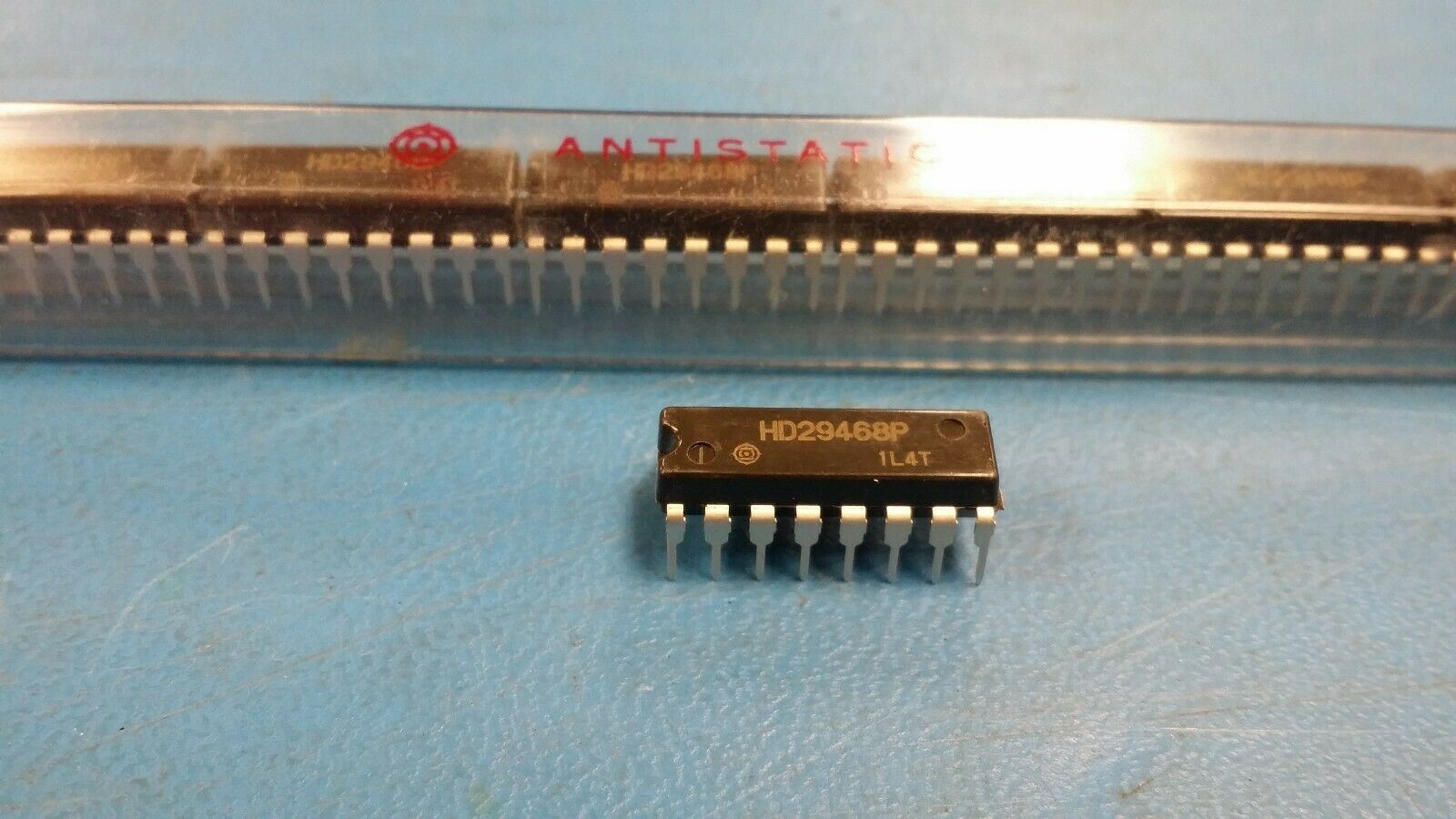

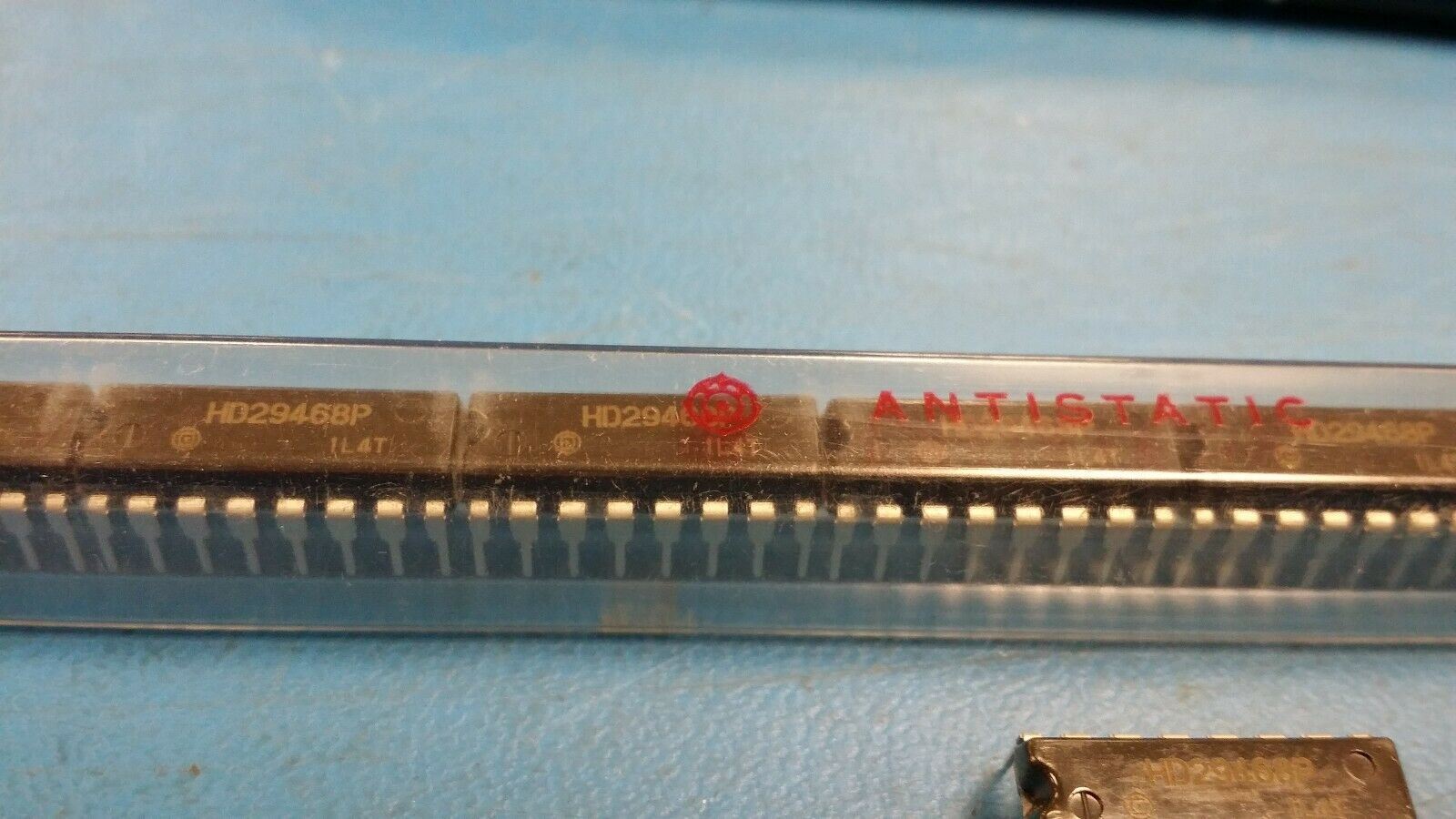

THIS LISTING IS FOR (2 PCS) OF HD29468P BY HITACHI
Line Transceiver, 3 Func, 3 Driver, 3 Rcvr, PDIP16

Part #: HD29468P

Part Category: Interface ICs
Manufacturer: Hitachi, Ltd.
Description: Line Transceiver, 3 Func, 3 Driver, 3 Rcvr, PDIP16
Mfr Package Description DP-16
Status Transferred
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 3.0
High Level Input Current-Max 6.0E-5  Amp
Input Characteristics STANDARD
Interface Standard IBM 360/370
JESD-30 Code R-PDIP-T16
Number of Functions 3
Number of Terminals 16
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 75.0  Cel
Out Swing-Min 2.96  V
Output Low Current-Max 0.008  Amp
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 19.5  ns
Receiver Number of Bits 3.0
Seated Height-Max 5.06  mm
Sub Category Line Driver or Receivers
Supply Current-Max 55.0  mA
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount NO
Temperature Grade COMMERCIAL EXTENDED
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Transmit Delay-Max 18.5  ns
Length 19.2  mm
Width 7.62  mm
