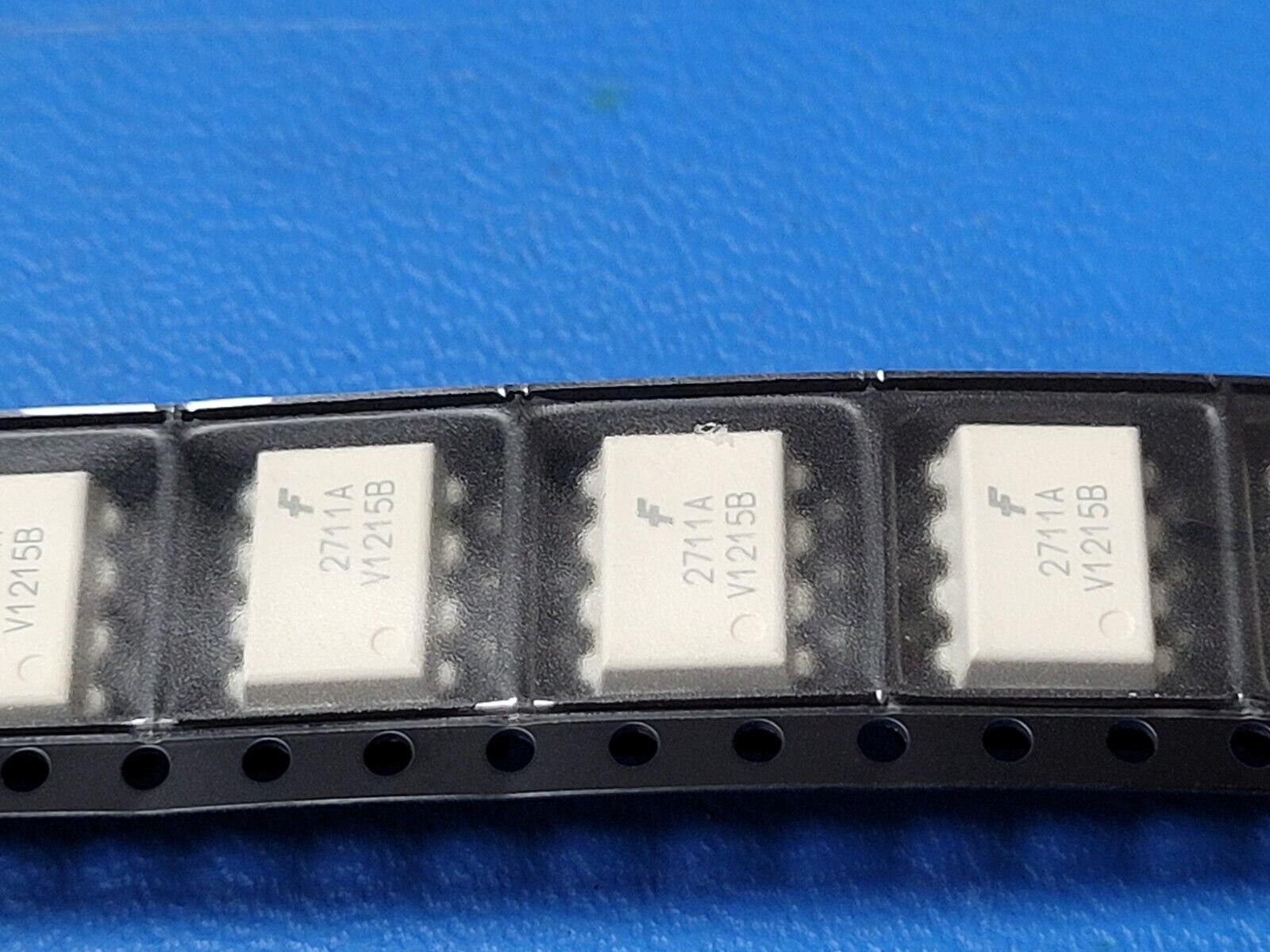

(2 PCS) FOD2711ASDV FSC OPTOISOLATOR 5KV TRANSISTOR 8SMD ROHS
Tax included.
THIS IS FOR (2 PCS) OF FOD2711ASDV BY FSC
OPTOISOLATOR 5KV TRANSISTOR 8SMD ROHS
Manufacturer: onsemi / Fairchild
Product Category: Optically Isolated Amplifiers
RoHS: YES
Series: FOD2711A
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
Isolation Voltage: 5000 Vrms
Vf - Forward Voltage: 1.5 V
Package / Case: MDIP-8
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Packaging: Reel
Packaging: Cut Tape
Brand: onsemi / Fairchild
Collector-Emitter Breakdown Voltage: 70 V
Current Transfer Ratio: 100 %
Height: 3.94 mm
Length: 9.91 mm
Maximum Collector Current: 50 mA
Maximum Collector Emitter Saturation Voltage: 400 mV
Maximum Collector Emitter Voltage: 30 V
Pd - Power Dissipation: 145 mW
Product Type: Optically Isolated Amplifiers
Reference Voltage: 1.24 V
1000
Subcategory: Optocouplers
Width: 6.86 mm
Unit Weight: 0.025397 oz
