(2 PCS) FDR6580 FSC MOSFET N-CH 20V 11.2A SSOT-8
Tax included.

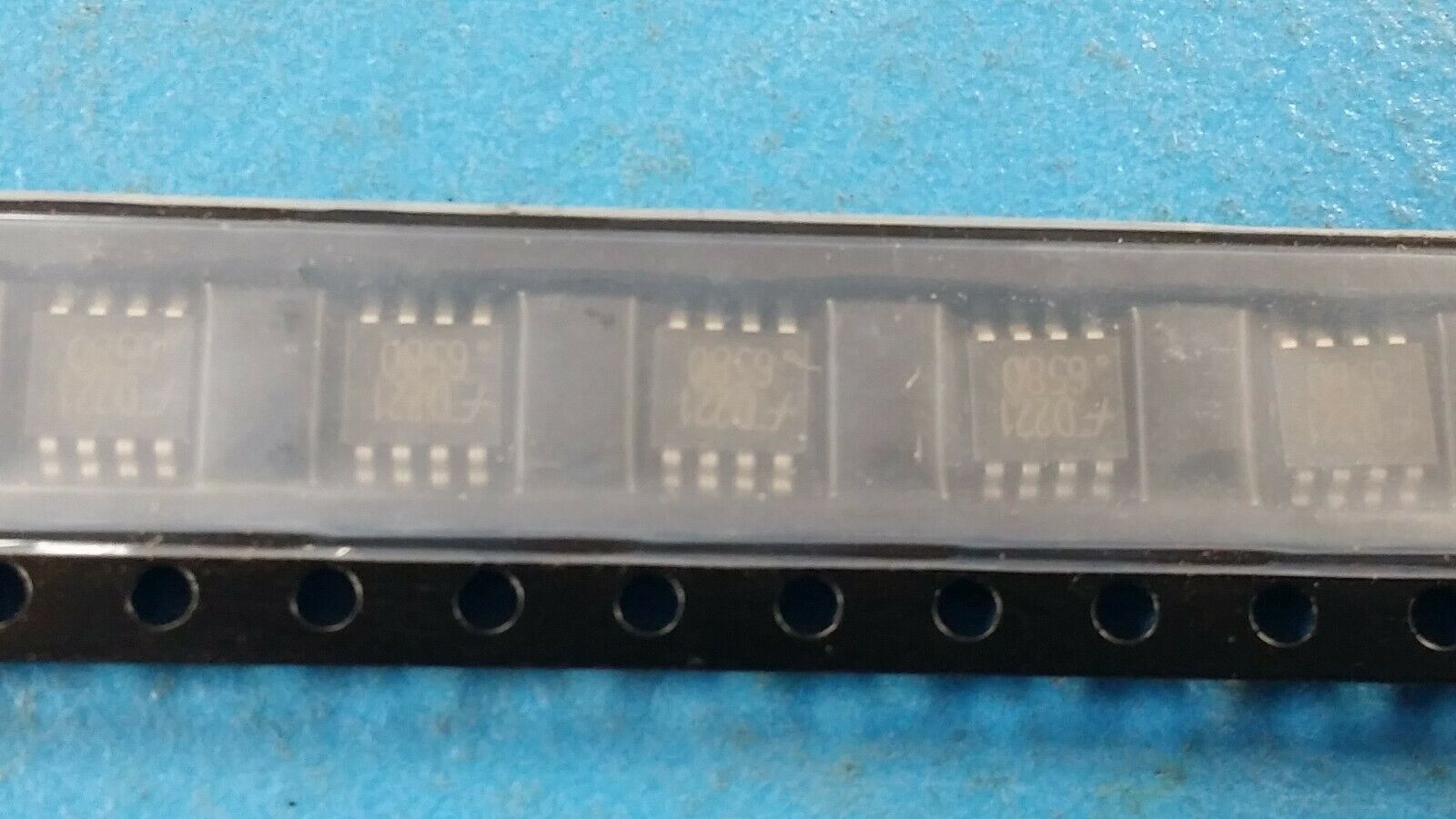

THIS LISTING IS FOR (2 PCS) OF FDR6580 BY FSC
MOSFET N-CH 20V 11.2A SSOT-8
Fairchild Semiconductor
Series PowerTrench®
Packaging Tape & Reel (TR)
Part Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 11.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 9mOhm @ 11.2A, 4.5V
Vgs(th) (Max) @ Id 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 48nC @ 4.5V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 3829pF @ 10V
FET Feature -
Power Dissipation (Max) 1.8W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SuperSOT™-8
Package / Case 8-LSOP (0.130", 3.30mm Width)
Base Part Number FDR65
