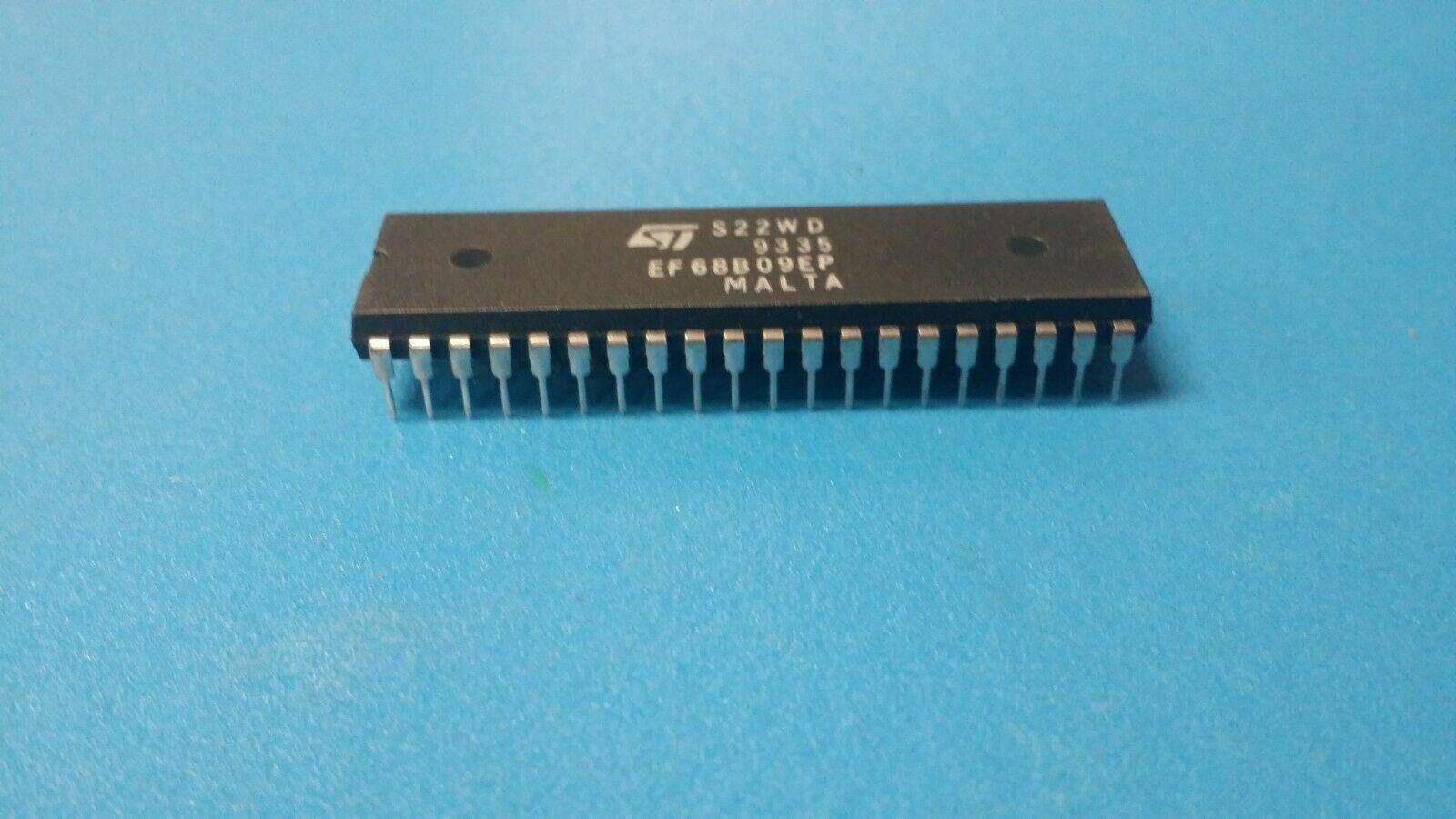

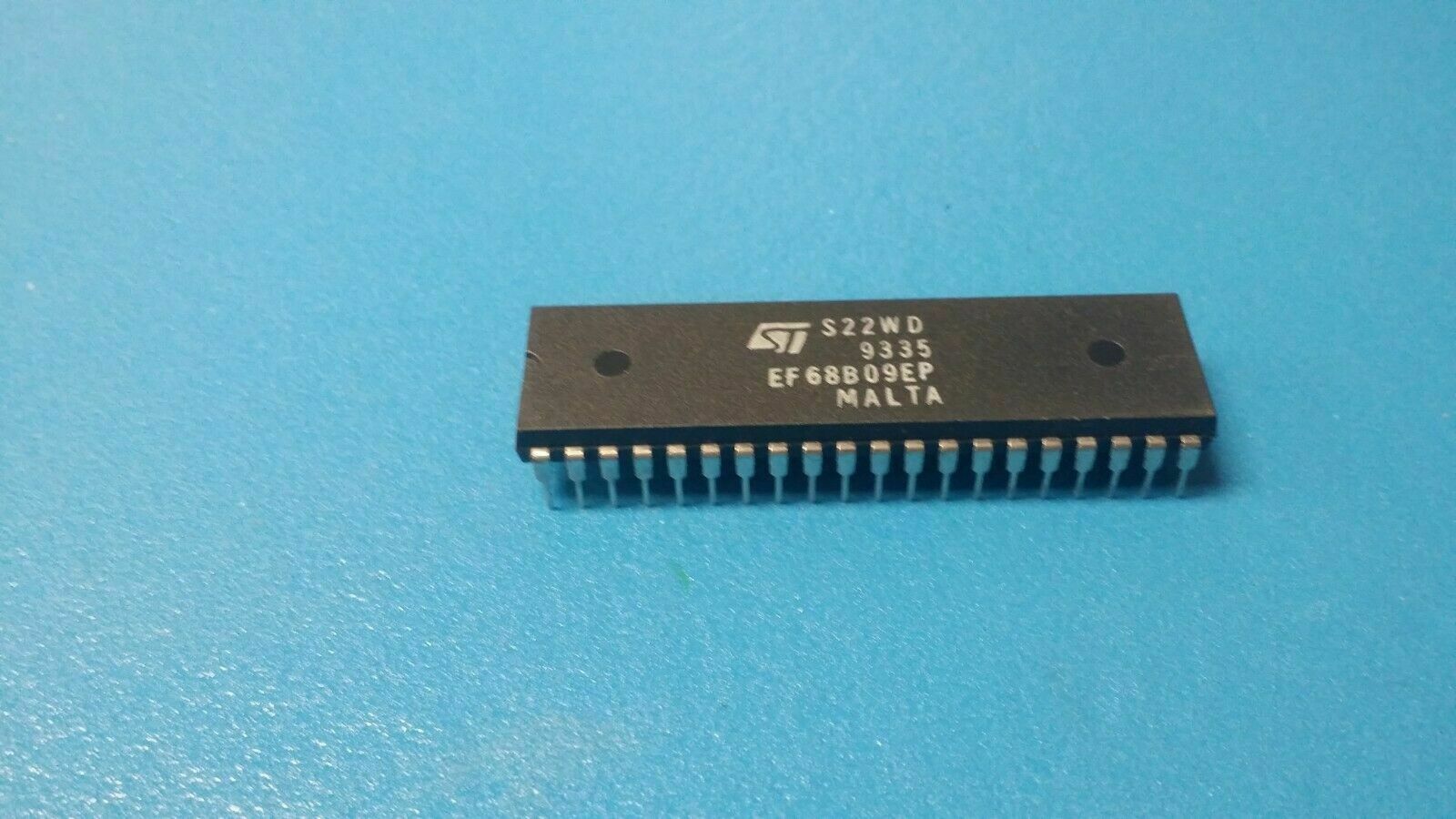

(2 PCS) EF68B09EP ST MICRO Microprocessor, 8-Bit, 2MHz, NMOS, PDIP40
Tax included.
THIS LISTING IS FOR (2 PCS) OF EF68B09EP BY ST MICRO
Microprocessor, 8-Bit, 2MHz, NMOS, PDIP40
Part #: EF68B09EP
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: STMicroelectronics, Inc.
Description: Microprocessor, 8-Bit, 2MHz, NMOS, PDIP40
Package Description PLASTIC, DIP-40
Status Discontinued
Address Bus Width 16.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 2.0 MHz
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T40
JESD-609 Code e0
Low Power Mode NO
Number of DMA Channels 0.0
Number of External Interrupts 3.0
Number of Serial I/Os 0.0
Number of Terminals 40
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 5.08 mm
Speed 2.0 MHz
Sub Category Microprocessors
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
