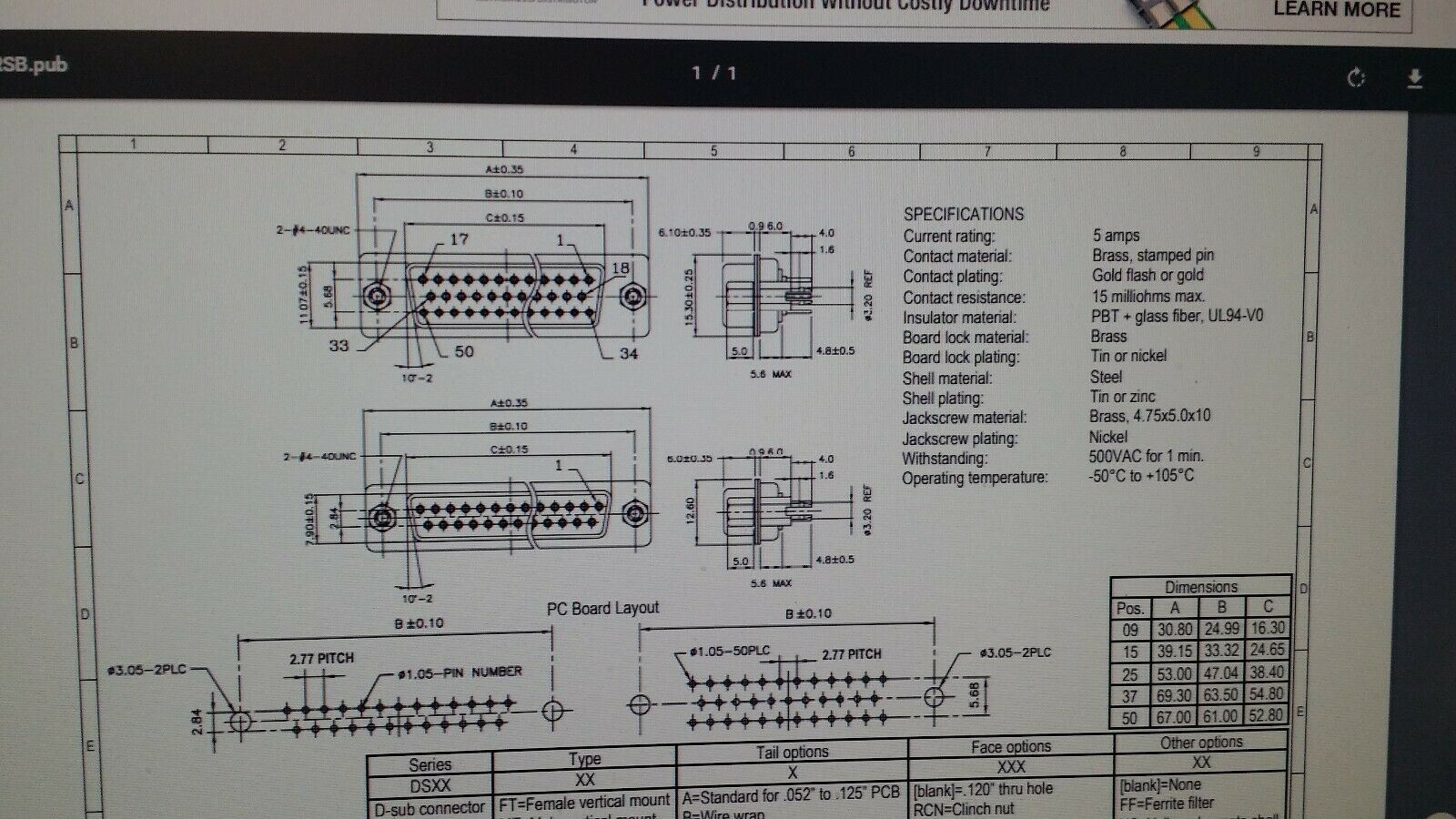

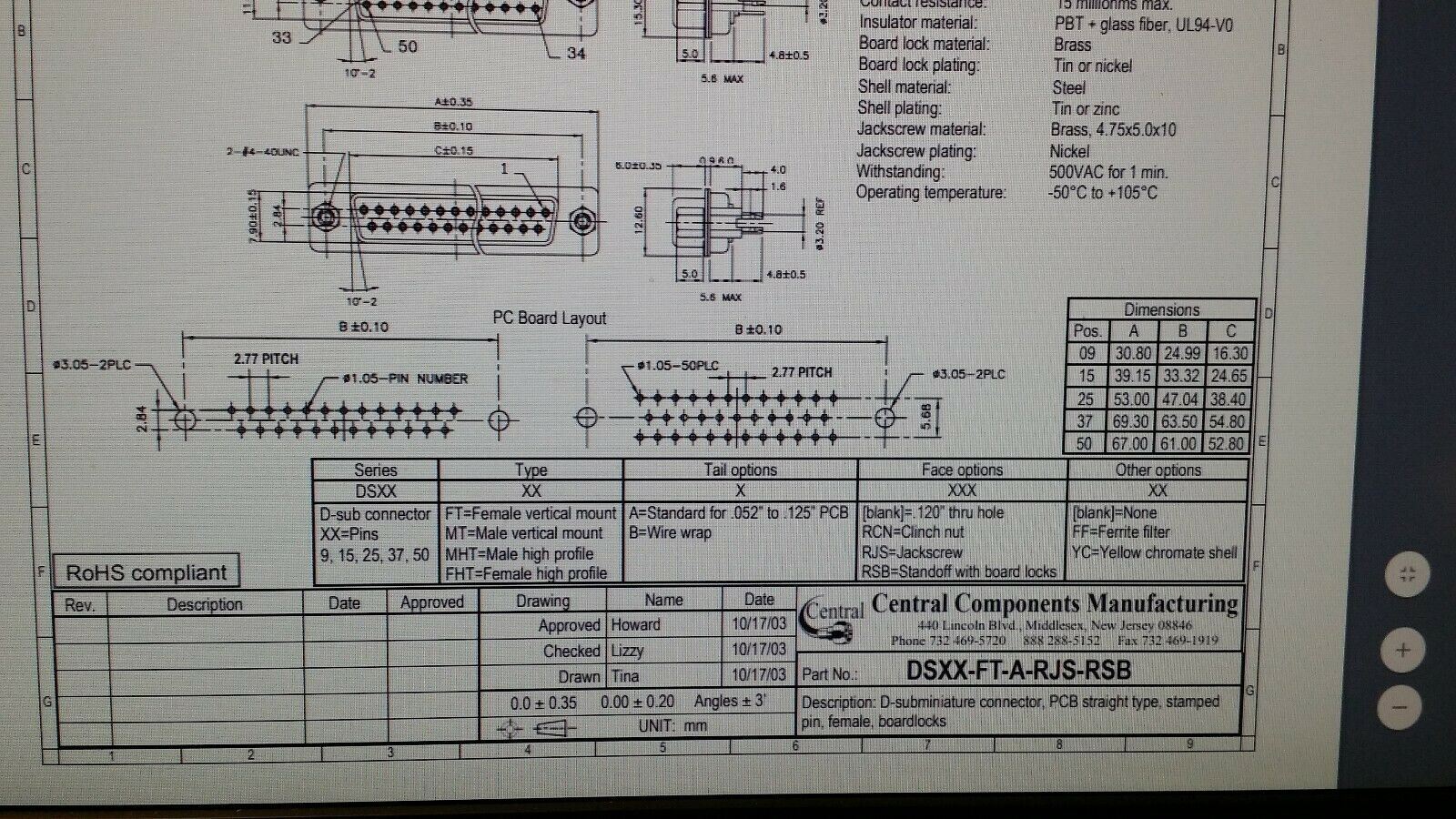

THIS LISTING IS FOR (2 PCS) OF DS37-MT-A-RSB BY CCM

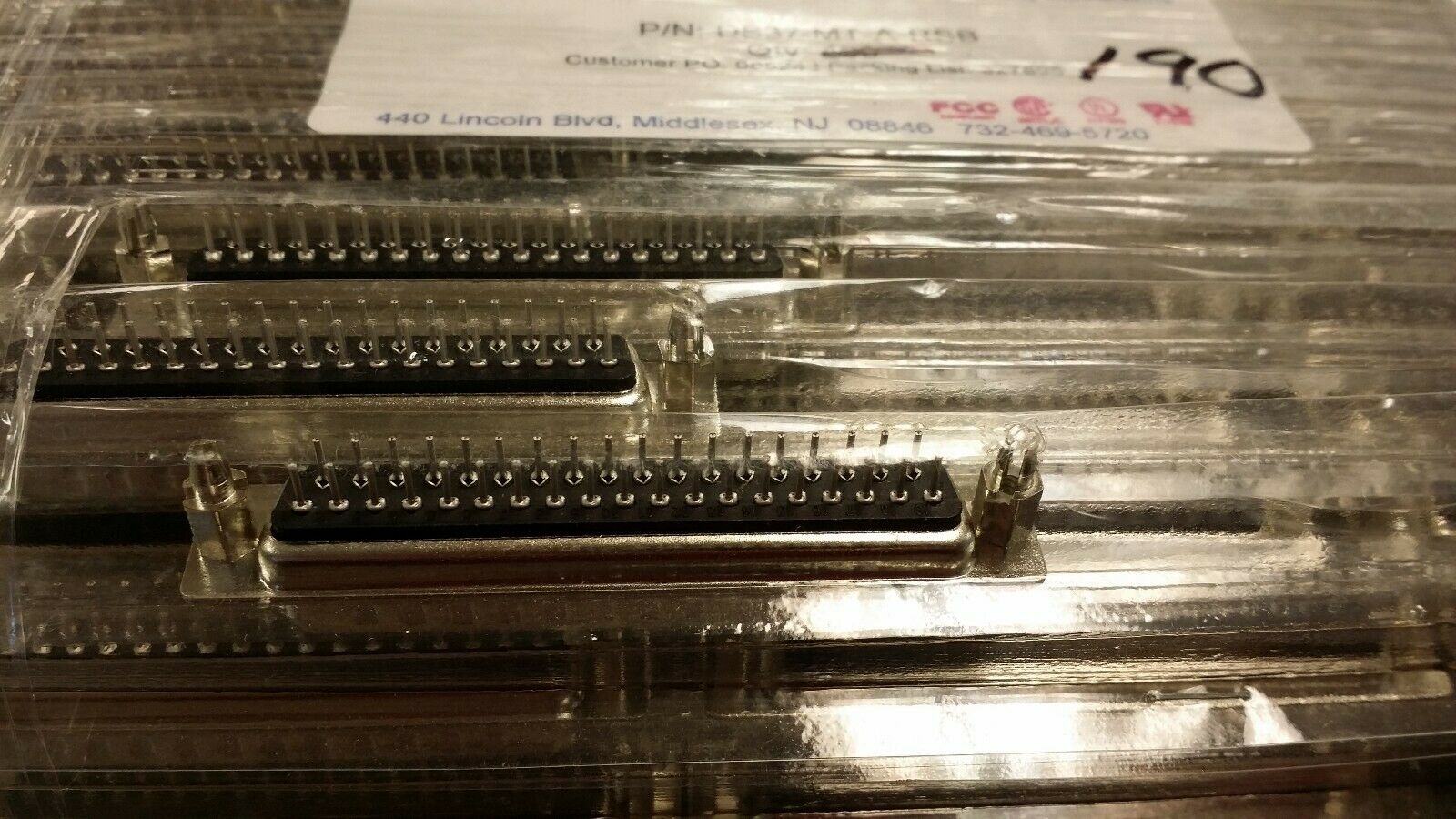

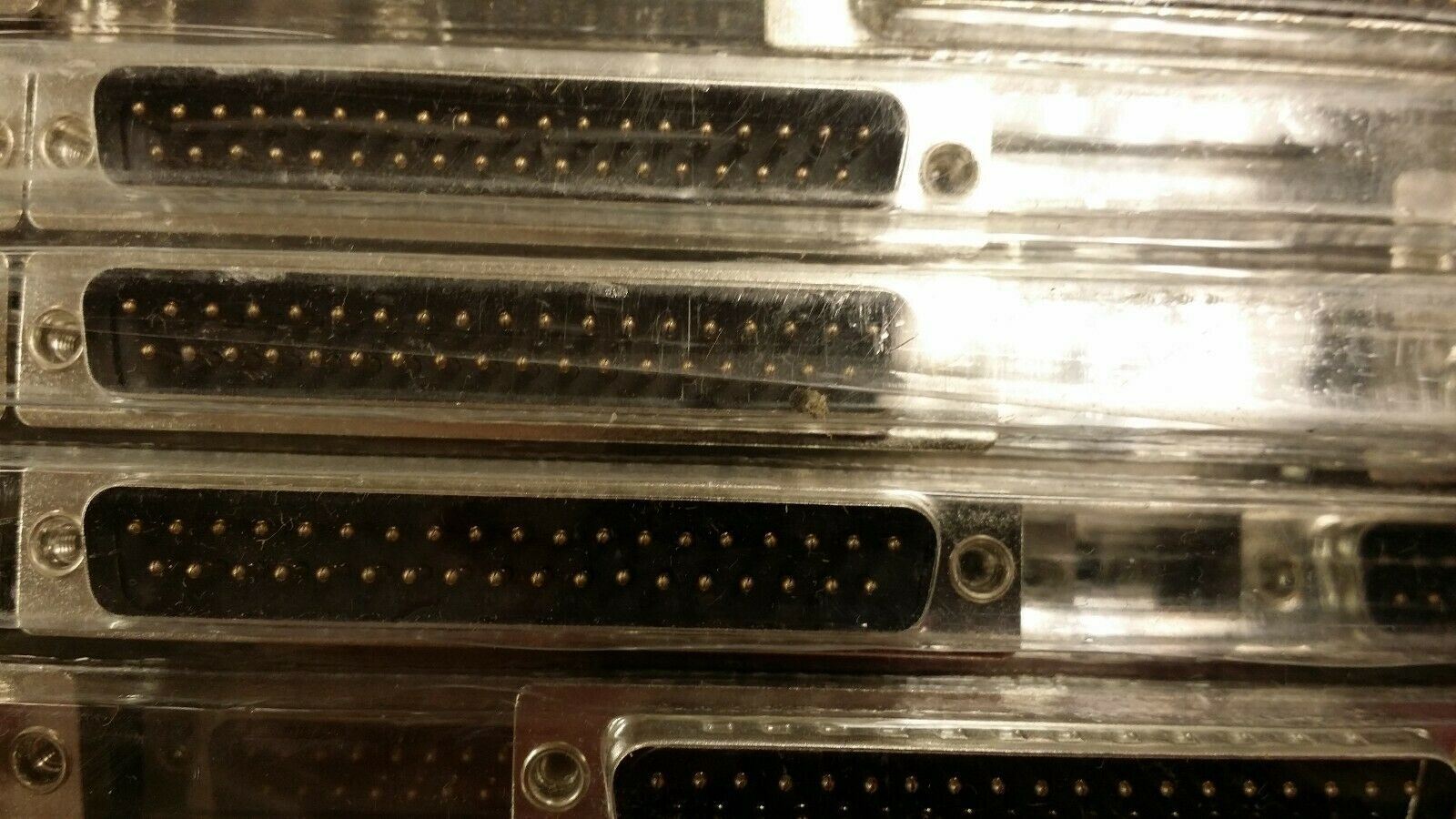

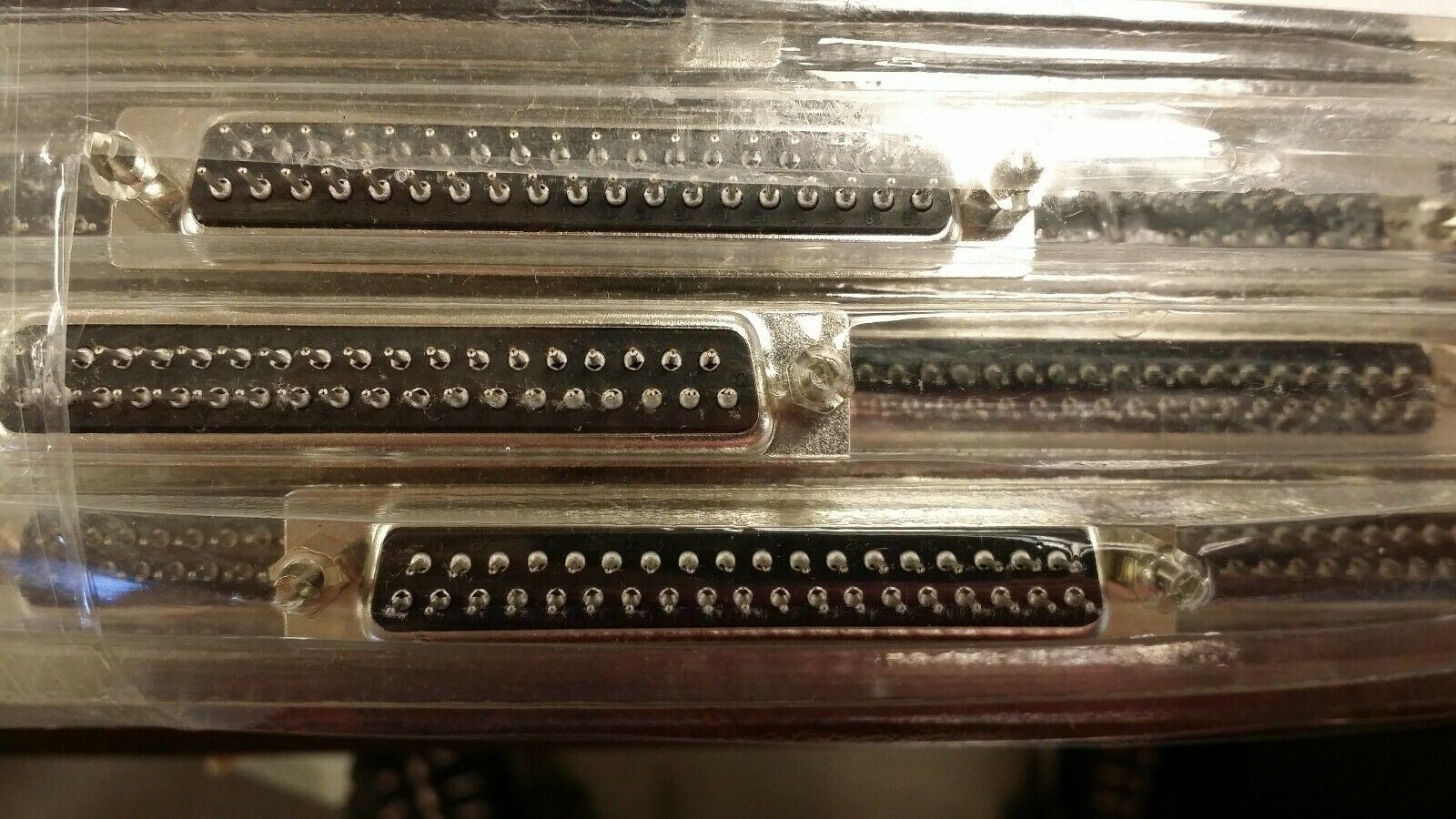

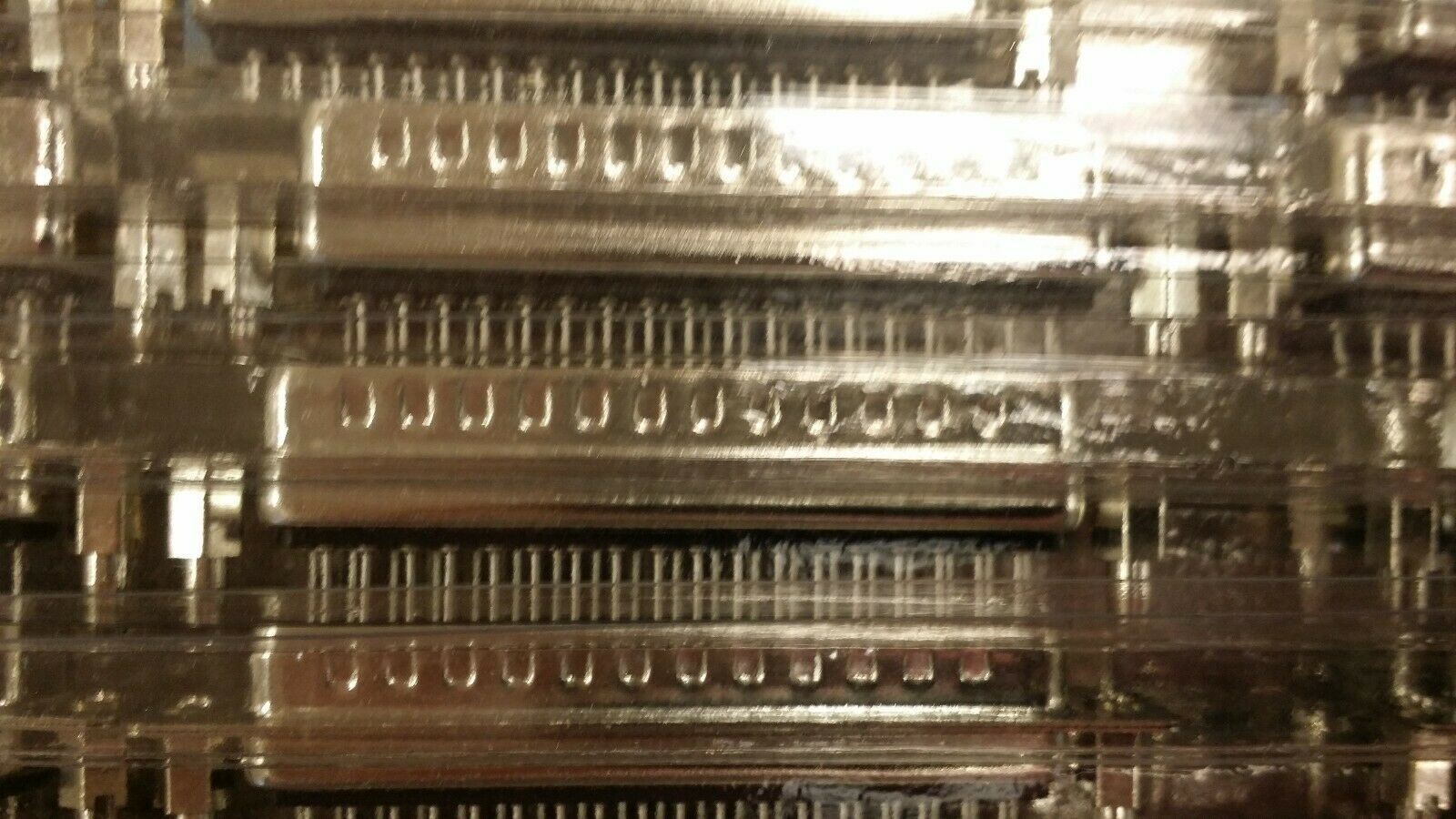

D-Sub Conn 37 Pin Male 0.109 inch Pitch Solder Terminal

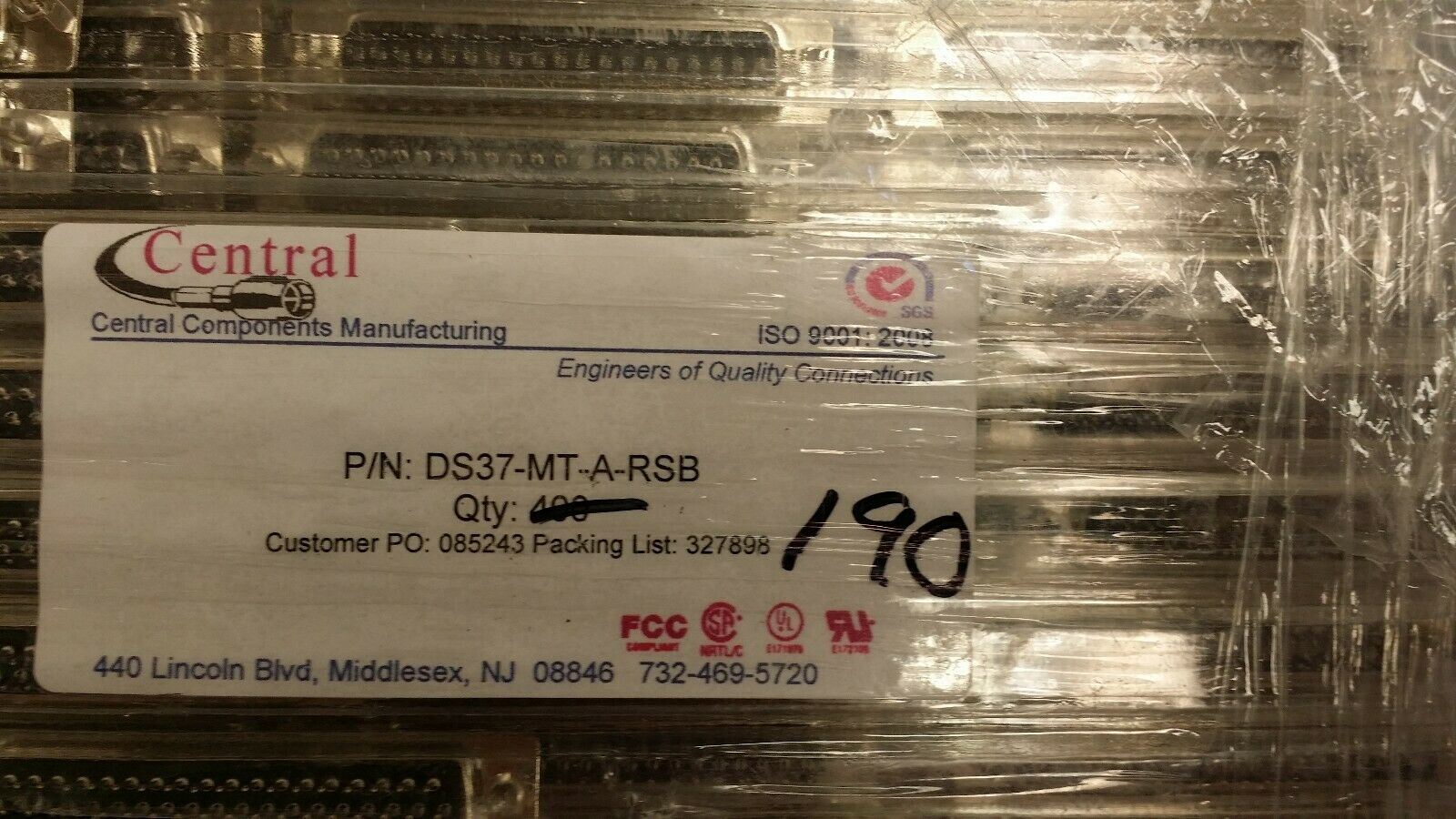

Part #: DS37-MT-A-RSB
Part Category: Connectors
Manufacturer: Central Components Mfg.
Description: D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

EU RoHS Compliant Yes
Status Active
Connector Type D SUBMINIATURE CONNECTOR
Body Breadth 0.494  inch
Body Depth 0.201  inch
Body Length 2.729  inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU
Contact Finish - Termination Tin (Sn)
Contact Gender MALE
Contact Material BRASS
Contact Pattern STAGGERED
Contact Resistance 15.0  mohm
Contact Style RND PIN-SKT
Insulation Resistance 1.0E9  ohm
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code e3
Manufacturer Series DS50
Mounting Option 1 HOLE .112-.124
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -50.0  Cel
PCB Contact Pattern STAGGERED
Rated Current (Signal) 5.0  A
Reference Standard UL
Reliability COMMERCIAL
Shell Material STEEL
Sub Category D Type Connectors
Terminal Pitch 2.7686  mm
Total Number of Contacts 37
Additional Feature ROHS COMPLIANT
