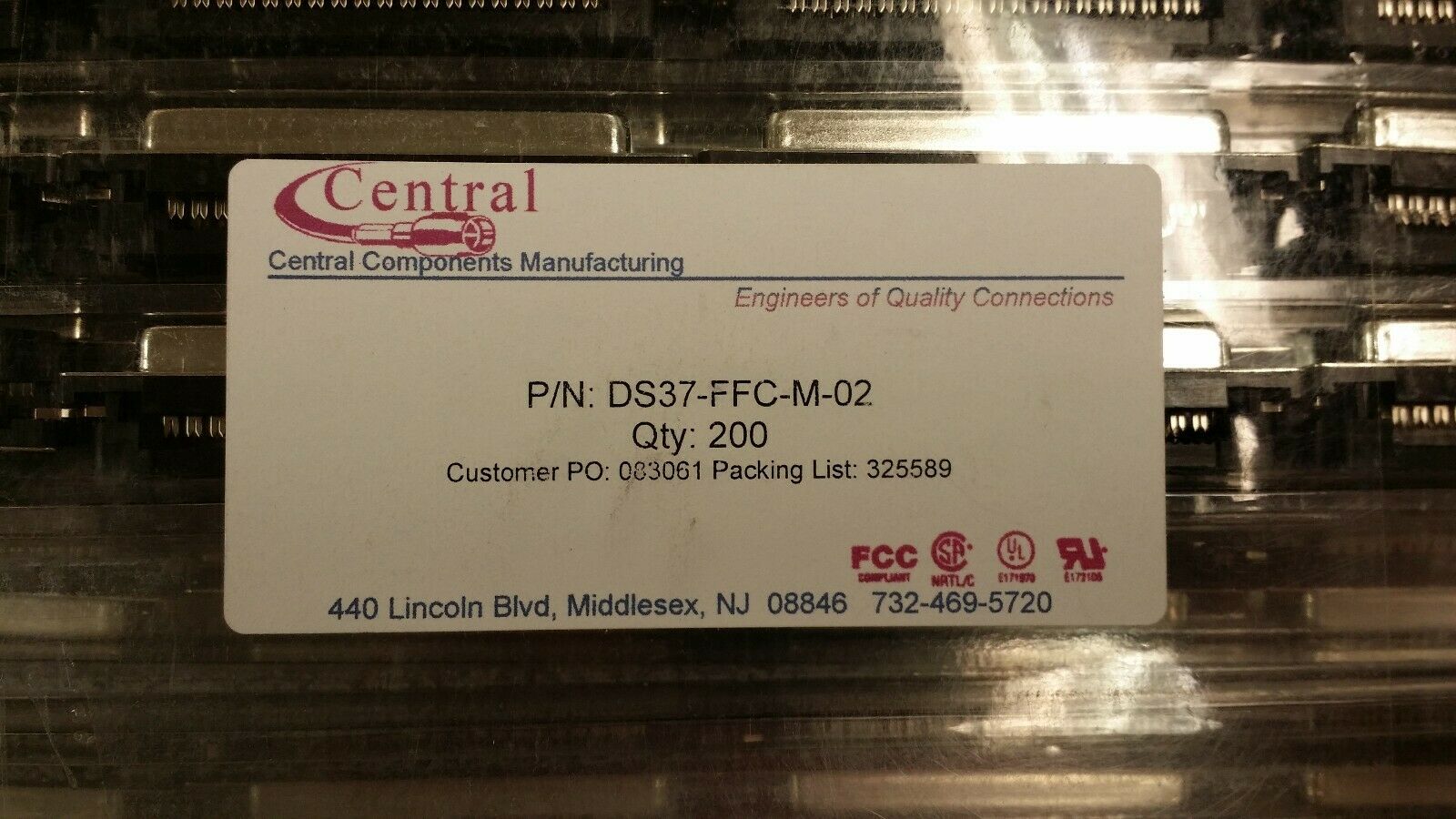

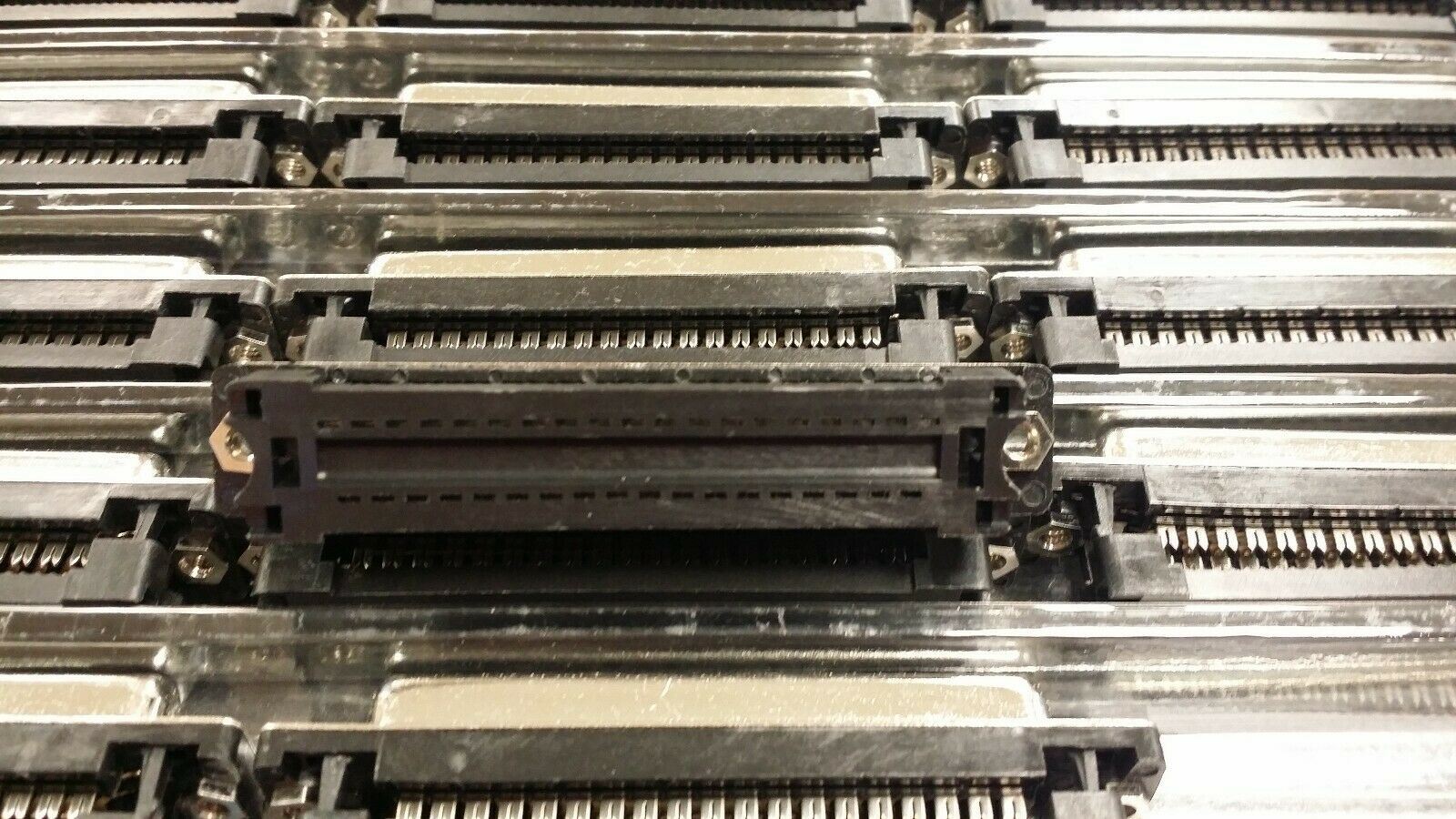

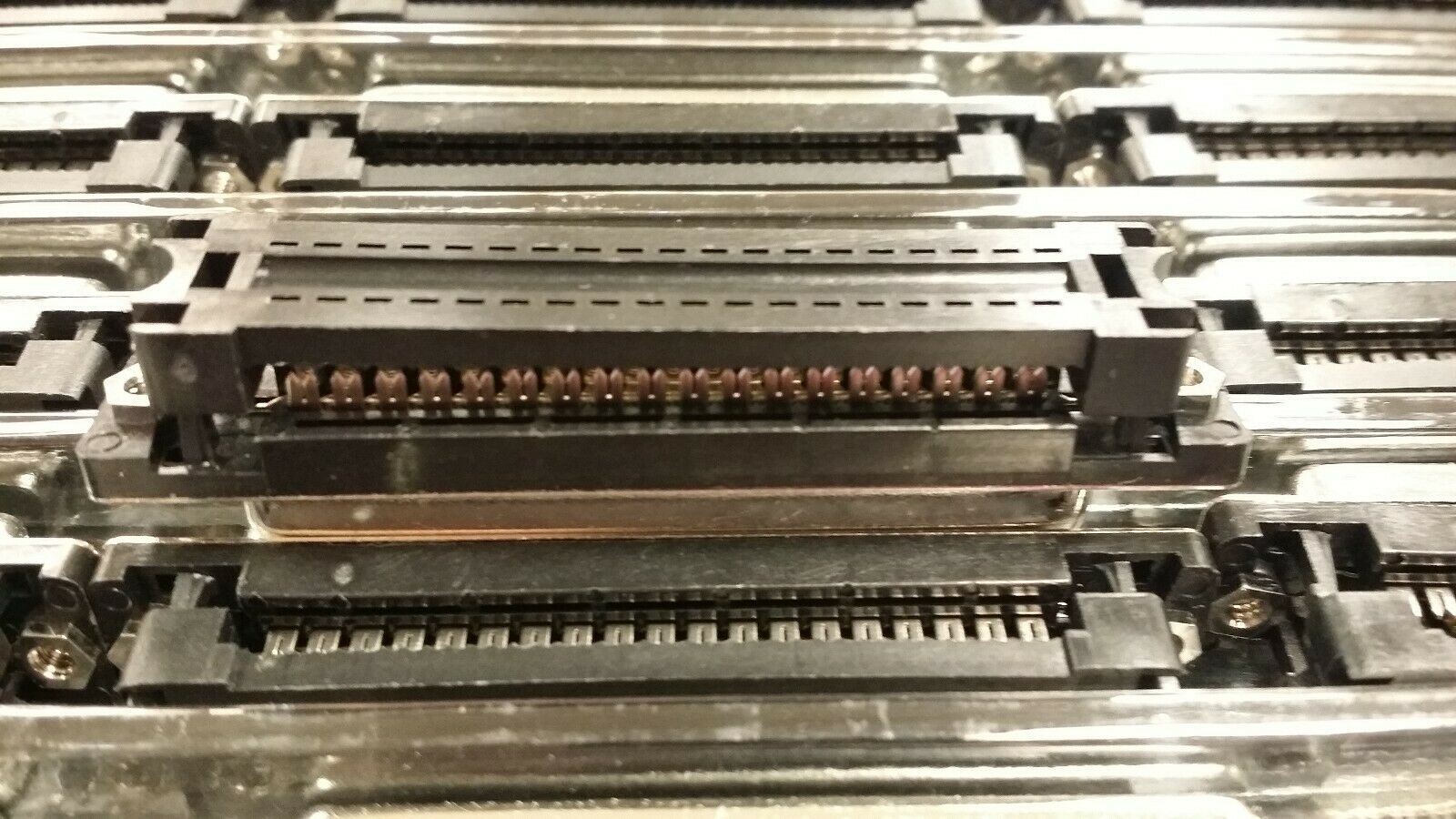

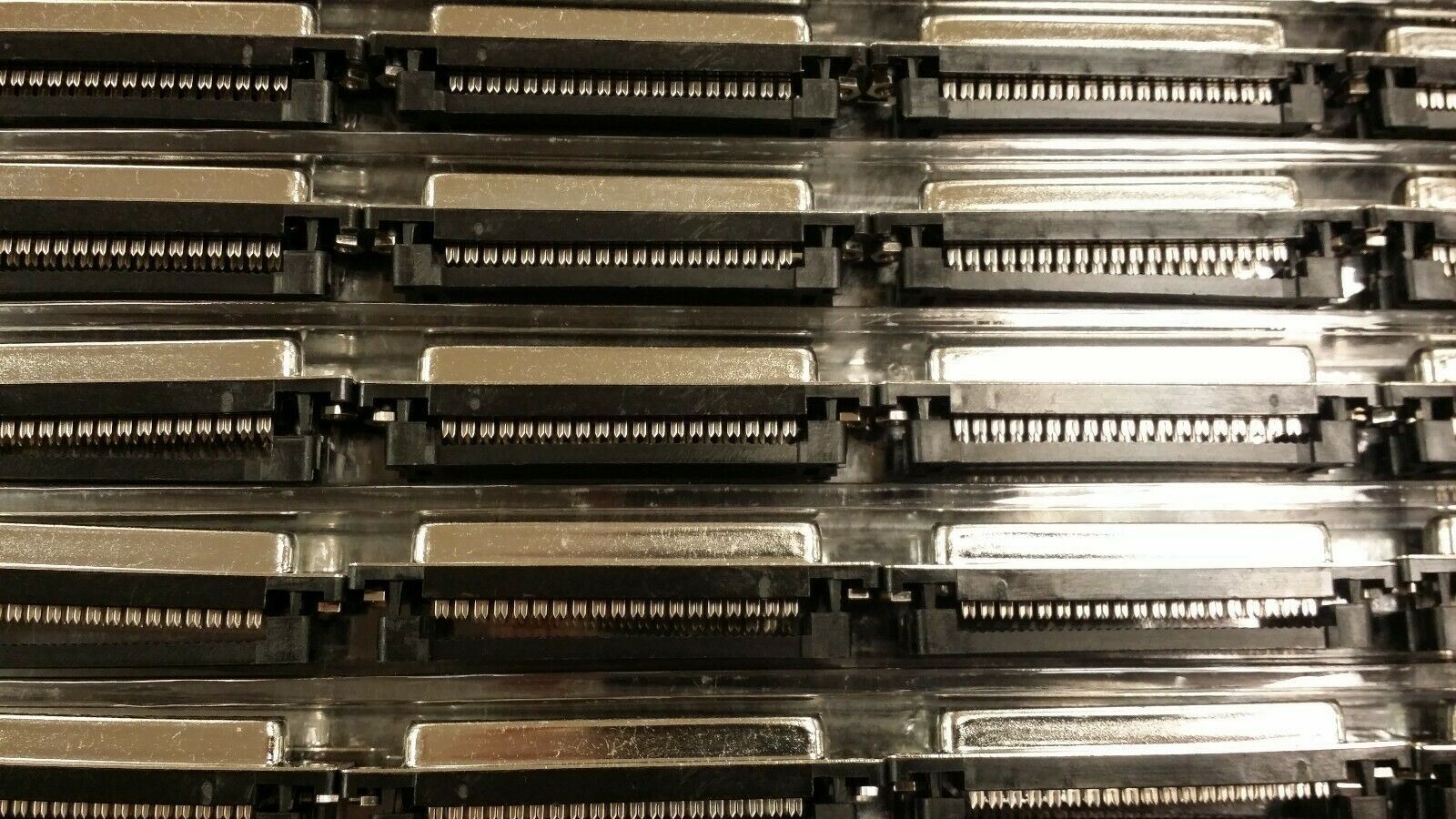

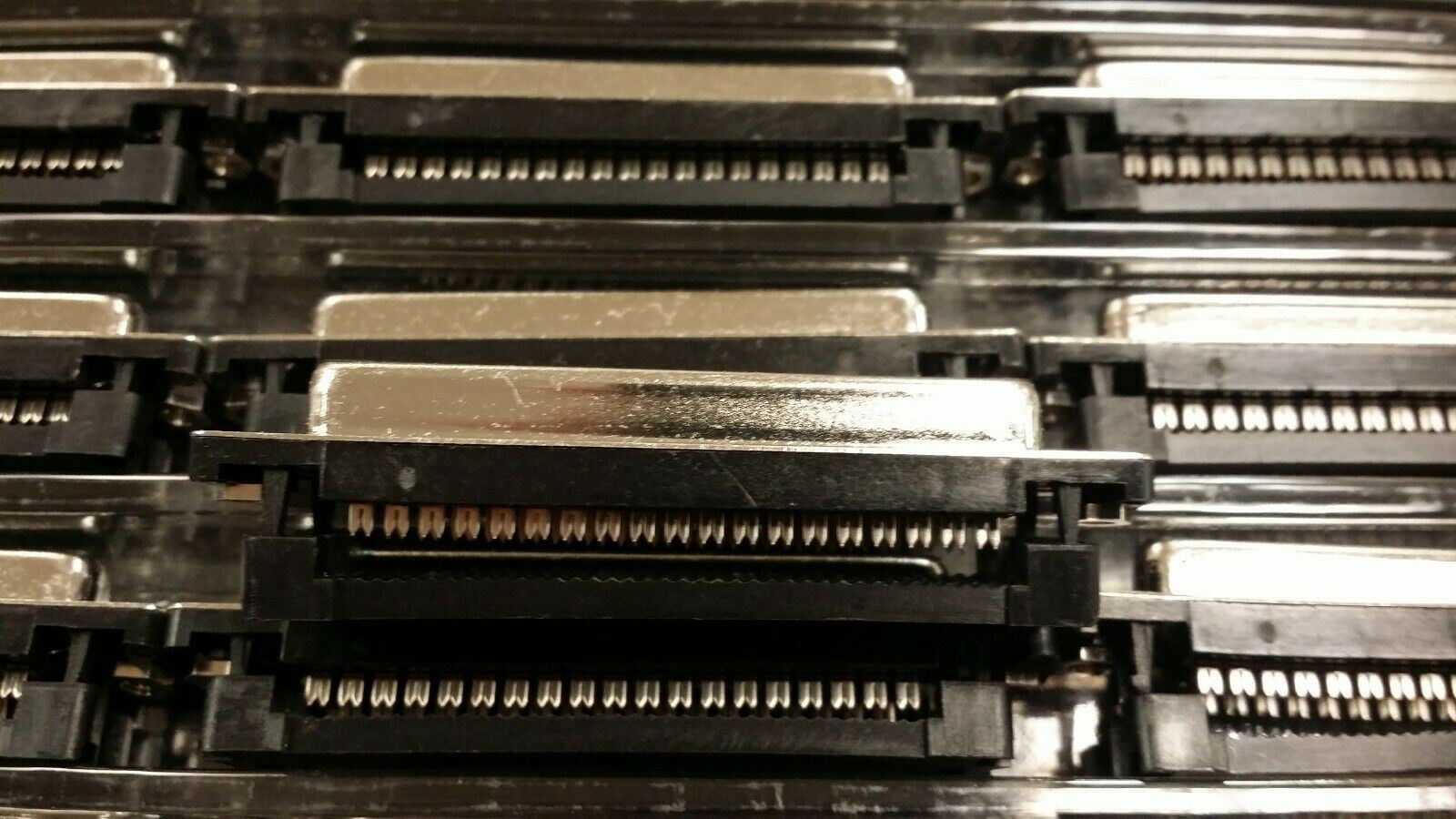

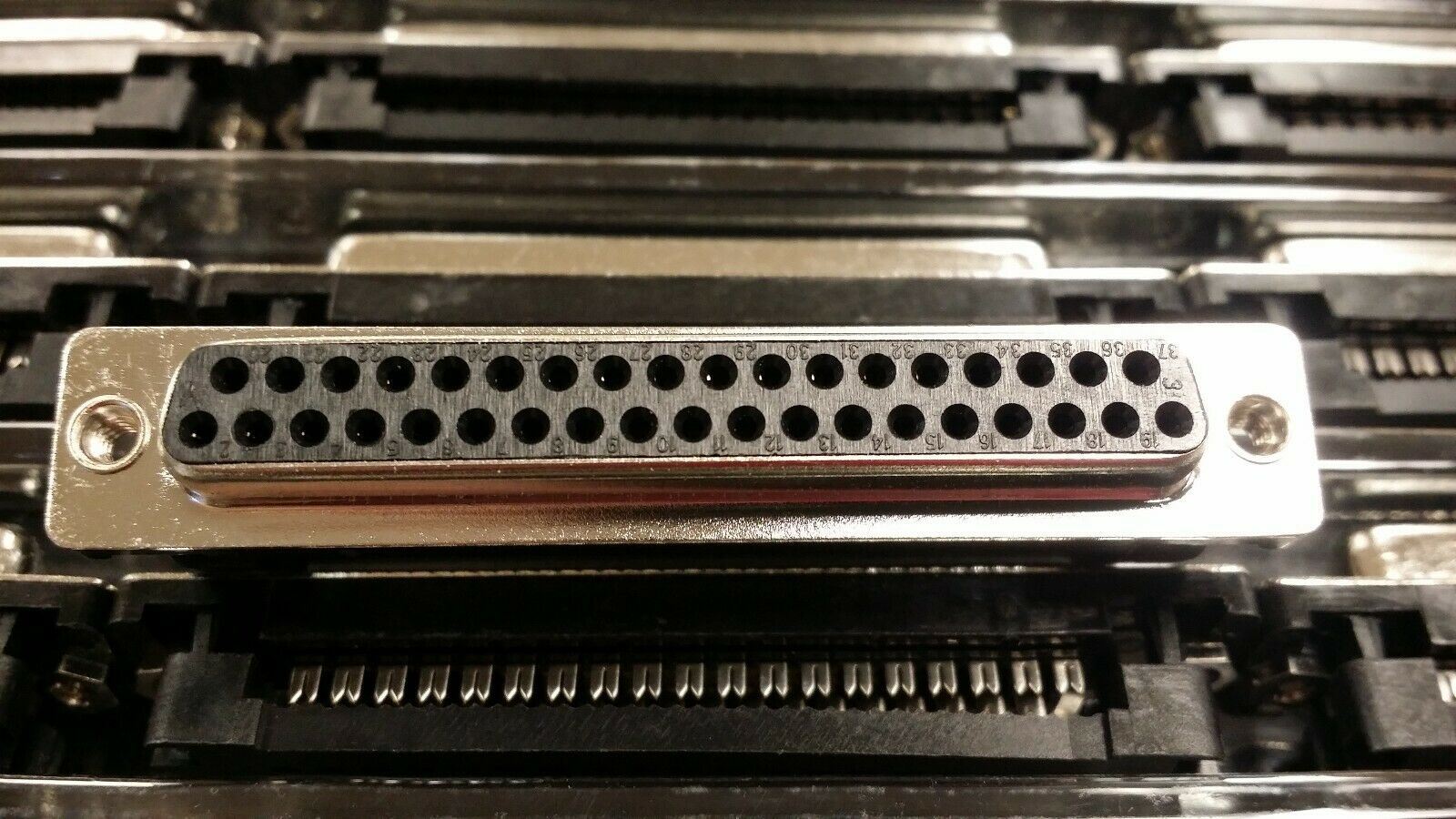

THIS LISTING IS FOR (2 PCS) OF DS37-FFC-M-02 BY CCM
D-Sub Connector 37 POS Female, 0.109" Pitch, IDC Terminal ROHS
Part #: DS37-FFC-M-02
Part Category: Connectors
Manufacturer: Central Components Mfg.
Description: D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Plug

SPECIFICATIONS
EU RoHS Compliant Yes
Status Active
Connector Type D SUBMINIATURE CONNECTOR
Body Breadth 0.496  inch
Body Length 2.729  inch
Body/Shell Style PLUG
Contact Design PREASSEM CONN
Contact Finish - Mating AU ON NI
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern STAGGERED
Contact Resistance 8.0  mohm
Contact Style RND PIN-SKT
Insulation Resistance 5.0E9  ohm
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Option 1 #4-40
Mounting Option 2 THREADED INSERT
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55.0  Cel
Rated Current (Signal) 5.0  A
Reference Standard UL
Reliability COMMERCIAL
Shell Finish TIN
Shell Material STEEL
Sub Category D Type Connectors
Total Number of Contacts 37
Additional Feature ROHS COMPLIANT
