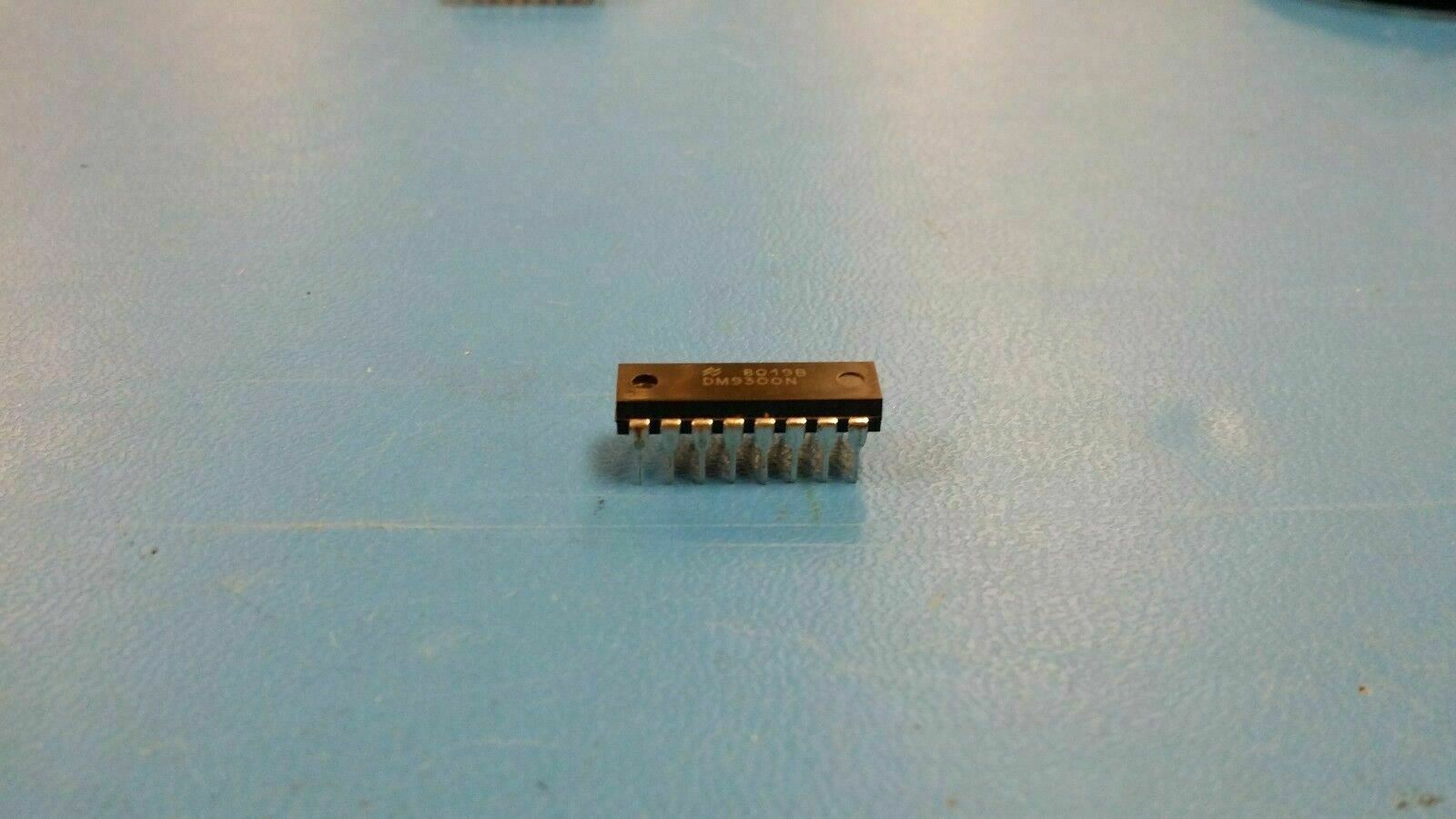

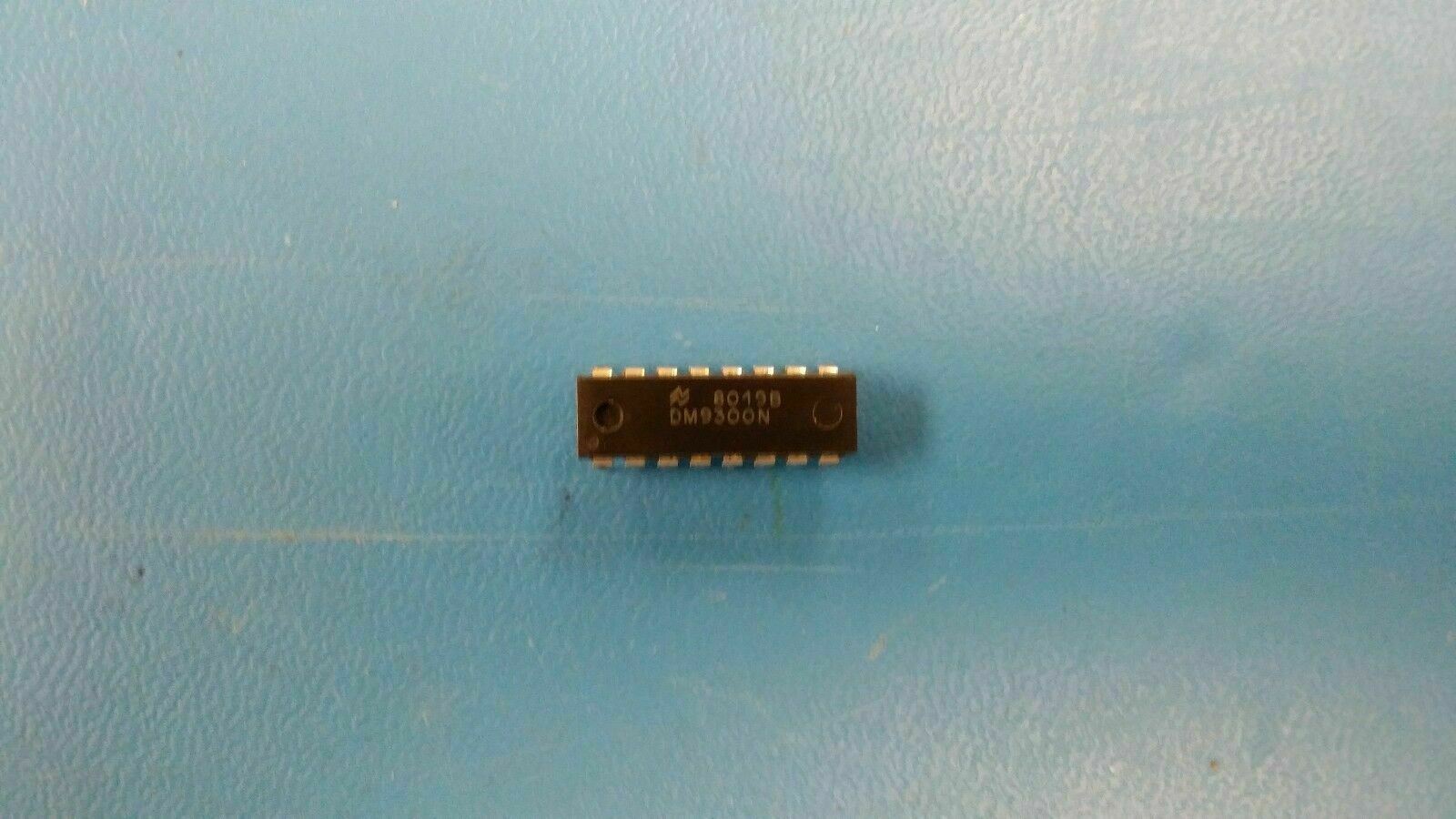

(2 PCS) DM9300N NSC IC SHIFT REGISTER STD-TTL DIP 16PIN
Tax included.
THIS LISTING IS FOR (2 PCS) OF DM9300N BY NSC
IC SHIFT REGISTER STD-TTL DIP 16PIN
Part #: DM9300N
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Parallel In Parallel Out, 93 Series, 4-Bit, Right Direction, True Output, TTL, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type PARALLEL IN PARALLEL OUT
Sub Category Shift Registers
Count Direction RIGHT
Family 93
fmax-Min 30.0 MHz
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Load Capacitance (CL) 15.0 pF
Max Frequency@Nom-Sup 3.0E7 Hz
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 92.0 mA
Propagation Delay (tpd) 26.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type POSITIVE EDGE
Length 19.305 mm
Width 7.62 mm
Additional Feature COMPLEMENTARY SERIAL SHIFT RIGHT OUTPUT; J AND KBAR SERIAL INPUT
