(2 PCS) DM74ALS160BN NSC DECADE COUNTER, ALS SERIES IC ELEMENT BIT PDIP-16
(2 PCS) DM74ALS160BN NSC DECADE COUNTER, ALS SERIES IC ELEMENT BIT PDIP-16
(2 PCS) DM74ALS160BN NSC DECADE COUNTER, ALS SERIES IC ELEMENT BIT PDIP-16

(2 PCS) DM74ALS160BN NSC DECADE COUNTER, ALS SERIES IC ELEMENT BIT PDIP-16

Tax included.
Only 79 left!

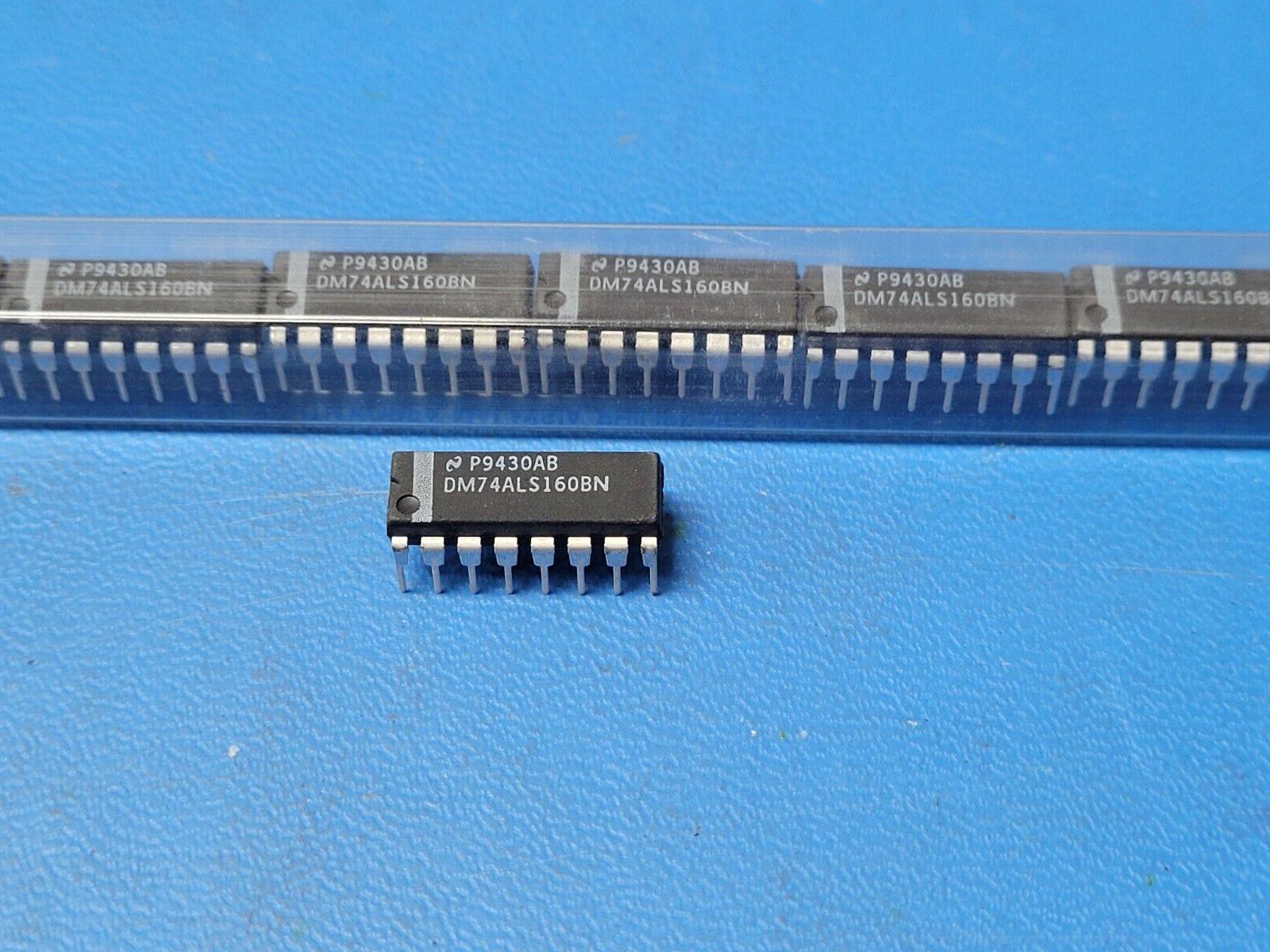

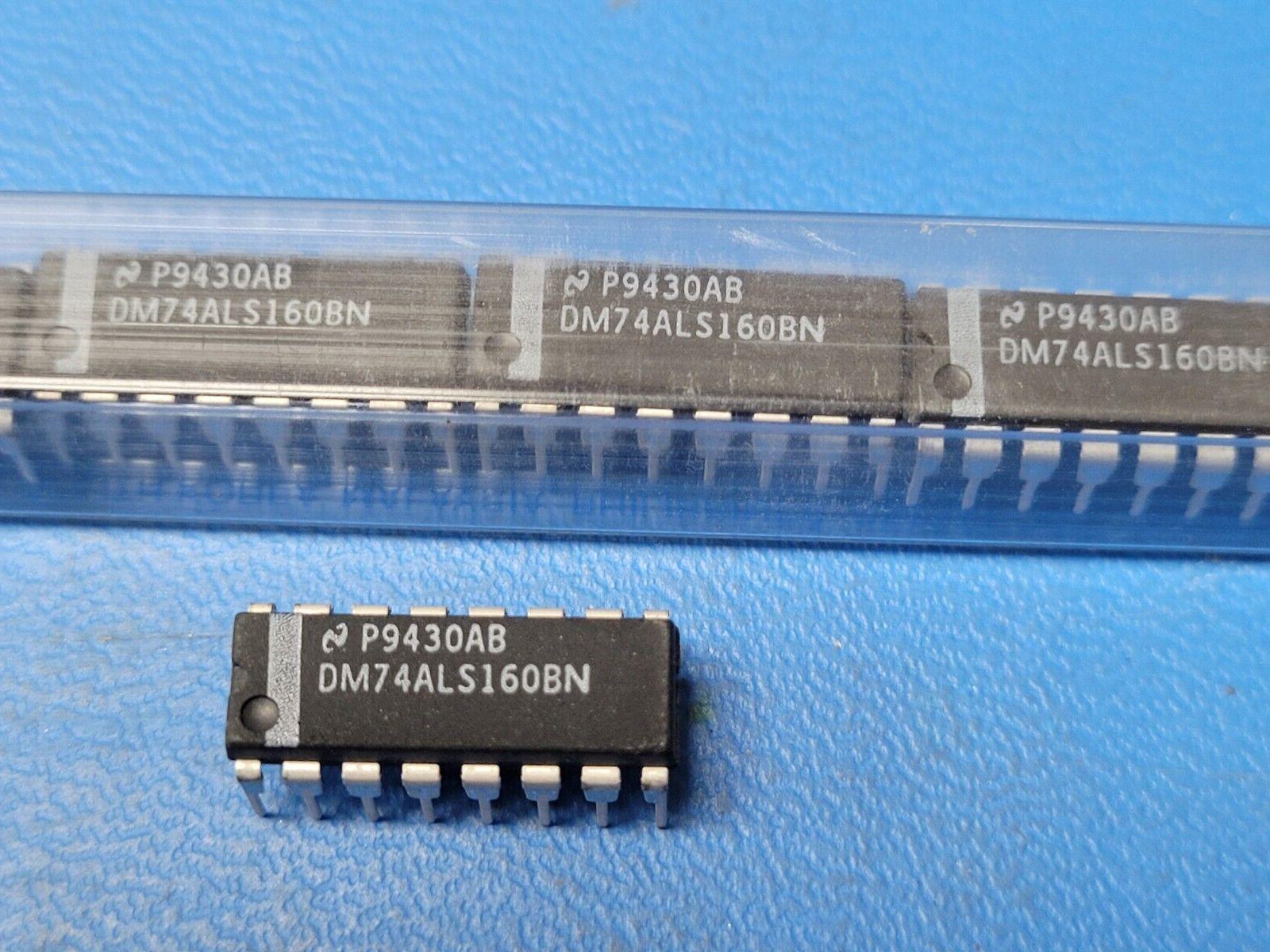

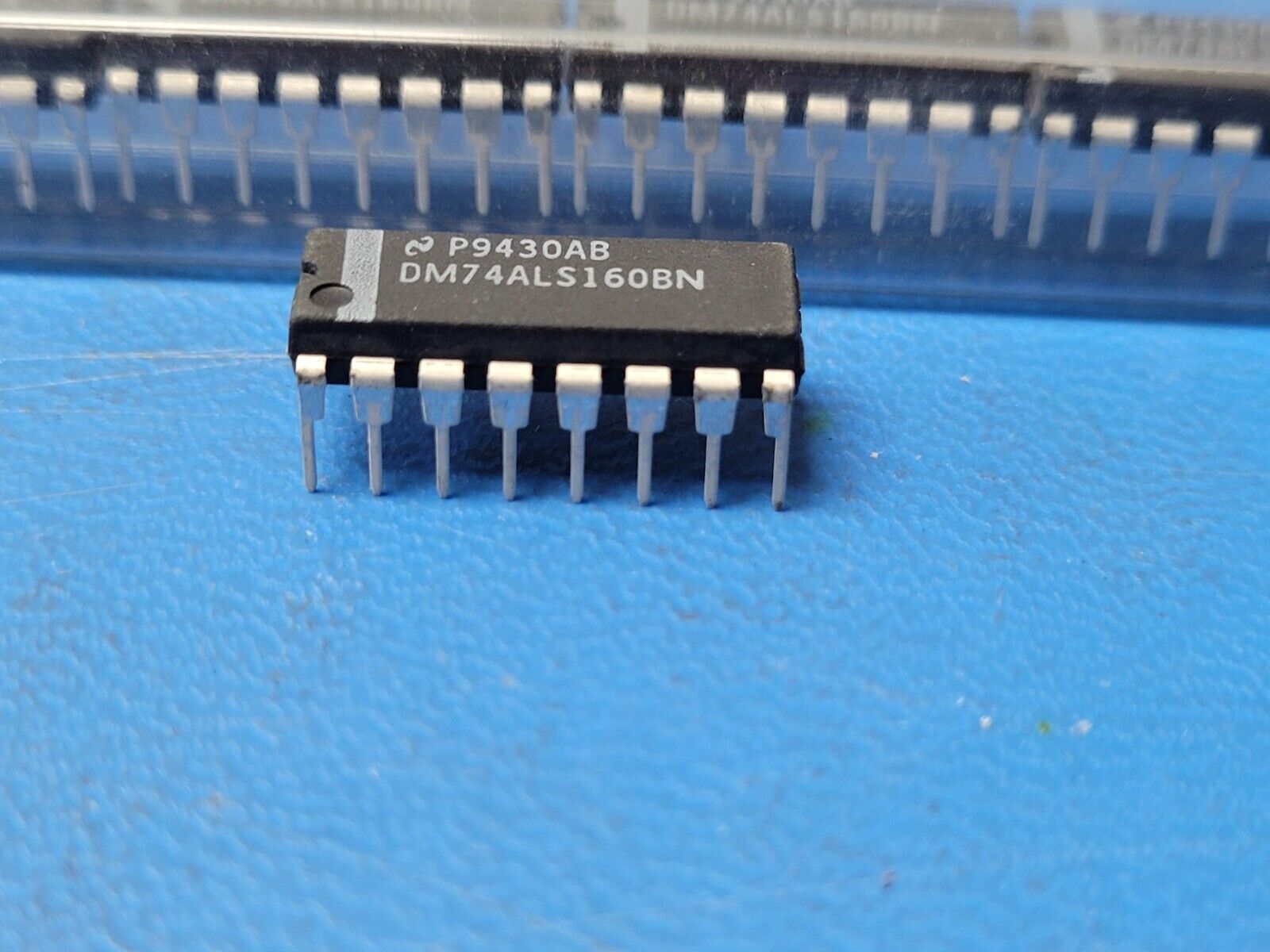

THIS IS FOR (2 PCS) OF DM74ALS160BN BY NSC
DECADE COUNTER, ALS SERIES IC ELEMENT BIT PDIP-16

Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type DECADE COUNTER
Sub Category Counters
Count Direction UP
Family ALS
fmax-Min 40.0  MHz
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Load Capacitance (CL) 50.0  pF
Load/Preset Input YES
Max Frequency@Nom-Sup 4.0E7  Hz
Mode of Operation SYNCHRONOUS
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 21.0  mA
Propagation Delay (tpd) 20.0  ns
Qualification Status Not Qualified
Seated Height-Max 5.08  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 21.755  mm
Width 7.62  mm
Additional Feature TCO OUTPUT
