(2 PCS) CY2907SC CYPRESS Single-PLL EPROM Programmable Clock Generator SOIC8

Tax included.
Only 70 left!

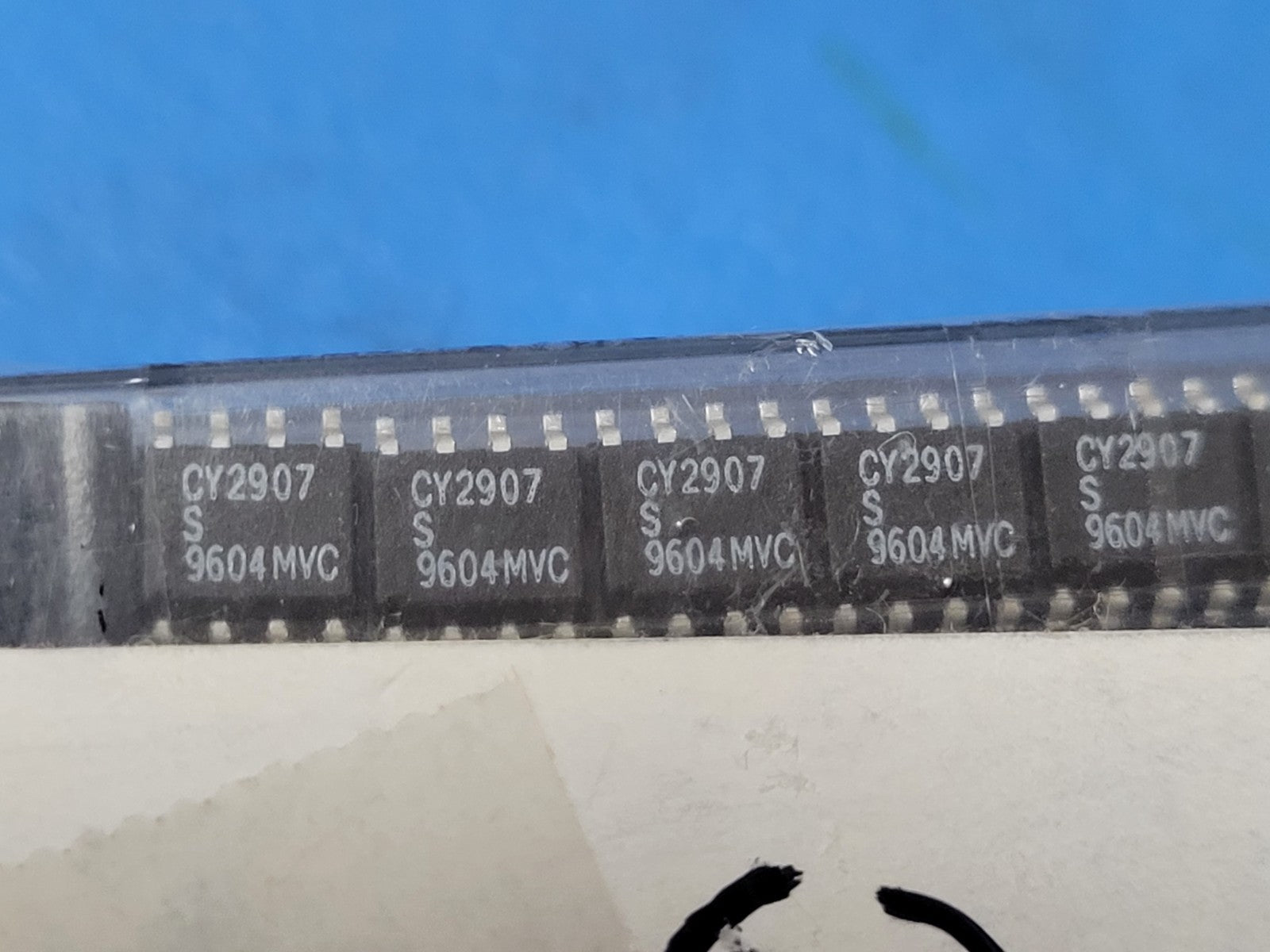

THIS IS FOR (2 PCS) OF CY2907SC BY CYPRESS
Single-PLL EPROM Programmable Clock Generator SOIC8
Status Discontinued
Additional Feature ALSO AVAILABLE IN 14-PIN
JESD-30 Code R-PDSO-G8
Length (mm) 4.9000
Number of Terminals 8
Operating Temperature-Max (Cel) 70.0000
Operating Temperature-Min (Cel) 0.0000
Output Clock Frequency-Max (MHz) 130.0000000000000000
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Primary Clock/Crystal Frequency-Nom (MHz) 30.0000000000000000
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 3.9000
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, OTHER
