(2 PCS) CD4081BF/3 RCA AND Gate 4-Element 2-IN 14-Pin CDIP

$8.95
Unit price per

Tax included.

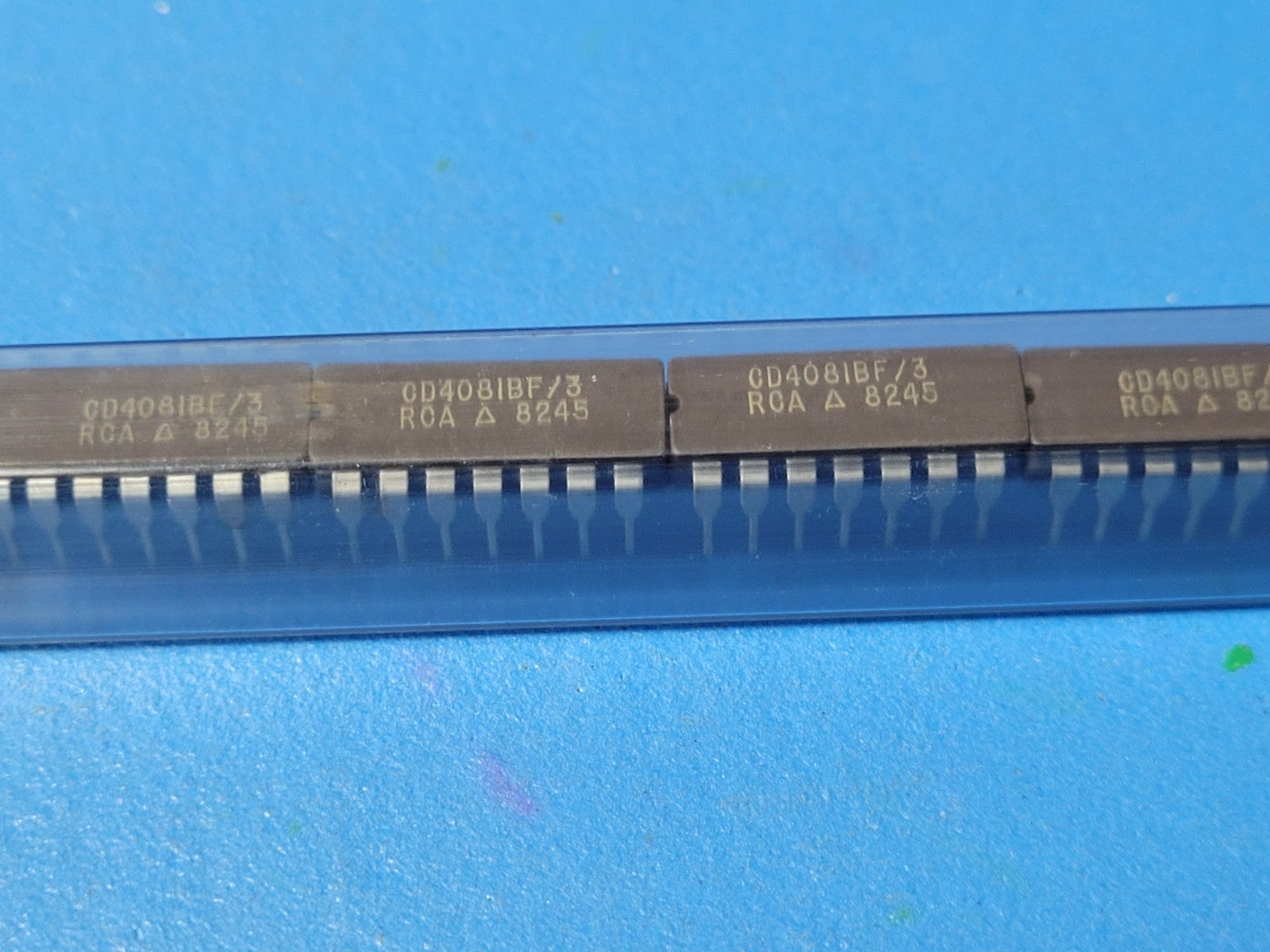

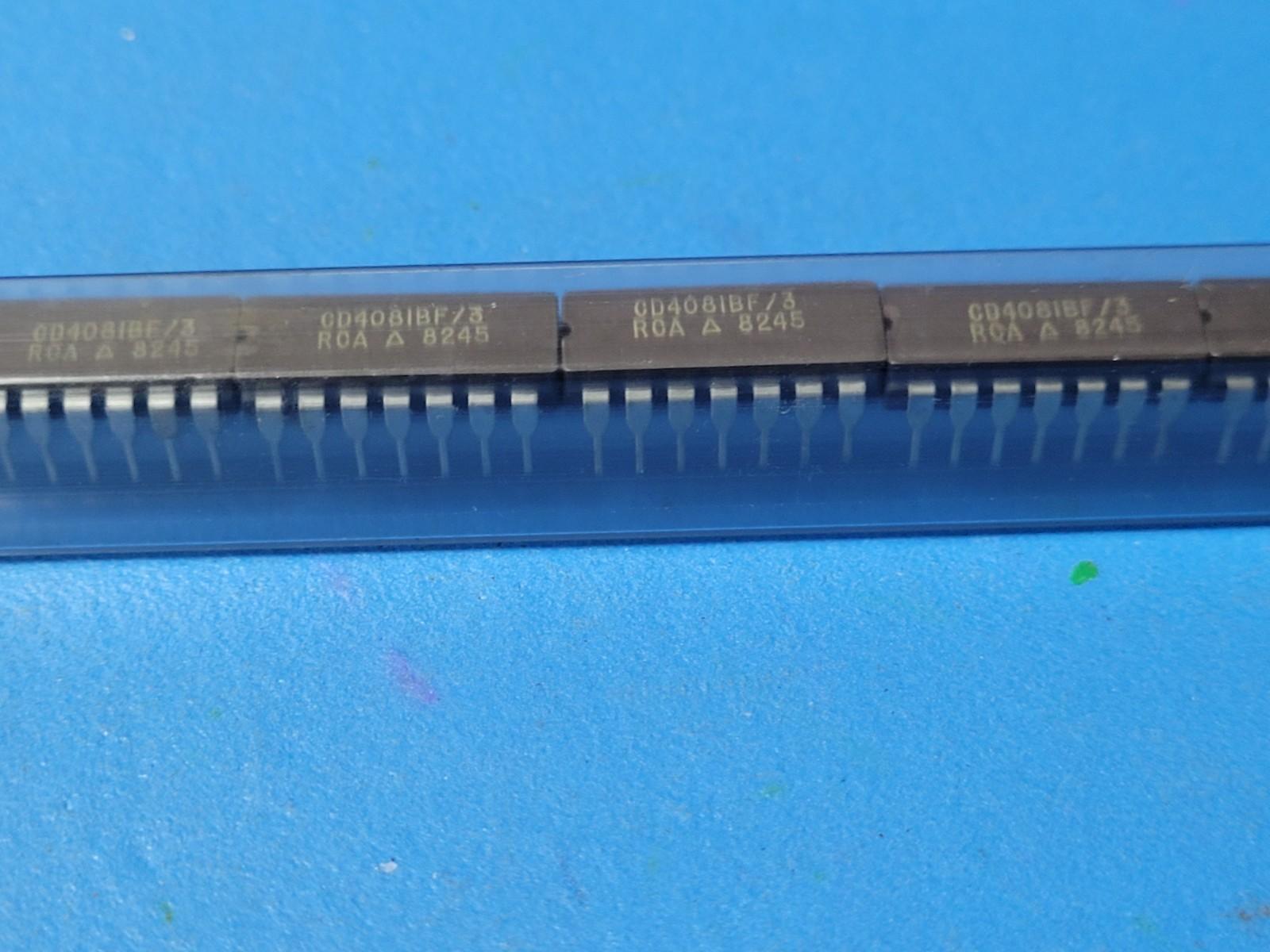

THIS IS FOR (2 PCS) OF CD4081BF/3 BY RCA

AND Gate 4-Element 2-IN 14-Pin CDIP

Part #: CD4081BF/3

Obsolete

Part Category: Gates

Manufacturer: RCA SOLID STATE

Description: AND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, CDIP14

Status Discontinued

Family 4000/14000/40000

JESD-30 Code R-GDIP-T14

J-STD-609 Code e0

Length (mm) 19.9400

Logic IC Type AND GATE

Number of Functions 4

Number of Inputs 2

Number of Terminals 14

Operating Temperature-Max (Cel) 125

Operating Temperature-Min (Cel) -55

Package Body Material CERAMIC, GLASS-SEALED

Package Code DIP

Package Equivalence Code DIP14,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Propagation Delay (ns) 250.0000

DLA Qualification Not Qualified

Schmitt Trigger NO

Screening Level / Reference Standard MIL-STD-883 Class B (Modified)

Seated Height-Max (mm) 5.0800

Supply Voltage-Max (V) 18.0000

Supply Voltage-Min (V) 3.0000

Supply Voltage-Nom (V) 5

Surface Mount NO

Technology CMOS

Temperature Grade MILITARY

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch (mm) 2.540

Terminal Position DUAL

Width (mm) 7.6200
