(2 PCS) BTA26-600B ST MICRO Thyristor TRIAC 600V 260A 3-Pin(3+Tab) TOP Insulated
Tax included.

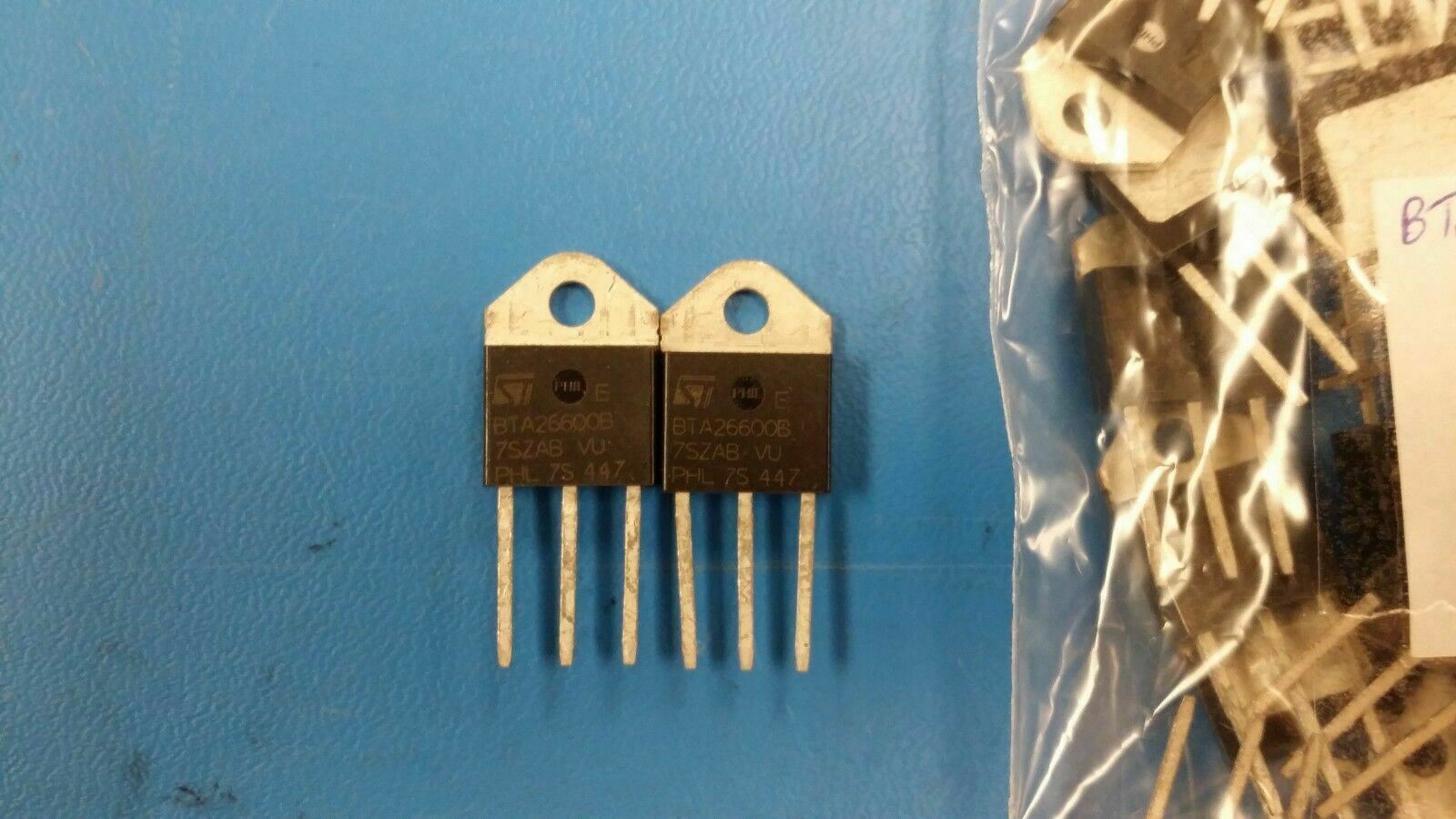

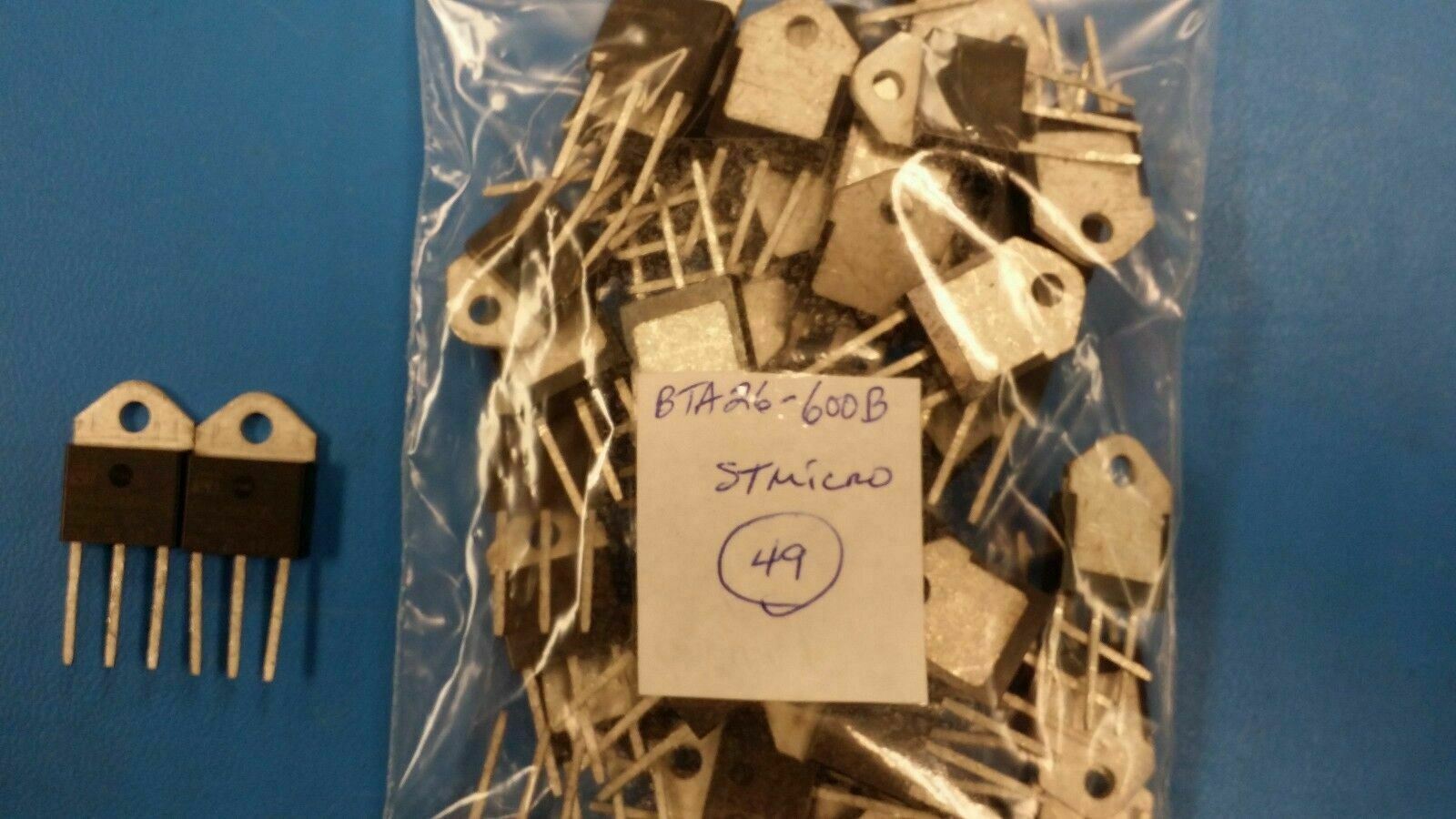

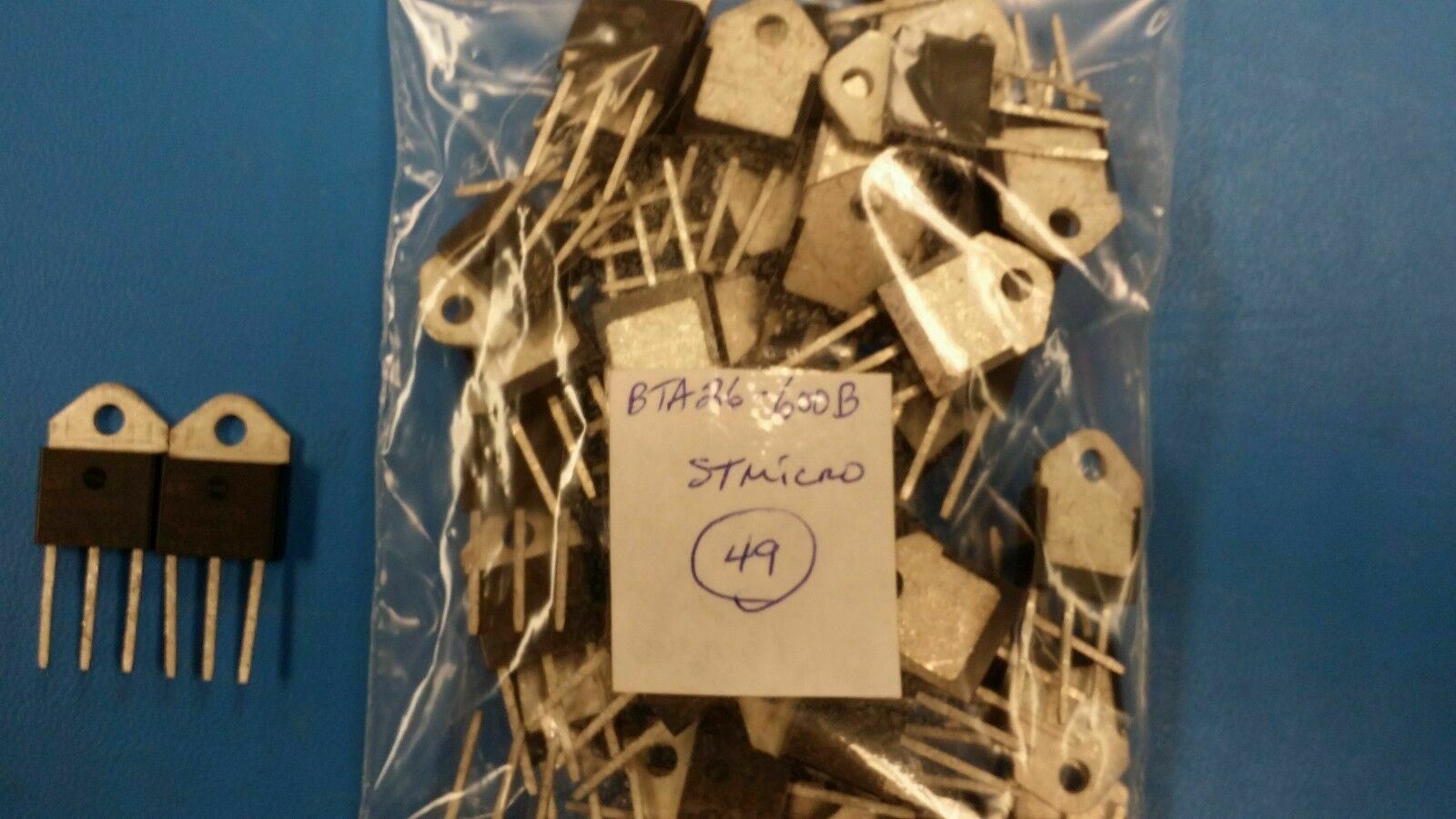

THIS LISTING IS FOR (2 PCS) OF BTA26-600B BY ST MICRO
Thyristor TRIAC 600V 260A 3-Pin(3+Tab) TOP Insulated
Part #: BTA26-600B
Part Category: Trigger Devices
Manufacturer: STMicroelectronics, Inc.
Description: 600V, 25A, 4 QUADRANT LOGIC LEVEL TRIAC
Manufacturer: STMicroelectronics, Inc.
Description: 600V, 25A, 4 QUADRANT LOGIC LEVEL TRIAC
| Mfr Package Description | PLASTIC, TOP3, 3 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Critical Rate of Rise of Commutation Voltage-Min | 10.0 V/us |
| Critical Rate of Rise of Off-state Voltage-Min | 250.0 V/us |
| DC Gate Trigger Current-Max | 50.0 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 80.0 mA |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 3.0 mA |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | 245 |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 10.0 µA |
| Repetitive Peak Off-state Voltage | 600.0 V |
| RMS On-state Current-Max | 25.0 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
