(2 PCS) BRT22H VISHAY Optoisolator Triac Output 5300Vrms 1 Channel 6-DIP
Tax included.

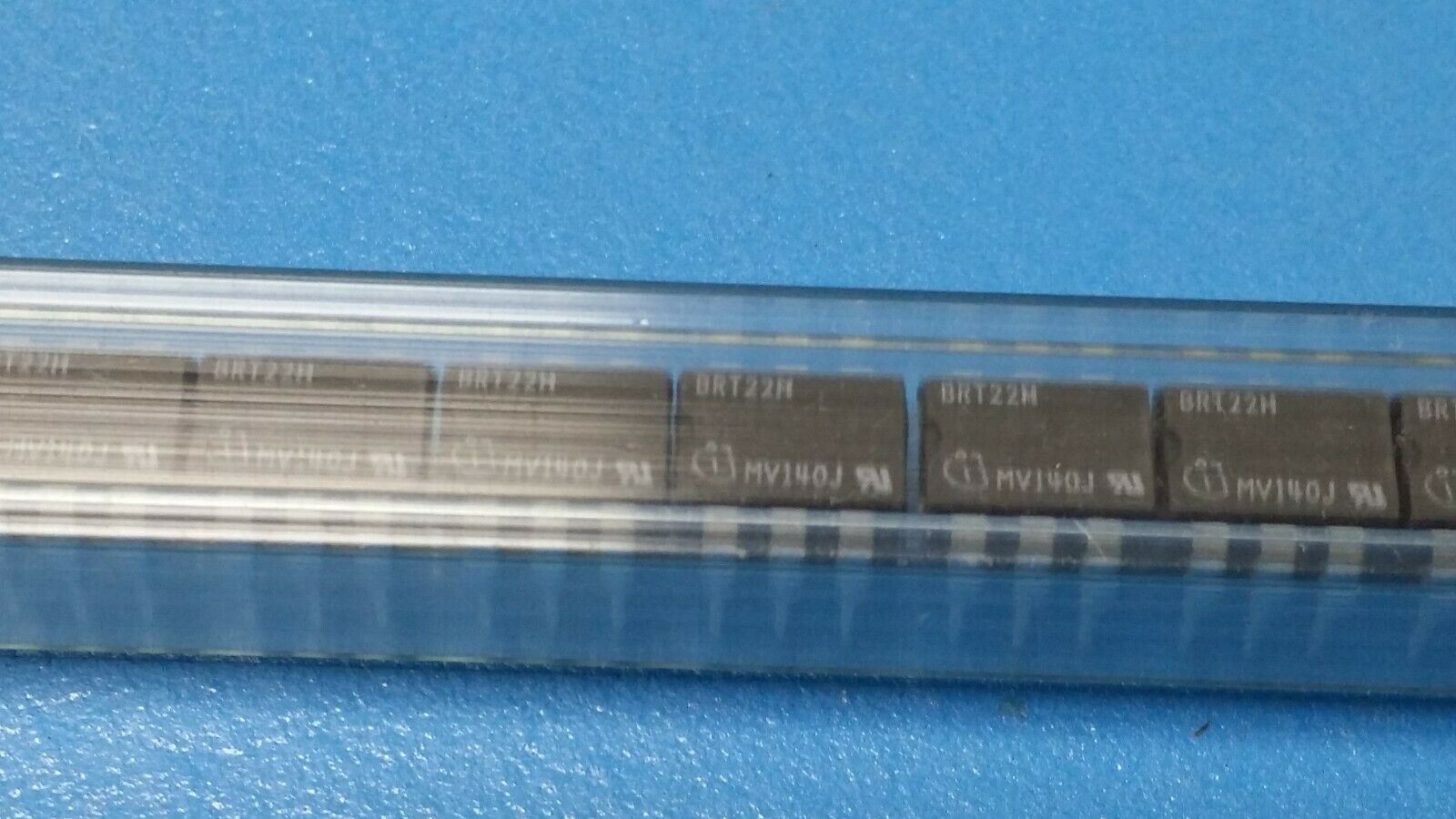

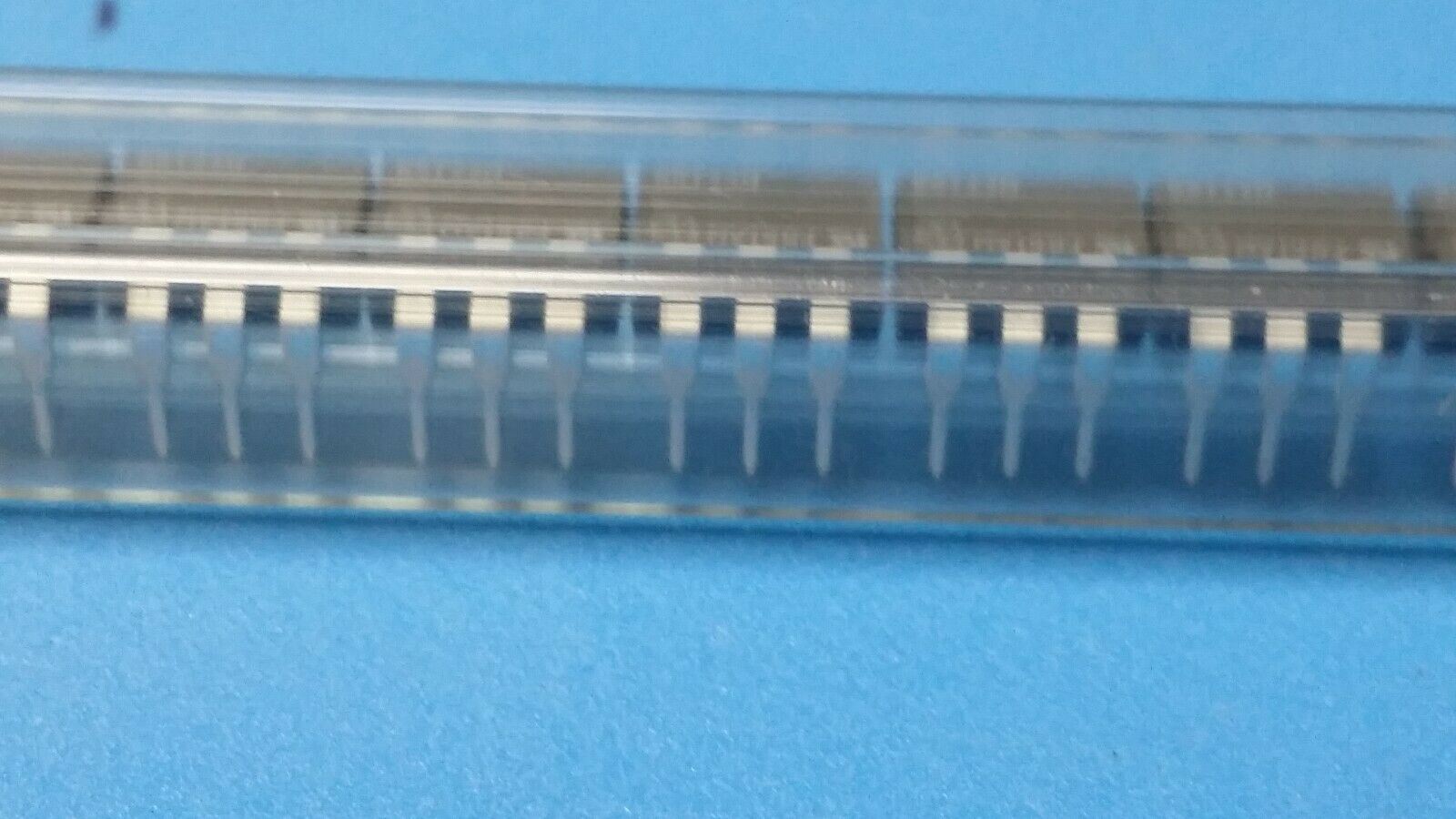

THIS LISTING IS FOR (2 PCS) OF BRT22H BY VISHAY
Optoisolator Trans with Base Output 5300Vrms 1 Channel 6-DIP
Mfr Vishay Semiconductor Opto Division
Series -
Package Tube
Part Status Obsolete
Output Type Triac
Zero Crossing Circuit Yes
Voltage - Isolation 5300Vrms
Static dV/dt (Min) 10kV/µs
Current - LED Trigger (Ift) (Max) 2mA
Current - Hold (Ih) 500µA
Turn On Time 35µs
Voltage - Forward (Vf) (Typ) 1.16V
Operating Temperature -40°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300"", 7.62mm)
Supplier Device Package 6-DIP
Approval Agency CQC, UL
Number of Channels 1
Voltage - Off State 600V
Current - On State (It (RMS)) (Max) 300mA
Current - DC Forward (If) (Max) 60mA
Base Product Number BRT22
