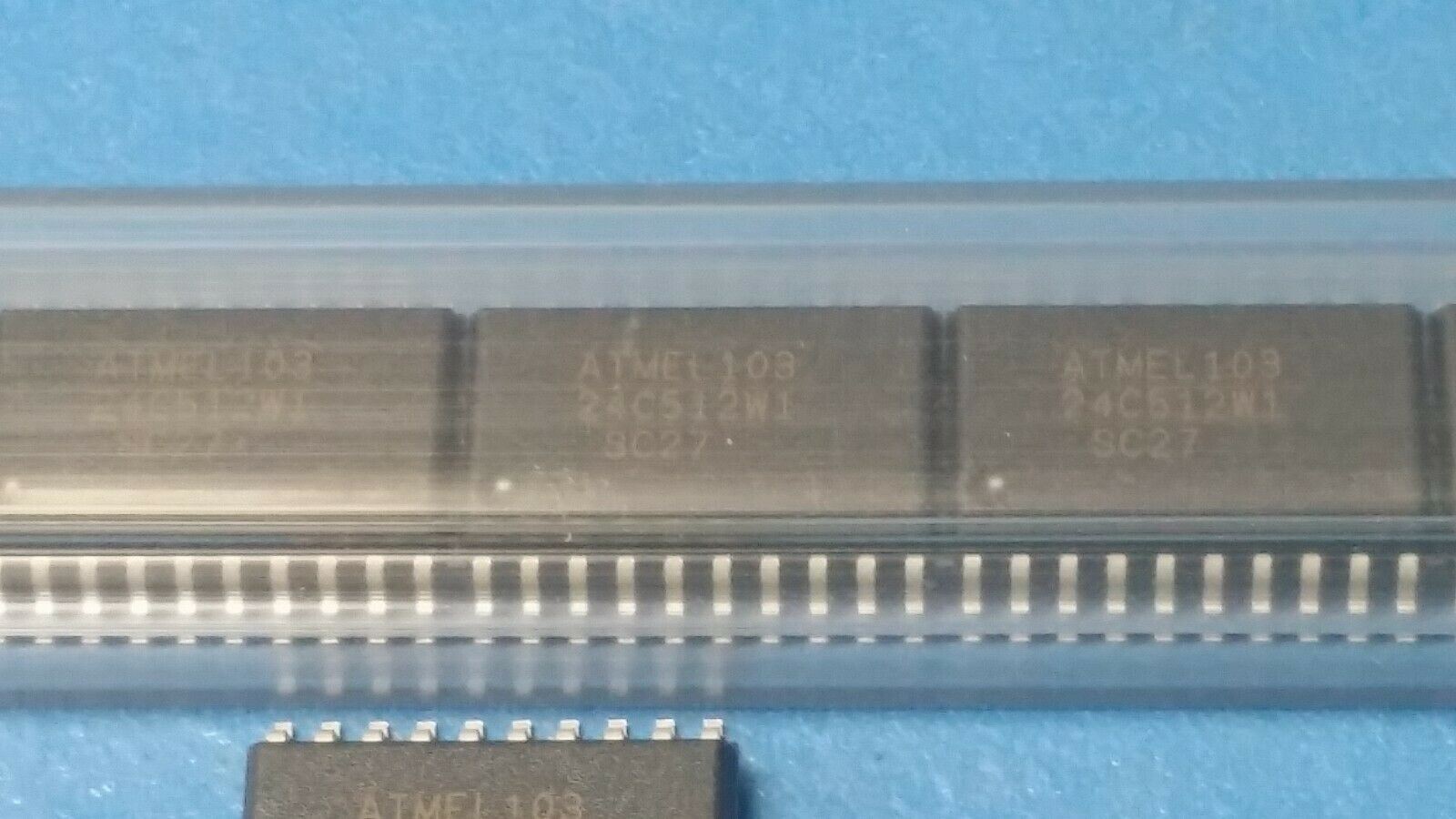

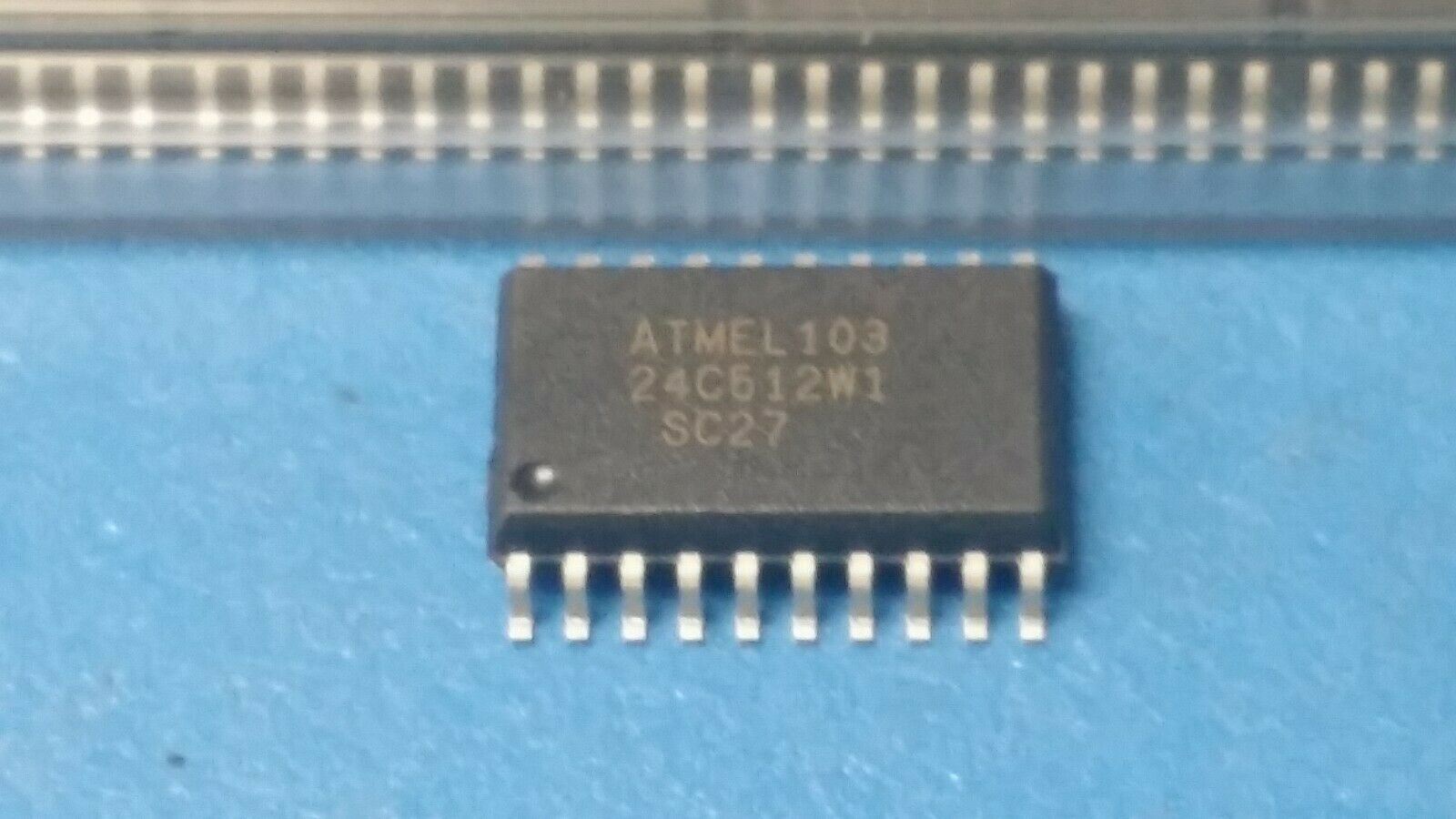

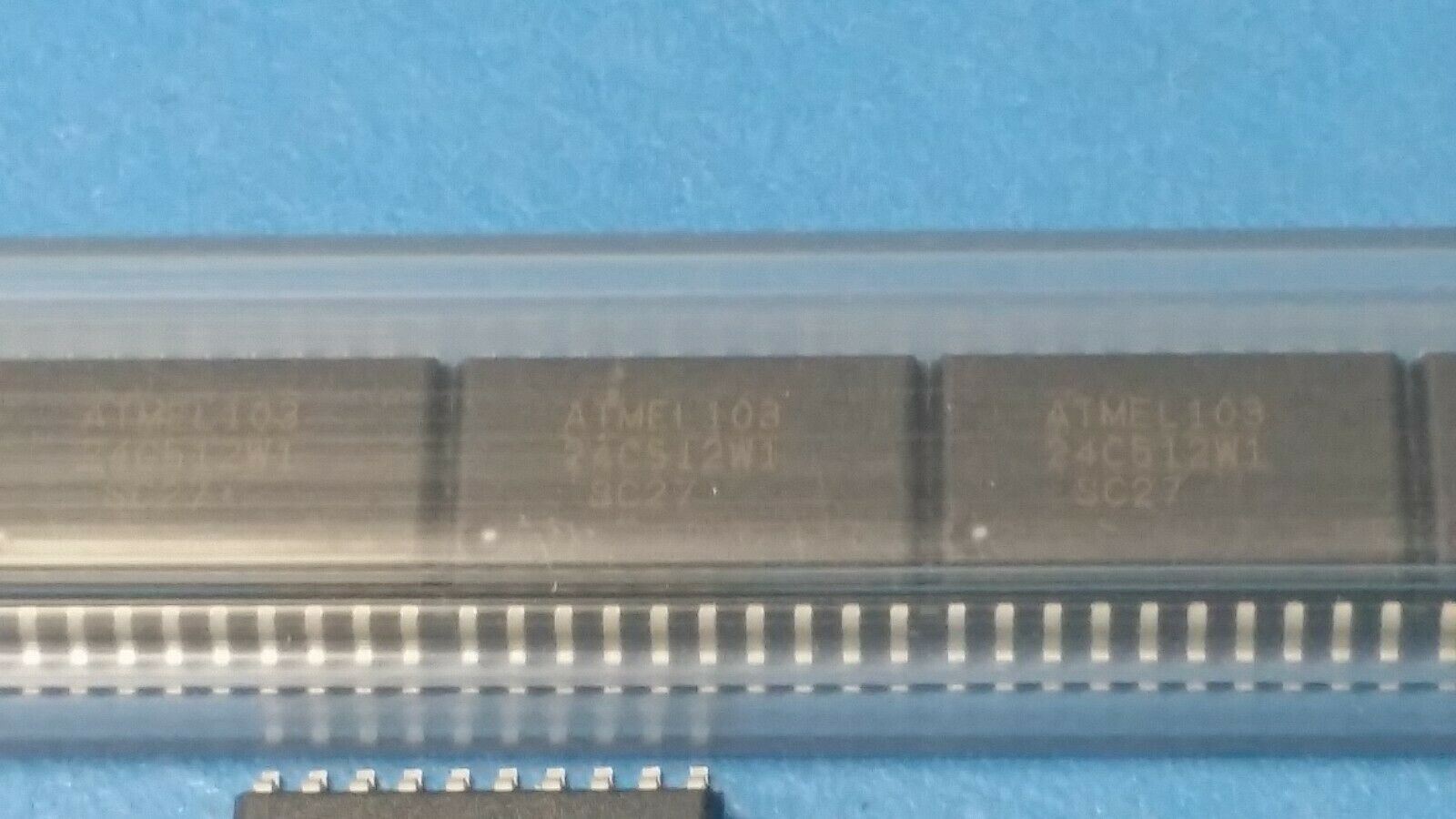

THIS IS FOR (2 PCS) OF AT24C512W1-10SC-2.7 BY ATMEL
EEPROM, 64KX8, 2.7V, Serial, CMOS, SOIC-20

Part #: AT24C512W1-10SC-2.7
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: EEPROM, 64KX8, Serial, CMOS, PDSO20

Mfr Package Description 0.300 INCH, PLASTIC, SOIC-20
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 0.4  MHz
Data Retention Time-Min 40
Endurance 100000.0  Write/Erase Cycles
I2C Control Byte 10100DDR
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Memory Density 524288.0  bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Terminals 20
Number of Words 65536.0  words
Number of Words Code 64K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 64KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Qualification Status Not Qualified
Seated Height-Max 2.65  mm
Serial Bus Type I2C
Standby Current-Max 6.0E-7  Amp
Supply Current-Max 0.003  Amp
Supply Voltage-Nom (Vsup) 3.0  V
Supply Voltage-Min (Vsup) 2.7  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Write Cycle Time-Max (tWC) 10.0  ms
Write Protection HARDWARE
Length 12.8  mm
Width 7.5  mm
