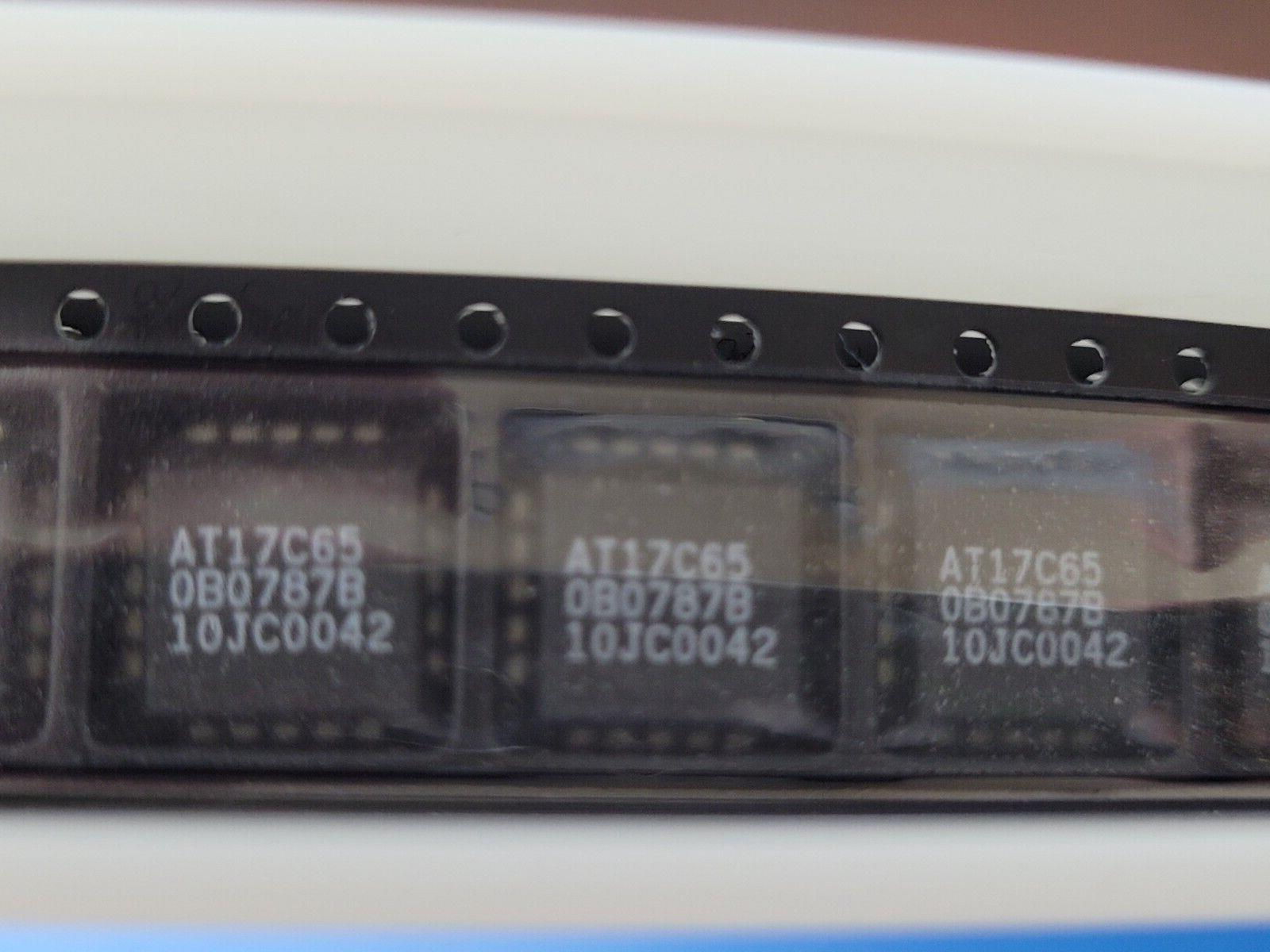

(2 PCS) AT17C65-10JC ATMEL EEPROM Memory 64KX1 50ns Serial CMOS PLCC20
Tax included.
THIS IS FOR (2 PCS) OF AT17C65-10JC BY ATMEL
EEPROM Memory 64KX1 50ns Serial CMOS PLCC20
Part #: AT17C65A-10JC
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: Configuration Memory, 64KX1, 50ns, Serial, CMOS, PQCC20
Mfr Package Description PLASTIC, LCC-20
Status Discontinued
Sub Category EEPROMs
Access Time-Max 50.0 ns
JESD-30 Code S-PQCC-J20
JESD-609 Code e0
Memory Density 65536.0 bit
Memory IC Type CONFIGURATION MEMORY
Memory Width 1
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 20
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64KX1
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC20,.4SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Standby Current-Max 0.001 Amp
Supply Current-Max 0.01 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 8.9662 mm
Width 8.9662 mm
