(2 PCS) AM29F400BB-70SC AMD Flash, 256K X 16, 70ns, SOIC-44
Tax included.

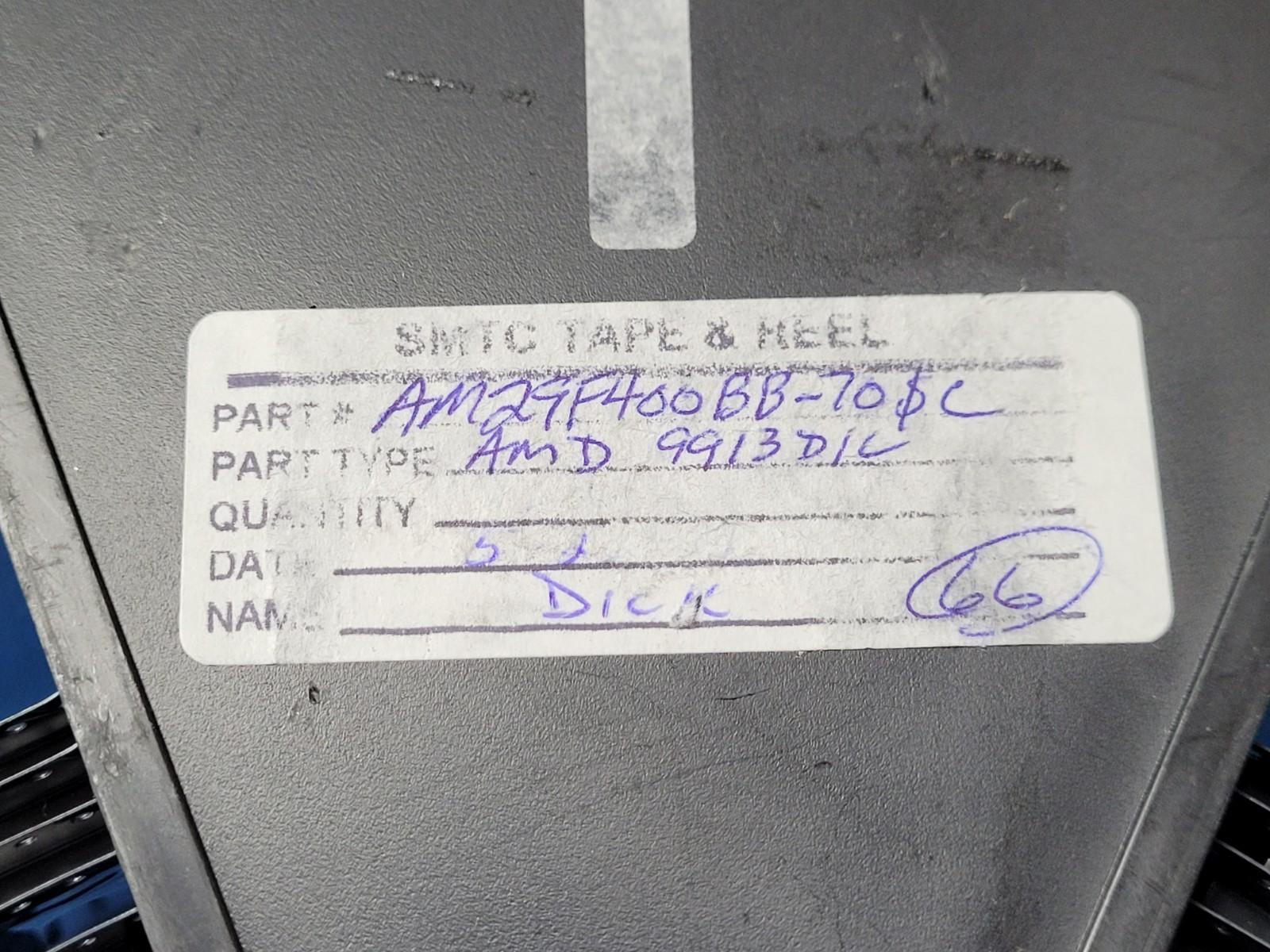

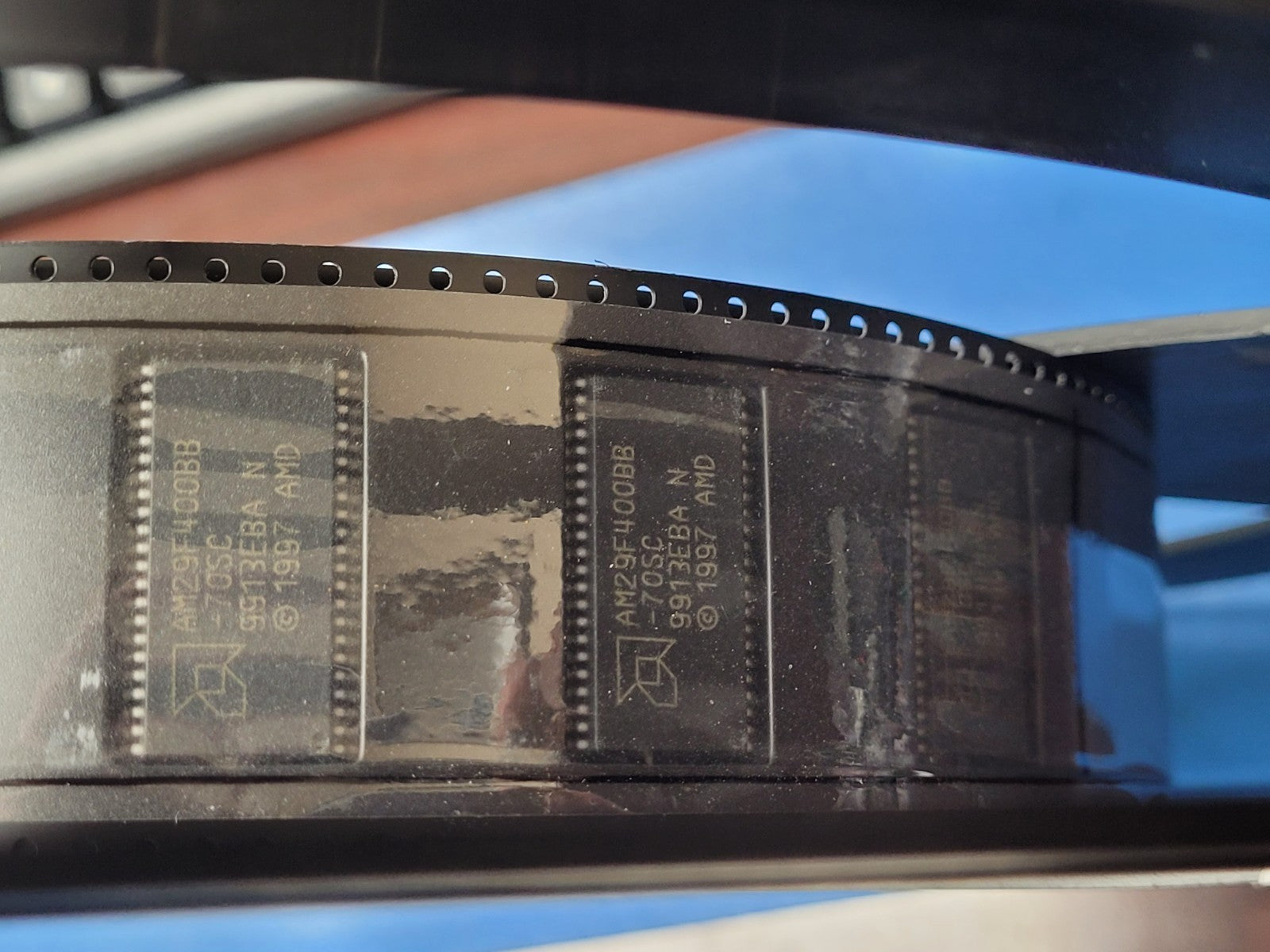

THIS IS FOR (2 PCS) OF AM29F400BB-70SC BY AMD
Flash, 256K X 16, 70ns, SOIC-44
Access Time-Max (ns) 70.0000000000000000
Additional Feature MINIMUM 1000K PROGRAM/ERASE CYCLE ;20 YEAR DATA RETENTION
Alternate Memory Width 8
Boot Block BOTTOM
Command User Interface YES
Data Polling YES
Data Retention Time-Min 20
Endurance (Write/Erase Cycles) 1000000.000000000000000
JESD-30 Code R-PDSO-G44
J-STD-609 Code e0
Length (mm) 28.2000
Memory Density (bits) 4194304.0000000000000000
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 1,2,1,7
Number of Terminals 44
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP44,.63
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Programming Voltage (V) 5
DLA Qualification Not Qualified
Ready/Busy YES
Seated Height-Max (mm) 2.8000
Sector Size (words) 16K,8K,32K,64K
Standby Current-Max (A) 0.000005000000000
Supply Current-Max (mA) 60.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Toggle Bit YES
Type NOR TYPE
Width (mm) 13.3000
