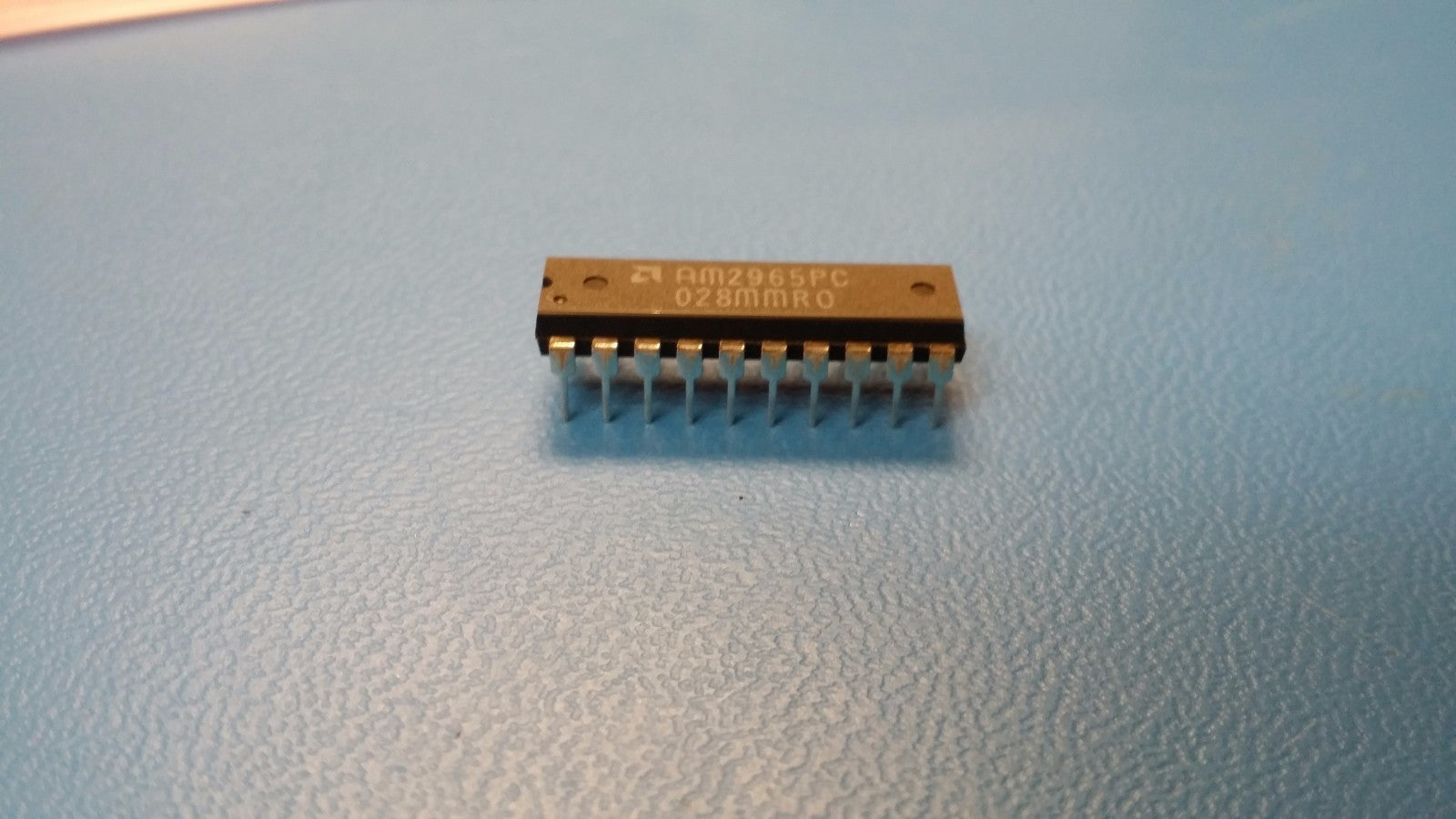

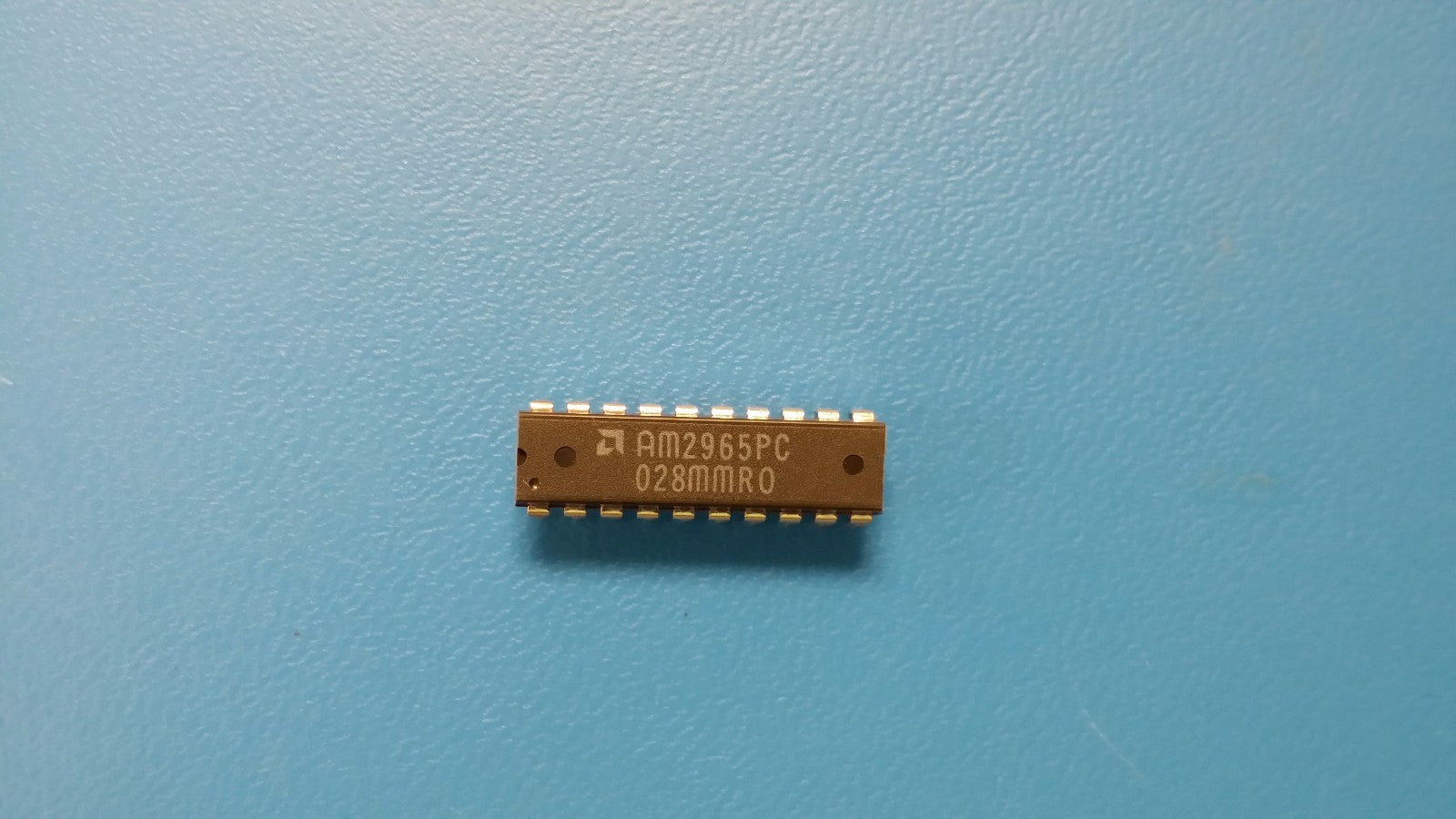

(2 PCS) AM2965PC AMD IC BUFFER INVERT 5.25V 20DIP
Tax included.
THIS LISTING IS FOR (2 PCS) OF AM2965PC BY AMD
IC BUFFER INVERT 5.25V 20DIP
Part #: AM2965PC
Part Category: Interface ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: Buffer/Inverter Based Peripheral Driver, 0.2A, BIPolar, PDIP20
Mfr Package Description PLASTIC, DIP-20
Status Discontinued
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Built-in Protections TRANSIENT
Input Characteristics STANDARD
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Number of Functions 2
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Current Flow Direction SOURCE AND SINK
Output Peak Current Limit-Nom 0.2 A
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Current-Max 125.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Turn-off Time 35.0 µs
Turn-on Time 35.0 µs
Length 26.035 mm
Width 7.62 mm
