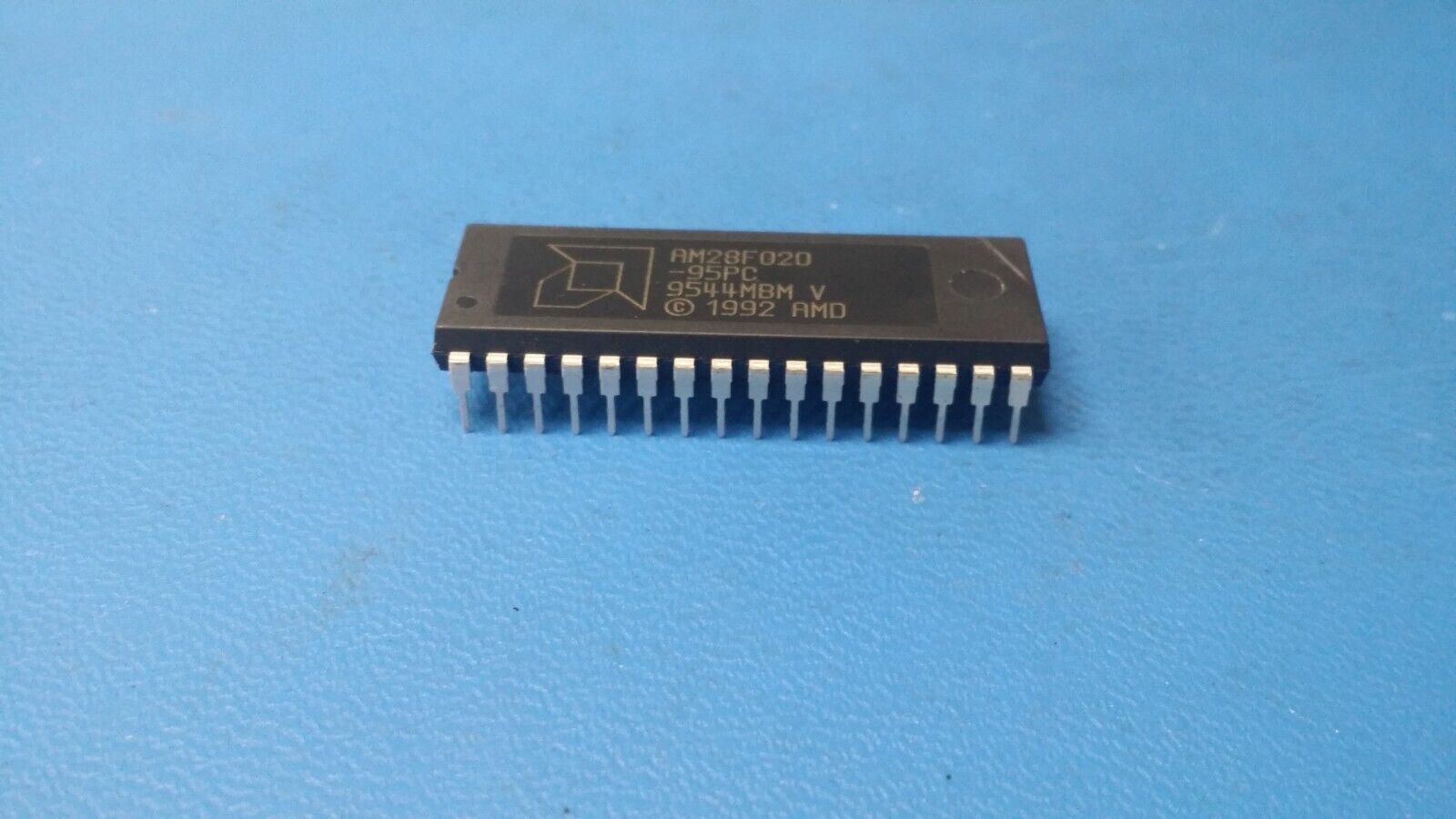

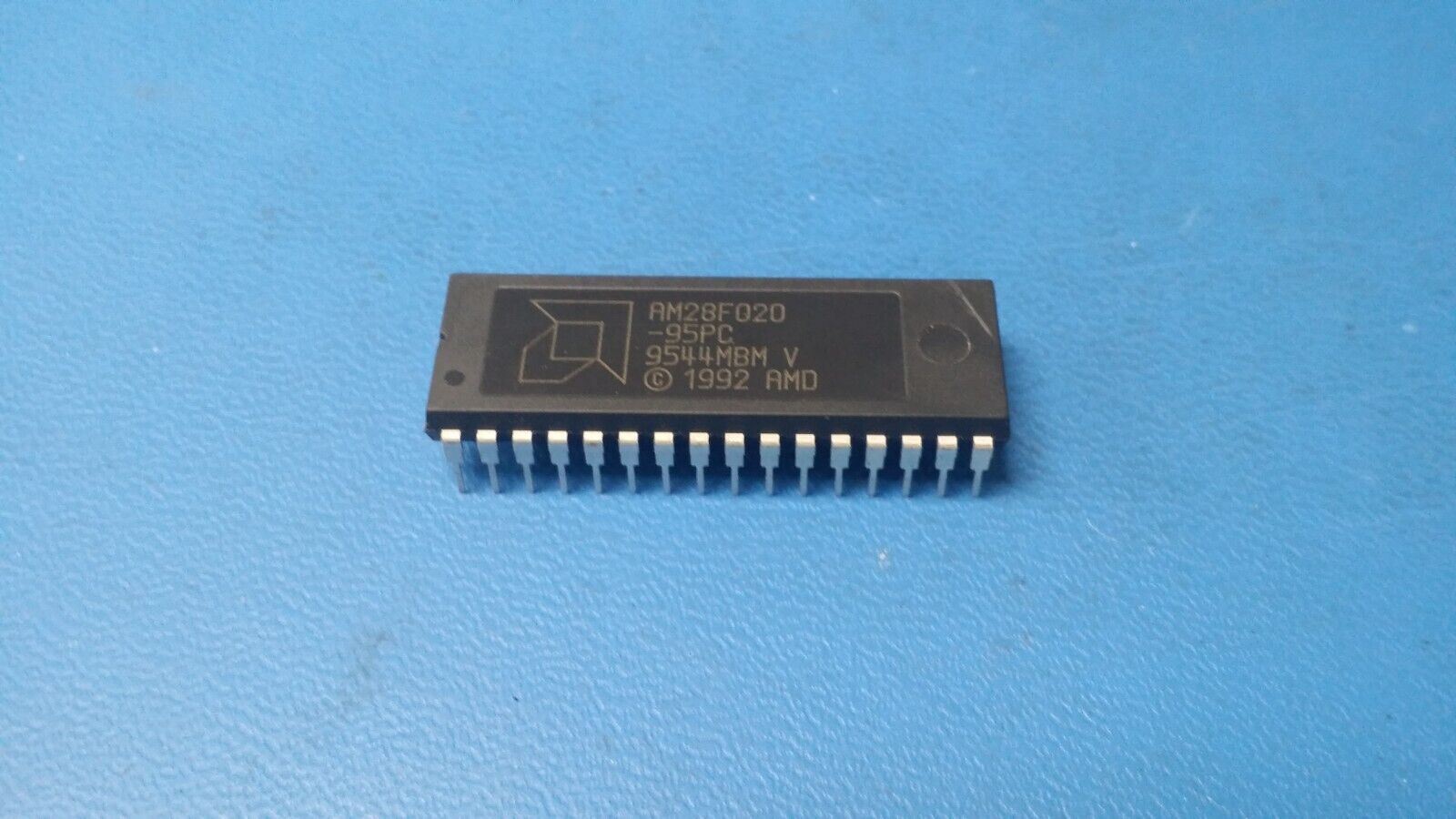

(1 PC) AM28F020-95PC AMD Flash, 256KX8, 90ns, PDIP32
Tax included.
THIS IS FOR (2 PCS) OF AM28F020-95PC BY AMD
Flash, 256KX8, 90ns, PDIP32
Part #: AM28F020-95PC
Part Category: Memory ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: Flash, 256KX8, 90ns, PDIP32
Mfr Package Description PLASTIC, DIP-32
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 90.0 ns
Command User Interface YES
Data Polling NO
Endurance 10000.0 Write/Erase Cycles
JESD-30 Code R-PDIP-T32
JESD-609 Code e0
Memory Density 2097152.0 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 262144.0 words
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 256KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP32,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.715 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Toggle Bit NO
Length 42.164 mm
Width 15.24 mm
Additional Feature 10K WRITE/ERASE CYCLES MIN
