(2 PCS) A6T-6104 OMRON Switch DIP ON OFF SPST 6 Raised Slide 0.025A 24VDC ROHS

Tax included.
Only 20 left!

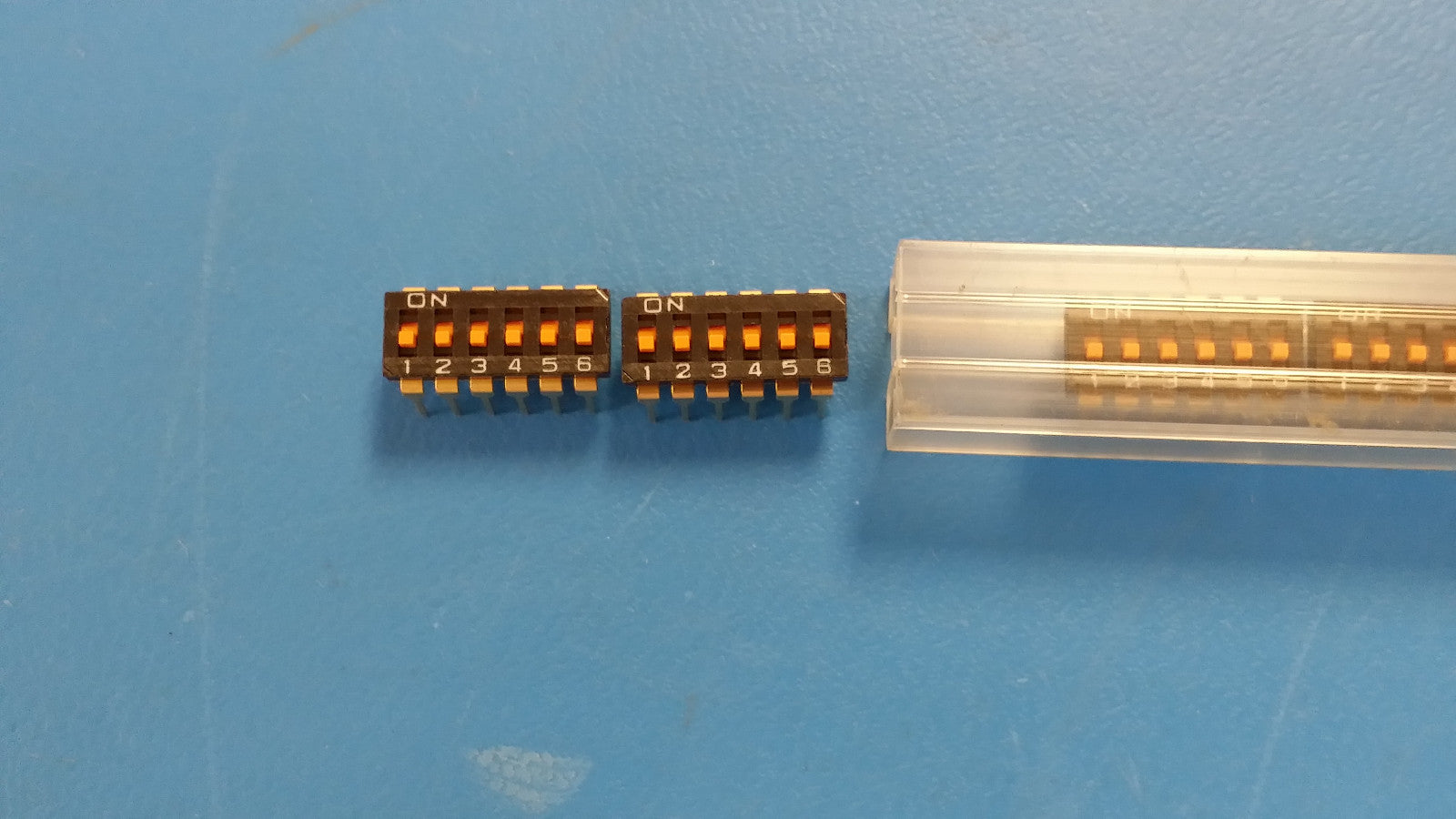

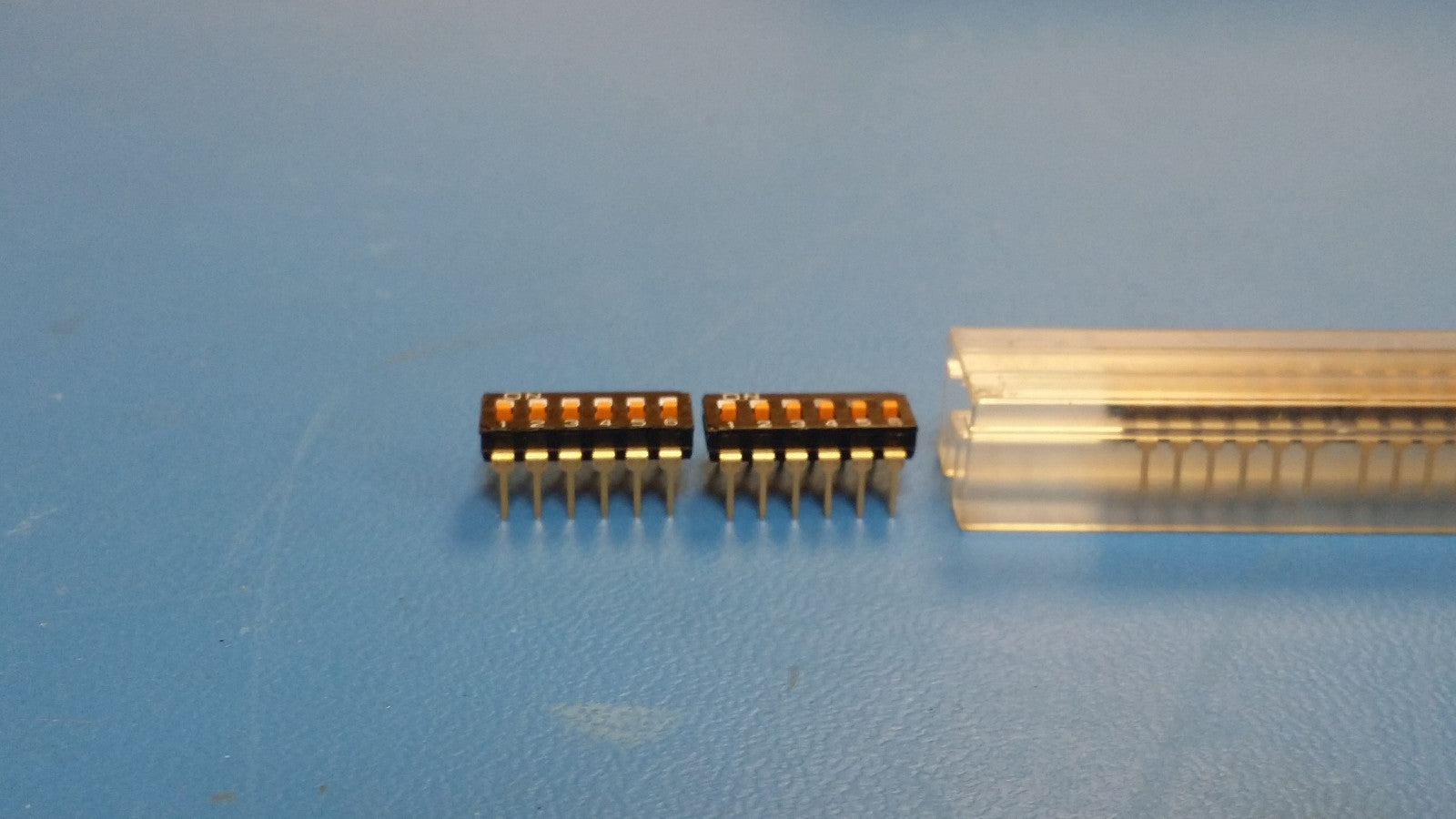

THIS LISTING IS FOR (2 PCS) OF A6T-6104 BY OMRON
Switch DIP ON OFF SPST 6 Raised Slide 0.025A 24VDC ROHS

Manufacturer Omron Electronics Inc-EMC Div
Series A6T
Packaging Tube
Part Status Active
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material -
Contact Finish -
Height Above Board 0.165" (4.20mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Operating Temperature -20°C ~ 70°C
Body Material -
Length 0.637" (16.18mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
